本文分享自华为云社区《MySQL高可用架构MHA+ProxySQL实现读写分离和负载均衡》,作者:小麦苗 DB 宝。
一、MHA+ProxySQL 架构
我们都知道,MHA(Master High Availability Manager and tools for MySQL)目前在 MySQL 高可用方面是一个相对成熟的解决方案,是一套作为 MySQL 高可用性环境下故障切换和主从提升的高可用软件。它的架构是要求一个 MySQL 复制集群必须最少有 3 台数据库服务器,一主二从,即一台充当 Master,一台充当备用 Master,另一台充当从库。但是,如果不连接任何外部的数据库中间件,那么就会导致所有的业务压力流向主库,从而造成主库压力过大,而 2 个从库除了本身的 IO 和 SQL 线程外,无任何业务压力,会严重造成资源的浪费。因此,我们可以把 MHA 和 ProxySQL 结合使用来实现读写分离和负载均衡。所有的业务通过中间件 ProxySQL 后,会被分配到不同的 MySQL 机器上。从而,前端的写操作会流向主库,而读操作会被负载均衡的转发到 2 个从库上。
MHA+ProxySQL 架构如下图所示:
https://cdn.jsdelivr.net/gh/lhrbest/pic/img/20210416111756.png
二、快速搭建 MHA 环境
2.1 下载 MHA 镜像
小麦苗的 Docker Hub 的地址:https://hub.docker.com/u/lhrbest
-- 下载镜像
docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-master1-ip131
docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-slave1-ip132
docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-slave2-ip133
docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-monitor-ip134
-- 重命名镜像
docker tag registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-master1-ip131 lhrbest/mha-lhr-master1-ip131
docker tag registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-slave1-ip132 lhrbest/mha-lhr-slave1-ip132
docker tag registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-slave2-ip133 lhrbest/mha-lhr-slave2-ip133
docker tag registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-monitor-ip134 lhrbest/mha-lhr-monitor-ip134
一共 4 个镜像,3 个 MHA Node,一个 MHA Manager,压缩包大概 3G,下载完成后:
[root@lhrdocker ~]# docker images | grep mha
registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-monitor-ip134 latest 7d29597dc997 14 hours ago 1.53GB
registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-slave2-ip133 latest d3717794e93a 40 hours ago 4.56GB
registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-slave1-ip132 latest f62ee813e487 40 hours ago 4.56GB
registry.cn-hangzhou.aliyuncs.com/lhrbest/mha-lhr-master1-ip131 latest ae7be48d83dc 40 hours ago 4.56GB
2.2 编辑 yml 文件,创建 MHA 相关容器
编辑 yml 文件,使用 docker-compose 来创建 MHA 相关容器,注意 docker-compose.yml 文件的格式,对空格、缩进、对齐都有严格要求:
# 创建存放yml文件的路径
mkdir -p /root/mha
# 编辑文件/root/mha/docker-compose.yml
cat > /root/mha/docker-compose.yml <<"EOF"
version: '3.8'
services:
MHA-LHR-Master1-ip131:
container_name: "MHA-LHR-Master1-ip131"
restart: "always"
hostname: MHA-LHR-Master1-ip131
privileged: true
image: lhrbest/mha-lhr-master1-ip131
ports:
- "33131:3306"
- "2201:22"
networks:
mhalhr:
ipv4_address: 192.168.68.131
MHA-LHR-Slave1-ip132:
container_name: "MHA-LHR-Slave1-ip132"
restart: "always"
hostname: MHA-LHR-Slave1-ip132
privileged: true
image: lhrbest/mha-lhr-slave1-ip132
ports:
- "33132:3306"
- "2202:22"
networks:
mhalhr:
ipv4_address: 192.168.68.132
MHA-LHR-Slave2-ip133:
container_name: "MHA-LHR-Slave2-ip133"
restart: "always"
hostname: MHA-LHR-Slave2-ip133
privileged: true
image: lhrbest/mha-lhr-slave2-ip133
ports:
- "33133:3306"
- "2203:22"
networks:
mhalhr:
ipv4_address: 192.168.68.133
MHA-LHR-Monitor-ip134:
container_name: "MHA-LHR-Monitor-ip134"
restart: "always"
hostname: MHA-LHR-Monitor-ip134
privileged: true
image: lhrbest/mha-lhr-monitor-ip134
ports:
- "33134:3306"
- "2204:22"
networks:
mhalhr:
ipv4_address: 192.168.68.134
networks:
mhalhr:
name: mhalhr
ipam:
config:
- subnet: "192.168.68.0/16"
EOF
2.3 安装 docker-compose 软件(若已安装,可忽略)
安装 Docker Compose 官方文档:https://docs.docker.com/compose/
编辑 docker-compose.yml 文件官方文档:https://docs.docker.com/compose/compose-file/
[root@lhrdocker ~]# curl --insecure -L https://github.com/docker/compose/releases/download/1.28.4/docker-compose-Linux-x86_64 -o /usr/local/bin/docker-compose
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 638 100 638 0 0 530 0 0:00:01 0:00:01 --:--:-- 531
100 11.6M 100 11.6M 0 0 1994k 0 0:00:06 0:00:06 --:--:-- 2943k
[root@lhrdocker ~]# chmod +x /usr/local/bin/docker-compose
[root@lhrdocker ~]# docker-compose -v
docker-compose version 1.28.4, build cabd5cfb
2.4 创建 MHA 容器
# 启动mha环境的容器,一定要进入文件夹/root/mha/后再操作
-- docker rm -f MHA-LHR-Master1-ip131 MHA-LHR-Slave1-ip132 MHA-LHR-Slave2-ip133 MHA-LHR-Monitor-ip134
[root@lhrdocker ~]# cd /root/mha/
[root@lhrdocker mha]#
[root@lhrdocker mha]# docker-compose up -d
Creating network "mhalhr" with the default driver
Creating MHA-LHR-Monitor-ip134 ... done
Creating MHA-LHR-Slave2-ip133 ... done
Creating MHA-LHR-Master1-ip131 ... done
Creating MHA-LHR-Slave1-ip132 ... done
[root@docker35 ~]# docker ps | grep "mha\|COMMAND"
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2978361198b7 lhrbest/mha-lhr-master1-ip131 "/usr/sbin/init" 2 minutes ago Up 2 minutes 16500-16599/tcp, 0.0.0.0:2201->22/tcp, 0.0.0.0:33131->3306/tcp MHA-LHR-Master1-ip131
a64e2e86589c lhrbest/mha-lhr-slave1-ip132 "/usr/sbin/init" 2 minutes ago Up 2 minutes 16500-16599/tcp, 0.0.0.0:2202->22/tcp, 0.0.0.0:33132->3306/tcp MHA-LHR-Slave1-ip132
d7d6ce34800b lhrbest/mha-lhr-monitor-ip134 "/usr/sbin/init" 2 minutes ago Up 2 minutes 0.0.0.0:2204->22/tcp, 0.0.0.0:33134->3306/tcp MHA-LHR-Monitor-ip134
dacd22edb2f8 lhrbest/mha-lhr-slave2-ip133 "/usr/sbin/init" 2 minutes ago Up 2 minutes 16500-16599/tcp, 0.0.0.0:2203->22/tcp, 0.0.0.0:33133->3306/tcp MHA-LHR-Slave2-ip133
2.5 主库 131 添加 VIP
# 进入主库131
docker exec -it MHA-LHR-Master1-ip131 bash
# 添加VIP135
/sbin/ifconfig eth0:1 192.168.68.135/24
ifconfig
# 如果删除的话
ip addr del 192.168.68.135/24 dev eth1
添加完成后:
[root@MHA-LHR-Master1-ip131 /]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.68.131 netmask 255.255.0.0 broadcast 192.168.255.255
ether 02:42:c0:a8:44:83 txqueuelen 0 (Ethernet)
RX packets 220 bytes 15883 (15.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 189 bytes 17524 (17.1 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.68.135 netmask 255.255.255.0 broadcast 192.168.68.255
ether 02:42:c0:a8:44:83 txqueuelen 0
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
loop txqueuelen 1000 (Local Loopback)
RX packets 5 bytes 400 (400.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 5 bytes 400 (400.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
# 管理节点已经可以ping通VIP了
[root@MHA-LHR-Monitor-ip134 /]# ping 192.168.68.135
PING 192.168.68.135 (192.168.68.135) 56(84) bytes of data.
64 bytes from 192.168.68.135: icmp_seq=1 ttl=64 time=0.172 ms
64 bytes from 192.168.68.135: icmp_seq=2 ttl=64 time=0.076 ms
^C
--- 192.168.68.135 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.076/0.124/0.172/0.048 ms
到这一步就可以验证主从复制是否正确,若正确,则可以直接测试 MHA 了。
mysql -uroot -plhr -h192.168.68.131 -P3306
show slave hosts;
mysql> show slave hosts;
+-----------+----------------+------+-----------+--------------------------------------+
| Server_id | Host | Port | Master_id | Slave_UUID |
+-----------+----------------+------+-----------+--------------------------------------+
| 573306133 | 192.168.68.133 | 3306 | 573306131 | d391ce7e-aec3-11ea-94cd-0242c0a84485 |
| 573306132 | 192.168.68.132 | 3306 | 573306131 | d24a77d1-aec3-11ea-9399-0242c0a84484 |
+-----------+----------------+------+-----------+--------------------------------------+
2 rows in set (0.00 sec)

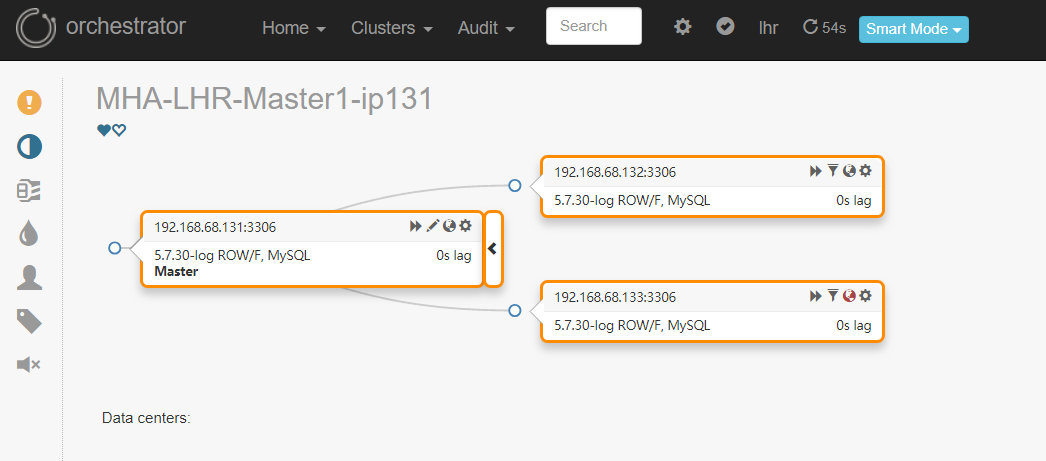

https://cdn.jsdelivr.net/gh/lhrbest/pic/img/20210416111806.png
三、配置 ProxySQL 环境
3.1 申请 ProxySQL 主机并安装 ProxySQL
docker rm -f MHA-LHR-ProxySQL-ip136
docker run -d --name MHA-LHR-ProxySQL-ip136 -h MHA-LHR-ProxySQL-ip136 \
-v /sys/fs/cgroup:/sys/fs/cgroup \
--network mhalhr --ip 192.168.68.136 \
-p 26032:6032 -p 26033:6033 -p 26080:6080 \
--privileged=true lhrbest/lhrcentos76:8.0 \
/usr/sbin/init
docker network connect bridge MHA-LHR-ProxySQL-ip136
docker restart MHA-LHR-ProxySQL-ip136
docker cp proxysql2-2.0.15-1.1.el7.x86_64.rpm MHA-LHR-ProxySQL-ip136:/
docker exec -it MHA-LHR-ProxySQL-ip136 bash
rpm -ivh proxysql2-2.0.15-1.1.el7.x86_64.rpm
systemctl start proxysql
systemctl status proxysql
3.2 添加远程登录用户
-- 添加远程登录用户
mysql -uadmin -padmin -h127.0.0.1 -P6032
select @@admin-admin_credentials;
set admin-admin_credentials='admin:admin;root:lhr';
select @@admin-admin_credentials;
load admin variables to runtime;
save admin variables to disk;
-- 远程登录
mysql -uroot -plhr -h192.168.66.35 -P26032
执行过程:
-- ProxySQL本地登录
[root@MHA-LHR-ProxySQL-ip136 /]# mysql -uadmin -padmin -h127.0.0.1 -P6032
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 162
Server version: 5.5.30 (ProxySQL Admin Module)
Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> select @@admin-admin_credentials;
+---------------------------+
| @@admin-admin_credentials |
+---------------------------+
| admin:admin;lhr:lhr |
+---------------------------+
1 row in set (0.05 sec)
mysql> set admin-admin_credentials='admin:admin;root:lhr';
Query OK, 1 row affected (0.00 sec)
mysql> select @@admin-admin_credentials;
+---------------------------+
| @@admin-admin_credentials |
+---------------------------+
| admin:admin;root:lhr |
+---------------------------+
1 row in set (0.00 sec)
mysql> load admin variables to runtime;
Query OK, 0 rows affected (0.00 sec)
mysql> save admin variables to disk;
Query OK, 35 rows affected (0.13 sec)
mysql>
-- 远程登录
C:\Users\lhrxxt>mysql -uroot -plhr -h192.168.66.35 -P26032
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 1045 (28000): ProxySQL Error: Access denied for user 'root'@'172.17.0.1' (using password: YES)
C:\Users\lhrxxt>mysql -uroot -plhr -h192.168.66.35 -P26032
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 163
Server version: 5.5.30 (ProxySQL Admin Module)
Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MySQL [(none)]> show databases;
+-----+---------------+-------------------------------------+
| seq | name | file |
+-----+---------------+-------------------------------------+
| 0 | main | |
| 2 | disk | /var/lib/proxysql/proxysql.db |
| 3 | stats | |
| 4 | monitor | |
| 5 | stats_history | /var/lib/proxysql/proxysql_stats.db |
+-----+---------------+-------------------------------------+
5 rows in set (0.05 sec)
3.3 开启 ProxySQL 的 web 监控功能
-- 开启web监控功能
SET admin-web_enabled='true';
LOAD ADMIN VARIABLES TO RUNTIME;
SAVE ADMIN VARIABLES TO DISK;
select * from global_variables where variable_name LIKE 'admin-web_enabled';
select @@admin-web_enabled;
lsof -i:6080
-- 浏览器访问
https://192.168.66.35:26080
用户名和密码:stats:stats
https://cdn.jsdelivr.net/gh/lhrbest/pic/img/20210416111815.png
3.4 配置被监控的数据库
3.4.1 向 ProxySQL 插入被监控数据库
-- 1、向ProxySQL插入被监控数据库
select * from mysql_servers;
insert into main.mysql_servers(hostgroup_id,hostname,port) values(10,'192.168.68.131',3306);
insert into main.mysql_servers(hostgroup_id,hostname,port) values(10,'192.168.68.132',3306);
insert into main.mysql_servers(hostgroup_id,hostname,port) values(10,'192.168.68.133',3306);
load mysql servers to runtime;
save mysql servers to disk;
select * from mysql_servers;
MySQL [(none)]> select * from mysql_servers;
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| 10 | 192.168.68.131 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 10 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 10 | 192.168.68.133 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
3 rows in set (0.07 sec)
3.4.2 在所有被监控 MySQL 服务器上创建监控帐户
-- 2、在所有被监控MySQL服务器上创建帐户,注意:新版本中,这里的密码必须为monitor,可参考配置文件/etc/proxysql.cnf
mysql -uroot -plhr -h192.168.66.35 -P33131
create user 'monitor'@'%' IDENTIFIED BY 'monitor';
GRANT all privileges ON *.* TO 'monitor'@'%' with grant option;
select user,host from mysql.user;
mysql> select user,host from mysql.user;
+---------------+--------------+
| user | host |
+---------------+--------------+
| mha | % |
| monitor | % |
| repl | % |
| root | % |
| mysql.session | localhost |
| mysql.sys | localhost |
| root | localhost |
+---------------+--------------+
7 rows in set (0.00 sec)
3.4.3 在所有被监控 MySQL 服务器上创建对外访问账户
-- 3、 在所有被监控MySQL服务器上创建对外访问账户:
create user 'wr'@'%' IDENTIFIED BY 'lhr';
GRANT all privileges ON *.* TO 'wr'@'%' with grant option;
-- 配置到ProxySQL中
insert into mysql_users(username,password,default_hostgroup) values('wr','lhr',10);
update mysql_users set transaction_persistent=1 where username='wr';
load mysql users to runtime;
save mysql users to disk;
select * from mysql_users;
MySQL [(none)]> select * from mysql_users;
+----------+----------+--------+---------+-------------------+----------------+---------------+------------------------+--------------+---------+----------+-----------------+---------+
| username | password | active | use_ssl | default_hostgroup | default_schema | schema_locked | transaction_persistent | fast_forward | backend | frontend | max_connections | comment |
+----------+----------+--------+---------+-------------------+----------------+---------------+------------------------+--------------+---------+----------+-----------------+---------+
| wr | lhr | 1 | 0 | 10 | NULL | 0 | 1 | 0 | 1 | 1 | 10000 | |
+----------+----------+--------+---------+-------------------+----------------+---------------+------------------------+--------------+---------+----------+-----------------+---------+
1 row in set (0.05 sec)
3.4.4 配置监控
-- 4、在ProxySQL端执行下列SQL语句:
set mysql-monitor_username='monitor';
set mysql-monitor_password='monitor';
load mysql servers to runtime;
save mysql servers to disk;
select * from global_variables where variable_name in('mysql-monitor_username','mysql-monitor_password');
+------------------------+----------------+
| variable_name | variable_value |
+------------------------+----------------+
| mysql-monitor_password | monitor |
| mysql-monitor_username | monitor |
+------------------------+----------------+
2 rows in set (0.05 sec)
-- 检查连接到MySQL的日志
select * from monitor.mysql_server_ping_log order by time_start_us desc limit 6;
select * from monitor.mysql_server_connect_log order by time_start_us desc limit 6;
MySQL [(none)]> select * from monitor.mysql_server_ping_log order by time_start_us desc limit 6;
+----------------+------+------------------+----------------------+------------+
| hostname | port | time_start_us | ping_success_time_us | ping_error |
+----------------+------+------------------+----------------------+------------+
| 192.168.68.132 | 3306 | 1614050308827202 | 252 | NULL |
| 192.168.68.133 | 3306 | 1614050308716530 | 370 | NULL |
| 192.168.68.131 | 3306 | 1614050308605853 | 542 | NULL |
| 192.168.68.131 | 3306 | 1614050298778908 | 334 | NULL |
| 192.168.68.133 | 3306 | 1614050298690947 | 297 | NULL |
| 192.168.68.132 | 3306 | 1614050298605725 | 344 | NULL |
+----------------+------+------------------+----------------------+------------+
6 rows in set (0.06 sec)
MySQL [(none)]> select * from monitor.mysql_server_connect_log order by time_start_us desc limit 6;
+----------------+------+------------------+-------------------------+---------------+
| hostname | port | time_start_us | connect_success_time_us | connect_error |
+----------------+------+------------------+-------------------------+---------------+
| 192.168.68.131 | 3306 | 1614050285481316 | 1173 | NULL |
| 192.168.68.133 | 3306 | 1614050284894846 | 1008 | NULL |
| 192.168.68.132 | 3306 | 1614050284309124 | 970 | NULL |
| 192.168.68.131 | 3306 | 1614050225194575 | 1108 | NULL |
| 192.168.68.133 | 3306 | 1614050224751771 | 987 | NULL |
| 192.168.68.132 | 3306 | 1614050224309026 | 1294 | NULL |
+----------------+------+------------------+-------------------------+---------------+
6 rows in set (0.05 sec)
四、故障切换
在 Manager 节点检查 SSH、复制及 MHA 的状态。
docker exec -it MHA-LHR-Monitor-ip134 bash
masterha_check_ssh --conf=/etc/mha/mha.cnf
masterha_check_repl --conf=/etc/mha/mha.cnf
masterha_check_status --conf=/etc/mha/mha.cnf
-- 启动MHA监控进程
nohup masterha_manager --conf=/etc/mha/mha.cnf --ignore_last_failover < /dev/null > /usr/local/mha/manager_start.log 2>&1 &
--关闭MHA监控进程
masterha_stop --conf=/etc/mha/mha.cnf
[root@MHA-LHR-Monitor-ip134 /]# masterha_check_status --conf=/etc/mha/mha.cnf
mha (pid:3738) is running(0:PING_OK), master:192.168.68.131
接下来,宕掉主库,继续观察 ProxySQL 的情况:
-- 宕掉主库
docker stop MHA-LHR-Master1-ip131

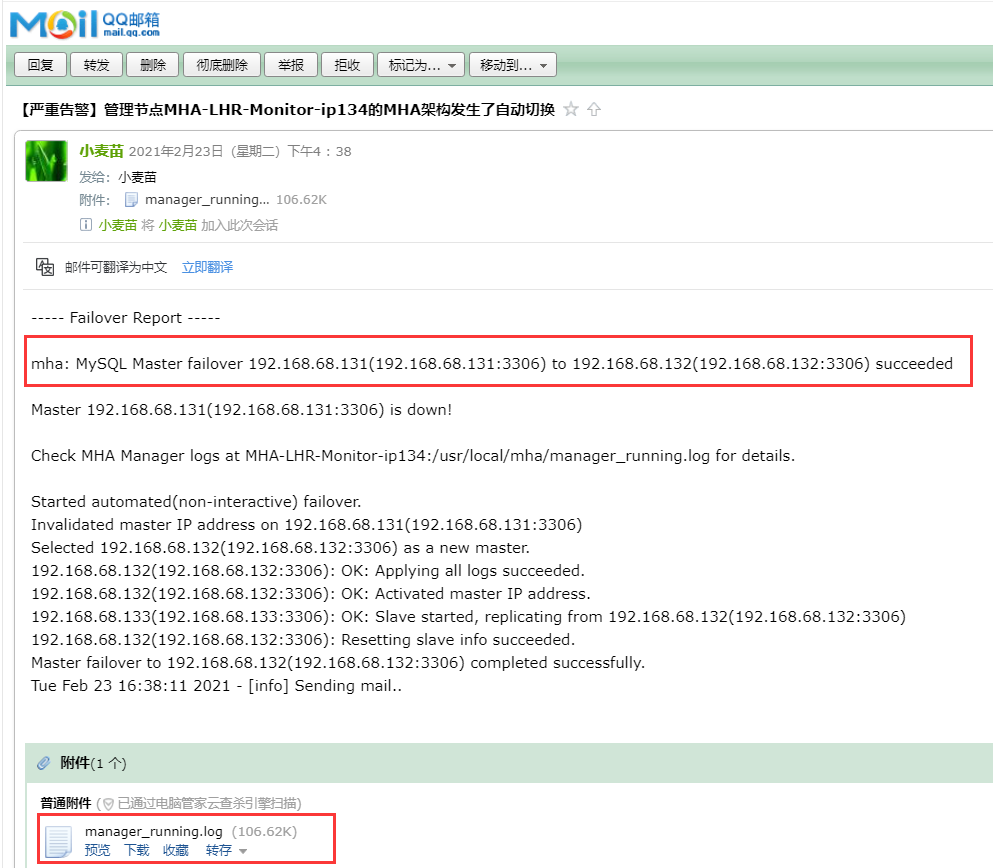

MHA 自动执行了故障转移,主库切换为 132,并发送告警邮件:
https://cdn.jsdelivr.net/gh/lhrbest/pic/img/20210416111828.png
此时,来查看 ProxySQL 的情况:
MySQL [(none)]> select * from mysql_servers;
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| 10 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.131 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.133 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
4 rows in set (0.05 sec)
MySQL [(none)]> select * from runtime_mysql_servers;
+--------------+----------------+------+-----------+---------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment |
+--------------+----------------+------+-----------+---------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| 10 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.131 | 3306 | 0 | SHUNNED | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.133 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
+--------------+----------------+------+-----------+---------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
4 rows in set (1.26 sec)
可以发现 131 已经变成 SHUNNED 状态,ProxySQL 会避开这个主机。
此时再做压测等操作,所有负载会被分配到 132 和 133 上,此处不再测试。
接下来启动 131,并以从库的身份加入原主从环境:
-- 启动131
docker start MHA-LHR-Master1-ip131
-- 在134的日志文件中找到恢复的语句
grep "All other slaves should start replication from here" /usr/local/mha/manager_running.log
-- 在131上执行恢复
mysql -uroot -plhr -h192.168.68.131 -P3306
CHANGE MASTER TO MASTER_HOST='192.168.68.132',
MASTER_PORT=3306,
MASTER_AUTO_POSITION=1,
MASTER_USER='repl',
MASTER_PASSWORD='lhr';
start slave;
show slave status \G
-- 设置只读
set global read_only=1;
查询 ProxySQL:
MySQL [(none)]> select * from mysql_servers;
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| 10 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.131 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.133 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
4 rows in set (0.06 sec)
可以看到 131 为只读。若想让 132 只写,则可以删除相关记录:
MySQL [(none)]> delete from mysql_servers where hostgroup_id=20 and hostname='192.168.68.132';
Query OK, 1 row affected (0.06 sec)
MySQL [(none)]> load mysql servers to runtime;
Query OK, 0 rows affected (0.68 sec)
MySQL [(none)]> save mysql servers to disk;
Query OK, 0 rows affected (0.10 sec)
MySQL [(none)]> select * from mysql_servers;
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| 10 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.131 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.133 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
3 rows in set (0.05 sec)
MySQL [(none)]> select * from runtime_mysql_servers;
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
| 10 | 192.168.68.132 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.133 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
| 20 | 192.168.68.131 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 0 | 0 | 0 | |
+--------------+----------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+
3 rows in set (0.94 sec)

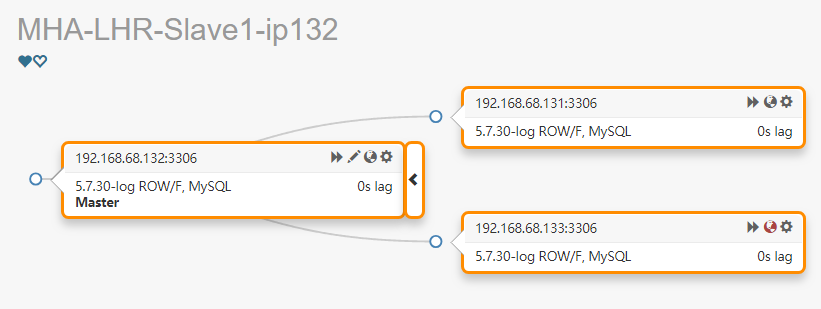

可以看到 132 为主库,131 和 133 为从库。Orchestrator 界面:
https://cdn.jsdelivr.net/gh/lhrbest/pic/img/20210416111835.png
版权声明: 本文为 InfoQ 作者【华为云开发者社区】的原创文章。
原文链接:【http://xie.infoq.cn/article/b938a5721c0eae8008e6959f4】。文章转载请联系作者。
华为云开发者社区
提供全面深入的云计算技术干货 2020.07.14 加入
华为云开发者社区,提供全面深入的云计算前景分析、丰富的技术干货、程序样例,分享华为云前沿资讯动态,方便开发者快速成长与发展,欢迎提问、互动,多方位了解云计算! 传送门:https://bbs.huaweicloud.com/
评论
