【Flutter 专题】06 图解基础【登录】页面并学习相关 Widget
小菜最近在利用业余时间学习 Flutter,还真的是值得研究。小菜觉得学习一门技术最好的方式就是动手,在实践过程中结合官网文档才能更快的学习和理解。因为小菜技术太差,花了很久才搭建了一个最简单的【登录】页面,对于同一个页面,搭建的方式千差万别,小菜的方式也绝非最佳,现在仅结合这个基本的【登录】页面记录整理一下遇到的问题。 小菜这次整理的小博客只是单纯的搭建页面,不涉及以无逻辑和页面跳转,毕竟小菜还没研究到那部分。
技术积累

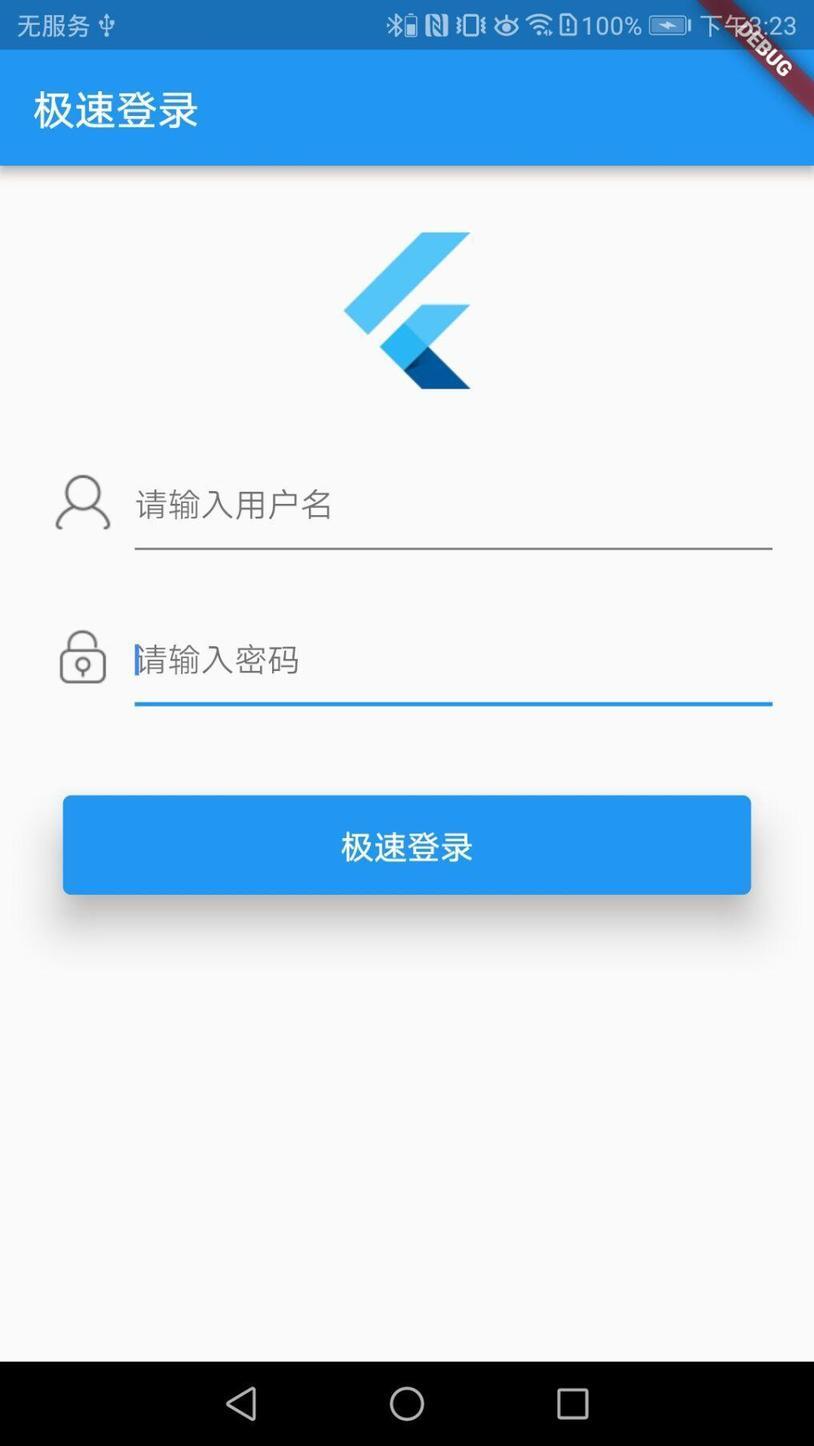

【登录】页面很基本,整个页面分为标题栏 Title 和内容块 Content 两部分,标题栏不用处理,主要是编辑内容块部分。内容块包括一个应用 Logo,两个图标,两个输入框,一个按钮。 因此需要用到的控件包括:图片,文本输入框,按钮,布局等。当然 Flutter 最大的优势就是一切都是 widget。
实操问题 + 解决方案
1. 如何加入本地图片?
解决如下:
在根目录下新建 images 文件夹,将本地图片拷贝到该文件夹下,文件格式包括 JPEG / WebP / GIF / 动画 WebP / GIF / PNG / BMP / WBMP 等格式;
在 pubspec.yaml 文件中添加相应的图片文件指向,如:- images/icon_username.png,特别注意:images 与 '-' 之间一定要有空格!!!
Content 中添加图片即可,如:
2. Row 中如何添加输入框?
解决如下:
水平排列控件需要用到 Row,竖直排列控件需要 Column;
小菜需要在同一行中添加一个图标和一个输入框 TextField,单独的一个文本输入框没问题,但是直接放在 Row 中缺报错;
可以设置文本输入框的固定长度,或是在文本输入框外添加一层 widget,小菜理解为添加一层父布局,限制文本输入框宽度,如下:

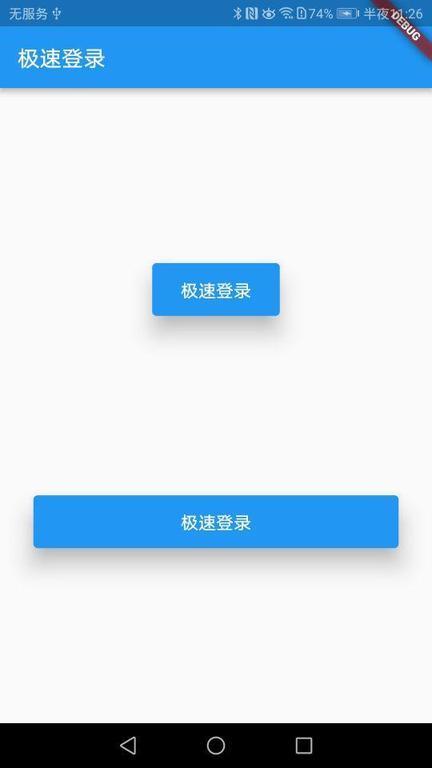

3. 如何调整按钮宽度及效果?
解决如下:
Flutter 没有直接的 Button,小菜用的是 FlatButton,但是这仅仅是一个按钮,样式需要自己调整,配合 Card 实现圆角和投影,但是按钮长度按照文字长度展示;
依旧是在按钮外添加一层父布局,按需求调整固定长度,如下:
相关延展
Flutter 中引用图片有四种方式,小菜认为目前用的较多的为 网络图片 和 Assets 图片,引用网络图片方式也很简单,如下:

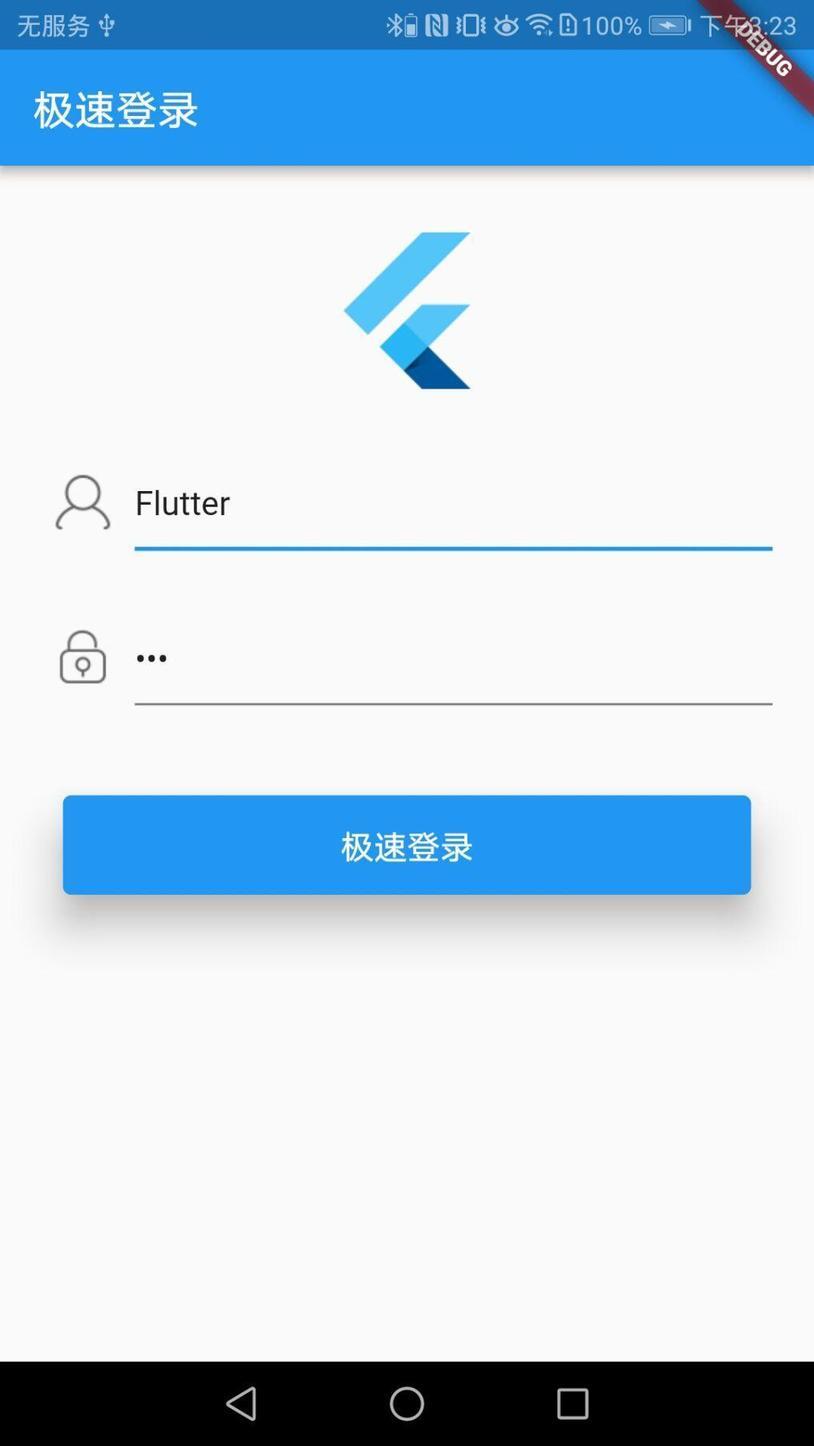

对于文本输入框中明文显示或密码显示,主要通过 obscureText: true, 属性,当该属性为 true 时为密码隐文展示;
对于位置方面内边距,小菜目前用到两个,分别是 EdgeInsets.all 和 EdgeInsets.fromLTRB;all 只有一个参数,类似于 Android 中 android:padding="10dp";fromLTRB 有四个参数,分别对应上下左右四个高度,而顺序也是按照 L->left T->Top R->Right B->Bottom 顺序排列,刚开始没明白,后来反应过来发现很方便;
对于 Card 中阴影效果,需要 elevation: 16.0, 属性,值越大并非代表阴影效果越深,只是代表阴影距离离控件越远;
Flutter 中 ' , ' 类似于 Java 中 ' ; ' 建议编辑完一个属性后添加 ' , ' 而且 Flutter 很贴心的地方是默认后面会有提示,对应的 ' ) ' 级别,方便修改的时候查找,如图:
对于图片比例,小菜用的是 scale: 4.0, 测试发现 scale 值越大图片反而越小。
主要源码
小菜也是刚接触 Flutter,还有很多不清楚和不理解的地方,如果又不对的地方还希望多多指出。
