订单初版—取消订单链路中的技术问题说明文档（二）

作者：量贩潮汐·WholesaleTide
  • 2025-07-11
    福建

  • 本文字数：23023 字

    阅读完需：约 76 分钟

9.为什么拦截履约要同步而释放资产是异步 h

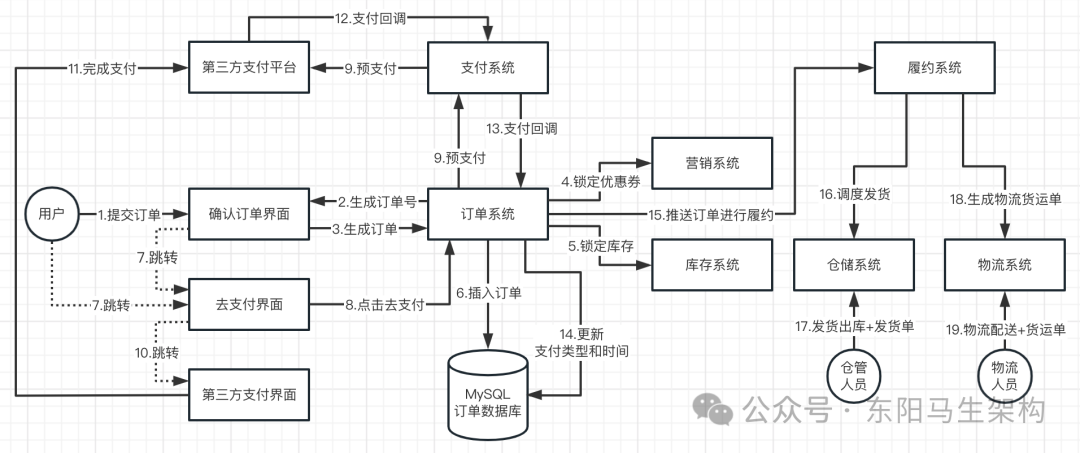

(1)在正向订单流程中触发履约采用异步柔性事务


生成订单写库、锁优惠券、锁库存这三个动作会绑定在一个刚性事务里，从而实现"生成订单写库 + 锁优惠券 + 锁库存"的强同步效果。但是当支付成功完成支付回调后，推送订单消息进行履约时，则通过 MQ 异步推送。也就是说："生单 + 锁优惠券 + 锁库存"采用了同步刚性事务，而"推送订单消息触发履约"则采用了异步柔性事务。



原因一：在正向订单流程中，生单会使用到优惠券及涉及扣减库存。如果不采用同步刚性事务，则可能会出现虽然订单已经生成了，但是用户却还是能看到其优惠券的状态还处于未使用，或库存还没扣减。这样就可能对用户造成困惑，数据产生了短暂的不一致问题。严重可能会导致用户重复使用优惠券，以及库存超卖问题。



所以"生单 + 锁优惠券 + 锁库存"采用同步刚性事务，当生单操作一旦完成，用户就可以看到优惠券已使用 + 库存已扣减。



原因二：推送订单消息触发履约可以采用异步柔性事务，是因为用户支付完一个订单后，并没有必要马上看到订单已在履约处理，所以"推送订单进行履约"是天然可以被用户接受延迟的。



(2)在逆向订单流程中拦截履约采用同步刚性事务


与正向订单流程刚好相反："修改订单状态 + 拦截订单不被履约"采用了同步刚性事务，而"释放优惠券 + 释放库存"则采用了异步柔性事务。因为取消订单的第一要务必然是拦截履约。



如果"修改订单状态 + 拦截订单不被履约"采用了异步柔性事务，那么可能出现订单状态已经改为已取消，但是由于异步拦截履约慢了，导致订单都已经被打包发货了，这样就可能发生纠纷和资损了。



如果订单还没被支付就进行了取消，此时订单状态被修改后，可以不用立刻关注库存和优惠券。在用户看来，其还没释放的优惠券最多不能马上恢复使用，影响不严重。最差也不会出现优惠券被用户重复使用的恶劣情况，以及库存超卖问题。



10.支付回调分别互斥预支付和取消订单



首先，预支付和支付回调会加同一把锁：ORDER_PAY_KEY。然后，支付回调和取消订单也会加同一把锁：CANCEL_KEY。所以支付回调会加两把锁：ORDER_PAY_KEY 和 CANCEL_KEY，这可以通过 Redisson 的 MutiLock 来实现。


@Servicepublic class OrderServiceImpl implements OrderService {    ...    //预支付订单    @Override    @Transactional(rollbackFor = Exception.class)    public PrePayOrderDTO prePayOrder(PrePayOrderRequest prePayOrderRequest) {        //入参检查        checkPrePayOrderRequestParam(prePayOrderRequest);        String orderId = prePayOrderRequest.getOrderId();        Integer payAmount = prePayOrderRequest.getPayAmount();
        //加分布式锁(与订单支付回调时加的是同一把锁)        String key = RedisLockKeyConstants.ORDER_PAY_KEY + orderId;        boolean lock = redisLock.lock(key);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.ORDER_PRE_PAY_ERROR);        }        try {            ...        } finally {            //释放分布式锁            redisLock.unlock(key);        }    }    ...
    //支付回调    //支付回调有2把分布式锁的原因说明：同一笔订单在同一时间只能支付or取消    //不可以同时对一笔订单，既发起支付，又发起取消    @Override    public void payCallback(PayCallbackRequest payCallbackRequest) {        //入参检查        checkPayCallbackRequestParam(payCallbackRequest);        String orderId = payCallbackRequest.getOrderId();        Integer payAmount = payCallbackRequest.getPayAmount();        Integer payType = payCallbackRequest.getPayType();        List<String> redisKeyList = Lists.newArrayList();
        //加支付分布式锁避免支付系统并发回调        String orderPayKey = RedisLockKeyConstants.ORDER_PAY_KEY + orderId;
        //加取消订单分布式锁避免支付和取消订单同时操作同一笔订单        String cancelOrderKey = RedisLockKeyConstants.CANCEL_KEY + orderId;        redisKeyList.add(orderPayKey);        redisKeyList.add(cancelOrderKey);
        boolean lock = redisLock.multiLock(redisKeyList);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.ORDER_PAY_CALLBACK_ERROR);        }        try {            ...        } catch (Exception e) {            throw new OrderBizException(e.getMessage());        } finally {            //释放分布式锁            redisLock.unMultiLock(redisKeyList);        }    }    ...}
@Servicepublic class OrderAfterSaleServiceImpl implements OrderAfterSaleService {    ...    //取消订单/超时未支付取消    @Override    @GlobalTransactional(rollbackFor = Exception.class)    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {        //入参检查        checkCancelOrderRequestParam(cancelOrderRequest);
        //分布式锁        String orderId = cancelOrderRequest.getOrderId();        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;        boolean lock = redisLock.lock(key);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);        }        try {            //执行取消订单            return executeCancelOrder(cancelOrderRequest, orderId);        } catch (Exception e) {            log.error("biz error", e);            throw new OrderBizException(e.getMessage());        } finally {            redisLock.unlock(key);        }    }    ...}
复制代码

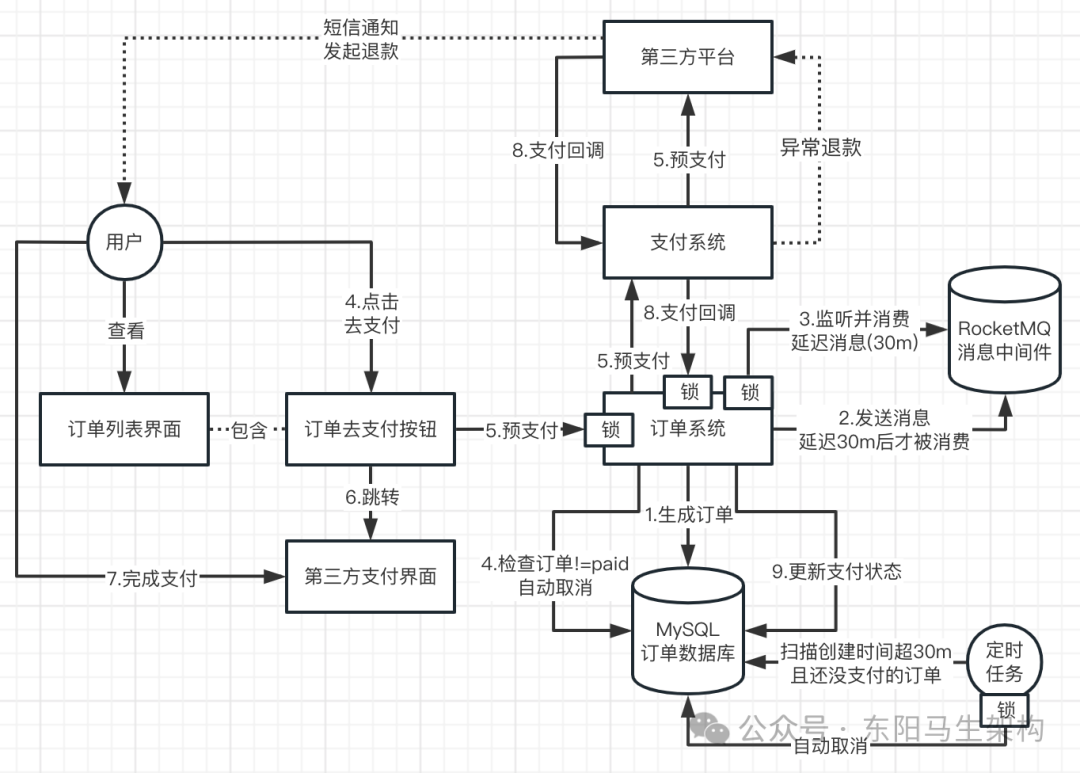

11.支付回调和取消订单互斥下的两种场景分析


支付回调的处理过程中，会对异常场景进行判断：



一.如果订单状态是"已创建"

那么会更新订单状态为已支付，并发送事务消息。



二.如果订单状态不是"已创建"

那么判断订单状态是否是取消状态，如果是取消状态，则继续判断订单是否未支付。若是未支付，则进行退款，并抛出异常。若不是未支付，则按支付方式抛出不同的异常。如果不是取消状态，则判断支付回调是否是同种支付方式。如果是，则返回。如果不是，则进行退款，并抛出异常。


@Servicepublic class OrderServiceImpl implements OrderService {    ...    //支付回调    //支付回调有2把分布式锁的原因说明：同一笔订单在同一时间只能支付or取消    //不可以同时对一笔订单，既发起支付，又发起取消    @Override    public void payCallback(PayCallbackRequest payCallbackRequest) {        //1.入参检查        checkPayCallbackRequestParam(payCallbackRequest);
        String orderId = payCallbackRequest.getOrderId();        Integer payAmount = payCallbackRequest.getPayAmount();        Integer payType = payCallbackRequest.getPayType();        List<String> redisKeyList = Lists.newArrayList();
        //2.加支付分布式锁避免支付系统并发回调        String orderPayKey = RedisLockKeyConstants.ORDER_PAY_KEY + orderId;        //加取消订单分布式锁避免支付和取消订单同时操作同一笔订单        String cancelOrderKey = RedisLockKeyConstants.CANCEL_KEY + orderId;        redisKeyList.add(orderPayKey);        redisKeyList.add(cancelOrderKey);        boolean lock = redisLock.multiLock(redisKeyList);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.ORDER_PAY_CALLBACK_ERROR);        }        try {            //从数据库中查询出当前订单信息            OrderInfoDO orderInfoDO = orderInfoDAO.getByOrderId(orderId);            OrderPaymentDetailDO orderPaymentDetailDO = orderPaymentDetailDAO.getPaymentDetailByOrderId(orderId);            //3.校验参数            if (orderInfoDO == null || orderPaymentDetailDO == null) {                throw new OrderBizException(OrderErrorCodeEnum.ORDER_INFO_IS_NULL);            }            if (!payAmount.equals(orderInfoDO.getPayAmount())) {                throw new OrderBizException(OrderErrorCodeEnum.ORDER_CALLBACK_PAY_AMOUNT_ERROR);            }
            //4.异常场景判断            Integer orderStatus = orderInfoDO.getOrderStatus();            if (OrderStatusEnum.CREATED.getCode().equals(orderStatus)) {                //如果订单状态是"已创建"，直接更新订单状态为已支付，并发送事务消息                TransactionMQProducer transactionMQProducer = defaultProducer.getProducer();                transactionMQProducer.setTransactionListener(new TransactionListener() {                    @Override                    public LocalTransactionState executeLocalTransaction(Message message, Object o) {                        try {                            orderManager.updateOrderStatusPaid(payCallbackRequest, orderInfoDO, orderPaymentDetailDO);                            return LocalTransactionState.COMMIT_MESSAGE;                        } catch (BaseBizException e) {                            throw e;                        } catch (Exception e) {                            log.error("system error", e);                            return LocalTransactionState.ROLLBACK_MESSAGE;                        }                    }
                    @Override                    public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {                        //检查订单是否是已支付                        OrderInfoDO orderInfoDO = orderInfoDAO.getByOrderId(orderId);                        if (orderInfoDO != null && OrderStatusEnum.PAID.getCode().equals(orderInfoDO.getOrderStatus())) {                            return LocalTransactionState.COMMIT_MESSAGE;                        }                        return LocalTransactionState.ROLLBACK_MESSAGE;                    }                });                //发送 "订单已完成支付" 消息                sendPaidOrderSuccessMessage(transactionMQProducer, orderInfoDO);            } else {                //如果订单状态不是 "已创建"                if (OrderStatusEnum.CANCELED.getCode().equals(orderStatus)) {                    //如果订单状态是取消状态                    Integer payStatus = orderPaymentDetailDO.getPayStatus();                    if (PayStatusEnum.UNPAID.getCode().equals(payStatus)) {                        //调用退款                        executeOrderRefund(orderInfoDO, orderPaymentDetailDO);                        throw new OrderBizException(OrderErrorCodeEnum.ORDER_CANCEL_PAY_CALLBACK_ERROR);                    } else if (PayStatusEnum.PAID.getCode().equals(payStatus)) {                        if (payType.equals(orderPaymentDetailDO.getPayType())) {                            throw new OrderBizException(OrderErrorCodeEnum.ORDER_CANCEL_PAY_CALLBACK_PAY_TYPE_SAME_ERROR);                        } else {                            throw new OrderBizException(OrderErrorCodeEnum.ORDER_CANCEL_PAY_CALLBACK_PAY_TYPE_NO_SAME_ERROR);                        }                    }                } else {                    //如果订单状态不是取消状态                    if (PayStatusEnum.PAID.getCode().equals(orderPaymentDetailDO.getPayStatus())) {                        if (payType.equals(orderPaymentDetailDO.getPayType())) {                            return;                        }                        //调用退款                        executeOrderRefund(orderInfoDO, orderPaymentDetailDO);                        throw new OrderBizException(OrderErrorCodeEnum.ORDER_CANCEL_PAY_CALLBACK_REPEAT_ERROR);                    }                }            }        } catch (Exception e) {            throw new OrderBizException(e.getMessage());        } finally {            //释放分布式锁            redisLock.unMultiLock(redisKeyList);        }    }
    //发送订单已完成支付消息，触发订单进行履约    private void sendPaidOrderSuccessMessage(TransactionMQProducer transactionMQProducer, OrderInfoDO orderInfoDO) throws MQClientException {        String orderId = orderInfoDO.getOrderId();        PaidOrderSuccessMessage message = new PaidOrderSuccessMessage();        message.setOrderId(orderId);        String topic = RocketMqConstant.PAID_ORDER_SUCCESS_TOPIC;        byte[] body = JSON.toJSONString(message).getBytes(StandardCharsets.UTF_8);        Message mq = new Message(topic, body);        TransactionSendResult result = transactionMQProducer.sendMessageInTransaction(mq, orderInfoDO);        if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {            throw new OrderBizException(OrderErrorCodeEnum.ORDER_PAY_CALLBACK_SEND_MQ_ERROR);        }    }    ...}
//支付系统回调请求对象@Datapublic class PayCallbackRequest extends AbstractObject implements Serializable {    private static final long serialVersionUID = 3685085492927992753L;    private String orderId;//订单ID    private String payAccount;//支付账户    private Integer payAmount;//支付金额    private String outTradeNo;//支付系统交易单号    private Integer payType;//支付方式    private String merchantId;//商户号    private String payChannel;//支付渠道    private String appid;//微信平台 appid}
复制代码


12.拦截履约的具体业务流程

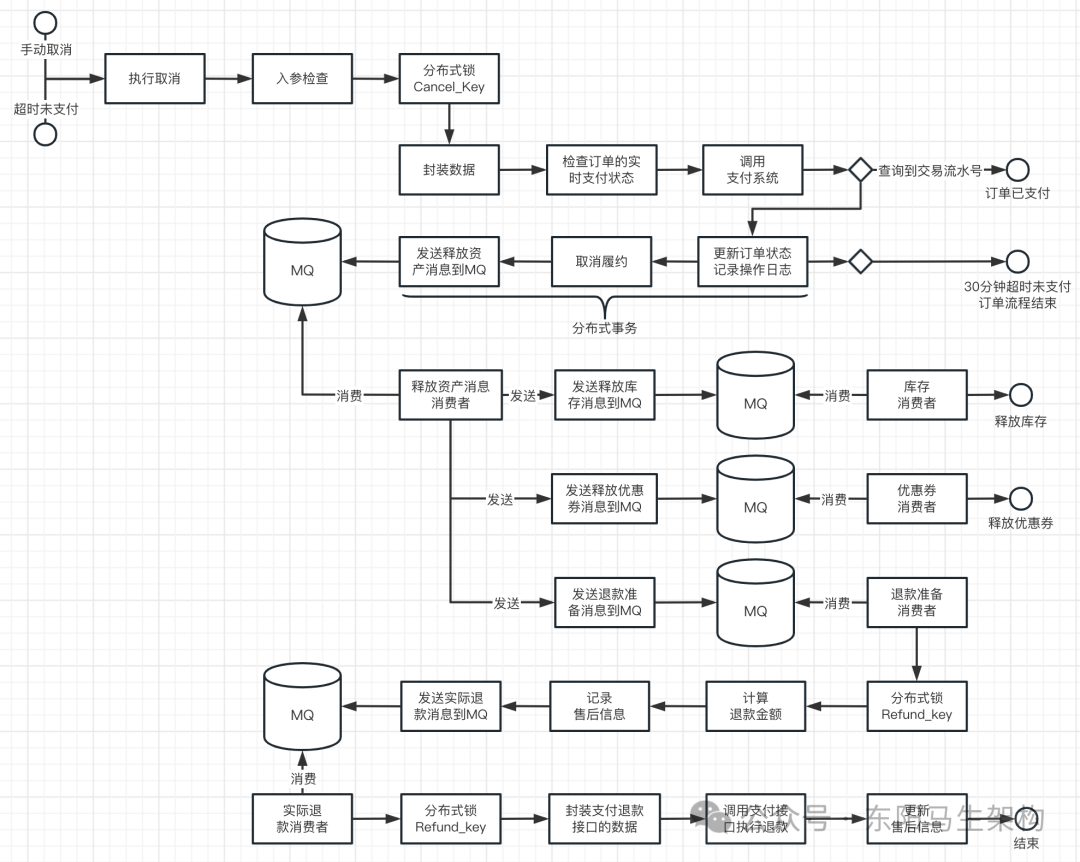

流程图如下：



代码如下：


一.取消订单入口

@Servicepublic class OrderAfterSaleServiceImpl implements OrderAfterSaleService {    @Autowired    private AfterSaleManager afterSaleManager;    ...
    //取消订单/超时未支付取消    @Override    @GlobalTransactional(rollbackFor = Exception.class)    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {        //入参检查        checkCancelOrderRequestParam(cancelOrderRequest);        //分布式锁        String orderId = cancelOrderRequest.getOrderId();        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;        boolean lock = redisLock.lock(key);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);        }        try {            //执行取消订单            return executeCancelOrder(cancelOrderRequest, orderId);        } catch (Exception e) {            log.error("biz error", e);            throw new OrderBizException(e.getMessage());        } finally {            redisLock.unlock(key);        }    }
    @Override    public JsonResult<Boolean> executeCancelOrder(CancelOrderRequest cancelOrderRequest, String orderId) {        //1.组装数据        OrderInfoDO orderInfoDO = findOrderInfo(orderId, cancelOrderRequest.getCancelType());        CancelOrderAssembleRequest cancelOrderAssembleRequest = buildAssembleRequest(orderId, cancelOrderRequest, orderInfoDO);        if (cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus() >= OrderStatusEnum.OUT_STOCK.getCode()) {            throw new OrderBizException(OrderErrorCodeEnum.CURRENT_ORDER_STATUS_CANNOT_CANCEL);        }        TransactionMQProducer producer = defaultProducer.getProducer();        producer.setTransactionListener(new TransactionListener() {            @Override            public LocalTransactionState executeLocalTransaction(Message message, Object o) {                try {                    //2.执行履约取消、更新订单状态、新增订单日志操作                    afterSaleManager.cancelOrderFulfillmentAndUpdateOrderStatus(cancelOrderAssembleRequest);                    return LocalTransactionState.COMMIT_MESSAGE;                } catch (Exception e) {                    log.error("system error", e);                    return LocalTransactionState.ROLLBACK_MESSAGE;                }            }
            @Override            public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {                //查询订单状态是否已更新为"已取消"                OrderInfoDO orderInfoByDatabase = orderInfoDAO.getByOrderId(orderId);                if (OrderStatusEnum.CANCELED.getCode().equals(orderInfoByDatabase.getOrderStatus())) {                    return LocalTransactionState.COMMIT_MESSAGE;                }                return LocalTransactionState.ROLLBACK_MESSAGE;            }        });
        try {            Message message = new Message(RocketMqConstant.RELEASE_ASSETS_TOPIC, JSONObject.toJSONString(cancelOrderAssembleRequest).getBytes(StandardCharsets.UTF_8));            //3.发送事务消息 释放权益资产            TransactionSendResult result = producer.sendMessageInTransaction(message, cancelOrderAssembleRequest);            if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {                throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_PROCESS_FAILED);            }            return JsonResult.buildSuccess(true);        } catch (Exception e) {            throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);        }    }    ...}
复制代码


二.拦截履约处理

@Servicepublic class AfterSaleManagerImpl implements AfterSaleManager {    @DubboReference(version = "1.0.0")    private FulfillApi fulfillApi;    ...
    @Override    public void cancelOrderFulfillmentAndUpdateOrderStatus(CancelOrderAssembleRequest cancelOrderAssembleRequest) {        //履约取消        cancelFulfill(cancelOrderAssembleRequest);        //更新订单状态和记录订单操作日志        updateOrderStatusAndSaveOperationLog(cancelOrderAssembleRequest);    }
    //调用履约拦截订单    private void cancelFulfill(CancelOrderAssembleRequest cancelOrderAssembleRequest) {        OrderInfoDTO orderInfoDTO = cancelOrderAssembleRequest.getOrderInfoDTO();        if (OrderStatusEnum.CREATED.getCode().equals(orderInfoDTO.getOrderStatus())) {            return;        }        CancelFulfillRequest cancelFulfillRequest = orderInfoDTO.clone(CancelFulfillRequest.class);        JsonResult<Boolean> jsonResult = fulfillApi.cancelFulfill(cancelFulfillRequest);        if (!jsonResult.getSuccess()) {            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_FULFILL_ERROR);        }    }    ...}
@DubboService(version = "1.0.0", interfaceClass = FulfillApi.class, retries = 0)public class FulfillApiImpl implements FulfillApi {    @Autowired    private FulfillService fulfillService;
    @DubboReference(version = "1.0.0", retries = 0)    private WmsApi wmsApi;
    @DubboReference(version = "1.0.0", retries = 0)    private TmsApi tmsApi;    ...
    @Override    public JsonResult<Boolean> cancelFulfill(CancelFulfillRequest cancelFulfillRequest) {        log.info("取消履约：request={}", JSONObject.toJSONString(cancelFulfillRequest));        //1.取消履约单        fulfillService.cancelFulfillOrder(request.getOrderId());        //2.取消捡货        wmsApi.cancelPickGoods(request.getOrderId());        //3.取消发货        tmsApi.cancelSendOut(request.getOrderId());
        return JsonResult.buildSuccess(true);    }    ...}
@Servicepublic class FulfillServiceImpl implements FulfillService {    @Autowired    private OrderFulfillDAO orderFulfillDAO;
    @Autowired    private OrderFulfillItemDAO orderFulfillItemDAO;    ...
    @Override    public void cancelFulfillOrder(String orderId) {        //1.查询履约单        OrderFulfillDO orderFulfill = orderFulfillDAO.getOne(orderId);        //2.移除履约单        if (null != orderFulfill) {            orderFulfillDAO.removeById(orderFulfill.getId());            //3.查询履约单条目            List<OrderFulfillItemDO> fulfillItems = orderFulfillItemDAO.listByFulfillId(orderFulfill.getFulfillId());            //4.移除履约单条目            for (OrderFulfillItemDO item : fulfillItems) {                orderFulfillItemDAO.removeById(item.getId());            }        }    }    ...}
@DubboService(version = "1.0.0", interfaceClass = WmsApi.class, retries = 0)public class WmsApiImpl implements WmsApi {    ...    @Transactional(rollbackFor = Exception.class)    @Override    public JsonResult<Boolean> cancelPickGoods(String orderId) {        log.info("取消捡货，orderId={}", orderId);        //1.查询出库单        List<DeliveryOrderDO> deliveryOrders = deliveryOrderDAO.listByOrderId(orderId);        //2.移除出库单和条目        if (CollectionUtils.isNotEmpty(deliveryOrders)) {            for (DeliveryOrderDO order : deliveryOrders) {                List<DeliveryOrderItemDO> items = deliveryOrderItemDAO.listByDeliveryOrderId(order.getDeliveryOrderId());                for (DeliveryOrderItemDO item : items) {                    deliveryOrderItemDAO.removeById(item.getId());                }                deliveryOrderDAO.removeById(order.getId());            }        }        return JsonResult.buildSuccess(true);    }    ...}
@DubboService(version = "1.0.0", interfaceClass = TmsApi.class, retries = 0)public class TmsApiImpl implements TmsApi {    ...    @Transactional(rollbackFor = Exception.class)    @Override    public JsonResult<Boolean> cancelSendOut(String orderId) {        log.info("取消发货，orderId={}", orderId);        //1.查询物流单        List<LogisticOrderDO> logisticOrders = logisticOrderDAO.listByOrderId(orderId);        //2.移除物流单        for (LogisticOrderDO order : logisticOrders) {            logisticOrderDAO.removeById(order.getId());        }        return JsonResult.buildSuccess(true);    }    ...}
复制代码


13.拦截履约和取消订单的 Seata 事务原理分析

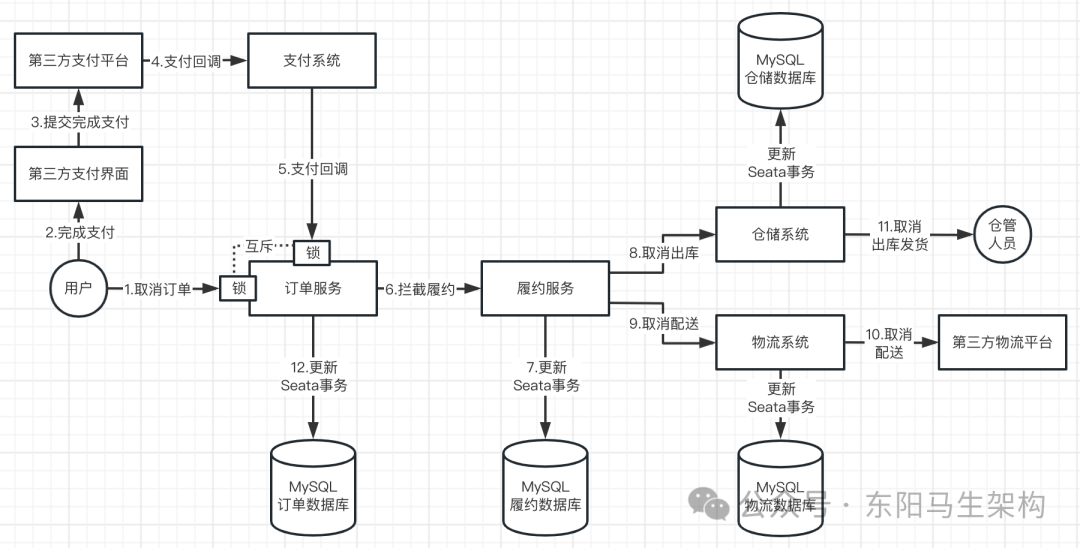

(1)取消订单接口使用 Seata 事务的 AT 模式


如果拦截履约时发现，订单已经出库配送，那么就会拦截失败。当拦截失败时，就不能更新订单状态了，可使用 Seata 的刚性事务实现。具体就是，在分布式事务入口添加 @GlobalTransactional 注解，在各分支事务添加 @Transactional 注解。


@Servicepublic class OrderAfterSaleServiceImpl implements OrderAfterSaleService {    ...    //取消订单/超时未支付取消    @Override    @GlobalTransactional(rollbackFor = Exception.class)    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {        //入参检查        checkCancelOrderRequestParam(cancelOrderRequest);        //分布式锁        String orderId = cancelOrderRequest.getOrderId();        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;        boolean lock = redisLock.lock(key);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);        }
        try {            //执行取消订单            return executeCancelOrder(cancelOrderRequest, orderId);        } catch (Exception e) {            log.error("biz error", e);            throw new OrderBizException(e.getMessage());        } finally {            redisLock.unlock(key);        }    }
    @Override    public JsonResult<Boolean> executeCancelOrder(CancelOrderRequest cancelOrderRequest, String orderId) {        //1.组装数据        OrderInfoDO orderInfoDO = findOrderInfo(orderId, cancelOrderRequest.getCancelType());        CancelOrderAssembleRequest cancelOrderAssembleRequest = buildAssembleRequest(orderId, cancelOrderRequest, orderInfoDO);        if (cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus() >= OrderStatusEnum.OUT_STOCK.getCode()) {            throw new OrderBizException(OrderErrorCodeEnum.CURRENT_ORDER_STATUS_CANNOT_CANCEL);        }
        TransactionMQProducer producer = defaultProducer.getProducer();        producer.setTransactionListener(new TransactionListener() {            @Override            public LocalTransactionState executeLocalTransaction(Message message, Object o) {                try {                    //2.执行履约取消、更新订单状态、新增订单日志操作                    afterSaleManager.cancelOrderFulfillmentAndUpdateOrderStatus(cancelOrderAssembleRequest);                    return LocalTransactionState.COMMIT_MESSAGE;                } catch (Exception e) {                    log.error("system error", e);                    return LocalTransactionState.ROLLBACK_MESSAGE;                }            }             @Override            public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {                //查询订单状态是否已更新为"已取消"                OrderInfoDO orderInfoByDatabase = orderInfoDAO.getByOrderId(orderId);                if (OrderStatusEnum.CANCELED.getCode().equals(orderInfoByDatabase.getOrderStatus())) {                    return LocalTransactionState.COMMIT_MESSAGE;                }                return LocalTransactionState.ROLLBACK_MESSAGE;            }        });
        try {            Message message = new Message(RocketMqConstant.RELEASE_ASSETS_TOPIC, JSONObject.toJSONString(cancelOrderAssembleRequest).getBytes(StandardCharsets.UTF_8));            //3.发送事务消息 释放权益资产            TransactionSendResult result = producer.sendMessageInTransaction(message, cancelOrderAssembleRequest);            if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {                throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_PROCESS_FAILED);            }            return JsonResult.buildSuccess(true);        } catch (Exception e) {            throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);        }    }    ...}
复制代码

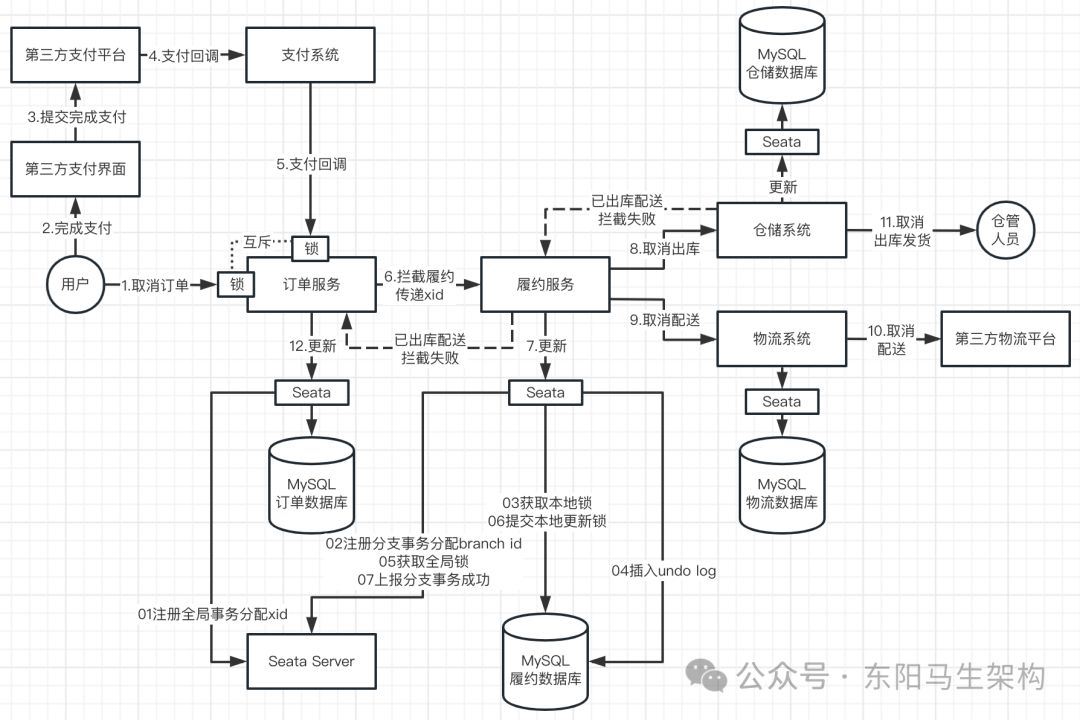

(2)Seata 事务 AT 模式的原理

一.取消订单接口的入口会向Seata Server注册一个全局事务XID二.调用的履约服务会向Seata Server注册一个分支事务Branch ID三.在履约服务更新数据前，要先获取本地锁四.在履约服务在获取本地锁成功后，会插入undo log表数据五.然后，履约服务会向Seata Server服务器获取全局锁六.接着，履约服务才提交本地事务并释放本地锁七.最后，履约服务会向Seata Server上报分支事务成功
复制代码

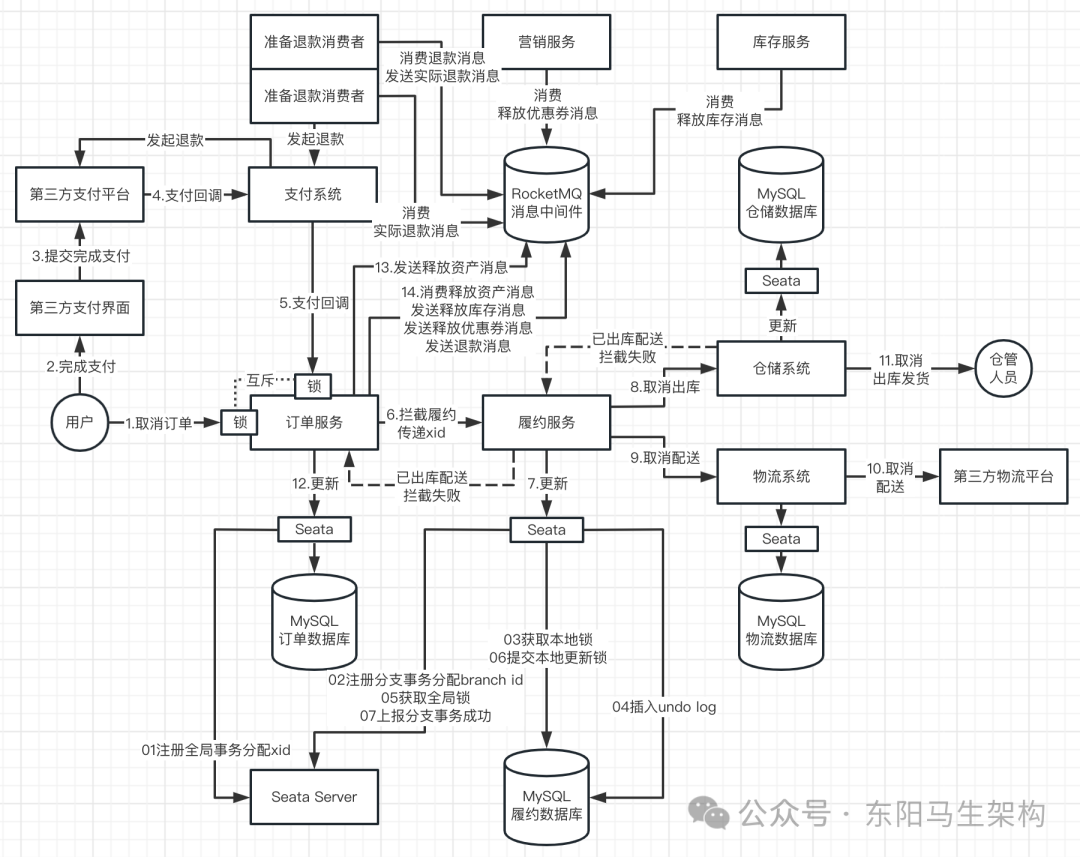

14.取消订单全链路 Seata 回滚原理与并发分析


(1)回滚原理


如果分支事务出现异常，就会上报 Seata Server 需要回滚全局事务。如果某些分支事务还没提交，那么直接就不需要执行了。如果某些分支事务已经提交成功，那么就根据 undo log 进行数据恢复。



(2)并发分析


拦截履约的各分支事务并不会出现并发竞争全局锁的问题。因为取消履约、取消出库、取消配送都是针对一个订单操作，同一时刻不会出现大量对一个订单的操作。


15.支付退款时的双异步设计原因(提升性能 + 解耦)


支付退款的时候会有两个消费者(双异步)：一个是退款准备消费者，一个是实际退款消费者。如果两个消费者合并成一个消费者，可能会出现两个问题。



问题一：退款速度可能会比较慢，因为一个消费者需要处理的事情多了。



问题二：如果第三方退款接口出现异常或报错，耦合比较严重特别不合理。这时计算好的数据和插入的记录，可能需要回滚或者重新消费消息。在故障情况下，第三方一直报错，那么系统就一直回滚，而且还会导致用户不能及时通过售后记录查看售后信息。




16.释放资产消息的高扩展性设计(多路发送消息)


订单系统的取消订单接口被调用时，会先发送一个释放资产的消息到 MQ，然后订单系统会消费释放资产的消息。在消费释放资产的消息时，才发送具体释放哪些资产的消息到 MQ，接着各个系统才能对各自监听的释放资产消息进行消费。



如果取消订单的核心业务代码，直接把具体的释放资产消息到 MQ。那么当资产种类增加时，比如增加虚拟币、积分、权益等各种资产，就需要修改订单系统取消订单的核心业务代码了，扩展性会很差。



如果取消订单的核心业务代码，只发一个释放资产的消息到 MQ。那么后续增加资产种类时，只需在消费释放资产的消息处进行改动即可，这样就可以大大提高了代码的扩展性。




17.取消订单链路中数据库事务与 MQ 消息不一致问题


(1)数据库事务与 MQ 消息不一致情况


在 v1 版本的取消订单接口中，由于"更新订单状态 + 取消履约 + 发送释放资产消息到 MQ"属于刚性事务，所以其中任何一个操作出现 Exception，都会进行全局回滚保证数据一致。但是更新数据库和发送消息到 MQ，还是可能会出现数据不一致的情况。



比如代码顺序是：先发送释放资产消息，再更新订单状态，再取消履约。先发送释放资产消息到 MQ 成功，更新订单状态也成功，但取消履约失败。那么此时回滚只能回滚更新订单状态，发送到 MQ 的消息却不能回滚了。所以会存在这种不一致的风险，因此需要一种强一致的方案。



如下是 v1 版本的取消订单实现：


@Servicepublic class OrderAfterSaleServiceImpl implements OrderAfterSaleService {    ...    //取消订单/超时未支付取消    @Override    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {        //入参检查        checkCancelOrderRequestParam(cancelOrderRequest);        //分布式锁        String orderId = cancelOrderRequest.getOrderId();        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;
        try {            boolean lock = redisLock.lock(key);            if (!lock) {                throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);            }            //执行取消订单            executeCancelOrder(cancelOrderRequest, orderId);            return JsonResult.buildSuccess(true);        } catch (Exception e) {            throw new OrderBizException(e.getMessage());        } finally {            redisLock.unlock(key);        }    }
    @Override    @GlobalTransactional(rollbackFor = Exception.class)    public void executeCancelOrder(CancelOrderRequest cancelOrderRequest, String orderId) {        //1.组装数据        CancelOrderAssembleRequest cancelOrderAssembleRequest = buildAssembleRequest(orderId, cancelOrderRequest);        //幂等校验：防止多个线程同时操作取消同一笔订单        if (OrderStatusEnum.CANCELED.getCode().equals(cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus())) {            return;        }        //2.检验订单支付状态        checkOrderPayStatus(cancelOrderAssembleRequest);        //3.更新订单状态和记录订单操作日志        updateOrderStatusAndSaveOperationLog(cancelOrderAssembleRequest);        //超时未支付的订单不用继续再往下执行取消履约和释放资产        if (OrderStatusEnum.PAID.getCode() > cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus()) {            return;        }        //4.履约取消        cancelFulfill(cancelOrderAssembleRequest);        //5.发送释放资产消息到MQ        defaultProducer.sendMessage(RocketMqConstant.RELEASE_ASSETS_TOPIC, JSONObject.toJSONString(cancelOrderAssembleRequest), "释放资产");    }    ...}
复制代码


(2)取消订单全链路数据不丢失的方案设计


为保证取消订单的链路中，数据库的更新事务与推送给 MQ 的消息强一致，需要将两者包裹在一个事务中，保证它们要么一起成功，要么一起失败。于是，就需要通过 RocketMQ 的事务机制来实现了。



如下是 v2 版本的取消订单实现，保证了数据库事务与 MQ 消息强一致。


@Servicepublic class OrderAfterSaleServiceImpl implements OrderAfterSaleService {    ...    //取消订单/超时未支付取消    @Override    @GlobalTransactional(rollbackFor = Exception.class)    public JsonResult<Boolean> cancelOrder(CancelOrderRequest cancelOrderRequest) {        //入参检查        checkCancelOrderRequestParam(cancelOrderRequest);        //分布式锁        String orderId = cancelOrderRequest.getOrderId();        String key = RedisLockKeyConstants.CANCEL_KEY + orderId;        boolean lock = redisLock.lock(key);        if (!lock) {            throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_REPEAT);        }        try {            //执行取消订单            return executeCancelOrder(cancelOrderRequest, orderId);        } catch (Exception e) {            log.error("biz error", e);            throw new OrderBizException(e.getMessage());        } finally {            redisLock.unlock(key);        }    }
    @Override    public JsonResult<Boolean> executeCancelOrder(CancelOrderRequest cancelOrderRequest, String orderId) {        //1.组装数据        OrderInfoDO orderInfoDO = findOrderInfo(orderId, cancelOrderRequest.getCancelType());        CancelOrderAssembleRequest cancelOrderAssembleRequest = buildAssembleRequest(orderId, cancelOrderRequest, orderInfoDO);        if (cancelOrderAssembleRequest.getOrderInfoDTO().getOrderStatus() >= OrderStatusEnum.OUT_STOCK.getCode()) {            throw new OrderBizException(OrderErrorCodeEnum.CURRENT_ORDER_STATUS_CANNOT_CANCEL);        }
        TransactionMQProducer producer = defaultProducer.getProducer();        producer.setTransactionListener(new TransactionListener() {            @Override            public LocalTransactionState executeLocalTransaction(Message message, Object o) {                try {                    //2.执行履约取消、更新订单状态、新增订单日志操作                    afterSaleManager.cancelOrderFulfillmentAndUpdateOrderStatus(cancelOrderAssembleRequest);                    return LocalTransactionState.COMMIT_MESSAGE;                } catch (Exception e) {                    log.error("system error", e);                    return LocalTransactionState.ROLLBACK_MESSAGE;                }            }
            @Override            public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {                //查询订单状态是否已更新为"已取消"                OrderInfoDO orderInfoByDatabase = orderInfoDAO.getByOrderId(orderId);                if (OrderStatusEnum.CANCELED.getCode().equals(orderInfoByDatabase.getOrderStatus())) {                    return LocalTransactionState.COMMIT_MESSAGE;                }                return LocalTransactionState.ROLLBACK_MESSAGE;            }        });
        try {            Message message = new Message(RocketMqConstant.RELEASE_ASSETS_TOPIC, JSONObject.toJSONString(cancelOrderAssembleRequest).getBytes(StandardCharsets.UTF_8));            //3.发送事务消息 释放权益资产            TransactionSendResult result = producer.sendMessageInTransaction(message, cancelOrderAssembleRequest);            if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {                throw new OrderBizException(OrderErrorCodeEnum.CANCEL_ORDER_PROCESS_FAILED);            }            return JsonResult.buildSuccess(true);        } catch (Exception e) {            throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);        }    }    ...}
复制代码


18.释放资产多路 MQ 故障重试与幂等方案


如果发送消息到 MQ 过程中出现故障，那么就会通过返回 RECONSUME_LATER 来进行重试。



此外，消费消息时调用的接口可能会出现同一请求多次被调用。因此，必须对调用的接口，使用分布式锁 + 状态前置校验进行幂等处理。加分布式锁是为了防止并非请求进来后可能会避开状态的前置校验。


@Configurationpublic class ConsumerConfig {    @Autowired    private RocketMQProperties rocketMQProperties;    ...
    //释放资产消息消费者    @Bean("releaseAssetsConsumer")    public DefaultMQPushConsumer releaseAssetsConsumer(ReleaseAssetsListener releaseAssetsListener) throws MQClientException {        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RELEASE_ASSETS_CONSUMER_GROUP);        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());        consumer.subscribe(RELEASE_ASSETS_TOPIC, "*");        consumer.registerMessageListener(releaseAssetsListener);        consumer.start();        return consumer;    }}
//监听并消费释放资产消息@Componentpublic class ReleaseAssetsListener implements MessageListenerConcurrently {    @Autowired    private DefaultProducer defaultProducer;
    @Autowired    private OrderItemDAO orderItemDAO;
    @Override    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {        try {            for (MessageExt messageExt : list) {                //1.消费到释放资产message                String message = new String(messageExt.getBody());                log.info("ReleaseAssetsListener message:{}", message);                CancelOrderAssembleRequest cancelOrderAssembleRequest = JSONObject.parseObject(message, CancelOrderAssembleRequest.class);                OrderInfoDTO orderInfoDTO = cancelOrderAssembleRequest.getOrderInfoDTO();                //2.发送取消订单退款请求MQ                if (orderInfoDTO.getOrderStatus() > OrderStatusEnum.CREATED.getCode()) {                    defaultProducer.sendMessage(RocketMqConstant.CANCEL_REFUND_REQUEST_TOPIC,                        JSONObject.toJSONString(cancelOrderAssembleRequest), "取消订单退款");                }                //3.发送释放库存MQ                ReleaseProductStockRequest releaseProductStockRequest = buildReleaseProductStock(orderInfoDTO, orderItemDAO);                defaultProducer.sendMessage(RocketMqConstant.CANCEL_RELEASE_INVENTORY_TOPIC,                    JSONObject.toJSONString(releaseProductStockRequest), "取消订单释放库存");                //4.发送释放优惠券MQ                if (!Strings.isNullOrEmpty(orderInfoDTO.getCouponId())) {                    ReleaseUserCouponRequest releaseUserCouponRequest = buildReleaseUserCoupon(orderInfoDTO);                    defaultProducer.sendMessage(RocketMqConstant.CANCEL_RELEASE_PROPERTY_TOPIC,                        JSONObject.toJSONString(releaseUserCouponRequest), "取消订单释放优惠券");                }            }            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;        } catch (Exception e) {            log.error("consumer error", e);            return ConsumeConcurrentlyStatus.RECONSUME_LATER;        }    }    ...}
@Configurationpublic class ConsumerConfig {    @Autowired    private RocketMQProperties rocketMQProperties;
    //释放优惠券消息消费者    @Bean("releaseInventoryConsumer")    public DefaultMQPushConsumer releaseInventoryConsumer(ReleasePropertyListener releasePropertyListener) throws MQClientException {        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RocketMqConstant.RELEASE_PROPERTY_CONSUMER_GROUP);        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());        consumer.subscribe(RocketMqConstant.CANCEL_RELEASE_PROPERTY_TOPIC, "*");        consumer.registerMessageListener(releasePropertyListener);        consumer.start();        return consumer;    }}
@Componentpublic class ReleasePropertyListener implements MessageListenerConcurrently {    @DubboReference(version = "1.0.0")    private MarketApi marketApi;
    @Override    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {        try {            for (MessageExt msg : list) {                String content = new String(msg.getBody(), StandardCharsets.UTF_8);                log.info("ReleasePropertyConsumer message:{}", content);                ReleaseUserCouponRequest releaseUserCouponRequest = JSONObject.parseObject(content, ReleaseUserCouponRequest.class);                //释放优惠券                JsonResult<Boolean> jsonResult = marketApi.releaseUserCoupon(releaseUserCouponRequest);                if (!jsonResult.getSuccess()) {                    throw new MarketBizException(MarketErrorCodeEnum.CONSUME_MQ_FAILED);                }            }            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;        } catch (Exception e) {            log.error("consumer error", e);            return ConsumeConcurrentlyStatus.RECONSUME_LATER;        }    }}
@DubboService(version = "1.0.0", interfaceClass = MarketApi.class, retries = 0)public class MarketApiImpl implements MarketApi {    ...    //回退用户使用的优惠券    @Override    public JsonResult<Boolean> releaseUserCoupon(ReleaseUserCouponRequest releaseUserCouponRequest) {        log.info("开始执行回滚优惠券,couponId:{}", releaseUserCouponRequest.getCouponId());        //分布式锁        String couponId = releaseUserCouponRequest.getCouponId();        String key = RedisLockKeyConstants.RELEASE_COUPON_KEY + couponId;        boolean lock = redisLock.lock(key);        if (!lock) {            throw new MarketBizException(MarketErrorCodeEnum.RELEASE_COUPON_FAILED);        }        try {            //执行释放优惠券            Boolean result = couponService.releaseUserCoupon(releaseUserCouponRequest);            return JsonResult.buildSuccess(result);        } catch (MarketBizException e) {            log.error("biz error", e);            return JsonResult.buildError(e.getErrorCode(), e.getErrorMsg());        } catch (Exception e) {            log.error("system error", e);            return JsonResult.buildError(e.getMessage());        } finally {            redisLock.unlock(key);        }    }    ...}
@Servicepublic class CouponServiceImpl implements CouponService {    ...    //释放用户优惠券    @Override    public Boolean releaseUserCoupon(ReleaseUserCouponRequest releaseUserCouponRequest) {        String userId = releaseUserCouponRequest.getUserId();        String couponId = releaseUserCouponRequest.getCouponId();        CouponDO couponAchieve = couponDAO.getUserCoupon(userId, couponId);        if (CouponUsedStatusEnum.UN_USED.getCode().equals(couponAchieve.getUsed())) {            log.info("当前用户未使用优惠券,不用回退,userId:{},couponId:{}", userId, couponId);            return true;        }        couponAchieve.setUsed(CouponUsedStatusEnum.UN_USED.getCode());        couponAchieve.setUsedTime(null);        couponDAO.updateById(couponAchieve);        return true;    }    ...}
复制代码


19.双异步支付退款不一致问题分析


在退款准备消费者中，如果先写售后记录到数据库，再发退款消息到 MQ。如果写入售后记录到数据库成功了，但发送实际退款消息到 MQ 却失败了，那么此时就会产生数据库与 MQ 的数据不一致问题。



在退款准备消费者中，如果先发退款消息到 MQ，再写售后记录到数据库。如果发送退款消息到 MQ 成功了，但写入售后记录到数据库却失败了，那么同样会产生数据库与 MQ 的数据不一致问题。



此时就可以使用 RocketMQ 的事务消息机制；

@Configurationpublic class ConsumerConfig {    @Autowired    private RocketMQProperties rocketMQProperties;    ...
    //消费退款准备请求消息消费者    @Bean("cancelRefundConsumer")    public DefaultMQPushConsumer cancelRefundConsumer(CancelRefundListener cancelRefundListener) throws MQClientException {        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(RocketMqConstant.REQUEST_CONSUMER_GROUP);        consumer.setNamesrvAddr(rocketMQProperties.getNameServer());        consumer.subscribe(RocketMqConstant.CANCEL_REFUND_REQUEST_TOPIC, "*");        consumer.registerMessageListener(cancelRefundListener);        consumer.start();        return consumer;    }    ...}
//消费退款准备请求消息@Componentpublic class CancelRefundListener implements MessageListenerConcurrently {    @Autowired    private OrderAfterSaleService orderAfterSaleService;
    @Override    public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {        try {            for (MessageExt messageExt : list) {                String message = new String(messageExt.getBody());                CancelOrderAssembleRequest cancelOrderAssembleRequest = JSONObject.parseObject(message, CancelOrderAssembleRequest.class);                log.info("CancelRefundConsumer message:{}", message);                //执行 取消订单/超时未支付取消 前的操作                JsonResult<Boolean> jsonResult = orderAfterSaleService.processCancelOrder(cancelOrderAssembleRequest);                if (!jsonResult.getSuccess()) {                    throw new OrderBizException(OrderErrorCodeEnum.CONSUME_MQ_FAILED);                }            }            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;        } catch (Exception e) {            log.error("consumer error", e);            return ConsumeConcurrentlyStatus.RECONSUME_LATER;        }    }}
@Servicepublic class OrderAfterSaleServiceImpl implements OrderAfterSaleService {    ...    @Override    public JsonResult<Boolean> processCancelOrder(CancelOrderAssembleRequest cancelOrderAssembleRequest) {        String orderId = cancelOrderAssembleRequest.getOrderId();        //分布式锁        String key = RedisLockKeyConstants.REFUND_KEY + orderId;        try {            boolean lock = redisLock.lock(key);            if (!lock) {                throw new OrderBizException(OrderErrorCodeEnum.PROCESS_REFUND_REPEAT);            }
            //执行退款前的准备工作            //生成售后订单号            OrderInfoDTO orderInfoDTO = cancelOrderAssembleRequest.getOrderInfoDTO();            OrderInfoDO orderInfoDO = orderInfoDTO.clone(OrderInfoDO.class);            String afterSaleId = orderNoManager.genOrderId(OrderNoTypeEnum.AFTER_SALE.getCode(), orderInfoDO.getUserId());
            //1.计算 取消订单 退款金额            CancelOrderRefundAmountDTO cancelOrderRefundAmountDTO = calculatingCancelOrderRefundAmount(cancelOrderAssembleRequest);            cancelOrderAssembleRequest.setCancelOrderRefundAmountDTO(cancelOrderRefundAmountDTO);            TransactionMQProducer producer = defaultProducer.getProducer();            producer.setTransactionListener(new TransactionListener() {                @Override                public LocalTransactionState executeLocalTransaction(Message message, Object o) {                    try {                        //2.取消订单操作 记录售后信息                        afterSaleManager.insertCancelOrderAfterSale(cancelOrderAssembleRequest, AfterSaleStatusEnum.REVIEW_PASS.getCode(), orderInfoDO, afterSaleId);                        return LocalTransactionState.COMMIT_MESSAGE;                    } catch (Exception e) {                        log.error("system error", e);                        return LocalTransactionState.ROLLBACK_MESSAGE;                    }                }
                @Override                public LocalTransactionState checkLocalTransaction(MessageExt messageExt) {                    //查询售后数据是否插入成功                    AfterSaleInfoDO afterSaleInfoDO = afterSaleInfoDAO.getOneByAfterSaleId(Long.valueOf(afterSaleId));                    List<AfterSaleItemDO> afterSaleItemDOList = afterSaleItemDAO.listByAfterSaleId(Long.valueOf(afterSaleId));                    List<AfterSaleLogDO> afterSaleLogDOList = afterSaleLogDAO.listByAfterSaleId(Long.valueOf(afterSaleId));                    List<AfterSaleRefundDO> afterSaleRefundDOList = afterSaleRefundDAO.listByAfterSaleId(Long.valueOf(afterSaleId));                    if (afterSaleInfoDO != null && afterSaleItemDOList.isEmpty() && afterSaleLogDOList.isEmpty() && afterSaleRefundDOList.isEmpty()) {                        return LocalTransactionState.COMMIT_MESSAGE;                    }                    return LocalTransactionState.ROLLBACK_MESSAGE;                }            });
            try {                //3.组装事务MQ消息                ActualRefundMessage actualRefundMessage = new ActualRefundMessage();                actualRefundMessage.setOrderId(cancelOrderAssembleRequest.getOrderId());                actualRefundMessage.setLastReturnGoods(cancelOrderAssembleRequest.isLastReturnGoods());                actualRefundMessage.setAfterSaleId(Long.valueOf(afterSaleId));                Message message = new Message(RocketMqConstant.ACTUAL_REFUND_TOPIC, JSONObject.toJSONString(actualRefundMessage).getBytes(StandardCharsets.UTF_8));                //4.发送事务MQ消息--实际退款消息                TransactionSendResult result = producer.sendMessageInTransaction(message, actualRefundMessage);                if (!result.getLocalTransactionState().equals(LocalTransactionState.COMMIT_MESSAGE)) {                    throw new OrderBizException(OrderErrorCodeEnum.PROCESS_REFUND_FAILED);                }                return JsonResult.buildSuccess(true);            } catch (Exception e) {                throw new OrderBizException(OrderErrorCodeEnum.SEND_TRANSACTION_MQ_FAILED);            }        } finally {            redisLock.unlock(key);        }    }    ...}
复制代码


文章转载自：东阳马生架构

原文链接：https://www.cnblogs.com/mjunz/p/18976429
