OpenTelemetry
OpenTelemetry 是各类 API、SDK 和工具形成的集合。可用于插桩、生成、采集和导出遥测数据（链路、指标和日志），帮助你分析软件的性能和行为。
VKProxy 已集成 OpenTelemetry，所以现在可以非常简单采集和导出遥测数据（链路、指标和日志）。
简单回顾 asp.net core 中如何使用

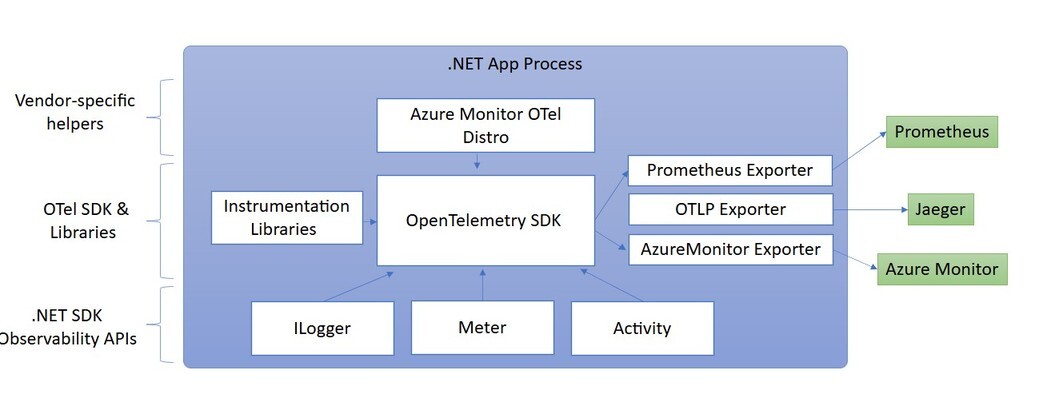

遥测数据分为链路、指标和日志 ，dotnet 中使用可参考OpenTelemetry文档
简单的示例
using Microsoft.Extensions.Options;using OpenTelemetry;using OpenTelemetry.Resources;using OpenTelemetry.Trace;
Environment.SetEnvironmentVariable("OTEL_EXPORTER_OTLP_ENDPOINT", "http://127.0.0.1:4317/"); // 配置OpenTelemetry收集器
var builder = WebApplication.CreateBuilder(args);
// Add services to the container.
builder.Services.AddControllers();// Learn more about configuring OpenAPI at https://aka.ms/aspnet/openapibuilder.Services.AddOpenApi();
builder.Services.AddOpenTelemetry() .ConfigureResource(resource => resource.AddService("TestApi", "").AddContainerDetector()) .WithTracing(tracing => tracing.AddAspNetCoreInstrumentation()) .WithMetrics(builder => { builder.AddMeter("System.Runtime", "Microsoft.AspNetCore.Server.Kestrel", "Microsoft.AspNetCore.MemoryPool"); }) .WithLogging() .UseOtlpExporter(); // 示例使用 Otlp协议
var app = builder.Build();
// Configure the HTTP request pipeline.if (app.Environment.IsDevelopment()){ app.MapOpenApi();}
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();
app.Run();
复制代码
日志
这个其实没什么特别，由于已经提供非常抽象的 ILogger， 所以只需大家按照自己记录 log 所需正常使用就好，
log 大家使用非常多，这里就不详细示例了，可参考文档Logging in .NET and ASP.NET Core
而 OpenTelemetry 对于 log，主要是如何在 log 结构化并记录分布式追踪的信息，以方便关联。
OpenTelemetry sdk 已经内置支持，只需配置好 .WithLogging()，对应 log 和分布式追踪的信息都会写入收集器中。
指标
dotnet 中已提供统一的抽象 Meter， 大家不必再关注是为 Prometheus 还是其他方案提供对应性能指标方案
详细文档可参考ASP.NET Core 指标 和 ASP.NET 核心内置指标
这里举个简单例子说明 如何自定义指标
public class ProxyMetrics{ private readonly Meter? metrics; private readonly Counter<long>? requestsCounter; private readonly Histogram<double>? requestDuration;
public ProxyMetrics(IMeterFactory meterFactory) { var f = serviceProvider.GetService<IMeterFactory>(); metrics = f == null ? null : f.Create("VKProxy.ReverseProxy"); if (metrics != null) { // 计数器 requestsCounter = metrics.CreateCounter<long>("vkproxy.requests", unit: "{request}", "Total number of (HTTP/tcp/udp) requests processed by the reverse proxy.");
// 直方图 requestDuration = metrics.CreateHistogram( "vkproxy.request.duration", unit: "s", description: "Proxy handle duration of (HTTP/tcp/udp) requests.", advice: new InstrumentAdvice<double> { HistogramBucketBoundaries = [0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 30, 60, 120, 300] }); } }
public void ProxyBegin(IReverseProxyFeature feature) // 在请求开始调用 { string routeId = GetRouteId(feature); GeneralLog.ProxyBegin(generalLogger, routeId); if (requestsCounter != null && requestsCounter.Enabled) { var tags = new TagList { { "route", routeId } // 设置 指标 tag，让其粒度到 route 级别 }; requestsCounter.Add(1, in tags); // +1 记录总共接受了多少个请求 } }
public void ProxyEnd(IReverseProxyFeature feature) // 在请求结束调用 { string routeId = GetRouteId(feature); GeneralLog.ProxyEnd(generalLogger, routeId); if (requestDuration != null && requestDuration.Enabled) { var endTimestamp = Stopwatch.GetTimestamp(); var t = Stopwatch.GetElapsedTime(feature.StartTimestamp, endTimestamp); var tags = new TagList { { "route", routeId } // 设置 指标 tag，让其粒度到 route 级别 }; requestDuration.Record(t.TotalSeconds, in tags); // 记录请求耗时 } }}
复制代码
接着在 Program.cs 中向 DI 注册指标类型：
var builder = WebApplication.CreateBuilder(args);builder.Services.AddSingleton<ProxyMetrics>();
复制代码
然后在具体地方使用
private async Task DoHttp(HttpContext context, ListenEndPointOptions? options){ try { logger.ProxyBegin(proxyFeature); ///...... } finally { logger.ProxyEnd(proxyFeature); }}
复制代码
链路
对于分布式链路追踪，其实 dotnet 现在已有内置抽象 Activity
这里举个简单例子说明 如何自定义链路
在 Program.cs 中向 DI 注册指标类型：
var builder = WebApplication.CreateBuilder(args);builder.Services.TryAddSingleton(sp => new ActivitySource("VKProxy"));builder.Services.TryAddSingleton(DistributedContextPropagator.Current);
复制代码
使用 Activity 埋点信息
internal class ListenHandler : ListenHandlerBase{ internal const string ActivityName = "VKProxy.ReverseProxy"; private readonly DistributedContextPropagator propagator; private readonly ActivitySource activitySource;
public ListenHandler(..., DistributedContextPropagator propagator, ActivitySource activitySource) { this.propagator = propagator; this.activitySource = activitySource; }
private async Task DoHttp(HttpContext context, ListenEndPointOptions? options) { Activity activity; if (activitySource.HasListeners()) { var headers = context.Request.Headers; Activity.Current = activity = ActivityCreator.CreateFromRemote(activitySource, propagator, headers, static (object? carrier, string fieldName, out string? fieldValue, out IEnumerable<string>? fieldValues) => { fieldValues = default; var headers = (IHeaderDictionary)carrier!; fieldValue = headers[fieldName]; }, ActivityName, ActivityKind.Server, tags: null, links: null, false); } else { activity = null; }
if (activity != null) { activity.Start(); context.Features.Set<IHttpActivityFeature>(new HttpActivityFeature(activity)); context.Features.Set<IHttpMetricsTagsFeature>(new HttpMetricsTagsFeature() { Method = context.Request.Method, Protocol = context.Request.Protocol, Scheme = context.Request.Scheme, MetricsDisabled = true, }); activity.DisplayName = $"{context.Request.Method} {context.Request.Path.Value}"; activity.SetTag("http.request.method", context.Request.Method); activity.SetTag("network.protocol.name", "http"); activity.SetTag("url.scheme", context.Request.Scheme); activity.SetTag("url.path", context.Request.Path.Value); activity.SetTag("url.query", context.Request.QueryString.Value); if (ProtocolHelper.TryGetHttpVersion(context.Request.Protocol, out var httpVersion)) { activity.SetTag("network.protocol.version", httpVersion); } activity.SetTag("http.request.host", context.Request.Host); activity.SetTag("http.request.content_type", context.Request.ContentType); var l = context.Request.ContentLength; if (l.HasValue) activity.SetTag("http.request.content_length", l.Value); }
try { logger.ProxyBegin(proxyFeature); ///...... } finally { if (activity != null) { var statusCode = context.Response.StatusCode; activity.SetTag("http.response.status_code", statusCode); activity.Stop(); Activity.Current = null; }
logger.ProxyEnd(proxyFeature); } }
复制代码
仪表盘
遥测数据收集到哪儿，用什么展示，业界有各种方案， 比如
将 OpenTelemetry 与 OTLP 和独立 Aspire 仪表板配合使用
将 OpenTelemetry 与 Prometheus、Grafana 和 Jaeger 结合使用
将 OpenTelemetry 与 SkyWalking ui 结合使用
等等
大家可以根据自己喜好和实际选择

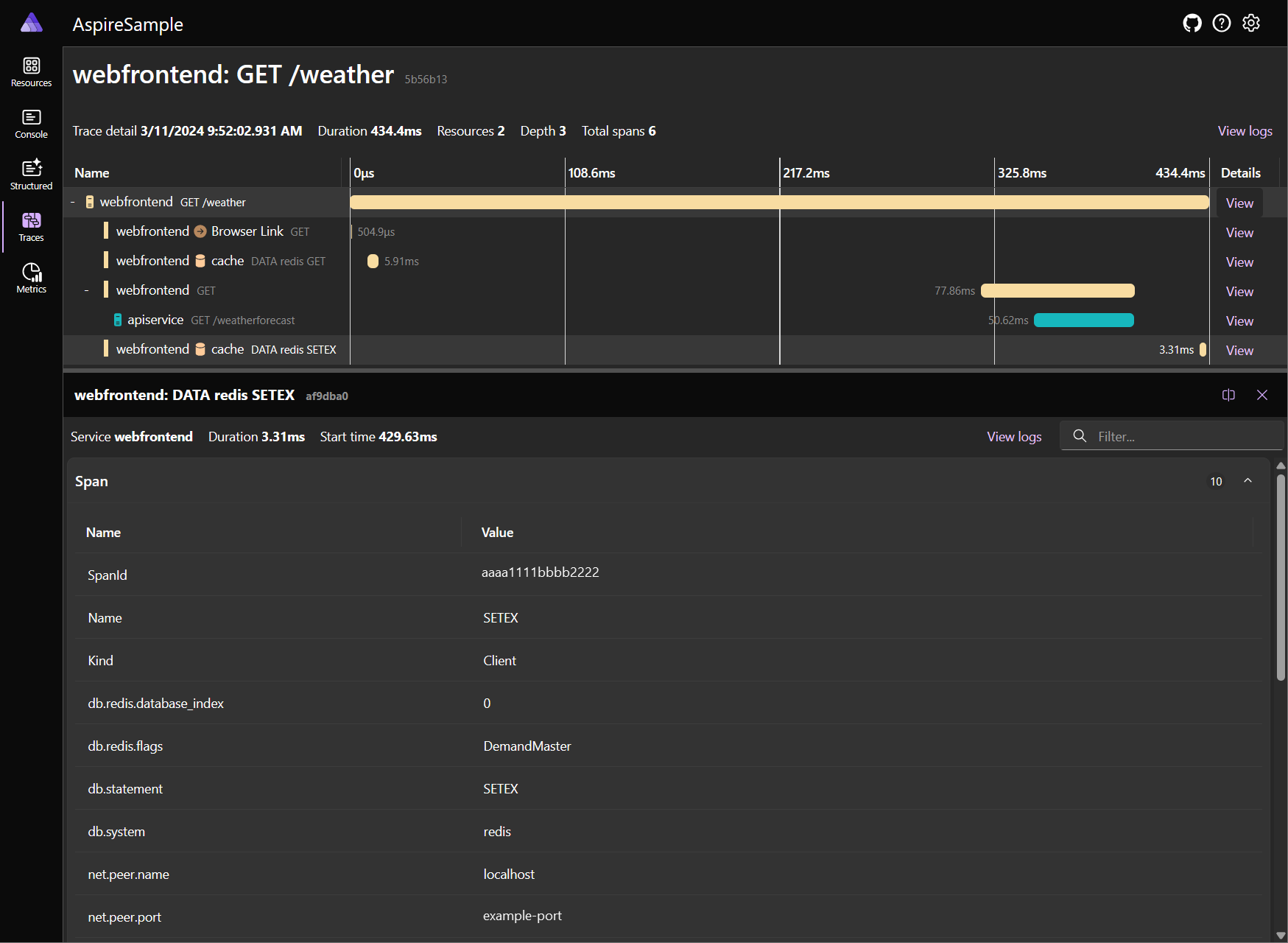

不过对应效果大致如 Aspire 一般
在 VKProxy 中如何使用？
默认情况，OpenTelemetry 已经启用，并且配置为 otlp 协议，大家只需配置 otlp 收集器，
相关配置如下：
(更多详细配置参见OpenTelemetry.Exporter.OpenTelemetryProtocol)
这里我们用 Aspire 仪表盘举例
因为它有个独立模式，只需启动一个镜像就可以尝试一下，当然真实产线还是需要配置其他存储等等
docker run --rm -it -p 18888:18888 -p 4317:18889 -d --name aspire-dashboard \ mcr.microsoft.com/dotnet/aspire-dashboard:9.0
复制代码
前面的 Docker 命令：
从 mcr.microsoft.com/dotnet/aspire-dashboard:9.0 映像启动容器。
公开两个端口的容器实例：
将仪表板的 OTLP 端口 18889 映射到主机的端口 4317。 端口 4317 从应用接收 OpenTelemetry 数据。 应用使用 OpenTelemetry 协议 （OTLP）发送数据。
将仪表板的端口 18888 映射到主机的端口 18888。 端口 18888 具有仪表板 UI。 导航到浏览器中 http://localhost:18888 以查看仪表板。
// 设置收集器环境变量
set OTEL_EXPORTER_OTLP_ENDPOINT=http://127.0.0.1:4317/
// 启动vkproxy （具体配置可参见之前的性能测试 https://www.cnblogs.com/fs7744/p/18978275 ）
vkproxy proxy -c D:\code\github\VKProxy\samples\CoreDemo\test.json
复制代码
访问一下
curl --location 'https://localhost:5001/WeatherForecast'
复制代码

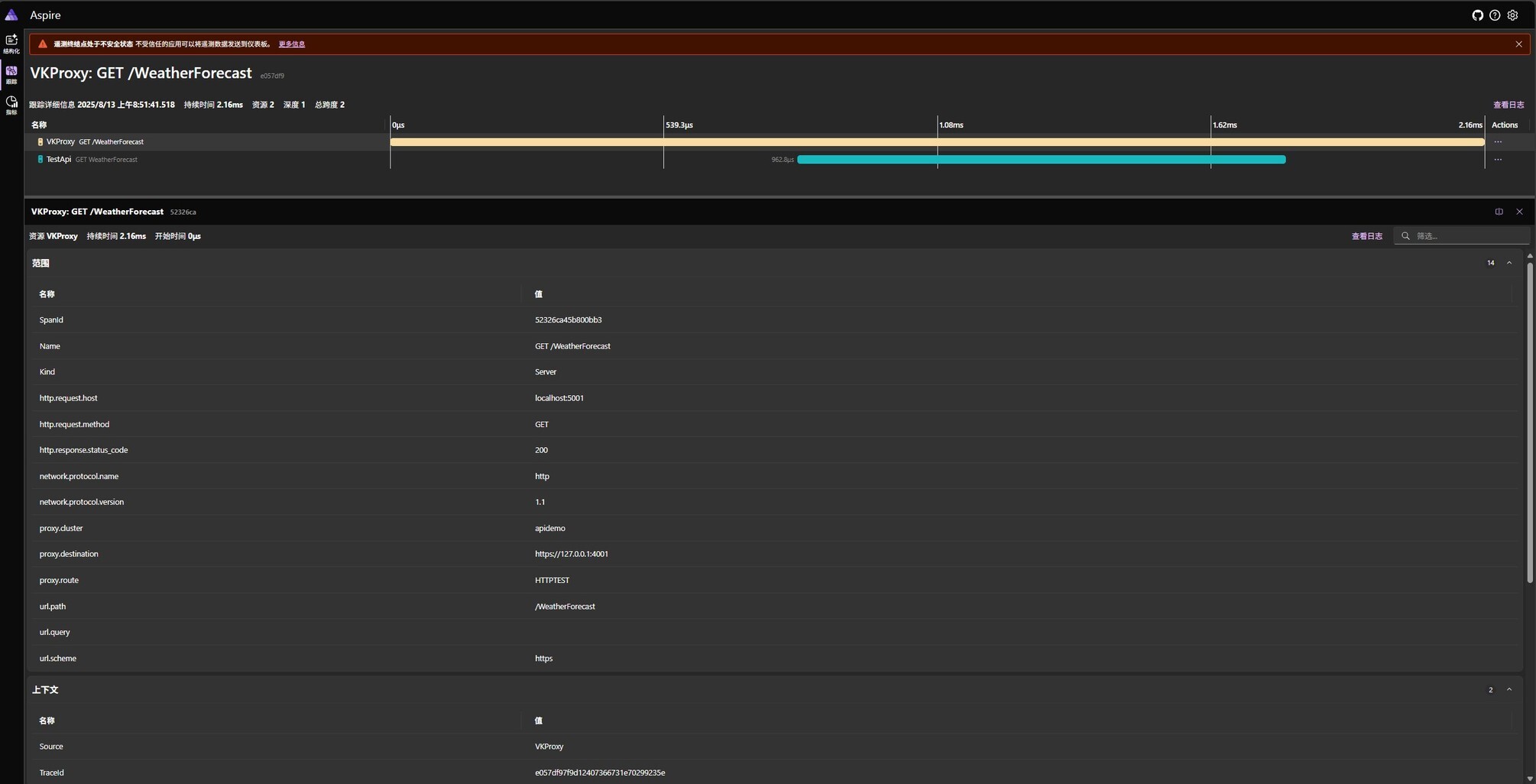

可以在 Aspire 中看到相关链路信息

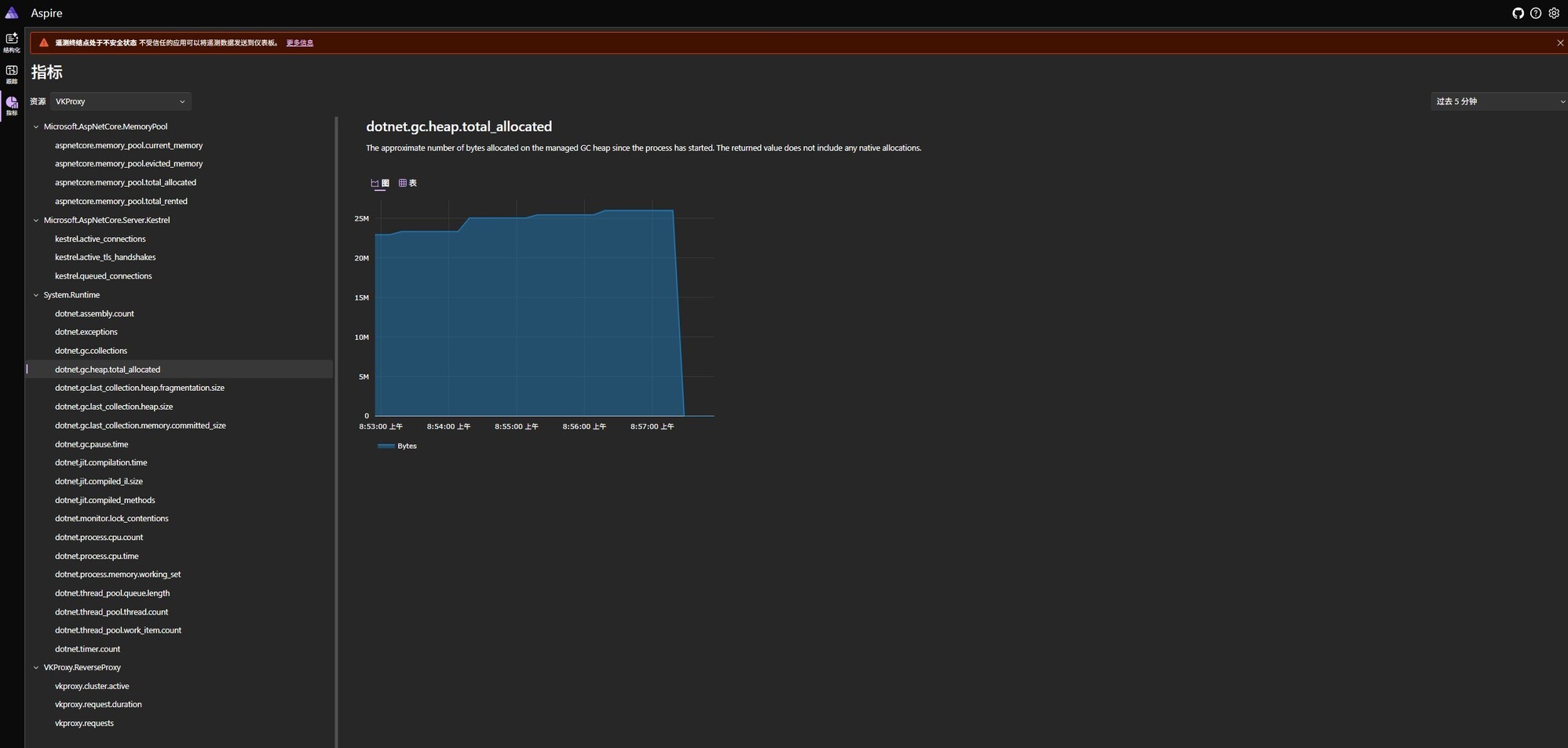

指标信息

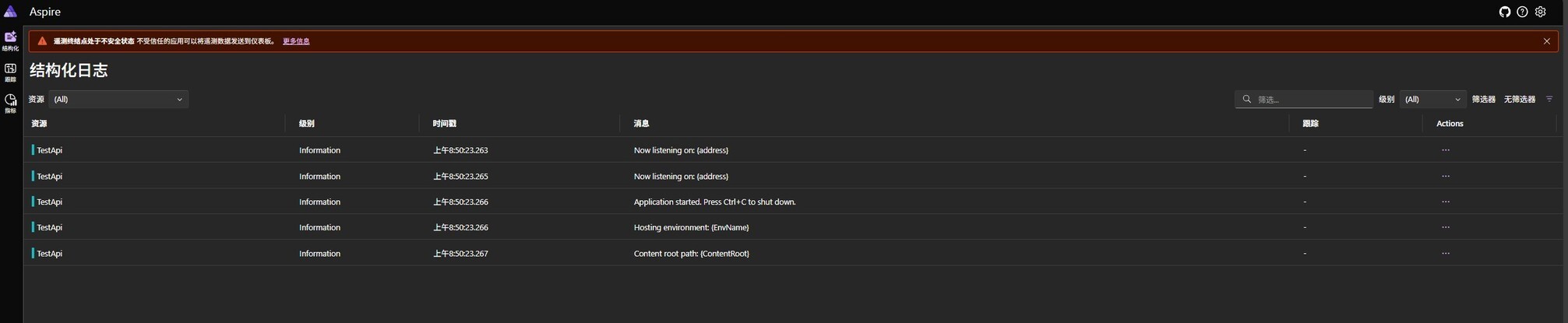

日志信息
当然你还可以通多如下命令调整过滤记录的信息
--telemetry (Environment:VKPROXY_TELEMETRY) Allow export telemetry data (metrics, logs, and traces) to help you analyze your software’s performance and behavior.
--meter (Environment:VKPROXY_TELEMETRY_METER) Subscribe meters, default is System.Runtime,Microsoft.AspNetCore.Server.Kestrel,Microsoft.AspNetCore.Server.Kestrel.Udp,Microsoft.AspNetCore.MemoryPool,VKProxy.ReverseProxy
--drop_instrument (Environment:VKPROXY_TELEMETRY_DROP_INSTRUMENT) Drop instruments
--exporter (Environment:VKPROXY_TELEMETRY_EXPORTER) How to export telemetry data (metrics, logs, and traces), support prometheus,console,otlp , default is otlp, please set env like `OTEL_EXPORTER_OTLP_ENDPOINT=http://127.0.0.1:4317/`
复制代码

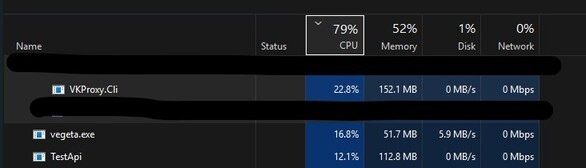

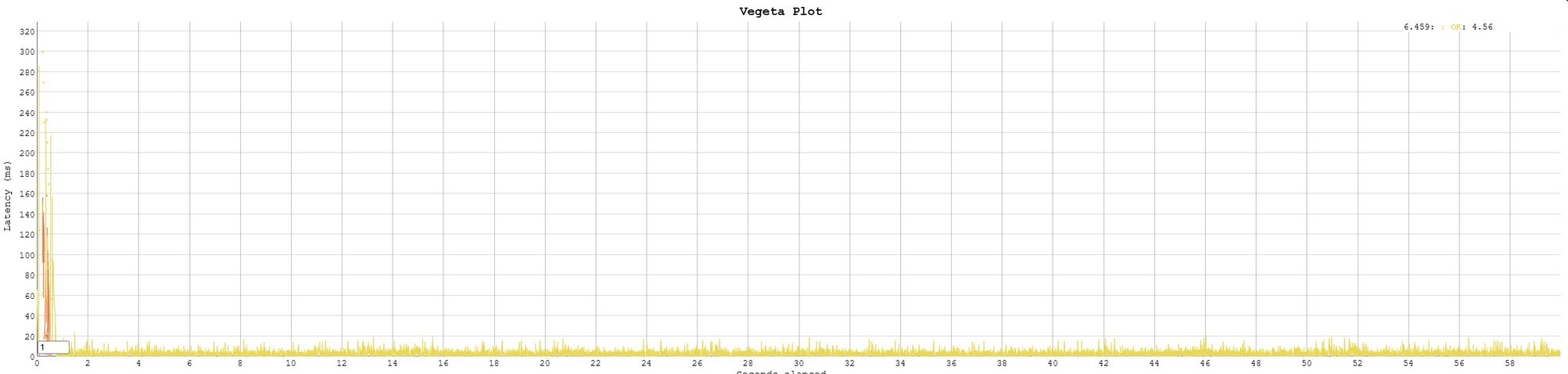

测一测性能
.\vegeta.exe attack -insecure -rate=10000/s -duration=60s -format=http -targets=http2proxy -output=http2proxyresults -http2 // http2proxy content:// GET https://127.0.0.1:5001/WeatherForecast
复制代码
汇总
Requests [total, rate, throughput] 599999, 10000.94, 9992.64Duration [total, attack, wait] 59.994s, 59.994s, 0sLatencies [min, mean, 50, 90, 95, 99, max] 0s, 3.428ms, 2.015ms, 5.405ms, 6.882ms, 32.941ms, 301.44msBytes In [total, mean] 231889817, 386.48Bytes Out [total, mean] 0, 0.00Success [ratio] 99.92%Status Codes [code:count] 0:498 200:599501Error Set:Get "https://127.0.0.1:5001/WeatherForecast": dial tcp 0.0.0.0:0->127.0.0.1:5001: connectex: No connection could be made because the target machine actively refused it.
复制代码
之前没有遥测的性能测试汇总
Requests [total, rate, throughput] 599930, 9998.35, 9998.35Duration [total, attack, wait] 1m0s, 1m0s, 0sLatencies [min, mean, 50, 90, 95, 99, max] 0s, 676.024µs, 0s, 2.56ms, 3.705ms, 5.367ms, 26.437msBytes In [total, mean] 232052167, 386.80Bytes Out [total, mean] 0, 0.00Success [ratio] 100.00%Status Codes [code:count] 200:599930Error Set:
复制代码
对比之前的测试而言，的确 otlp 遥测对性能有了不小的影响，但这点消耗单次请求看，消耗还是很低微的，总体利大于弊
VKProxy 是使用 c#开发的基于 Kestrel 实现 L4/L7 的代理（感兴趣的同学烦请点个github小赞赞呢）
