global                                     # 全局配置。   log         127.0.0.1 local2            # 定义全局的 syslog 服务器，最多可以定义两个。   chroot      /var/lib/haproxy            # 更改当前目录并为启动进程设置超级用户权限，从而提高安全性。   pidfile     /var/run/haproxy.pid        # 将 HAProxy 进程的 PID 写入 pidfile。   maxconn     4000                        # 每个 HAProxy 进程所接受的最大并发连接数。   user        haproxy                     # 同 UID 参数。   group       haproxy                     # 同 GID 参数，建议使用专用用户组。   nbproc      1                           # 在后台运行时创建的进程数。在启动多个进程转发请求时，确保该值足够大，保证 HAProxy 不会成为瓶颈。   daemon                                  # 让 HAProxy 以守护进程的方式工作于后台，等同于命令行参数“-D”的功能。当然，也可以在命令行中用“-db”参数将其禁用。   stats socket /var/lib/haproxy/stats     # 统计信息保存位置。
defaults                                   # 默认配置。   log global                              # 日志继承全局配置段的设置。   retries 2                               # 向上游服务器尝试连接的最大次数，超过此值便认为后端服务器不可用。   timeout connect  2s                     # HAProxy 与后端服务器连接超时时间。如果在同一个局域网内，可设置成较短的时间。   timeout client 30000s                   # 客户端与 HAProxy 连接后，数据传输完毕，即非活动连接的超时时间。   timeout server 30000s                   # 服务器端非活动连接的超时时间。
listen admin_stats                         # frontend 和 backend 的组合体，此监控组的名称可按需进行自定义。   bind 0.0.0.0:8080                       # 监听端口。   mode http                               # 监控运行的模式，此处为 `http` 模式。   option httplog                          # 开始启用记录 HTTP 请求的日志功能。   maxconn 10                              # 最大并发连接数。   stats refresh 30s                       # 每隔 30 秒自动刷新监控页面。   stats uri /haproxy                      # 监控页面的 URL。   stats realm HAProxy                     # 监控页面的提示信息。   stats auth admin:pingcap123             # 监控页面的用户和密码，可设置多个用户名。   stats hide-version                      # 隐藏监控页面上的 HAProxy 版本信息。   stats  admin if TRUE                    # 手工启用或禁用后端服务器（HAProxy 1.4.9 及之后版本开始支持）。
listen tidb-cluster                        # 配置 database 负载均衡。   bind 0.0.0.0:8000                       # 浮动 IP 和 监听端口。   mode tcp                                # HAProxy 要使用第 4 层的传输层。   balance leastconn                       # 连接数最少的服务器优先接收连接。`leastconn` 建议用于长会话服务，例如 LDAP、SQL、TSE 等，而不是短会话协议，如 HTTP。该算法是动态的，对于启动慢的服务器，服务器权重会在运行中作调整。
  # 检测 4000 端口，检测频率为每 2000 毫秒一次。如果 2 次检测为成功，则认为服务器可用；如果 3 次检测为失败，则认为服务器不可用。     server tidb-1 192.168.2.71:4000 check inter 2000 rise 2 fall 3   server tidb-3 192.168.2.73:4000 check inter 2000 rise 2 fall 3

    proxy-protocol.networks: 192.168.2.71,192.168.2.73

[tidb@tidb01 ~]$ systemctl restart haproxy[tidb@tidb01 ~]$ systemctl status haproxy● haproxy.service - HAProxy Load Balancer   Loaded: loaded (/usr/lib/systemd/system/haproxy.service; enabled; vendor preset: disabled)   Active: active (running) since Mon 2025-09-22 20:56:51 CST; 2h 3min ago Main PID: 1062 (haproxy-systemd)    Tasks: 3   CGroup: /system.slice/haproxy.service           ├─1062 /usr/sbin/haproxy-systemd-wrapper -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid           ├─1077 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds           └─1085 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds[tidb@tidb01 ~]$

[tidb@tidb01 ~]$ mysql -uroot -p -P8000 -h192.168.2.71 -AEnter password: Welcome to the MariaDB monitor.  Commands end with ; or \g.Your MySQL connection id is 413Server version: 5.7.25-TiDB-v7.1.1 TiDB Server (Apache License 2.0) Enterprise Edition, MySQL 5.7 compatible
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
MySQL [(none)]> show databases;+--------------------+| Database           |+--------------------+| INFORMATION_SCHEMA || METRICS_SCHEMA     || PERFORMANCE_SCHEMA || employees          || mysql              || test               |+--------------------+6 rows in set (0.01 sec)
MySQL [(none)]> \qBye[tidb@tidb01 ~]$

cdc_servers:- host: 192.168.2.71  ssh_port: 22  port: 8300  gc-ttl: 86400  data_dir: "/u01/tidb-deploy/cdc-data"- host: 192.168.2.72  ssh_port: 22  port: 8300  gc-ttl: 86400    data_dir: "/u01/tidb-deploy/cdc-data"- host: 192.168.2.73  ssh_port: 22  port: 8300  gc-ttl: 86400  data_dir: "/u01/tidb-deploy/cdc-data"

[tidb@tidb01 ~]$ [tidb@tidb01 ~]$ tiup cluster scale-out mhxy cdc_scale_out.yaml
Ticdc组件扩容完成，查看集群服务，cdc服务正常。

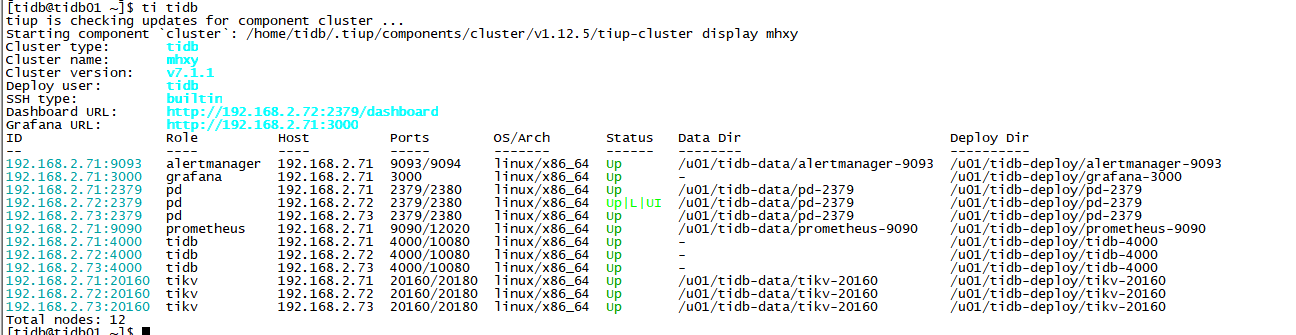

[tidb@tidb01 ~]$ ti tidbtiup is checking updates for component cluster ...Starting component `cluster`: /home/tidb/.tiup/components/cluster/v1.12.5/tiup-cluster display mhxyCluster type:       tidbCluster name:       mhxyCluster version:    v7.1.1Deploy user:        tidbSSH type:           builtinDashboard URL:      http://192.168.2.72:2379/dashboardGrafana URL:        http://192.168.2.71:3000ID                  Role          Host          Ports        OS/Arch       Status   Data Dir                          Deploy Dir--                  ----          ----          -----        -------       ------   --------                          ----------192.168.2.71:9093   alertmanager  192.168.2.71  9093/9094    linux/x86_64  Up       /u01/tidb-data/alertmanager-9093  /u01/tidb-deploy/alertmanager-9093192.168.2.71:8300   cdc           192.168.2.71  8300         linux/x86_64  Up       /u01/tidb-deploy/cdc-data         /u01/tidb-deploy/cdc-8300192.168.2.72:8300   cdc           192.168.2.72  8300         linux/x86_64  Up       /u01/tidb-deploy/cdc-data         /u01/tidb-deploy/cdc-8300192.168.2.73:8300   cdc           192.168.2.73  8300         linux/x86_64  Up       /u01/tidb-deploy/cdc-data         /u01/tidb-deploy/cdc-8300192.168.2.71:3000   grafana       192.168.2.71  3000         linux/x86_64  Up       -                                 /u01/tidb-deploy/grafana-3000192.168.2.71:2379   pd            192.168.2.71  2379/2380    linux/x86_64  Up       /u01/tidb-data/pd-2379            /u01/tidb-deploy/pd-2379192.168.2.72:2379   pd            192.168.2.72  2379/2380    linux/x86_64  Up|L|UI  /u01/tidb-data/pd-2379            /u01/tidb-deploy/pd-2379192.168.2.73:2379   pd            192.168.2.73  2379/2380    linux/x86_64  Up       /u01/tidb-data/pd-2379            /u01/tidb-deploy/pd-2379192.168.2.71:9090   prometheus    192.168.2.71  9090/12020   linux/x86_64  Up       /u01/tidb-data/prometheus-9090    /u01/tidb-deploy/prometheus-9090192.168.2.71:4000   tidb          192.168.2.71  4000/10080   linux/x86_64  Up       -                                 /u01/tidb-deploy/tidb-4000192.168.2.72:4000   tidb          192.168.2.72  4000/10080   linux/x86_64  Up       -                                 /u01/tidb-deploy/tidb-4000192.168.2.73:4000   tidb          192.168.2.73  4000/10080   linux/x86_64  Up       -                                 /u01/tidb-deploy/tidb-4000192.168.2.71:20160  tikv          192.168.2.71  20160/20180  linux/x86_64  Up       /u01/tidb-data/tikv-20160         /u01/tidb-deploy/tikv-20160192.168.2.72:20160  tikv          192.168.2.72  20160/20180  linux/x86_64  Up       /u01/tidb-data/tikv-20160         /u01/tidb-deploy/tikv-20160192.168.2.73:20160  tikv          192.168.2.73  20160/20180  linux/x86_64  Up       /u01/tidb-data/tikv-20160         /u01/tidb-deploy/tikv-20160Total nodes: 15

MySQL [(none)]> create user ticdc@'%' identified by 'pingcap';MySQL [(none)]> GRANT ALL PRIVILEGES ON *.* TO 'ticdc'@'%' ;MySQL [(none)]> create database pingcap;Query OK, 0 rows affected (0.65 sec)

[tidb@tidb01 ~]$ cat changefeed.toml # 指定配置文件中涉及的库名、表名是否为大小写敏感，该配置会同时影响 filter 和 sink 相关配置，默认为 truecase-sensitive = true
# 是否输出 old value，从 v4.0.5 开始支持，从 v5.0 开始默认为 trueenable-old-value = trueforce-replicate = true
[mounter]# mounter 解码 KV 数据的线程数，默认值为 16# worker-num = 16
# 生产库,排除 mhxy*[filter]rules = ["pingcap.*"]

[tidb@tidb01 ~]$ tiup cdc cli changefeed create --sink-uri="mysql://ticdc:pingcap@192.168.2.77:4000/" --config=changefeed.tomltiup is checking updates for component cdc ...Starting component `cdc`: /home/tidb/.tiup/components/cdc/v7.1.1/cdc cli changefeed create --sink-uri=mysql://ticdc:pingcap@192.168.2.77:4000/ --config=changefeed.tomlCreate changefeed successfully!ID: 2cd5a986-90fa-4bc9-9e9c-1dd268d5077aInfo: {"upstream_id":7542538698203629074,"namespace":"default","id":"2cd5a986-90fa-4bc9-9e9c-1dd268d5077a","sink_uri":"mysql://ticdc:xxxxx@192.168.2.77:4000/","create_time":"2025-09-27T20:51:23.76894628+08:00","start_ts":461105393466867718,"config":{"memory_quota":1073741824,"case_sensitive":true,"enable_old_value":true,"force_replicate":true,"ignore_ineligible_table":false,"check_gc_safe_point":true,"enable_sync_point":false,"bdr_mode":false,"sync_point_interval":600000000000,"sync_point_retention":86400000000000,"filter":{"rules":["pingcap.*"],"event_filters":null},"mounter":{"worker_num":16},"sink":{"protocol":"","schema_registry":"","csv":{"delimiter":",","quote":"\"","null":"\\N","include_commit_ts":false,"binary_encoding_method":"base64"},"column_selectors":null,"transaction_atomicity":"","encoder_concurrency":16,"terminator":"\r\n","date_separator":"day","enable_partition_separator":true,"file_index_digit":0,"enable_kafka_sink_v2":false,"only_output_updated_columns":null},"consistent":{"level":"none","max_log_size":64,"flush_interval":2000,"storage":"","use_file_backend":false},"scheduler":{"enable_table_across_nodes":false,"region_threshold":100000,"write_key_threshold":0},"integrity":{"integrity_check_level":"none","corruption_handle_level":"warn"}},"state":"normal","creator_version":"v7.1.1","resolved_ts":461105393466867718,"checkpoint_ts":461105393466867718,"checkpoint_time":"2025-09-27 20:51:23.623"}[tidb@tidb01 ~]$ [tidb@tidb01 ~]$ tiup cdc cli  changefeed list --server 192.168.2.71:8300        tiup is checking updates for component cdc ...Starting component `cdc`: /home/tidb/.tiup/components/cdc/v7.1.1/cdc cli changefeed list --server 192.168.2.71:8300[  {    "id": "2cd5a986-90fa-4bc9-9e9c-1dd268d5077a",    "namespace": "default",    "summary": {      "state": "normal",      "tso": 461105432657395713,      "checkpoint": "2025-09-27 20:53:53.123",      "error": null    }  }][tidb@tidb01 ~]$ [tidb@tidb01 ~]$ [tidb@tidb01 ~]$ tiup cdc cli  capture  list --server 192.168.2.71:8300tiup is checking updates for component cdc ...Starting component `cdc`: /home/tidb/.tiup/components/cdc/v7.1.1/cdc cli capture list --server 192.168.2.71:8300[  {    "id": "26b269d6-eedf-4408-b110-ac6a759b864d",    "is-owner": true,    "address": "192.168.2.72:8300",    "cluster-id": "default"  },  {    "id": "a15e02dd-c6e7-48cc-93d0-a78dc4aabe4a",    "is-owner": false,    "address": "192.168.2.73:8300",    "cluster-id": "default"  },  {    "id": "5fcc40a5-fd98-48ce-9bfb-49ec1ec97db6",    "is-owner": false,    "address": "192.168.2.71:8300",    "cluster-id": "default"  }]

[tidb@tidb01 ~]$ tiup bench tpcc prepare -H 192.168.2.71 -P 8000 -D pingcap  --user=root --password=root   --warehouses 4 --parts 4         tiup is checking updates for component bench ...Starting component `bench`: /home/tidb/.tiup/components/bench/v1.12.0/tiup-bench tpcc prepare -H 192.168.2.71 -P 8000 -D pingcap --user=root --password=root --warehouses 4 --parts 4creating table warehousecreating table districtcreating table customercreating table historycreating table new_ordercreating table orderscreating table order_linecreating table stockcreating table itemload to itemload to warehouse in warehouse 1load to stock in warehouse 1load to district in warehouse 1load to warehouse in warehouse 2
...begin to check warehouse 3 at condition 3.3.2.4begin to check warehouse 3 at condition 3.3.2.7begin to check warehouse 3 at condition 3.3.2.9begin to check warehouse 3 at condition 3.3.2.11begin to check warehouse 3 at condition 3.3.2.2begin to check warehouse 3 at condition 3.3.2.3begin to check warehouse 3 at condition 3.3.2.5begin to check warehouse 3 at condition 3.3.2.6begin to check warehouse 3 at condition 3.3.2.8begin to check warehouse 3 at condition 3.3.2.10begin to check warehouse 3 at condition 3.3.2.12begin to check warehouse 4 at condition 3.3.2.5begin to check warehouse 4 at condition 3.3.2.6begin to check warehouse 4 at condition 3.3.2.8begin to check warehouse 4 at condition 3.3.2.10begin to check warehouse 4 at condition 3.3.2.12begin to check warehouse 4 at condition 3.3.2.2begin to check warehouse 4 at condition 3.3.2.3begin to check warehouse 4 at condition 3.3.2.7begin to check warehouse 4 at condition 3.3.2.9begin to check warehouse 4 at condition 3.3.2.11begin to check warehouse 4 at condition 3.3.2.1begin to check warehouse 4 at condition 3.3.2.4Finished[tidb@tidb01 ~]$
###CDC上游， pingcap数据库生成较小的数据量MySQL [(none)]> SELECT    -> table_schema AS '数据库名',    -> ROUND(SUM(data_length + index_length) / 1024 / 1024, 2) AS '数据库大小(MB)'    -> FROM    -> information_schema.tables    -> GROUP BY    -> table_schema    -> ORDER BY    -> SUM(data_length + index_length) DESC;+--------------------+---------------------+| 数据库名           | 数据库大小(MB)      |+--------------------+---------------------+| pingcap            |              383.96 || employees          |                0.00 || METRICS_SCHEMA     |                0.00 || mysql              |                0.00 || INFORMATION_SCHEMA |                0.00 || PERFORMANCE_SCHEMA |                0.00 |+--------------------+---------------------+6 rows in set (2.90 sec)
