Ascend 的 aclgraph（十）另外一种成图方式 GeConcreteGraph
作者：zjun
- 2025-05-19 上海
本文字数：11119 字
阅读完需：约 36 分钟
1 回顾
在Ascend的aclgraph（一）aclgraph是什么？torchair又是怎么成图的？中提到了GeConcreteGraph的概念，
if self.config.mode.value == "max-autotune": from torchair._ge_concrete_graph.fx2ge_converter import GeConcreteGraph graph = GeConcreteGraph(self.config, name="graph_" + str(_next_unique_graph_id()))elif self.config.mode.value == "reduce-overhead": from torchair._acl_concrete_graph.fx2acl_converter import AclConcreteGraph graph = AclConcreteGraph(self.config)else: raise ValueError(f"Unsupported npu backend mode: {self.config.mode.value}.")
复制代码
AclConcreteGraph已经介绍完了，此篇对GeConcreteGraph进行分析了解下。
2 GeConcreteGraph
先给出代码中定义（部分片段）
class GeConcreteGraph(ConcreteGraphBase): def __init__(self, config: CompilerConfig, name=None): self._graph = GeGraph(name=name) self._fx_outputs = [] self._fx_outputs_mapping = dict() self._outputs = [] self._fx_input_names = [] self._input_process = None self._input_info_list = [] self._graph_output_ref_input = {} self._ref_data_idx = [] self._cloned_ge_input_mapping = {} self._config = config self._auto_tune_times = 0 self._converter_ctx = threading.local() self._is_compiled = False self._all_sym_input_idx = {} self._all_meta_tensor_input = {} self._fx_graph = None
复制代码
重点关注self._graph，它是个GeGraph对象，
2.1 GeGraph
先看GeGraph的定义
class GeGraph(object): def __init__(self, model_def=None, serialized_model_def=None, name=None): from torchair.core._backend import TorchNpuGraph if model_def is not None and serialized_model_def is not None: raise AssertionError(f"Unsupported init method: both model_def and serialized_model_def are specified.") elif model_def is None and serialized_model_def is None: self._model = ModelDef() self._proto = self._model.graph.add() elif serialized_model_def is not None: self._model = ModelDef() self._model.ParseFromString(serialized_model_def) self._proto = self._model.graph[0] else: self._model = model_def self._proto = self._model.graph[0]
self._proto.name = name if name is not None else self._proto.name self._executor = TorchNpuGraph(self._proto.name) self._python_code = self._python_code_init() self._generator_rng_state = defaultdict(map_graph_rng_state) self._indexed_inputs = {} self._named_inputs_info = {} self._used_process_group = {} self._dont_prune_me_ops = []
复制代码
根据 GeGraph 只传入了 name 可知，走的是
self._model = ModelDef()self._proto = self._model.graph.add()
复制代码
其中ModelDef的定义是
ModelDef = _reflection.GeneratedProtocolMessageType('ModelDef', (_message.Message,), {
'AttrEntry': _reflection.GeneratedProtocolMessageType('AttrEntry', (_message.Message,), { 'DESCRIPTOR': _MODELDEF_ATTRENTRY, '__module__': 'ge_ir_pb2' # @@protoc_insertion_point(class_scope:ge.proto.ModelDef.AttrEntry) }), 'DESCRIPTOR': _MODELDEF, '__module__': 'ge_ir_pb2' # @@protoc_insertion_point(class_scope:ge.proto.ModelDef)})
复制代码
这段代码通过使用 Protocol Buffers 的反射机制，动态地创建了两个消息类型：ModelDef 和其内部的嵌套消息类型 AttrEntry。这些消息类型通常会在 .proto 文件中定义，并由 Protocol Buffers 编译器生成相应的 Python 代码。
2.2 TorchNpuGraph
上述代码中，还引入了TorchNpuGraph的概念。
self._executor = TorchNpuGraph(self._proto.name)
复制代码
TorchNpuGraph的定义如下
class TorchNpuGraph(_torchair.TorchNpuGraphBase): def __init__(self, name=""): super(TorchNpuGraph, self).__init__(str(name))
@pretty_error_msg def load(self, ge_graph, options=None): """Load the graph""" options = {} if options is None else options input_placements = ge_graph.attr["_input_placements"].list.i output_dtypes = ge_graph.attr["_output_dtypes"].list.i executor_type = ge_graph.attr["_executor_type"].i inputs_shape = _get_input_shape(ge_graph) super(TorchNpuGraph, self).load(ge_graph.SerializeToString(), options, input_placements, output_dtypes, executor_type) super(TorchNpuGraph, self).set_hint_shape(inputs_shape, []) logger.debug('Load graph set_hint_shape input shape: %s', inputs_shape)
@pretty_error_msg def compile(self): """Compile the graph""" return super(TorchNpuGraph, self).compile()
@pretty_error_msg def auto_tune(self, example_inputs=[], stream=None): """Compile the graph with aoe""" return super(TorchNpuGraph, self).auto_tune((example_inputs, stream))
@pretty_error_msg def run(self, inputs, assigned_outputs=[], stream=None): """Run the graph""" return super(TorchNpuGraph, self).run((inputs, assigned_outputs, stream))
复制代码
TorchNpuGraphBase 是一个 pybind 的类型，
py::class_<tng::TorchNpuGraphBase>(m, "TorchNpuGraphBase") .def(py::init<const std::string &>()) .def("load", &tng::TorchNpuGraphBase::Load) .def("set_hint_shape", &tng::TorchNpuGraphBase::SetHintShape) .def("compile", &tng::TorchNpuGraphBase::Compile) .def("auto_tune", &tng::TorchNpuGraphBase::AutoTune) .def("summary", &tng::TorchNpuGraphBase::Summary) .def("run", &tng::TorchNpuGraphBase::Run);
复制代码
提供了compile和run等接口。
2.2 GeConcreteGraph 的__call__函数
定义如下，给出关键代码片段
def __call__(self, *args: Any, **kwargs: Any) -> Any: ... 省略 ...
self.update_graph_with_runtime(inputs, args)
... 省略 ...
if not self._is_compiled: local_compile_options, global_compile_options = self._normalize_ge_option() initialize_graph_engine(global_compile_options) self.graph.load(local_compile_options)
if self.should_auto_tune: self.auto_tune(inputs)
self.compile() ... 省略 ...
复制代码
首次编译，流程图如下
update_graph_with_runtime应该是根据 ge 图的执行规则，对图的输入进行一些处理。_normalize_ge_option是获取了一些接下来图编译的选项配置。initialize_graph_engine调用InitializeGraphEngine。
def initialize_graph_engine(global_compile_options: Dict = None): options: Dict[str, str] = {} options.update(_try_get_global_init_compile_option(global_compile_options)) options['ge.exec.deviceId'] = str(_get_device_id()) options['ge_run_with_torch_npu'] = '1' if 'torch_npu' in sys.modules else '0'
options.update(_get_global_op_compile_config()) _torchair.InitializeGraphEngine(options)
复制代码
InitializeGraphEngine是一个 pybind 函数，代码片段如下
Status Session::Initialize(const std::map<std::string, std::string> &options) { if (initialized_) { return status_; } std::lock_guard<std::mutex> const lock(mu_); if (initialized_) { return status_; } ... 省略 ... std::map<ge::AscendString, ge::AscendString> ge_options; TNG_LOG(INFO) << "Initializing GE with options:"; for (const auto &option : options) { TNG_LOG(INFO) << " " << option.first << ": " << option.second; if (option.first == "ge_run_with_torch_npu") { run_with_torch_npu_ = option.second == "1"; continue; } ge_options[option.first.c_str()] = option.second.c_str(); } ... 省略 ... if (ge::GEInitialize(ge_options) != ge::SUCCESS) { status_ = Status::Error("Failed to initialize GE %s", compat::GeErrorStatus().GetErrorMessage()); } else { (void)ge_options.emplace(ge::AscendString("ge.session_device_id"), iter->second); global_ge_session = std::make_unique<ge::Session>(ge_options); if (global_ge_session == nullptr) { status_ = Status::Error("Failed to create GE session"); } } auto ret = aclrtSetDevice(device_index_); TNG_ASSERT(ret == ACL_ERROR_NONE, "ACL set device id failed, return %d", ret);
libge_runner_handle = dlopen("libge_runner.so", RTLD_NOW); ... 省略 ...
复制代码
主要也就是初始化 GE 引擎的一些资源，包括 stream，device 等配置。有关 GE 的介绍，可以查阅GE图。

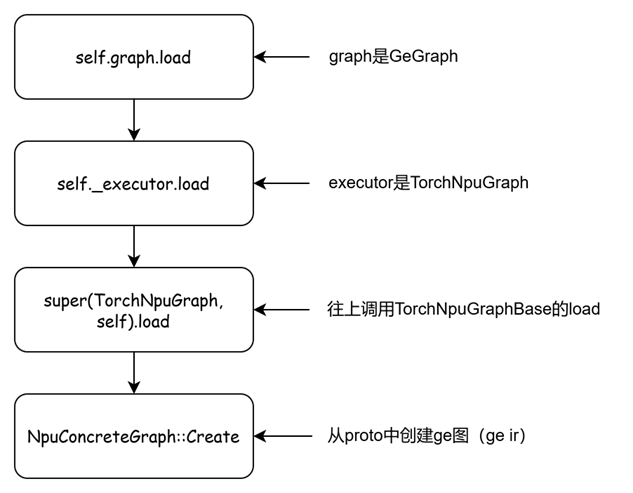

关注下self.graph.load(local_compile_options)函数，调用栈如下
可以看到，执行完成self.graph.load(local_compile_options)，ge 的图就创建好了。ge 中涉及到的代码页比较复杂，本篇还是关注 ge 图与 torch.compile 对接，不深入探讨 ge 细节。auto_tune也是 pybind 函数，最终调用的是RunAoeTuning。AOE 调优，可以参见昇腾社区AOE调优工具
2.3 compile
回到GeConcreteGraph的compile部分
def compile(self) -> Any: if self._is_compiled: return
logger.info(f'start compile graph: {self.graph.name}.') self.graph.compile() self._is_compiled = True logger.info(f'end compile graph: {self.graph.name} and start run graph.')
复制代码
接着调用
def compile(self): self._executor.compile()
复制代码

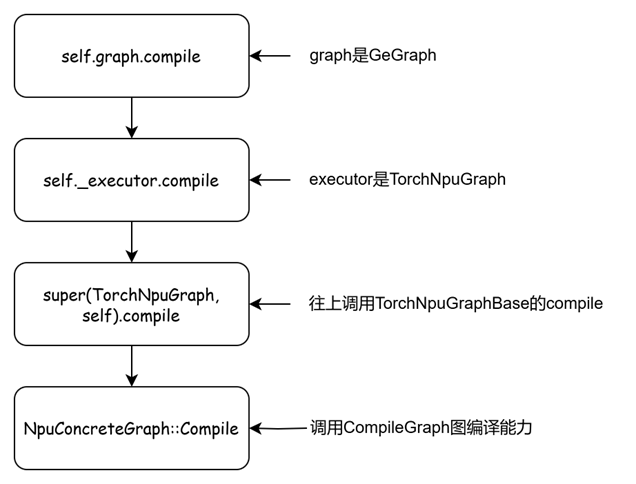

_executor 是 TorchNpuGraph，因此最终还是到TorchNpuGraphBase::Compile()流程图如下
最终是调用到 GE 的 API CompileGraph，根据社区资料https://www.hiascend.com/document/detail/zh/canncommercial/81RC1/apiref/ascendgraphapi/atlasgeapi_07_0103.html给出其解释如下函数原型
Status CompileGraph(uint32_t graph_id)
复制代码

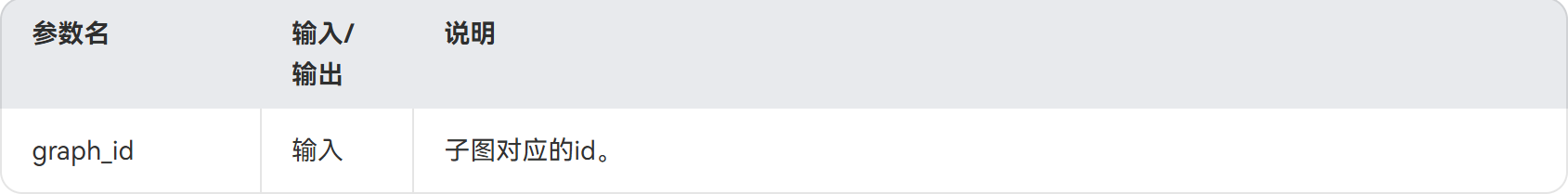

参数说明
同步编译指定 id 对应的 Graph 图。与BuildGraph相比，该接口仅包含图编译功能，不生成可用于执行的模型，BuildGraph包含了图编译过程，并在编译完成后进行模型所需内存资源的初始化，生成可用于执行的模型。
该接口不包含模型所需内存资源管理功能，而是将这部分管理内存的工作开放给用户。您可以配合编译后 Graph 资源占用查询接口、内存的基地址刷新接口来使用，达到自行管理模型内存、获得更多灵活性的目的。
您可以在调用该接口后，调用 GetCompiledGraphSummary 获取图编译结果的概要信息（比如模型执行所需的内存资源大小及内存是否可刷新、复用等），根据查询到的内存大小，自行申请并管理内存；然后通过 SetGraphConstMemoryBase、 UpdateGraphFeatureMemoryBase 对内存基址进行设置和刷新。
3 e2e 执行 GeConcreteGraph
同样，给出一个完整的调用例子。
import torchimport torch_npuimport torchairimport loggingfrom torchair import loggerlogger.setLevel(logging.INFO)
import loggingtorch._logging.set_logs(dynamo=logging.DEBUG,aot=logging.DEBUG,output_code=True,graph_code=True)
# Patch方式实现集合通信入图（可选）from torchair import patch_for_hcompatch_for_hcom()
# 定义模型Modelclass Model(torch.nn.Module): def __init__(self): super().__init__() def forward(self, x, y): return torch.add(x, y)
# 实例化模型modelmodel = Model().npu()
# 获取TorchAir提供的默认npu backend，自行配置config功能config = torchair.CompilerConfig()npu_backend = torchair.get_npu_backend(compiler_config=config)
# 使用npu backend进行compileopt_model = torch.compile(model, backend=npu_backend)
# 使用编译后的model去执行x = torch.randn(2, 2).npu()y = torch.randn(2, 2).npu()out = opt_model(x, y)print(out)
复制代码
get_npu_backend和torch.compile的过程，与Ascend的aclgraph（九）AclConcreteGraph：e2e执行aclgraph是一样的，这里不再赘述。直接关注opt_model运行的时候会发生的事情。
通过Ascend的aclgraph（三）TorchDynamo或者Ascend的aclgraph（九）AclConcreteGraph：e2e执行aclgraph可知，给 frame 设置了 callback 函数，该 callback 函数是convert_frame.convert_frame(backend, hooks=hooks)。
具体看看convert_frame函数的作用就是 convert a frame into an FX graph，调用过程如下
def convert_frame(compiler_fn: CompilerFn, hooks: Hooks) -> ConvertFrame: """Try to convert a frame into an FX graph, if error leave frame unmodified""" return ConvertFrame(compiler_fn, hooks)
复制代码
ConvertFrame的定义是
class ConvertFrame: def __init__( self, compiler_fn: CompilerFn, hooks: Hooks, ) -> None: self._torchdynamo_orig_callable = compiler_fn self._inner_convert = convert_frame_assert(compiler_fn, one_graph=False) // 转换函数 self._hooks = hooks
@property def _clone_with_backend(self) -> Callable[[WrapBackendDebug], ConvertFrame]: return lambda backend: convert_frame(backend, self._hooks)
def __call__( self, frame: DynamoFrameType, cache_entry: Optional[CacheEntry], hooks: Hooks, frame_state: dict[str, Union[int, FrameStateSizeEntry]], skip: int = 0, ) -> ConvertFrameReturn: input_codes.add(frame.f_code) counters["frames"]["total"] += 1 try: result = self._inner_convert( // 具体执行转换 frame, cache_entry, hooks, frame_state, skip=skip + 1 ) counters["frames"]["ok"] += 1 return result
复制代码
在初始化函数中，调用了convert_frame_assert函数，
def convert_frame_assert( compiler_fn: CompilerFn, one_graph: bool = True, export: bool = False, export_constraints: Optional[typing.Never] = None,) -> ConvertFrameAssert: """Fully convert a frame into an FX graph""" return ConvertFrameAssert(compiler_fn, one_graph, export, export_constraints)
复制代码
在ConvertFrameAssert的__call__函数中（代码片段）
def __call__( self, frame: DynamoFrameType, cache_entry: Optional[CacheEntry], hooks: Hooks, frame_state: dict[str, Union[int, FrameStateSizeEntry]], *, skip: int = 0, ) -> ConvertFrameReturn: ... 省略 ... with compile_context(CompileContext(compile_id)): return _compile( frame.f_code, frame.f_globals, frame.f_locals, frame.f_builtins, frame.closure, self._torchdynamo_orig_callable, self._one_graph, self._export, self._export_constraints, hooks, cache_entry, cache_size, frame, frame_state=frame_state, compile_id=compile_id, skip=skip + 1, )
复制代码
调用的是_compile函数，接下来的部分就与Ascend的aclgraph（三）TorchDynamo的第 4 节 4 TorchDynamo 模拟执行 & FX Graph 构建一致了，下面不再展开。
打开调用栈堆栈，也可以清晰的看到。
/home/torchair/test_ge.py(37)<module>()-> out = opt_model(x, y) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/nn/modules/module.py(1532)_wrapped_call_impl()-> return self._call_impl(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/nn/modules/module.py(1541)_call_impl()-> return forward_call(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/eval_frame.py(451)_fn()-> return fn(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/nn/modules/module.py(1532)_wrapped_call_impl()-> return self._call_impl(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/nn/modules/module.py(1541)_call_impl()-> return forward_call(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(921)catch_errors()-> return callback(frame, cache_entry, hooks, frame_state, skip=1) // 调用回调函数convert_frame /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(786)_convert_frame()-> result = inner_convert( /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(400)_convert_frame_assert()-> return _compile( // 调用compile /usr/local/python3.10.17/lib/python3.10/contextlib.py(79)inner()-> return func(*args, **kwds) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(676)_compile()-> guarded_code = compile_inner(code, one_graph, hooks, transform) 调用compile_inner /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/utils.py(262)time_wrapper()-> r = func(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(535)compile_inner()-> out_code = transform_code_object(code, transform) // 代码转换，负责字节码的编译 /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/bytecode_transformation.py(1036)transform_code_object()-> transformations(instructions, code_options) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(165)_fn()-> return fn(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/convert_frame.py(500)transform()-> tracer.run() /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/symbolic_convert.py(2149)run()-> super().run() /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/symbolic_convert.py(810)run()-> and self.step() /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/symbolic_convert.py(773)step()-> getattr(self, inst.opname)(inst) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/symbolic_convert.py(2268)RETURN_VALUE()-> self.output.compile_subgraph( /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/output_graph.py(981)compile_subgraph()-> self.compile_and_call_fx_graph(tx, list(reversed(stack_values)), root) /usr/local/python3.10.17/lib/python3.10/contextlib.py(79)inner()-> return func(*args, **kwds) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/output_graph.py(1178)compile_and_call_fx_graph()-> compiled_fn = self.call_user_compiler(gm) // 开始调用用户自定义的compiler /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/utils.py(262)time_wrapper()-> r = func(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/output_graph.py(1232)call_user_compiler()-> compiled_fn = compiler_fn(gm, self.example_inputs()) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/repro/after_dynamo.py(117)debug_wrapper()-> compiled_gm = compiler_fn(gm, example_inputs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/__init__.py(1770)__call__()-> return self.compiler_fn(model_, inputs_, **self.kwargs)> /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(423)_npu_backend()-> compiler = get_compiler(compiler_config) // 调用了到了自定义的backend函数_npu_backend
复制代码
通过如上的代码注释，相信大家对整体流程就应该串起来了。从 callback 的设置，到 callback 的执行。_npu_backend中的最后一个执行函数是aot_module_simplified，接着往下
-> return aot_module_simplified(gm, example_inputs, fw_compiler=fw_compiler, bw_compiler=compiler, /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/aot_autograd.py(903)aot_module_simplified()-> compiled_fn = create_aot_dispatcher_function( /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/utils.py(262)time_wrapper()-> r = func(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/aot_autograd.py(628)create_aot_dispatcher_function()-> compiled_fn = compiler_fn(flat_fn, fake_flat_args, aot_config, fw_metadata=fw_metadata) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/runtime_wrappers.py(443)aot_wrapper_dedupe()-> return compiler_fn(flat_fn, leaf_flat_args, aot_config, fw_metadata=fw_metadata) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/runtime_wrappers.py(648)aot_wrapper_synthetic_base()-> return compiler_fn(flat_fn, flat_args, aot_config, fw_metadata=fw_metadata) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/jit_compile_runtime_wrappers.py(119)aot_dispatch_base()-> compiled_fw = compiler(fw_module, updated_flat_args) /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(414)gear_compiler()-> return compiler(gm, example_inputs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(389)wrapped_compiler()-> return compiler(gm, example_inputs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/_utils/error_code.py(43)wapper()-> return func(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(286)__call__()-> return self._get_compiled_gm(gm, example_inputs) // 执行_NpuFxCompiler中的__call__函数 /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(322)_get_compiled_gm()-> return _GmRunner(self._gen_compiled_gm(gm, example_inputs)) // _GmRunner对象 /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(348)_gen_compiled_gm()-> concrete_graph: ConcreteGraphBase = _NpuGraphConverter( > /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(114)run()-> optimized_fx = _optimize_fx(self.module) // _NpuGraphConverter的run函数
复制代码
再看下 GeConcreteGraph 的__call__函数执行
/usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/eval_frame.py(451)_fn()-> return fn(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_dynamo/external_utils.py(36)inner()-> return fn(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/aot_autograd.py(917)forward()-> return compiled_fn(full_args) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/utils.py(89)g()-> return f(*args) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/runtime_wrappers.py(100)runtime_wrapper()-> all_outs = call_func_at_runtime_with_args( /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/utils.py(113)call_func_at_runtime_with_args()-> out = normalize_as_list(f(args)) /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/jit_compile_runtime_wrappers.py(152)rng_functionalization_wrapper()-> return compiled_fw(args)> /usr/local/python3.10.17/lib/python3.10/site-packages/torch/_functorch/_aot_autograd/utils.py(89)g()-> return f(*args) /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/npu_fx_compiler.py(261)__call__()-> gm_result = self.runner(*args, **kwargs) /usr/local/python3.10.17/lib/python3.10/site-packages/torch_npu/dynamo/torchair/_ge_concrete_graph/fx2ge_converter.py(514)__call__()-> enable_event_log = logger.getEffectiveLevel() <= EVENT_LEVEL
复制代码
4 总结
对 aclgraph 相关的知识点，通过 10 篇的介绍，到这里就结束了。由于涉及到好几个代码库，这个系列的介绍都是偏向于逻辑上的串接，知道 GeConcreteGraph 和 aclgraph 的区别，以及从 torch.compile 触发，一步步是怎么将这些逻辑给串联起来的。
由于小编能力和时间有限，内容介绍不对的地方还请各位看官加以提出和修正，多多包涵。
期待 Ascend 上的图模式能力越来越好。
