BigCache: Go 高性能内存缓存实现

作者:俞凡
  • 2025-08-30
    上海
  • 本文字数:3925 字

    阅读完需:约 13 分钟

本文介绍了支持高并发、低延迟应用的高性能 Go 内存缓存 BigCache,探讨其分片机制、哈希算法等性能优化机制。原文:BigCache: High-Performance Memory Caching in Go



BigCache 是基于 Go 实现的高性能内存缓存库,专为高并发、低延迟应用而设计。本文将探讨 BigCache 的性能优化技术,包括其分片机制、高效哈希算法、读写锁的使用等,并基于源码进行详细解释。

分片和锁

从用户角度来看,缓存的作用类似于大型哈希表,用于存储键值对(k/v)。那是否可以基于 map[string][]bytesync.RWMutex 来实现呢?


当然可以,但这种实现仅适用于低性能需求的情况。尽管 sync.RWMutex 对读写进行了优化,但会对并发写入进行串行处理,即使对不同的键进行操作也是如此。这在高写入并发的情况下会造成瓶颈,阻塞多个协程,每次只允许一个写入者进行操作。


BigCache 通过采用受 Java 的 ConcurrentMap 启发的分片机制来解决这一问题。它将大型哈希表划分为多个较小的分片,每个分片都由其自身的锁进行保护。这种策略在 MongoDB 分片之类的高并发场景中被广泛使用,能够有效减少竞争。Go 还有一个第三方实现:concurrent-map

源码示例:BigCache 分片

// https://github.com/allegro/bigcache/blob/a2f05d7cbfdc7000a8b7e1c40f27d3f239c204df/bigcache.go#L58type BigCache struct {    shards       []*cacheShard    shardMask    uint64    config       Config}func newBigCache(ctx context.Context, config Config, clock clock) (*BigCache, error) {    ......    cache := &BigCache{        shards: make([]*cacheShard, config.Shards),        lifeWindow: lifeWindowSeconds,        clock: clock,        hash: config.Hasher,        config: config,        shardMask: uint64(config.Shards - 1),        close: make(chan struct{}),    }    ......    for i := 0; i < config.Shards; i++ {        cache.shards[i] = initNewShard(config, onRemove, clock)    }    ......    return cache, nil}
复制代码


每个缓存对象根据键计算哈希值:hash(key) % N。理想情况下,并发请求均匀分布在各个分片上,从而最大限度减少锁竞争并减少延迟。

最优分片数(N)

N 越大越好吗?不一定,过多分片会导致不必要的开销。通过选择合理的 N 来平衡性能和成本至关重要,通常选择 2 的幂为 N(例如 16、32、64),从而模运算可以通过快速位运算进行计算:


// https://github.com/allegro/bigcache/blob/a2f05d7cbfdc7000a8b7e1c40f27d3f239c204df/bigcache.go#L253func (c *BigCache) getShard(hashedKey uint64) (shard *cacheShard) {    return c.shards[hashedKey & c.shardMask]}
复制代码


因为 N 是 2 的幂,对于任意 x,等式 x mod N = (x & (N - 1)) 成立,因此只需进行一次与运算(&)就可以找到它的余数。

选择正确的哈希算法

计算机科学家发明了许多哈希算法,Go 也实现了其中许多算法。理想的哈希算法应当满足以下条件:


  • 哈希值具有高度随机性。

  • 计算速度快。

  • 极小的内存需求,以减轻垃圾回收(GC)压力。


BigCache 的默认实现使用 fnv64a 算法,通过在栈上进行位运算来避免堆分配。


type fnv64a struct{}const (    offset64 = 14695981039346656037    prime64 = 1099511628211)func (f fnv64a) Sum64(key string) uint64 {var hash uint64 = offset64for i := 0; i < len(key); i++ {        hash ^= uint64(key[i])        hash *= prime64    }return hash}
复制代码

内存优化

在 Go 中,垃圾回收器在标记和扫描阶段会检查 map 中的每个元素。如果缓存中包含了数百万个缓存对象,那么垃圾回收器对这些对象进行检查就会导致不必要的时间开销。这是因为如果哈希表中的元素包含指针,那么在标记阶段,垃圾回收器会扫描包含指针的每一个元素;如果不包含指针,则会在标记阶段跳过这些元素。我们可以通过一个简单例子来验证。


var pointMap map[int]*int  var noPointMap map[int]int    func BenchmarkPointMap(b *testing.B) {      pointMap = make(map[int]*int)      for i := 0; i < 10e6; i++ {         pointMap[i] = &i      }      b.ResetTimer()      for i := 0; i < b.N; i++ {         delete(pointMap, i)         pointMap[i] = &i      }  }    func BenchmarkNoPointMap(b *testing.B) {      noPointMap = make(map[int]int)      for i := 0; i < 10e6; i++ {         noPointMap[i] = i      }      b.ResetTimer()      for i := 0; i < b.N; i++ {         delete(noPointMap, i)         noPointMap[i] = i      }  }
复制代码


结果:


➜  gc git:(main) ✗ GOMAXPROCS=1  go test --bench=. goos: darwingoarch: arm64pkg: blog-example/go/gccpu: Apple M1 ProBenchmarkPointMap        5273188               209.4 ns/opBenchmarkNoPointMap      7037848               178.5 ns/op
复制代码


然后,分别运行两个测试来分析 GC:


go test -bench=BenchmarkPointMap -trace trace_point.out  go test -bench=BenchmarkNoPointMap -trace trace_no_point.out
复制代码

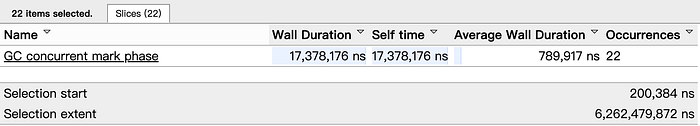

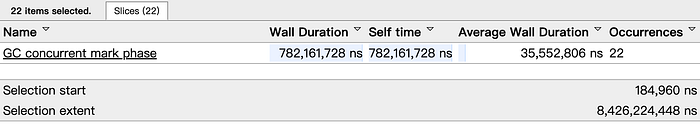

NoPointMap 的协程等待时间(Wall Duration)仅为 PointMap 的 2%。尽管 PointMap 的并发度较低,且不存在 goroutine 的竞争情况,但由于元素数量众多,在标记/扫描阶段的垃圾回收过程需要花费数百毫秒来进行标记和遍历。




BigCache 如何解决这个问题?禁止用户在 BigCache 中使用指针来存储数据。开个玩笑,如果真这么做了,用户立马会抛弃 BigCache。其实有几种方法可以解决这个问题。


  1. 参考 offheap,用自定义 Malloc()Free() 函数来手动管理内存,同时绕过运行时垃圾回收机制,但这样做更有可能导致内存泄漏。

  2. 参考 freecache,通过减少指针数量来实现零垃圾回收开销的 map。它将键和值存储在环形缓冲区中,并使用索引来查找对象。BigCache 实现此功能的方式是将哈希值用作 map[int]int 的键,将缓存对象序列化为预分配的大字节数组,然后用数组偏移量作为 map[int]int 的值。


//https://github.com/allegro/bigcache/blob/a2f05d7cbfdc7000a8b7e1c40f27d3f239c204df/shard.go#L18type cacheShard struct {    hashmap     map[uint64]uint32    entries     queue.BytesQueue    lock        sync.RWMutex    entryBuffer []byte    onRemove    onRemoveCallback    isVerbose    bool    statsEnabled bool    logger       Logger    clock        clock    lifeWindow   uint64    hashmapStats map[uint64]uint32    stats        Stats}
func (s *cacheShard) set(key string, hashedKey uint64, entry []byte) error { currentTimestamp := uint64(s.clock.Epoch()) s.lock.Lock() if previousIndex := s.hashmap[hashedKey]; previousIndex != 0 { // Check for old entries with the same hash key if previousEntry, err := s.entries.Get(int(previousIndex)); err == nil { resetHashFromEntry(previousEntry) // reset hash of old entries delete(s.hashmap, hashedKey) // Remove old entries from the hash table } } if !s.cleanEnabled...= s.entries.Push(w); err == nil { // Try to push new entries into the queue s.hashmap[hashedKey] = uint64(index)// Update the hash table s.lock.Unlock() return nil } if s.removeOldestEntry(NoSpace) != nil { // If there is not enough space, delete the oldest entry s.lock.Unlock() return errors.New("entry is bigger than max shard size") } } }
func (s *cacheShard) getValidWrapEntry(key string, hashedKey uint64) ([]byte, error) { wrappedEntry, err := s.getWrappedEntry(hashedKey) if err != nil { return nil, err } if !compareKeyFromEntry(wrappedEntry, key) { s.collision() if s.isVerbose { s.logger.Printf("Collision detected. Both %q and %q have the same hash %x", key, readKeyFromEntry(wrappedEntry), hashedKey) } return nil, ErrEntryNotFound } s.hitWithoutLock(hashedKey) return wrappedEntry, nil }
复制代码


queue.BytesQueue 是按需使用的字节数组。当添加 []byte 数据时,会将数据复制到数组末尾。当 BigCache 删除缓存元素时,只是从 map[uint64]uint32 中移除该元素被添加的索引,并将 queue.BytesQueue 队列中的数据设置为 0。删除操作会创建许多“空洞”,而这些空洞不会被重组或删除。因为是基于字节数组实现的,所以删除“空洞”是一个耗时的操作,会导致锁时间过长。BigCache 只能等待清理机制来移除这些“空洞”。


其他一些细节:


  1. 在 BigCache 中缓存的对象无法刷新其过期时间,所有缓存最终都会过期。

  2. 所有缓存的生命周期由 config.LifeWindow 进行配置,无法针对单个键进行单独设置。
