Kubernetes高可用性监控:Thanos的部署

介绍

对 Prometheus 高可用性的需求

在过去的几个月中,Kubernetes 的采用已经增长了很多倍,现在很明显,Kubernetes 是容器编排的事实标准。


同时,监视是任何基础架构的重要方面。Prometheus 被认为是监视容器应用和非容器应用的绝佳选择。我们应该确保监视系统具有高可用性和高度可扩展性,以适应不断增长的基础架构的需求,尤其是在 Kubernetes 的情况下。


因此,今天,我们将部署 Prometheus 集群,它不仅可以抵抗节点故障,而且还可以确保数据归档以备将来参考。我们的集群也具有很大的可扩展性,以至于我们可以在同一监控系统内跨越多个 Kubernetes 集群。


当前方案


大多数 Prometheus 部署都使用具备持久性存储的 Pod,而 Prometheus 使用联邦进行扩展。但是,并非所有数据都可以使用联邦进行聚合,在添加其他服务器时,通常需要一种机制来管理 Prometheus 配置。


解决方案


Thanos 旨在解决上述问题。在 Thanos 的帮助下,我们不仅可以扩展 Prometheus 实例,并能够消除重复数据,还可以将数据归档在 GCS 或 S3 等持久性存储中。

实现

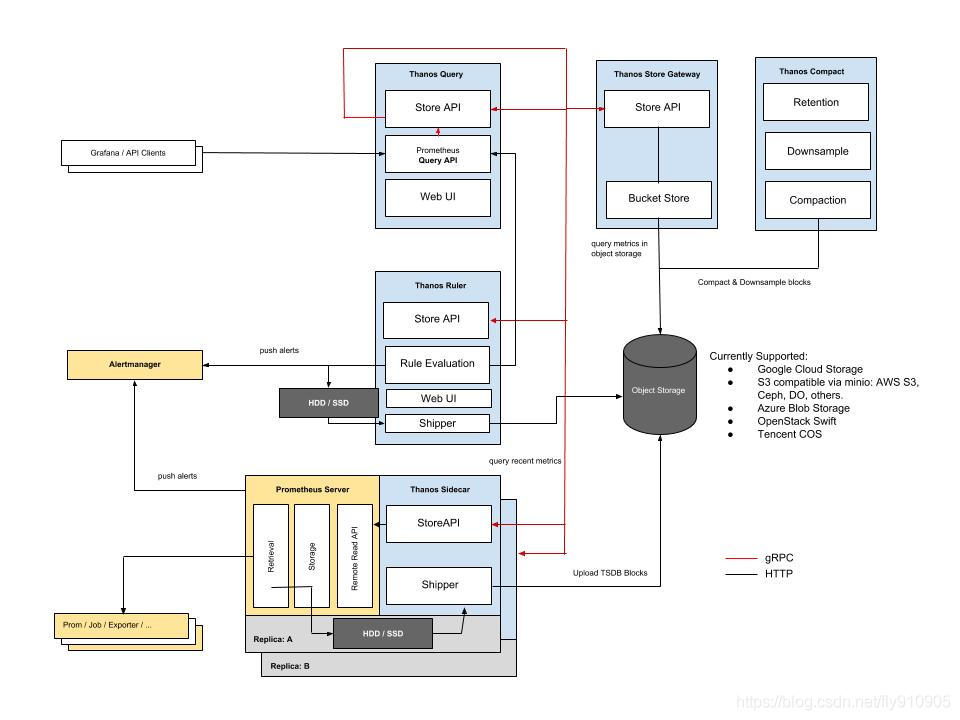

Thanos 架构


Thanos 包含以下组件:

  • Thanos Sidecar:这是在 Prometheus 运行的主要组件。它读取并存储 object store 中的数据。此外,它管理 Prometheus 的配置和生命周期。为了区分每个 Prometheus 实例,Sidecar 组件将外部标签注入 Prometheus 配置中。Sidecar 组件能够在 Prometheus 服务器的 PromQL 接口上运行查询。Sidecar 组件还侦听 Thanos gRPC 协议,并在 gRPC 查询和 REST 查询之间转换。

  • Thanos Store:此组件在 object store 中的历史数据之上实现 Store API。它主要充当 API 网关,因此不需要大量的本地磁盘空间。它在启动时加入 Thanos 集群,并公布它可以访问的数据。它会在本地磁盘上保留有关所有远程块的少量信息,并使它与 object store 保持同步。通常,在重新启动时可以安全地删除此数据,但会增加启动时间。

  • Thanos Query:是个查询组件,负责侦听 HTTP 并将查询转换为 Thanos gRPC 格式。它汇总了来自不同来源的查询结果,并且可以从 Sidecar 和 Store 中读取数据。在高可用性设置中,它甚至可以对重复数据进行删除。

重复数据删除

Prometheus 是有状态的,不允许复制其数据库。这意味着通过运行多个 Prometheus 副本来增强高可用性并不是最佳选择。


简单的负载平衡将不起作用,例如,在发生崩溃后,副本可能已启动,但是查询此类副本将导致其关闭期间的间隙很小。你有第二个副本可能正在运行,但是又可能在另一时间关闭(例如,滚动重启),因此在这些副本上进行负载平衡将无法正常工作。


  • 相反,Thanos Querier 从两个副本中提取数据,并对这些信号进行重复数据删除,从而帮助 Querier 使用者填补了空白。

  • Thanos Compact:是 Thanos 的压缩器组件,它采用 Prometheus 2.0 存储引擎的压缩过程,来阻止数据存储在 object store 中。通常,它以单例方式部署。 它还负责数据的向下采样(downsampling)-40 小时后执行 5m 的向下采样,而 10 天后执行 1h 的向下采样。

  • Thanos Ruler:它基本上与 Prometheus 的 rules 具有相同的作用。唯一的区别是它可以与 Thanos 组件进行通信。

Thanos 搭建

先决条件

为了完全理解本教程,需要以下内容:


  1. Kubernetes 的工作原理和熟练使用 Kubectl

  2. Kubernetes 集群至少有 3 个节点(在本演示中,使用 GKE 集群)

  3. 实现 Ingress Controller 和 Ingress 对象(出于演示目的,使用 Nginx Ingress Controller)。尽管这不是强制性的,但强烈建议你这样做以减少外部端点创建的数量。

  4. 创建供 Thanos 组件访问 object store 的凭证(在本例中为 GCS 存储)

  5. 创建 2 个 GCS 存储,并将其命名为 prometheus-long-term 和 thanos-ruler

  6. 创建一个角色为“ 存储对象管理员”的服务帐户

  7. 将密钥文件下载保存为 JSON 格式,并将其命名为 thanos-gcs-credentials.json

  8. 使用 secret 创建 kubernetes 密钥 kubectl create secret generic thanos-gcs-credentials --from-file=thanos-gcs-credentials.json -n monitoring

组件部署

部署 Prometheus 中的 ServiceAccount 资源对象,分别创建 Clusterrole 和 Clusterrolebinding

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: v1kind: ServiceAccountmetadata:  name: monitoring  namespace: monitoring---apiVersion: rbac.authorization.k8s.io/v1beta1kind: ClusterRolemetadata:  name: monitoring  namespace: monitoringrules:- apiGroups: [""]  resources:  - nodes  - nodes/proxy  - services  - endpoints  - pods  verbs: ["get", "list", "watch"]- apiGroups: [""]  resources:  - configmaps  verbs: ["get"]- nonResourceURLs: ["/metrics"]  verbs: ["get"]---apiVersion: rbac.authorization.k8s.io/v1beta1kind: ClusterRoleBindingmetadata:  name: monitoringsubjects:  - kind: ServiceAccount    name: monitoring    namespace: monitoringroleRef:  kind: ClusterRole  Name: monitoring  apiGroup: rbac.authorization.k8s.io---
复制代码


上述清单创建监控命名空间和服务 ServiceAccount。

部署 Prometheus 配置文件 configmap.yaml

apiVersion: v1kind: ConfigMapmetadata:  name: prometheus-server-conf  labels:    name: prometheus-server-conf  namespace: monitoringdata:  prometheus.yaml.tmpl: |-    global:      scrape_interval: 5s      evaluation_interval: 5s      external_labels:        cluster: prometheus-ha        # Each Prometheus has to have unique labels.        replica: $(POD_NAME)
rule_files: - /etc/prometheus/rules/*rules.yaml
alerting:
# We want our alerts to be deduplicated # from different replicas. alert_relabel_configs: - regex: replica action: labeldrop
alertmanagers: - scheme: http path_prefix: / static_configs: - targets: ['alertmanager:9093']
scrape_configs: - job_name: kubernetes-nodes-cadvisor scrape_interval: 10s scrape_timeout: 10s scheme: https tls_config: ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token kubernetes_sd_configs: - role: node relabel_configs: - action: labelmap regex: __meta_kubernetes_node_label_(.+) # Only for Kubernetes ^1.7.3. # See: https://github.com/prometheus/prometheus/issues/2916 - target_label: __address__ replacement: kubernetes.default.svc:443 - source_labels: [__meta_kubernetes_node_name] regex: (.+) target_label: __metrics_path__ replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor metric_relabel_configs: - action: replace source_labels: [id] regex: '^/machine\.slice/machine-rkt\\x2d([^\\]+)\\.+/([^/]+)\.service$' target_label: rkt_container_name replacement: '${2}-${1}' - action: replace source_labels: [id] regex: '^/system\.slice/(.+)\.service$' target_label: systemd_service_name replacement: '${1}'
- job_name: 'kubernetes-pods' kubernetes_sd_configs: - role: pod relabel_configs: - action: labelmap regex: __meta_kubernetes_pod_label_(.+) - source_labels: [__meta_kubernetes_namespace] action: replace target_label: kubernetes_namespace - source_labels: [__meta_kubernetes_pod_name] action: replace target_label: kubernetes_pod_name - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape] action: keep regex: true - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme] action: replace target_label: __scheme__ regex: (https?) - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+) - source_labels: [__address__, __meta_kubernetes_pod_prometheus_io_port] action: replace target_label: __address__ regex: ([^:]+)(?::\d+)?;(\d+) replacement: $1:$2

- job_name: 'kubernetes-apiservers' kubernetes_sd_configs: - role: endpoints scheme: https tls_config: ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token relabel_configs: - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name] action: keep regex: default;kubernetes;https
- job_name: 'kubernetes-service-endpoints' kubernetes_sd_configs: - role: endpoints relabel_configs: - action: labelmap regex: __meta_kubernetes_service_label_(.+) - source_labels: [__meta_kubernetes_namespace] action: replace target_label: kubernetes_namespace - source_labels: [__meta_kubernetes_service_name] action: replace target_label: kubernetes_name - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape] action: keep regex: true - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme] action: replace target_label: __scheme__ regex: (https?) - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path] action: replace target_label: __metrics_path__ regex: (.+) - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port] action: replace target_label: __address__ regex: (.+)(?::\d+);(\d+) replacement: $1:$2
复制代码


上面的 Configmap 创建 Prometheus 配置文件模板。Thanos sidecar 组件将读取此配置文件模板,并将生成实际的配置文件,而该配置文件又将由在同一容器中运行的 Prometheus 容器使用。


在配置文件中添加 external_labels 部分非常重要,以使 Querier 可以基于该部分对重复数据进行删除。

部署 prometheus-rules 的 configmap 这将创建我们的警报规则,该警报规则将中继到 alertmanager 进行交付

apiVersion: v1kind: ConfigMapmetadata:  name: prometheus-rules  labels:    name: prometheus-rules  namespace: monitoringdata:  alert-rules.yaml: |-    groups:      - name: Deployment        rules:        - alert: Deployment at 0 Replicas          annotations:            summary: Deployment {{$labels.deployment}} in {{$labels.namespace}} is currently having no pods running          expr: |            sum(kube_deployment_status_replicas{pod_template_hash=""}) by (deployment,namespace)  < 1          for: 1m          labels:            team: devops
- alert: HPA Scaling Limited annotations: summary: HPA named {{$labels.hpa}} in {{$labels.namespace}} namespace has reached scaling limited state expr: | (sum(kube_hpa_status_condition{condition="ScalingLimited",status="true"}) by (hpa,namespace)) == 1 for: 1m labels: team: devops
- alert: HPA at MaxCapacity annotations: summary: HPA named {{$labels.hpa}} in {{$labels.namespace}} namespace is running at Max Capacity expr: | ((sum(kube_hpa_spec_max_replicas) by (hpa,namespace)) - (sum(kube_hpa_status_current_replicas) by (hpa,namespace))) == 0 for: 1m labels: team: devops
- name: Pods rules: - alert: Container restarted annotations: summary: Container named {{$labels.container}} in {{$labels.pod}} in {{$labels.namespace}} was restarted expr: | sum(increase(kube_pod_container_status_restarts_total{namespace!="kube-system",pod_template_hash=""}[1m])) by (pod,namespace,container) > 0 for: 0m labels: team: dev
- alert: High Memory Usage of Container annotations: summary: Container named {{$labels.container}} in {{$labels.pod}} in {{$labels.namespace}} is using more than 75% of Memory Limit expr: | ((( sum(container_memory_usage_bytes{image!="",container_name!="POD", namespace!="kube-system"}) by (namespace,container_name,pod_name) / sum(container_spec_memory_limit_bytes{image!="",container_name!="POD",namespace!="kube-system"}) by (namespace,container_name,pod_name) ) * 100 ) < +Inf ) > 75 for: 5m labels: team: dev
- alert: High CPU Usage of Container annotations: summary: Container named {{$labels.container}} in {{$labels.pod}} in {{$labels.namespace}} is using more than 75% of CPU Limit expr: | ((sum(irate(container_cpu_usage_seconds_total{image!="",container_name!="POD", namespace!="kube-system"}[30s])) by (namespace,container_name,pod_name) / sum(container_spec_cpu_quota{image!="",container_name!="POD", namespace!="kube-system"} / container_spec_cpu_period{image!="",container_name!="POD", namespace!="kube-system"}) by (namespace,container_name,pod_name) ) * 100) > 75 for: 5m labels: team: dev
- name: Nodes rules: - alert: High Node Memory Usage annotations: summary: Node {{$labels.kubernetes_io_hostname}} has more than 80% memory used. Plan Capcity expr: | (sum (container_memory_working_set_bytes{id="/",container_name!="POD"}) by (kubernetes_io_hostname) / sum (machine_memory_bytes{}) by (kubernetes_io_hostname) * 100) > 80 for: 5m labels: team: devops
- alert: High Node CPU Usage annotations: summary: Node {{$labels.kubernetes_io_hostname}} has more than 80% allocatable cpu used. Plan Capacity. expr: | (sum(rate(container_cpu_usage_seconds_total{id="/", container_name!="POD"}[1m])) by (kubernetes_io_hostname) / sum(machine_cpu_cores) by (kubernetes_io_hostname) * 100) > 80 for: 5m labels: team: devops
- alert: High Node Disk Usage annotations: summary: Node {{$labels.kubernetes_io_hostname}} has more than 85% disk used. Plan Capacity. expr: | (sum(container_fs_usage_bytes{device=~"^/dev/[sv]d[a-z][1-9]$",id="/",container_name!="POD"}) by (kubernetes_io_hostname) / sum(container_fs_limit_bytes{container_name!="POD",device=~"^/dev/[sv]d[a-z][1-9]$",id="/"}) by (kubernetes_io_hostname)) * 100 > 85 for: 5m labels: team: devops
复制代码


部署 Prometheus 的 StatefulSet 资源

apiVersion: storage.k8s.io/v1beta1kind: StorageClassmetadata:  name: fast  namespace: monitoringprovisioner: kubernetes.io/gce-pdallowVolumeExpansion: true---apiVersion: apps/v1beta1kind: StatefulSetmetadata:  name: prometheus  namespace: monitoringspec:  replicas: 3  serviceName: prometheus-service  template:    metadata:      labels:        app: prometheus        thanos-store-api: "true"    spec:      serviceAccountName: monitoring      containers:        - name: prometheus          image: prom/prometheus:v2.4.3          args:            - "--config.file=/etc/prometheus-shared/prometheus.yaml"            - "--storage.tsdb.path=/prometheus/"            - "--web.enable-lifecycle"            - "--storage.tsdb.no-lockfile"            - "--storage.tsdb.min-block-duration=2h"            - "--storage.tsdb.max-block-duration=2h"          ports:            - name: prometheus              containerPort: 9090          volumeMounts:            - name: prometheus-storage              mountPath: /prometheus/            - name: prometheus-config-shared              mountPath: /etc/prometheus-shared/            - name: prometheus-rules              mountPath: /etc/prometheus/rules        - name: thanos          image: quay.io/thanos/thanos:v0.8.0          args:            - "sidecar"            - "--log.level=debug"            - "--tsdb.path=/prometheus"            - "--prometheus.url=http://127.0.0.1:9090"            - "--objstore.config={type: GCS, config: {bucket: prometheus-long-term}}"            - "--reloader.config-file=/etc/prometheus/prometheus.yaml.tmpl"            - "--reloader.config-envsubst-file=/etc/prometheus-shared/prometheus.yaml"            - "--reloader.rule-dir=/etc/prometheus/rules/"          env:            - name: POD_NAME              valueFrom:                fieldRef:                  fieldPath: metadata.name            - name : GOOGLE_APPLICATION_CREDENTIALS              value: /etc/secret/thanos-gcs-credentials.json          ports:            - name: http-sidecar              containerPort: 10902            - name: grpc              containerPort: 10901          livenessProbe:              httpGet:                port: 10902                path: /-/healthy          readinessProbe:            httpGet:              port: 10902              path: /-/ready          volumeMounts:            - name: prometheus-storage              mountPath: /prometheus            - name: prometheus-config-shared              mountPath: /etc/prometheus-shared/            - name: prometheus-config              mountPath: /etc/prometheus            - name: prometheus-rules              mountPath: /etc/prometheus/rules            - name: thanos-gcs-credentials              mountPath: /etc/secret              readOnly: false      securityContext:        fsGroup: 2000        runAsNonRoot: true        runAsUser: 1000      volumes:        - name: prometheus-config          configMap:            defaultMode: 420            name: prometheus-server-conf        - name: prometheus-config-shared          emptyDir: {}        - name: prometheus-rules          configMap:            name: prometheus-rules        - name: thanos-gcs-credentials          secret:            secretName: thanos-gcs-credentials  volumeClaimTemplates:  - metadata:      name: prometheus-storage      namespace: monitoring    spec:      accessModes: [ "ReadWriteOnce" ]      storageClassName: fast      resources:        requests:          storage: 20Gi
复制代码


上面提供的清单,重要的是要了解以下几个方面:


  1. Prometheus 部署为具有 3 个副本的 StatefulSet,每个副本动态地配置自己的持久存储卷。

  2. Thanos sidecar 容器使用我们在上面创建的模板文件,生成 Prometheus 配置信息。

  3. Thanos 需要处理数据压缩,因此我们需要设置--storage.tsdb.min-block-duration = 2h 和--storage.tsdb.max-block-duration = 2h

  4. PrometheusStatefulSet 被打上 thanos-store-api:true 的标签, 因此每个 headless 服务都会发现每个 Pod,我们将在下面的 Service 资源中创建它。Thanos Querier 将使用此 headless 服务来查询所有 Prometheus 实例中的数据。我们还将相同的标签(thanos-store-api:true)应用于 Thanos Store 和 Thanos Ruler 组件,以便 Querier 也会发现它们并将其用于查询指标。

  5. 使用 GOOGLE_APPLICATION_CREDENTIALS 环境变量提供了 GCS 存储凭据路径。这个凭据是我们创建 secret 获得的。

部署 Prometheus 服务

apiVersion: v1kind: Servicemetadata:   name: prometheus-0-service  annotations:     prometheus.io/scrape: "true"    prometheus.io/port: "9090"  namespace: monitoring  labels:    name: prometheusspec:  selector:     statefulset.kubernetes.io/pod-name: prometheus-0  ports:     - name: prometheus       port: 8080      targetPort: prometheus---apiVersion: v1kind: Servicemetadata:   name: prometheus-1-service  annotations:     prometheus.io/scrape: "true"    prometheus.io/port: "9090"  namespace: monitoring  labels:    name: prometheusspec:  selector:     statefulset.kubernetes.io/pod-name: prometheus-1  ports:     - name: prometheus       port: 8080      targetPort: prometheus---apiVersion: v1kind: Servicemetadata:   name: prometheus-2-service  annotations:     prometheus.io/scrape: "true"    prometheus.io/port: "9090"  namespace: monitoring  labels:    name: prometheusspec:  selector:     statefulset.kubernetes.io/pod-name: prometheus-2  ports:     - name: prometheus       port: 8080      targetPort: prometheus---#This service creates a srv record for querier to find about store-api'sapiVersion: v1kind: Servicemetadata:  name: thanos-store-gateway  namespace: monitoringspec:  type: ClusterIP  clusterIP: None  ports:    - name: grpc      port: 10901      targetPort: grpc  selector:    thanos-store-api: "true"
复制代码


我们为 StatefulSet 中的每个 Prometheus Pod 创建了不同的服务,这不是必需的,这些仅用于调试目的。上面已经解释了 headless 服务名称为 thanos-store-gateway 的目的。稍后我们将使用 ingress 对象暴露 Prometheus 服务。

部署 Thanos Querier

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: apps/v1kind: Deploymentmetadata:  name: thanos-querier  namespace: monitoring  labels:    app: thanos-querierspec:  replicas: 1  selector:    matchLabels:      app: thanos-querier  template:    metadata:      labels:        app: thanos-querier    spec:      containers:      - name: thanos        image: quay.io/thanos/thanos:v0.8.0        args:        - query        - --log.level=debug        - --query.replica-label=replica        - --store=dnssrv+thanos-store-gateway:10901        ports:        - name: http          containerPort: 10902        - name: grpc          containerPort: 10901        livenessProbe:          httpGet:            port: http            path: /-/healthy        readinessProbe:          httpGet:            port: http            path: /-/ready---apiVersion: v1kind: Servicemetadata:  labels:    app: thanos-querier  name: thanos-querier  namespace: monitoringspec:  ports:  - port: 9090    protocol: TCP    targetPort: http    name: http  selector:    app: thanos-querier
复制代码


Thanos Querier 是 Thanos 部署的主要组件之一。请注意以下几点:


  1. 容器参数--store=dnssrv+thanos-store-gateway:10901 有助于从度量标准数据中发现所有组件。

  2. thanos-querier 服务提供了一个 Web 界面来运行 PromQL 查询。它还可以选择在多个 Prometheus 群集之间删除重复数据。

  3. Thanos Querier 也是 Grafana 等所有仪表板的数据源。

部署 Thanos Store Gateway

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: apps/v1beta1kind: StatefulSetmetadata:  name: thanos-store-gateway  namespace: monitoring  labels:    app: thanos-store-gatewayspec:  replicas: 1  selector:    matchLabels:      app: thanos-store-gateway  serviceName: thanos-store-gateway  template:    metadata:      labels:        app: thanos-store-gateway        thanos-store-api: "true"    spec:      containers:        - name: thanos          image: quay.io/thanos/thanos:v0.8.0          args:          - "store"          - "--log.level=debug"          - "--data-dir=/data"          - "--objstore.config={type: GCS, config: {bucket: prometheus-long-term}}"          - "--index-cache-size=500MB"          - "--chunk-pool-size=500MB"          env:            - name : GOOGLE_APPLICATION_CREDENTIALS              value: /etc/secret/thanos-gcs-credentials.json          ports:          - name: http            containerPort: 10902          - name: grpc            containerPort: 10901          livenessProbe:            httpGet:              port: 10902              path: /-/healthy          readinessProbe:            httpGet:              port: 10902              path: /-/ready          volumeMounts:            - name: thanos-gcs-credentials              mountPath: /etc/secret              readOnly: false      volumes:        - name: thanos-gcs-credentials          secret:            secretName: thanos-gcs-credentials---
复制代码


这将创建存储组件,该组件存储服务从 object store 到 Querier 的指标信息。

部署 Thanos Ruler

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: v1kind: ConfigMapmetadata:  name: thanos-ruler-rules  namespace: monitoringdata:  alert_down_services.rules.yaml: |    groups:    - name: metamonitoring      rules:      - alert: PrometheusReplicaDown        annotations:          message: Prometheus replica in cluster {{$labels.cluster}} has disappeared from Prometheus target discovery.        expr: |          sum(up{cluster="prometheus-ha", instance=~".*:9090", job="kubernetes-service-endpoints"}) by (job,cluster) < 3        for: 15s        labels:          severity: critical---apiVersion: apps/v1beta1kind: StatefulSetmetadata:  labels:    app: thanos-ruler  name: thanos-ruler  namespace: monitoringspec:  replicas: 1  selector:    matchLabels:      app: thanos-ruler  serviceName: thanos-ruler  template:    metadata:      labels:        app: thanos-ruler        thanos-store-api: "true"    spec:      containers:        - name: thanos          image: quay.io/thanos/thanos:v0.8.0          args:            - rule            - --log.level=debug            - --data-dir=/data            - --eval-interval=15s            - --rule-file=/etc/thanos-ruler/*.rules.yaml            - --alertmanagers.url=http://alertmanager:9093            - --query=thanos-querier:9090            - "--objstore.config={type: GCS, config: {bucket: thanos-ruler}}"            - --label=ruler_cluster="prometheus-ha"            - --label=replica="$(POD_NAME)"          env:            - name : GOOGLE_APPLICATION_CREDENTIALS              value: /etc/secret/thanos-gcs-credentials.json            - name: POD_NAME              valueFrom:                fieldRef:                  fieldPath: metadata.name          ports:            - name: http              containerPort: 10902            - name: grpc              containerPort: 10901          livenessProbe:            httpGet:              port: http              path: /-/healthy          readinessProbe:            httpGet:              port: http              path: /-/ready          volumeMounts:            - mountPath: /etc/thanos-ruler              name: config            - name: thanos-gcs-credentials              mountPath: /etc/secret              readOnly: false      volumes:        - configMap:            name: thanos-ruler-rules          name: config        - name: thanos-gcs-credentials          secret:            secretName: thanos-gcs-credentials---apiVersion: v1kind: Servicemetadata:  labels:    app: thanos-ruler  name: thanos-ruler  namespace: monitoringspec:  ports:    - port: 9090      protocol: TCP      targetPort: http      name: http  selector:    app: thanos-ruler
复制代码


现在,在与我们的工作负载相同的名称空间中的输入以下命令,能够查看到 thanos-store-gateway 对应有哪些 Pod :


root@my-shell-95cb5df57-4q6w8:/# nslookup thanos-store-gatewayServer:     10.63.240.10Address:    10.63.240.10#53
Name: thanos-store-gateway.monitoring.svc.cluster.localAddress: 10.60.25.2Name: thanos-store-gateway.monitoring.svc.cluster.localAddress: 10.60.25.4Name: thanos-store-gateway.monitoring.svc.cluster.localAddress: 10.60.30.2Name: thanos-store-gateway.monitoring.svc.cluster.localAddress: 10.60.30.8Name: thanos-store-gateway.monitoring.svc.cluster.localAddress: 10.60.31.2
root@my-shell-95cb5df57-4q6w8:/# exit
复制代码


上面返回的 IP 对应于我们的 Prometheus 中的 Pod(thanos-store 和 thanos-ruler)。


可以通过以下命令验证


$ kubectl get pods -o wide -l thanos-store-api="true"NAME                     READY   STATUS    RESTARTS   AGE    IP           NODE                              NOMINATED NODE   READINESS GATESprometheus-0             2/2     Running   0          100m   10.60.31.2   gke-demo-1-pool-1-649cbe02-jdnv   <none>           <none>prometheus-1             2/2     Running   0          14h    10.60.30.2   gke-demo-1-pool-1-7533d618-kxkd   <none>           <none>prometheus-2             2/2     Running   0          31h    10.60.25.2   gke-demo-1-pool-1-4e9889dd-27gc   <none>           <none>thanos-ruler-0           1/1     Running   0          100m   10.60.30.8   gke-demo-1-pool-1-7533d618-kxkd   <none>           <none>thanos-store-gateway-0   1/1     Running   0          14h    10.60.25.4   gke-demo-1-pool-1-4e9889dd-27gc   <none>           <none>
复制代码


部署 Alertmanager

apiVersion: v1kind: Namespacemetadata:  name: monitoring---kind: ConfigMapapiVersion: v1metadata:  name: alertmanager  namespace: monitoringdata:  config.yml: |-    global:      resolve_timeout: 5m      slack_api_url: "<your_slack_hook>"      victorops_api_url: "<your_victorops_hook>"
templates: - '/etc/alertmanager-templates/*.tmpl' route: group_by: ['alertname', 'cluster', 'service'] group_wait: 10s group_interval: 1m repeat_interval: 5m receiver: default routes: - match: team: devops receiver: devops continue: true - match: team: dev receiver: dev continue: true
receivers: - name: 'default'
- name: 'devops' victorops_configs: - api_key: '<YOUR_API_KEY>' routing_key: 'devops' message_type: 'CRITICAL' entity_display_name: '{{ .CommonLabels.alertname }}' state_message: 'Alert: {{ .CommonLabels.alertname }}. Summary:{{ .CommonAnnotations.summary }}. RawData: {{ .CommonLabels }}' slack_configs: - channel: '#k8-alerts' send_resolved: true

- name: 'dev' victorops_configs: - api_key: '<YOUR_API_KEY>' routing_key: 'dev' message_type: 'CRITICAL' entity_display_name: '{{ .CommonLabels.alertname }}' state_message: 'Alert: {{ .CommonLabels.alertname }}. Summary:{{ .CommonAnnotations.summary }}. RawData: {{ .CommonLabels }}' slack_configs: - channel: '#k8-alerts' send_resolved: true
---apiVersion: extensions/v1beta1kind: Deploymentmetadata: name: alertmanager namespace: monitoringspec: replicas: 1 selector: matchLabels: app: alertmanager template: metadata: name: alertmanager labels: app: alertmanager spec: containers: - name: alertmanager image: prom/alertmanager:v0.15.3 args: - '--config.file=/etc/alertmanager/config.yml' - '--storage.path=/alertmanager' ports: - name: alertmanager containerPort: 9093 volumeMounts: - name: config-volume mountPath: /etc/alertmanager - name: alertmanager mountPath: /alertmanager volumes: - name: config-volume configMap: name: alertmanager - name: alertmanager emptyDir: {}---apiVersion: v1kind: Servicemetadata: annotations: prometheus.io/scrape: 'true' prometheus.io/path: '/metrics' labels: name: alertmanager name: alertmanager namespace: monitoringspec: selector: app: alertmanager ports: - name: alertmanager protocol: TCP port: 9093 targetPort: 9093
复制代码


alertmanager 将根据 Prometheus 规则生成所有的警报。

部署 Kubestate 指标

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: rbac.authorization.k8s.io/v1 # kubernetes versions before 1.8.0 should use rbac.authorization.k8s.io/v1beta1kind: ClusterRoleBindingmetadata:  name: kube-state-metricsroleRef:  apiGroup: rbac.authorization.k8s.io  kind: ClusterRole  name: kube-state-metricssubjects:- kind: ServiceAccount  name: kube-state-metrics  namespace: monitoring---apiVersion: rbac.authorization.k8s.io/v1# kubernetes versions before 1.8.0 should use rbac.authorization.k8s.io/v1beta1kind: ClusterRolemetadata:  name: kube-state-metricsrules:- apiGroups: [""]  resources:  - configmaps  - secrets  - nodes  - pods  - services  - resourcequotas  - replicationcontrollers  - limitranges  - persistentvolumeclaims  - persistentvolumes  - namespaces  - endpoints  verbs: ["list", "watch"]- apiGroups: ["extensions"]  resources:  - daemonsets  - deployments  - replicasets  verbs: ["list", "watch"]- apiGroups: ["apps"]  resources:  - statefulsets  verbs: ["list", "watch"]- apiGroups: ["batch"]  resources:  - cronjobs  - jobs  verbs: ["list", "watch"]- apiGroups: ["autoscaling"]  resources:  - horizontalpodautoscalers  verbs: ["list", "watch"]---apiVersion: rbac.authorization.k8s.io/v1# kubernetes versions before 1.8.0 should use rbac.authorization.k8s.io/v1beta1kind: RoleBindingmetadata:  name: kube-state-metrics  namespace: monitoringroleRef:  apiGroup: rbac.authorization.k8s.io  kind: Role  name: kube-state-metrics-resizersubjects:- kind: ServiceAccount  name: kube-state-metrics  namespace: monitoring---apiVersion: rbac.authorization.k8s.io/v1# kubernetes versions before 1.8.0 should use rbac.authorization.k8s.io/v1beta1kind: Rolemetadata:  namespace: monitoring  name: kube-state-metrics-resizerrules:- apiGroups: [""]  resources:  - pods  verbs: ["get"]- apiGroups: ["extensions"]  resources:  - deployments  resourceNames: ["kube-state-metrics"]  verbs: ["get", "update"]---apiVersion: v1kind: ServiceAccountmetadata:  name: kube-state-metrics  namespace: monitoring---apiVersion: apps/v1kind: Deploymentmetadata:  name: kube-state-metrics  namespace: monitoringspec:  selector:    matchLabels:      k8s-app: kube-state-metrics  replicas: 1  template:    metadata:      labels:        k8s-app: kube-state-metrics    spec:      serviceAccountName: kube-state-metrics      containers:      - name: kube-state-metrics        image: quay.io/mxinden/kube-state-metrics:v1.4.0-gzip.3        ports:        - name: http-metrics          containerPort: 8080        - name: telemetry          containerPort: 8081        readinessProbe:          httpGet:            path: /healthz            port: 8080          initialDelaySeconds: 5          timeoutSeconds: 5      - name: addon-resizer        image: k8s.gcr.io/addon-resizer:1.8.3        resources:          limits:            cpu: 150m            memory: 50Mi          requests:            cpu: 150m            memory: 50Mi        env:          - name: MY_POD_NAME            valueFrom:              fieldRef:                fieldPath: metadata.name          - name: MY_POD_NAMESPACE            valueFrom:              fieldRef:                fieldPath: metadata.namespace        command:          - /pod_nanny          - --container=kube-state-metrics          - --cpu=100m          - --extra-cpu=1m          - --memory=100Mi          - --extra-memory=2Mi          - --threshold=5          - --deployment=kube-state-metrics---apiVersion: v1kind: Servicemetadata:  name: kube-state-metrics  namespace: monitoring  labels:    k8s-app: kube-state-metrics  annotations:    prometheus.io/scrape: 'true'spec:  ports:  - name: http-metrics    port: 8080    targetPort: http-metrics    protocol: TCP  - name: telemetry    port: 8081    targetPort: telemetry    protocol: TCP  selector:    k8s-app: kube-state-metrics
复制代码


需要使用 Kubestate 指标来中继一些重要的容器指标,这些指标不是 kubelet 本身公开的,因此不能直接用于 Prometheus。

部署 Node-Exporter Daemonset

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: extensions/v1beta1kind: DaemonSetmetadata:  name: node-exporter  namespace: monitoring  labels:    name: node-exporterspec:  template:    metadata:      labels:        name: node-exporter      annotations:         prometheus.io/scrape: "true"         prometheus.io/port: "9100"    spec:      hostPID: true      hostIPC: true      hostNetwork: true      containers:        - name: node-exporter          image: prom/node-exporter:v0.16.0          securityContext:            privileged: true          args:            - --path.procfs=/host/proc            - --path.sysfs=/host/sys          ports:            - containerPort: 9100              protocol: TCP          resources:            limits:              cpu: 100m              memory: 100Mi            requests:              cpu: 10m              memory: 100Mi          volumeMounts:            - name: dev              mountPath: /host/dev            - name: proc              mountPath: /host/proc            - name: sys              mountPath: /host/sys            - name: rootfs              mountPath: /rootfs      volumes:        - name: proc          hostPath:            path: /proc        - name: dev          hostPath:            path: /dev        - name: sys          hostPath:            path: /sys        - name: rootfs          hostPath:            path: /
复制代码


Node-Exporter 是 Daemonset 资源,它在每个节点上运行一个 pod -exporter 的容器,并公开非常重要的与节点相关的度量标准,这些度量标准可以由 Prometheus 实例提取。

部署 Grafana

apiVersion: v1kind: Namespacemetadata:  name: monitoring---apiVersion: storage.k8s.io/v1beta1kind: StorageClassmetadata:  name: fast  namespace: monitoringprovisioner: kubernetes.io/gce-pdallowVolumeExpansion: true---apiVersion: apps/v1beta1kind: StatefulSetmetadata:  name: grafana  namespace: monitoringspec:  replicas: 1  serviceName: grafana  template:    metadata:      labels:        task: monitoring        k8s-app: grafana    spec:      containers:      - name: grafana        image: k8s.gcr.io/heapster-grafana-amd64:v5.0.4        ports:        - containerPort: 3000          protocol: TCP        volumeMounts:        - mountPath: /etc/ssl/certs          name: ca-certificates          readOnly: true        - mountPath: /var          name: grafana-storage        env:        - name: GF_SERVER_HTTP_PORT          value: "3000"          # The following env variables are required to make Grafana accessible via          # the kubernetes api-server proxy. On production clusters, we recommend          # removing these env variables, setup auth for grafana, and expose the grafana          # service using a LoadBalancer or a public IP.        - name: GF_AUTH_BASIC_ENABLED          value: "false"        - name: GF_AUTH_ANONYMOUS_ENABLED          value: "true"        - name: GF_AUTH_ANONYMOUS_ORG_ROLE          value: Admin        - name: GF_SERVER_ROOT_URL          # If you're only using the API Server proxy, set this value instead:          # value: /api/v1/namespaces/kube-system/services/monitoring-grafana/proxy          value: /      volumes:      - name: ca-certificates        hostPath:          path: /etc/ssl/certs  volumeClaimTemplates:  - metadata:      name: grafana-storage      namespace: monitoring    spec:      accessModes: [ "ReadWriteOnce" ]      storageClassName: fast      resources:        requests:          storage: 5Gi---apiVersion: v1kind: Servicemetadata:  labels:    kubernetes.io/cluster-service: 'true'    kubernetes.io/name: grafana  name: grafana  namespace: monitoringspec:  ports:  - port: 3000    targetPort: 3000  selector:    k8s-app: grafana
复制代码


这将创建我们的 Grafana 的 Deployment 和 Service 资源对象,该 Service 将 通过我们的 Ingress 对象公开。


为了将 Thanos-Querier 添加为 Grafana 数据源。我们可以这样做:


  1. 在 Grafana 单击 Add DataSource

  2. 名称:DS_PROMETHEUS

  3. 类型:Prometheus

  4. 网址:http://thanos-querier:9090

  5. 点击 Save and Test。现在,你可以构建自定义仪表板,也可以直接从 grafana.net 导入仪表板。仪表盘#315 和#1471 是很好的开始。

部署 Ingress 对象

apiVersion: extensions/v1beta1kind: Ingressmetadata:  name: monitoring-ingress  namespace: monitoring  annotations:    kubernetes.io/ingress.class: "nginx"spec:  rules:  - host: grafana.<yourdomain>.com    http:      paths:      - path: /        backend:          serviceName: grafana          servicePort: 3000  - host: prometheus-0.<yourdomain>.com    http:      paths:      - path: /        backend:          serviceName: prometheus-0-service          servicePort: 8080  - host: prometheus-1.<yourdomain>.com    http:      paths:      - path: /        backend:          serviceName: prometheus-1-service          servicePort: 8080  - host: prometheus-2.<yourdomain>.com    http:      paths:      - path: /        backend:          serviceName: prometheus-2-service          servicePort: 8080  - host: alertmanager.<yourdomain>.com    http:       paths:      - path: /        backend:          serviceName: alertmanager          servicePort: 9093  - host: thanos-querier.<yourdomain>.com    http:      paths:      - path: /        backend:          serviceName: thanos-querier          servicePort: 9090  - host: thanos-ruler.<yourdomain>.com    http:      paths:      - path: /        backend:          serviceName: thanos-ruler          servicePort: 9090
复制代码


这将有助于在 Kubernetes 集群之外公开我们所有的服务。记得将替换为你可以访问的域名,并且可以将 Ingress-Controller 的服务指向该域名。


现在,您应该可以在http://thanos-querier..com 上访问 Thanos Querier 。


它看起来像这样:



可以选择“ deldupication“ 删除重复数据。


如果单击“ Stores ”,则可以看到 thanos-store-gateway 服务发现的所有活动端点



现在,您将 Thanos Querier 添加为 Grafana 中的数据源,并开始创建仪表板



Kubernetes 集群监控仪表板



Kubernetes 节点监控仪表板



结论

将 Thanos 与 Prometheus 集成无疑提供了水平扩展 Prometheus 的能力,并且由于 Thanos-Querier 能够从其他查询器实例中提取指标,因此你实际上可以跨集群提取指标,从而在单个仪表板上可视化它们。


我们还能够将度量标准数据存档在 object store 中,该 object store 为我们的监视系统提供了无限的存储空间,并提供了来自 object store 本身的度量。


但是,要实现所有这些,你需要进行大量配置。上面提供的清单已在生产环境中进行了测试。如果你有任何疑问,请随时与我们联系。
