鸿蒙 Next 使用 Canvas 绘制一个汽车仪表盘
作者:auhgnixgnahz
- 2025-06-25 北京
本文字数:3288 字
阅读完需:约 11 分钟
本文通过实现一个汽车仪表盘,介绍使用 CanvasRenderingContext2D 在 Canvas 组件上进行绘制图形。

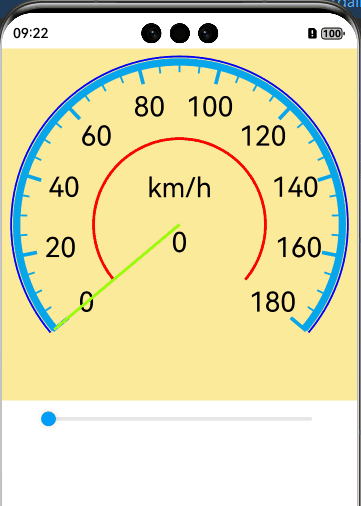

看一下最终演示:

先了解一下 CanvasRenderingContext2D 都有哪些属性和方法
本文使用的几个方法以放到前面,可以参考说明。
源码:
import { getScreenWidth } from '../utils/DisplayUtil';
@Entry
@ComponentV2
struct CanvasTest {
private settings: RenderingContextSettings = new RenderingContextSettings(true);
private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
private context2: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
private context3: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
@Local centerX: number = 0
@Local centerY: number = 0
@Local currentSpeed: number = 0
@Local angle: number = 0
@Local startAngle:number= Math.PI * 140 / 180 //弧线的起始弧度
@Local endAngle:number= Math.PI * 40 / 180 //弧线的起始弧度
//绘制渐变外环
draw(){
this.context3.clearRect(0,0,2*this.centerX,2*this.centerX)
this.context3.beginPath()
let grad = this.context3.createLinearGradient(this.getStartX(), this.getStartY(), this.getEndX(), this.getEndY())
grad.addColorStop(0, '#0000ff00')
grad.addColorStop(0.9, '#00ff00')
if (this.currentSpeed>120) {
grad.addColorStop(1, '#ff0000')
}else {
grad.addColorStop(1, '#00ff00')
}
this.context3.strokeStyle = grad;
this.context3.lineWidth = 4;
this.context3.arc(this.centerX, this.centerY, this.centerX - 4, this.startAngle, Math.PI * (140+(this.currentSpeed * 260 / 180) ) / 180)
this.context3.stroke()
}
build() {
Column() {
Stack() {
Canvas(this.context)
.width('100%')
.height('100%')
.backgroundColor("#fceb99")
.onReady(() => {
//绘制外环
this.context.beginPath()
this.context.strokeStyle = '#0000ff';
this.context.lineWidth = 2;
this.context.arc(this.centerX, this.centerY, this.centerX - 10, this.startAngle, this.endAngle)
this.context.stroke()
//绘制内环
this.context.beginPath()
this.context.strokeStyle = '#07A6EC';
this.context.lineWidth = 8;
this.context.arc(this.centerX, this.centerY, this.centerX - 16, this.startAngle, this.endAngle)
this.context.stroke()
//绘制刻度
this.context.save()
this.context.translate(this.centerX, this.centerY);
this.context.rotate(Math.PI * 50 / 180)
for (let i = 0; i <= 36; i++) {
if (i % 4 == 0) {
this.context.beginPath()
this.context.lineWidth = 4;
this.context.strokeStyle = '#07A6EC';
this.context.moveTo(0, this.centerY - 34);
this.context.lineTo(0, this.centerY - 12);
this.context.stroke();
} else {
this.context.beginPath()
this.context.lineWidth = 2;
this.context.strokeStyle = '#07A6EC';
this.context.moveTo(0, this.centerY - 26);
this.context.lineTo(0, this.centerY - 12);
this.context.stroke();
}
this.context.rotate(Math.PI * (260 / 36) / 180)
}
this.context.restore()
//绘制数字
this.context.save()
this.context.translate(this.centerX, this.centerY);
for (let i = 0; i < 10; i++) {
// 转换为弧度
const radians = (140 + i * (260 / 9)) * Math.PI / 180;
// 计算坐标
const x = (this.centerY - 60) * Math.cos(radians);
const y = (this.centerY - 60) * Math.sin(radians);
this.context.textAlign = 'center'
this.context.textBaseline = 'middle'
this.context.font = '30vp sans-serif'
this.context.fillText(i * 20 + '', x, y)
}
//绘制中间单位
this.context.textAlign = 'center'
this.context.textBaseline = 'middle'
this.context.font = '30vp sans-serif'
this.context.fillText('km/h', 0, -40)
this.context.restore()
//绘制红色圆环
this.context.translate(0, 0);
this.context.beginPath()
this.context.strokeStyle = Color.Red;
this.context.lineWidth = 3;
this.context.arc(this.centerX, this.centerY, this.centerX - 100, this.startAngle, this.endAngle)
this.context.stroke()
})
Canvas(this.context3)
.width('100%')
.height('100%')
Canvas(this.context2)
.width('100%')
.height('100%')
.onReady(() => {
this.context2.beginPath()
this.context2.lineWidth = 3;
this.context2.strokeStyle = "#95ff00";
this.context2.moveTo(this.centerX, this.centerY)
this.context2.lineTo(this.centerX, 14)
this.context2.stroke()
})
.rotate({ centerX: this.centerX, centerY: this.centerY, angle: this.cacleAngle() })
Text(this.currentSpeed + '').fontColor(Color.Black).fontSize(30).offset({ y: 20 })
}.height('50%').width('100%')
.onSizeChange((oldValue: SizeOptions, newValue: SizeOptions) => {
this.centerX = (newValue.width as number) / 2
this.centerY = (newValue.height as number) / 2
})
Slider({
value: this.currentSpeed,
min: 0,
max: 180,
step: 1,
})
.width('80%')
.blockColor("#0099ff")//设置滑块的颜色
.onChange((value: number, mode: SliderChangeMode) => {
this.currentSpeed = value
})
}
}
cacleAngle(): number {
this.draw();
// (当前速度/最大速度180)*圆环角度260- 默认其实位置从中心位置向左旋转130
return (this.currentSpeed * 260 / 180) - 130
}
getStartX() {
const angleRadians = 140 * Math.PI / 180;
return this.centerX + this.centerX * Math.cos(angleRadians);
}
getStartY(): number {
const angleRadians = 140 * Math.PI / 180;
return this.centerX + this.centerX * Math.sin(angleRadians);
}
getEndX() {
const angleRadians = (140+(this.currentSpeed * 260 / 180) )* Math.PI / 180;
return this.centerX + this.centerX * Math.cos(angleRadians);
}
getEndY(): number {
const angleRadians = (140+(this.currentSpeed * 260 / 180))* Math.PI / 180;
return this.centerX + this.centerX * Math.sin(angleRadians);
}
}
复制代码
