【HarmonyOS 5】Laya 游戏如何鸿蒙构建发布详解

作者:GeorgeGcs
  • 2025-06-01
    上海
  • 本文字数:4303 字

    阅读完需:约 14 分钟

【HarmonyOS 5】Laya游戏如何鸿蒙构建发布详解

【HarmonyOS 5】Laya 游戏如何鸿蒙构建发布详解

一、前言

LayaAir 引擎是国内最强大的全平台引擎之一,当年 H5 小游戏火的时候,腾讯入股了腊鸭。我还在游戏公司的时候,17 年曾经开发使用腊鸭的 H5 小游戏,很怀念当年和腊鸭同事一起解决问题的时光。


从使用 TypeScript 开发语言,到界面组件封装,再到全平台发布,腊鸭走过的路与鸿蒙很相似。很多设计理念也很贴近。作为基础开源,定制商业化的全平台引擎,腊鸭在 H5 引擎市场上的占有率相当高。


Layabox 成立于 2014 年,旗下的开源引擎产品 LayaAir 发布于 2016 年,已拥有超百万的全球开发者,是 HTML5 与小游戏领域的 3D 龙头引擎。


除了 H5 3D 小游戏,腊鸭也可以通过 2D 引擎开发 H5 应用或者 H5 2D 小游戏。


鸿蒙作为一个崭新的操作系统,H5 小游戏和 H5 应用的助力可以极大丰富其生态。并且腊鸭的开发和学习入门上手较为简单,也可以为小游戏和 H5 开发小伙伴,在鸿蒙市场,带来广阔的未来前景。


今天本文主要讲解腊鸭的背景,腊鸭开发环境安装和鸿蒙构建发布。

二、LayaAir 环境安装

官方环境搭建文章,点击跳转


LayaAir 分为游戏引擎和编码工具两个部分。最早当年是自研的 IDE 一起负责了,后来将编码环境切换为了 VSCode。


所以现在我们的 Laya 环境首先需要安装LayaAirIDEVSCode


之后因为 Laya 开发的编程语言是 TypeScript,所以需要安装 Node 开发环境,并且要 install TSC,用于将 TS 代码转化为 JS 代码。最后 Laya 的代码都是 js 代码。


npm install -g typescript
复制代码


浏览器是方便调试,可选择安装。若是 Window 系统,使用自带的 Edge 浏览也可。或者安装GoogleChrome

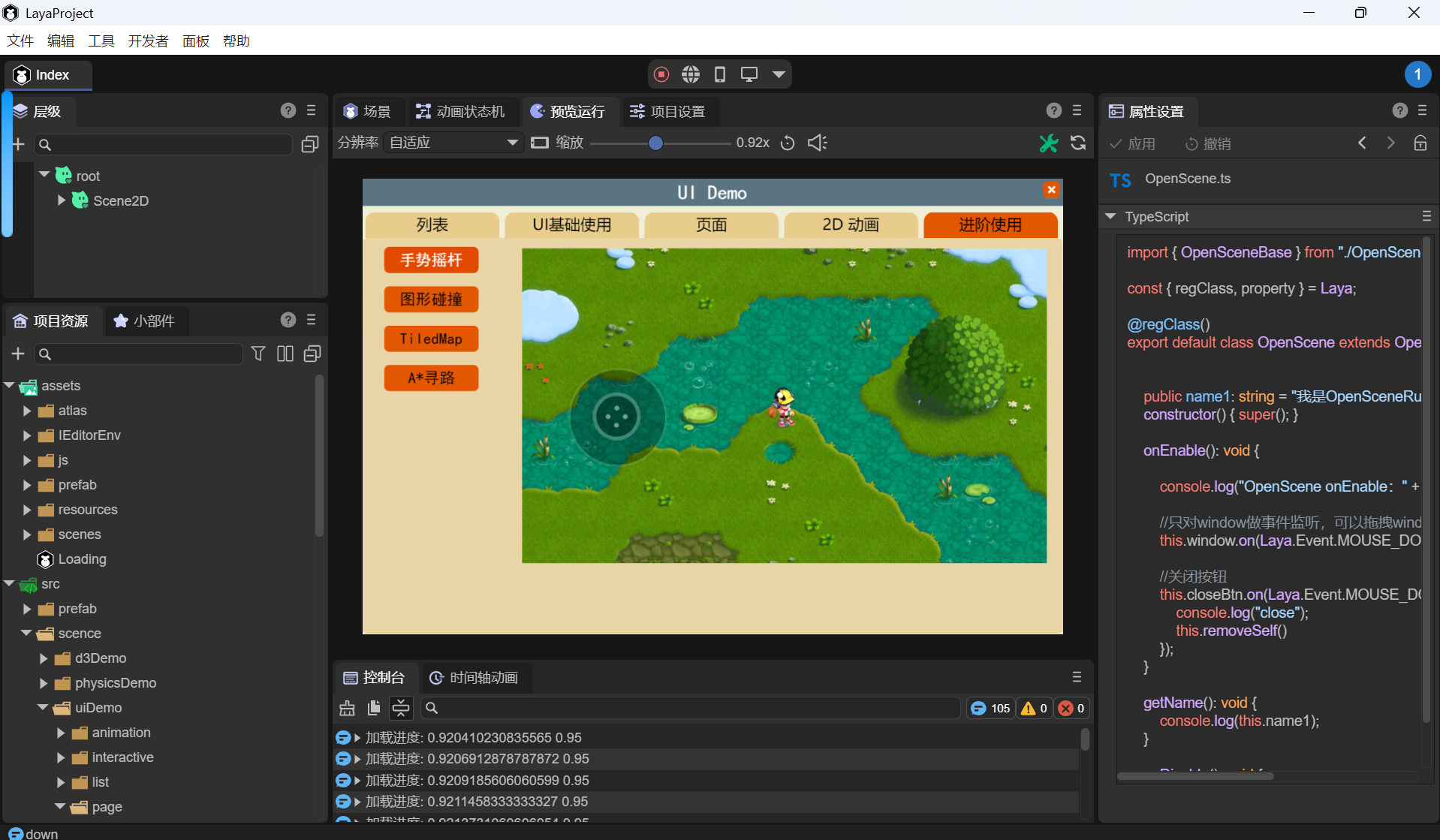

下图是安装完 LayaAirIDE 之后,选择 2D 示例项目创建打开后的效果:


三、鸿蒙构建发布

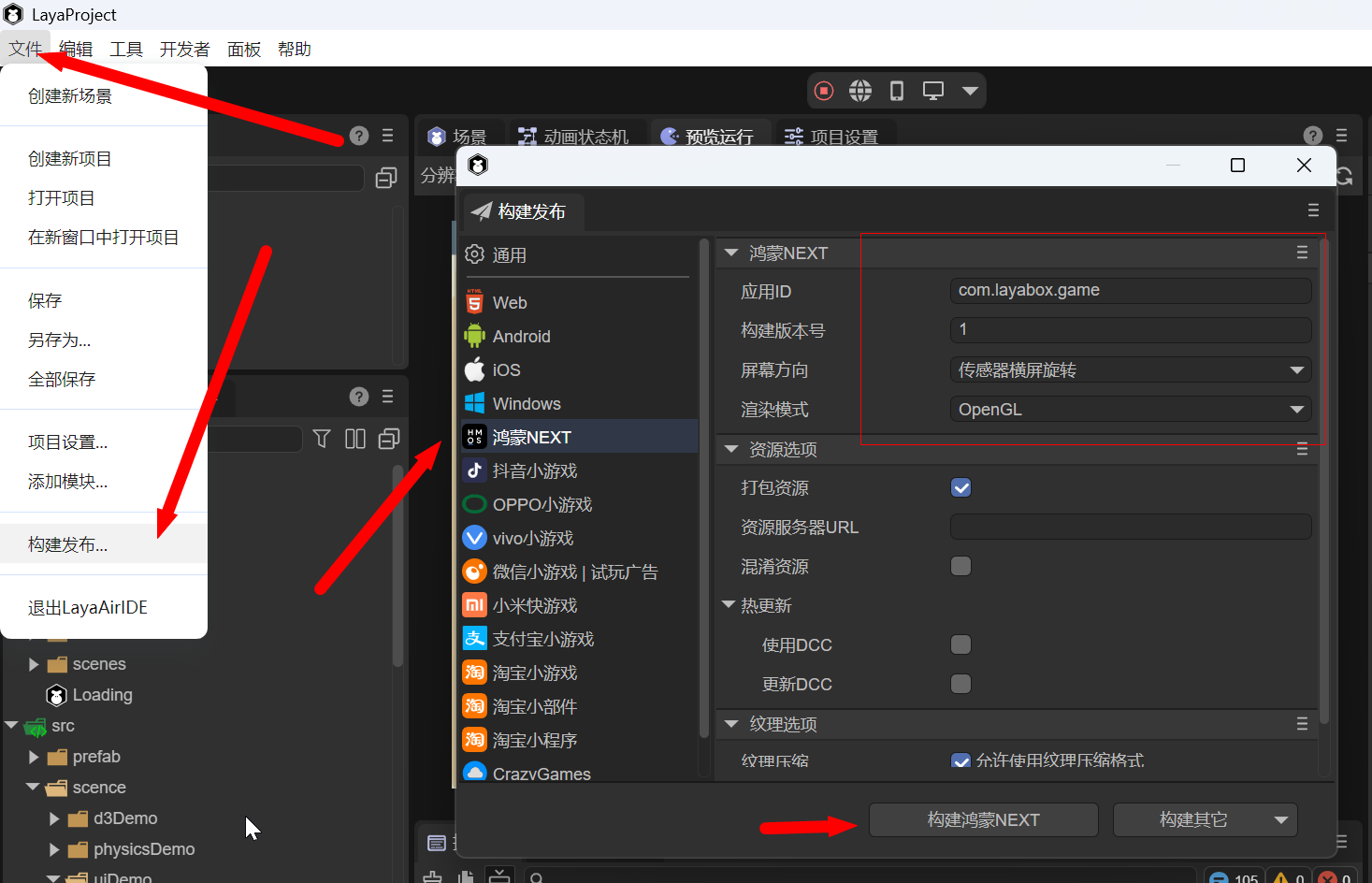

点击文件-构建发布,选择鸿蒙 NEXT,在右侧基本无需修改,点击下方的构建鸿蒙 NEXT 即可。



渲染模式这里,我考虑到鸿蒙对于 web 是有单独的渲染进程,所以没有选择 OpenGL。选择的 WebGL。

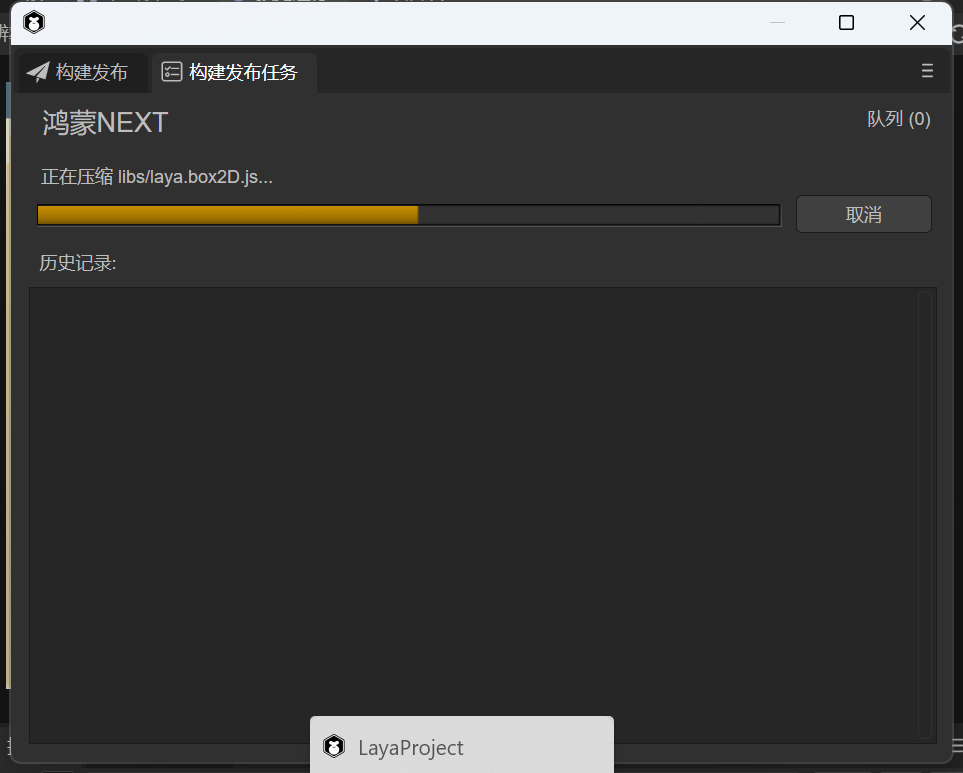

点击构建发布后,等待进度条完成,时间较长。

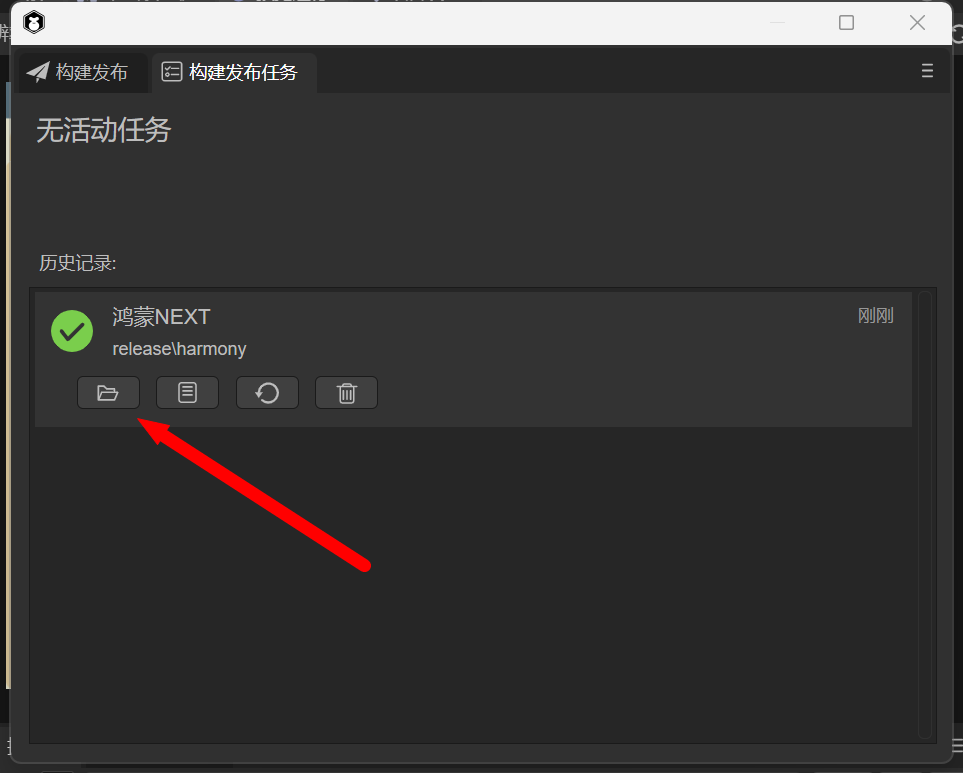

进度条完成后,如上图所示,会出现鸿蒙项目代码,点击箭头位置就可以到源码项目处。再使用 DevEco Studio 进行鸿蒙项目自动签名,运行就可运行 Laya 小游戏。

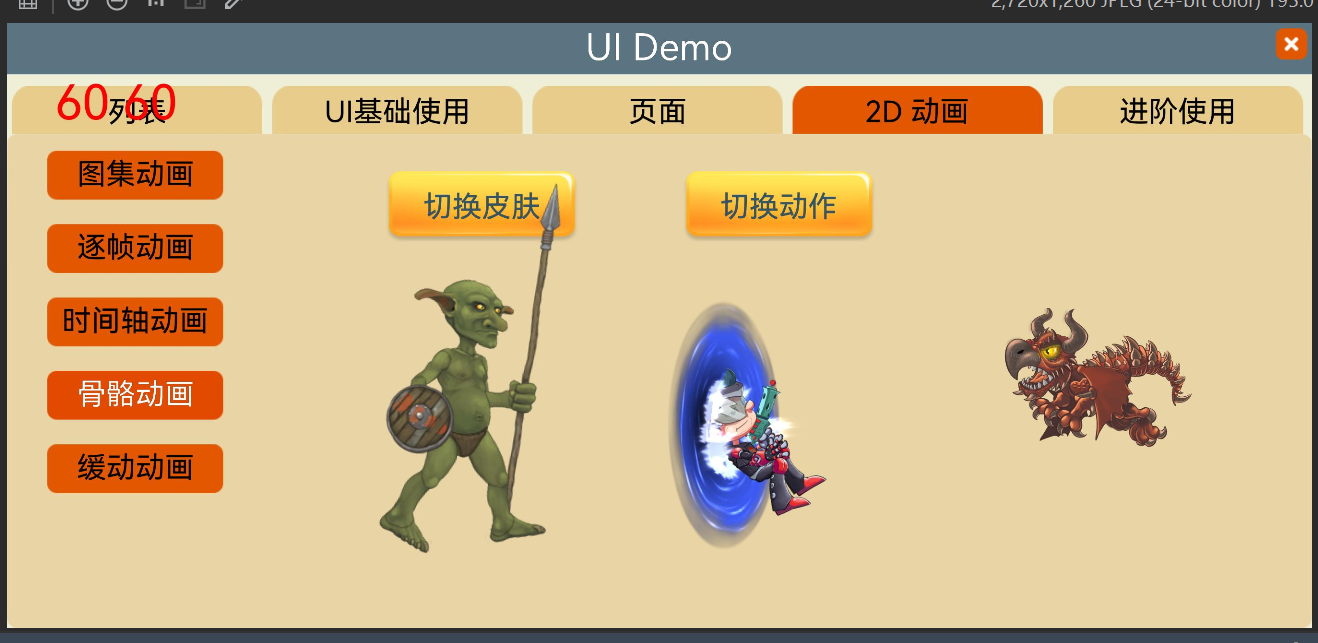

上图就是 Laya 的 2D 示例项目在鸿蒙手机中运行效果的静态截图。目前自动构建的鸿蒙 SDK 还是 API11,我尝试动手 i 修改为 API2 或者 API17,项目均会报错。还是等待后续官方升级吧。目前看整体效果还是很不错。


根据构建后的鸿蒙项目,我们通过 Index 入口文件可以发现,官方和 Laya 合作,新增了很多配套的自定义 Component 组件,例如:LayaEditBox,LayaWebview,TextInputDialog。


import laya from 'liblaya.so'import { ContextType } from '@ohos/libSysCapabilities'import { TextInputInfo } from '@ohos/libSysCapabilities/src/main/ets/components/EditBox'import { TextInputDialogEntity } from '@ohos/libSysCapabilities'import { WebViewInfo } from '@ohos/libSysCapabilities/src/main/ets/components/webview/WebViewMsg'import { VideoPlayerInfo } from '@ohos/libSysCapabilities/src/main/ets/components/videoplayer/VideoPlayer'import { WorkerMsgUtils } from '@ohos/libSysCapabilities/src/main/ets/utils/WorkerMsgUtils'import { WorkerManager } from '../workers/WorkerManager'import { LayaEditBox } from '../components/LayaEditBox'import { LayaWebview } from '../components/LayaWebview'import { LayaVideoPlayer } from '../components/LayaVideoPlayer'import { TextInputDialog } from '../components/TextInputDialog'import { GlobalContext, GlobalContextConstants } from "@ohos/libSysCapabilities"import { NapiHelper } from "@ohos/libSysCapabilities/src/main/ets/napi/NapiHelper"import { Dialog } from "@ohos/libSysCapabilities"import deviceInfo from '@ohos.deviceInfo';import promptAction from '@ohos.promptAction'import process from '@ohos.process';import { LayaHttpClient } from '@ohos/libSysCapabilities/src/main/ets/system/network/LayaHttpClient'
const nativePageLifecycle: laya.CPPFunctions = laya.getContext(ContextType.JSPAGE_LIFECYCLE);NapiHelper.registerUIFunctions();
let layaWorker = WorkerManager.getInstance().getWorker();@Entry@Componentstruct Index { xcomponentController: XComponentController = new XComponentController(); // EditBox @State editBoxArray: TextInputInfo[] = []; private editBoxIndexMap: Map<number, TextInputInfo> = new Map; // WebView @State webViewArray: WebViewInfo[] = []; private webViewIndexMap: Map<number, number> = new Map; // videoPlayer @State videoPlayerInfoArray: VideoPlayerInfo[] = []; private videoPlayerIndexMap: Map<number, VideoPlayerInfo> = new Map;
// videoPlayer @State layaHttpClientArray: LayaHttpClient[] = []; private layaHttpClientIndexMap: Map<number, LayaHttpClient> = new Map;
private pro = new process.ProcessManager(); private m_nBackPressTime = 0; // textInputDialog showMessage: TextInputDialogEntity = new TextInputDialogEntity(''); dialogController: CustomDialogController = new CustomDialogController({ builder: TextInputDialog({ showMessage: this.showMessage }), autoCancel: true, alignment: DialogAlignment.Bottom, customStyle: true, }) // PanGesture private panOption: PanGestureOptions = new PanGestureOptions({ direction: PanDirection.Up | PanDirection.Down });
onPageShow() { console.log('[LIFECYCLE-Page] onPageShow'); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_EDIT_BOX_ARRAY, this.editBoxArray); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_EDIT_BOX_INDEX_MAP, this.editBoxIndexMap); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_WORKER, layaWorker); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_WEB_VIEW_ARRAY, this.webViewArray); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_WEB_VIEW_INDEX_MAP, this.webViewIndexMap); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_VIDEO_PLAYER_ARRAY, this.videoPlayerInfoArray); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_VIDEO_PLAYER_INDEX_MAP, this.videoPlayerIndexMap); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_DIALOG_CONTROLLER, this.dialogController); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_SHOW_MESSAGE, this.showMessage); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_HTTP_CLIENT_ARRAY, this.layaHttpClientArray); GlobalContext.storeGlobalThis(GlobalContextConstants.LAYA_HTTP_CLIENT_INDEX_MAP, this.layaHttpClientIndexMap); nativePageLifecycle.onPageShow(); Dialog.setTitle(getContext(this).resourceManager.getStringSync($r('app.string.Dialog_Title').id)); }
onPageHide() { console.log('[LIFECYCLE-Page] onPageHide'); nativePageLifecycle.onPageHide(); }
onBackPress() { console.log('[LIFECYCLE-Page] onBackPress'); layaWorker.postMessage({ type: "exit" }); let curtm = Date.now(); let MaxDelay = 3500; if (this.m_nBackPressTime == 0 || (this.m_nBackPressTime > 0 && curtm - this.m_nBackPressTime > MaxDelay)) { this.m_nBackPressTime = Date.now(); promptAction.showToast({ message: $r('app.string.text_backpress_toast'), duration: 1000 }); } else { this.pro.exit(0); } return true; }
onMouseWheel(eventType: string, scrollY: number) { // layaWorker.postMessage({ type: "onMouseWheel", eventType: eventType, scrollY: scrollY }); }
build() { // Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Stack() { XComponent({ id: 'xcomponentId', type: 'surface', libraryname: 'laya', controller: this.xcomponentController }) .focusable(true) .gesture( PanGesture(this.panOption) .onActionStart(() => { this.onMouseWheel("actionStart", 0); }) .onActionUpdate((event: GestureEvent) => { if (deviceInfo.deviceType === '2in1') { this.onMouseWheel("actionUpdate", event.offsetY); } }) .onActionEnd(() => { this.onMouseWheel("actionEnd", 0); }) ) .onLoad((context) => { console.log('[laya] XComponent.onLoad Callback'); layaWorker.postMessage({ type: "abilityContextInit", context: GlobalContext.loadGlobalThis(GlobalContextConstants.LAYA_ABILITY_CONTEXT) }); layaWorker.postMessage({ type: "onXCLoad", data: "XComponent" }); layaWorker.onmessage = WorkerMsgUtils.recvWorkerThreadMessage; }) .onDestroy(() => { }) ForEach(this.editBoxArray, (item: TextInputInfo) => { LayaEditBox({ textInputInfo: item }); }, (item: TextInputInfo) => item.viewTag.toString())
ForEach(this.webViewArray, (item: WebViewInfo) => { LayaWebview({ viewInfo: item }) }, (item: WebViewInfo) => item.uniqueId.toString())
ForEach(this.videoPlayerInfoArray, (item: VideoPlayerInfo) => { LayaVideoPlayer({ videoPlayerInfo: item }) }, (item: VideoPlayerInfo) => item.viewTag.toString())
} .width('100%') .height('100%') }}
复制代码
