Kafka4.0 介绍
Kafka4.0 的重大变革 —— KRaft 模式。Kafka4.0 最具革命性的变化，默认运行在 KRaft（Kafka Raft）模式下，彻底摒弃了对 Apache ZooKeeper 的依赖。KRaft 模式的引入，可谓是 Kafka 架构演进的一次重大飞跃。它基于 Raft 一致性算法构建共识机制，将元数据管理功能巧妙地集成到 Kafka 自身的体系之中，从而实现了对 ZooKeeper 的无缝替换。
主要优势：
简化部署与运维流程：运维人员从此无需再为搭建和维护复杂的 ZooKeeper 集群耗费大量精力，大大降低了整体的运营开销。新的架构设计极大地简化了系统的复杂性，使得 Kafka 的安装、配置以及日常管理工作变得更加直观、高效，即使是新手也能轻松上手。
显著增强可扩展性：在 KRaft 模式下，Kafka 集群的扩展性得到了进一步的提升。新增 Broker 节点的操作变得更加简便快捷，能够更好地适应大规模数据处理场景下，对系统资源进行动态调整的需求。无论是应对业务高峰期的数据洪峰，还是随着业务增长逐步扩展集群规模，KRaft 模式都能游刃有余。
提升系统性能与稳定性：去除 ZooKeeper 这一外部依赖后，Kafka 在元数据操作的响应速度和一致性方面表现得更加出色。特别是在高并发写入和读取的场景中，系统的稳定性和可靠性得到了显著增强，有效减少了因外部组件故障而可能引发的单点问题，为企业级应用提供了更加坚实可靠的底层支撑。
观测云
观测云是一款专为 IT 工程师打造的全链路可观测产品，它集成了基础设施监控、应用程序性能监控和日志管理，为整个技术栈提供实时可观察性。这款产品能够帮助工程师全面了解端到端的用户体验追踪，了解应用内函数的每一次调用，以及全面监控云时代的基础设施。此外，观测云还具备快速发现系统安全风险的能力，为数字化时代提供安全保障。
部署 DataKit
DataKit 是一个开源的、跨平台的数据收集和监控工具，由观测云开发并维护。它旨在帮助用户收集、处理和分析各种数据源，如日志、指标和事件，以便进行有效的监控和故障排查。DataKit 支持多种数据输入和输出格式，可以轻松集成到现有的监控系统中。
登录观测云控制台，在「集成」 - 「DataKit」选择对应安装方式，当前采用 Linux 主机部署 DataKit。
采集步骤
下载 JMX Exporter
下载地址：https://github.com/prometheus/jmx_exporter/releases/tag/1.3.0
配置 JMX 脚本和启动参数
注意：采集 Producer、Consumer、Streams、Connect 指标需要开各自独立进程，启动各自进程时注意替换对应的 yaml 文件和对应的启动脚本，如下可参考。
KRaft Metrics
# ------------------------------------------------------------
# Kafka 4 Prometheus JMX Exporter Configuration
# ------------------------------------------------------------
lowercaseOutputName: false
lowercaseOutputLabelNames: true
cacheRules: true
rules:
# 1. Broker / Topic / Partition Metrics
- pattern: kafka.server<type=BrokerTopicMetrics, name=(BytesInPerSec|BytesOutPerSec|MessagesInPerSec|TotalFetchRequestsPerSec|ProduceRequestsPerSec|FailedProduceRequestsPerSec|TotalProduceRequestsPerSec|ReassignmentBytesInPerSec|ReassignmentBytesOutPerSec|ProduceMessageConversionsPerSec|FetchMessageConversionsPerSec)(?:, topic=([-\.\w]*))?><>(Count|OneMinuteRate|FiveMinuteRate|FifteenMinuteRate|MeanRate)
name: kafka_server_broker_topic_metrics_$1
type: GAUGE
labels:
topic: "$2"
# 2. Request / Network Metrics
- pattern: kafka.network<type=RequestMetrics, name=(.+)><>(Count|OneMinuteRate|FiveMinuteRate|FifteenMinuteRate|MeanRate)
name: kafka_network_request_metrics_$1
type: GAUGE
# 3. Socket Server Metrics
- pattern: kafka.network<type=SocketServer, name=(.+)><>(Count|OneMinuteRate|FiveMinuteRate|FifteenMinuteRate|MeanRate|Value)
name: kafka_network_socket_server_metrics_$1
type: GAUGE
# 4. Log / Segment / Cleaner Metrics
- pattern: kafka.log<type=LogFlushStats, name=(.+)><>(Count|OneMinuteRate|FiveMinuteRate|FifteenMinuteRate|MeanRate)
name: kafka_log_$1_$2
type: GAUGE
# 5. Controller (KRaft) Metrics
- pattern: kafka.controller<type=KafkaController, name=(.+)><>(Count|Value)
name: kafka_controller_$1
type: GAUGE
# 6. Group / Coordinator Metrics
- pattern: kafka.coordinator.group<type=GroupMetadataManager, name=(.+)><>(Count|Value)
name: kafka_coordinator_group_metadata_manager_$1
type: GAUGE
# 7. KRaft Specific Metrics
- pattern: kafka.controller<type=KafkaController, name=(LeaderElectionSuccessRate|LeaderElectionLatencyMs)><>(Count|Value)
name: kafka_controller_$1
type: GAUGE
# 8. New Generation Consumer Rebalance Protocol Metrics
- pattern: kafka.coordinator.group<type=GroupMetadataManager, name=(RebalanceTimeMs|RebalanceFrequency)><>(Count|Value)
name: kafka_coordinator_group_metadata_manager_$1
type: GAUGE
# 9. Queue Metrics
- pattern: kafka.server<type=Queue, name=(QueueSize|QueueConsumerRate)><>(Count|Value)
name: kafka_server_queue_$1
type: GAUGE
# 10. Client Metrics
- pattern: kafka.network<type=RequestMetrics, name=(ClientConnections|ClientRequestRate|ClientResponseTime)><>(Count|OneMinuteRate|FiveMinuteRate|FifteenMinuteRate|MeanRate)
name: kafka_network_request_metrics_$1
type: GAUGE
# 11. Log Flush Rate and Time
- pattern: kafka.log<type=LogFlushStats, name=LogFlushRateAndTimeMs><>(Count|OneMinuteRate|FiveMinuteRate|FifteenMinuteRate|MeanRate)
name: kafka_log_log_flush_rate_and_time_ms
type: GAUGE
复制代码
export KAFKA_HEAP_OPTS="-Xms1g -Xmx1g"
export KAFKA_JMX_OPTS="-Dcom.sun.management.jmxremote.port=9999 \
-Dcom.sun.management.jmxremote.rmi.port=9999 \
-Dcom.sun.management.jmxremote.authenticate=false \
-Dcom.sun.management.jmxremote.ssl=false \
-Djava.rmi.server.hostname=127.0.0.1"
export Environment="KAFKA_OPTS=-javaagent:/opt/jmx_exporter/jmx_prometheus_javaagent.jar=7071:/opt/jmx_exporter/kafka.yml"
/opt/kafka/bin/kafka-server-start.sh -daemon /opt/kafka/config/kraft/server.properties
复制代码
Producer Metrics
---
lowercaseOutputName: true
rules:
# 新增：producer-node-metrics
- pattern: kafka\.producer<type=producer-node-metrics, client-id=([^,]+), node-id=([^>]+)><>([^:]+)
name: kafka_producer_node_$3
labels:
client_id: "$1"
node_id: "$2"
type: GAUGE
- pattern: 'kafka\.producer<type=producer-metrics, client-id=([^>]+)><>([^:,\s]+).*'
name: 'kafka_producer_metrics_$2'
labels:
client_id: "$1"
type: GAUGE
# 抓取 Selector 全部指标（Kafka 4.0 新增）
- pattern: 'kafka\.(?:(producer|consumer|connect))<type=(producer|consumer|connect)-metrics, client-id=([^>]+)><>(connection-.+|io-.+|network-.+|select-.+|send-.+|receive-.+|reauthentication-.+)'
name: 'kafka_${1}_${4}'
labels:
client_id: '$3'
type: GAUGE
复制代码
export Environment="KAFKA_OPTS=-javaagent:/opt/jmx_exporter/jmx_prometheus_javaagent.jar=7072:/opt/jmx_exporter/producer.yml"
/opt/kafka/kafka/bin/kafka-console-producer.sh \
--broker-list localhost:9092 \
--topic xxxx \
--producer-property bootstrap.servers=localhost:9092
复制代码
Consumer Metrics
lowercaseOutputName: true
rules:
# consumer-coordinator-metrics
- pattern: 'kafka\.consumer<type=consumer-coordinator-metrics, client-id=([^>]+)><>([^:,\s]+).*'
name: 'kafka_consumer_coordinator_metrics_$2'
labels:
client_id: "$1"
type: GAUGE
- pattern: 'kafka\.consumer<type=consumer-metrics, client-id=([^>]+)><>([^:,\s]+).*'
name: 'kafka_consumer_metrics_$2'
labels:
client_id: "$1"
复制代码
export Environment="KAFKA_OPTS=-javaagent:/opt/jmx_exporter/jmx_prometheus_javaagent.jar=7073:/opt/jmx_exporter/consumer.yml"
/opt/kafka/kafka/bin/kafka-console-consumer.sh \
--broker-list localhost:9092 \
--topic xxxx \
--producer-property bootstrap.servers=localhost:9092
复制代码
Streams Metrics
lowercaseOutputName: true
lowercaseOutputLabelNames: true
rules:
# Kafka Streams 应用指标 - 移除特殊字符
- pattern: 'kafka.streams<type=stream-metrics, client-id=(.+)><>([a-zA-Z0-9\-]+)$'
name: kafka_streams_$2
labels:
client_id: "$1"
# 处理包含特殊字符的属性名
- pattern: 'kafka.streams<type=stream-metrics, client-id=(.+)><>([a-zA-Z0-9\-]+):(.+)$'
name: kafka_streams_$2_$3
labels:
client_id: "$1"
# Processor Node 指标
- pattern: 'kafka.streams<type=stream-processor-node-metrics, client-id=(.+), task-id=(.+), processor-node-id=(.+)><>(.+)'
name: kafka_streams_processor_$4
labels:
client_id: "$1"
task_id: "$2"
processor_node_id: "$3"
# Task 指标
- pattern: 'kafka.streams<type=stream-task-metrics, client-id=(.+), task-id=(.+)><>(.+)'
name: kafka_streams_task_$3
labels:
client_id: "$1"
task_id: "$2"
# 线程指标
- pattern: 'kafka.streams<type=stream-thread-metrics, client-id=(.+), thread-id=(.+)><>(.+)'
name: kafka_streams_thread_$3
labels:
client_id: "$1"
thread_id: "$2"
# JVM 指标
- pattern: 'java.lang<type=Memory><>(.+)'
name: jvm_memory_$1
- pattern: 'java.lang<type=GarbageCollector, name=(.+)><>(\w+)'
name: jvm_gc_$2
labels:
gc: "$1"
# 线程池指标
- pattern: 'java.lang<type=Threading><>(.+)'
name: jvm_threads_$1
# 默认规则
- pattern: '(.*)'
复制代码
export KAFKA_HEAP_OPTS="-Xms512m -Xmx512m"
export KAFKA_JMX_OPTS="-Dcom.sun.management.jmxremote.port=9996 \
-Dcom.sun.management.jmxremote.rmi.port=9996 \
-Dcom.sun.management.jmxremote.authenticate=false \
-Dcom.sun.management.jmxremote.ssl=false \
-Djava.rmi.server.hostname=127.0.0.1"
export Environment="KAFKA_OPTS=-javaagent:/opt/jmx_exporter/jmx_prometheus_javaagent.jar=7075:/opt/jmx_exporter/stream.yml"
java $KAFKA_HEAP_OPTS $KAFKA_JMX_OPTS $EXTRA_ARGS -cp "libs/*:my-streams.jar" WordCountDemo
复制代码
Connect Metrics
lowercaseOutputName: true
lowercaseOutputLabelNames: true
rules:
# 1) connect-worker-metrics（全局）
- pattern: 'kafka\.connect<type=connect-worker-metrics><>([^:]+)'
name: 'kafka_connect_worker_$1'
type: GAUGE
# 2) connect-worker-metrics,connector=xxx
- pattern: 'kafka\.connect<type=connect-worker-metrics, connector=([^>]+)><>([^:]+)'
name: 'kafka_connect_worker_$2'
labels:
connector: "$1"
type: GAUGE
# 3) connect-worker-rebalance-metrics
- pattern: 'kafka\.connect<type=connect-worker-rebalance-metrics><>([^:]+)'
name: 'kafka_connect_worker_rebalance_$1'
type: GAUGE
# 4) connector-task-metrics
- pattern: 'kafka\.connect<type=connector-task-metrics, connector=([^>]+), task=([^>]+)><>([^:]+)'
name: 'kafka_connect_task_$3'
labels:
connector: "$1"
task_id: "$2"
type: GAUGE
# 5) sink-task-metrics
- pattern: 'kafka\.connect<type=sink-task-metrics, connector=([^>]+), task=([^>]+)><>([^:]+)'
name: 'kafka_connect_sink_task_$3'
labels:
connector: "$1"
task_id: "$2"
复制代码
export KAFKA_HEAP_OPTS="-Xms512m -Xmx512m"
export KAFKA_JMX_OPTS="-Dcom.sun.management.jmxremote \
-Dcom.sun.management.jmxremote.authenticate=false \
-Dcom.sun.management.jmxremote.ssl=false \
-Dcom.sun.management.jmxremote.port=9995 \
-Dcom.sun.management.jmxremote.rmi.port=9995 \
-Djava.rmi.server.hostname=127.0.0.1"
export Environment="KAFKA_OPTS=-javaagent:/opt/jmx_exporter/jmx_prometheus_javaagent.jar=7074:/opt/jmx_exporter/connect.yml"
# 启动 Kafka Connect
/opt/kafka/kafka/bin/connect-distributed.sh /opt/kafka/kafka/config/connect-distributed.properties
复制代码
启动成功后，可通过 curl http://IP:端口号/metrics 查看获取到的监控数据。
配置 DataKit
cp prom.conf.sample kafka.conf
复制代码
[[inputs.prom]]
## Exporter URLs.
urls = ["http://127.0.0.1:7071/metrics","http://127.0.0.1:7072/metrics","http://127.0.0.1:7073/metrics","http://127.0.0.1:7074/metrics","http://127.0.0.1:7075/metrics"]
## Collector alias.
source = "kafka"
## Prioritier over 'measurement_name' configuration.
[[inputs.prom.measurements]]
prefix = "kafka_controller_"
name = "kafka_controller"
[[inputs.prom.measurements]]
prefix = "kafka_network_"
name = "kafka_network"
[[inputs.prom.measurements]]
prefix = "kafka_log_"
name = "kafka_log"
[[inputs.prom.measurements]]
prefix = "kafka_server_"
name = "kafka_server"
[[inputs.prom.measurements]]
prefix = "kafka_connect_"
name = "kafka_connect"
[[inputs.prom.measurements]]
prefix = "kafka_stream_"
name = "kafka_stream"
复制代码
重启 DataKit
执行以下命令：
指标集
以下是 kafka4.0 部分指标说明，更多指标可参考 Kafka 指标详情。

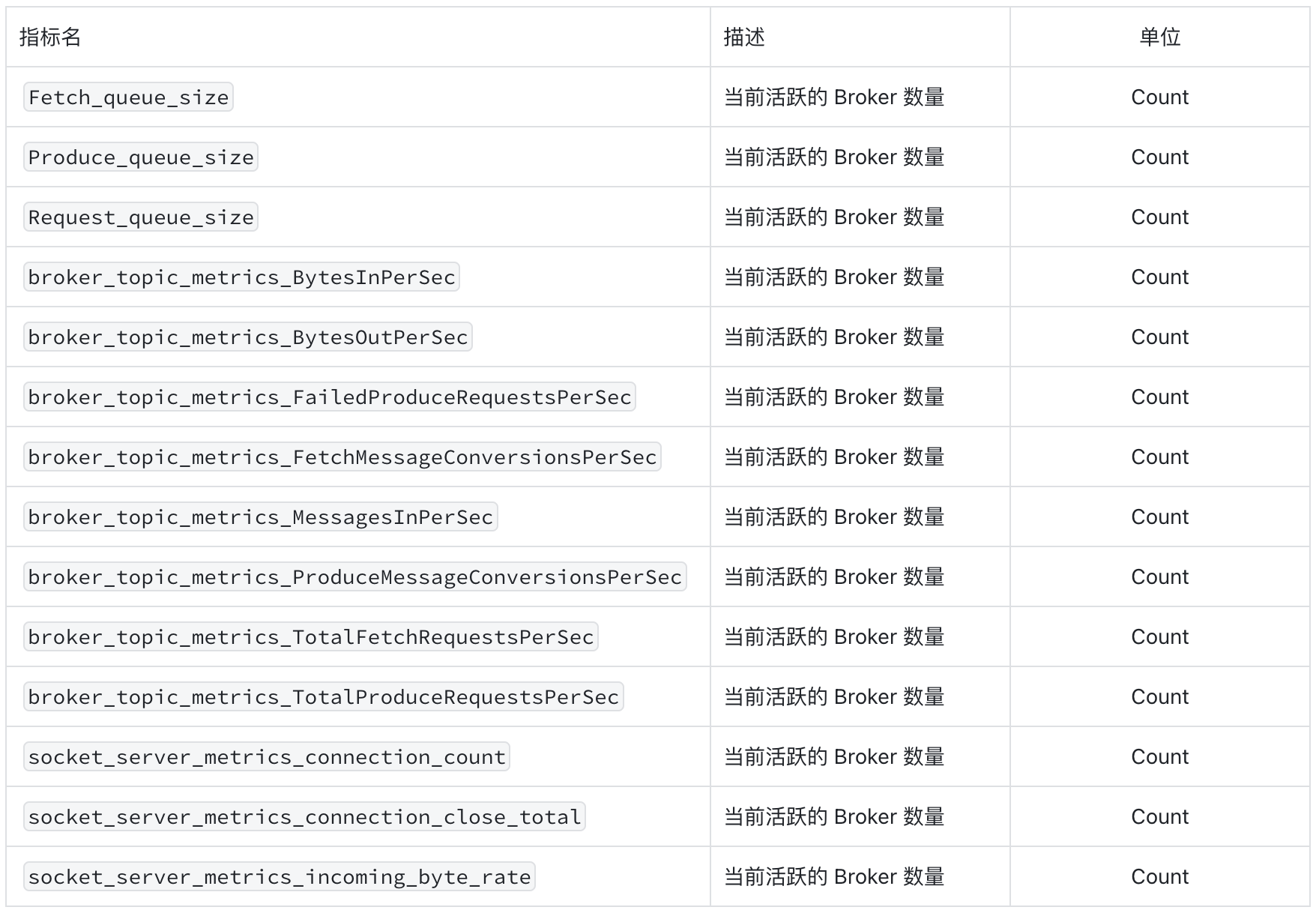

kafka_server 指标集

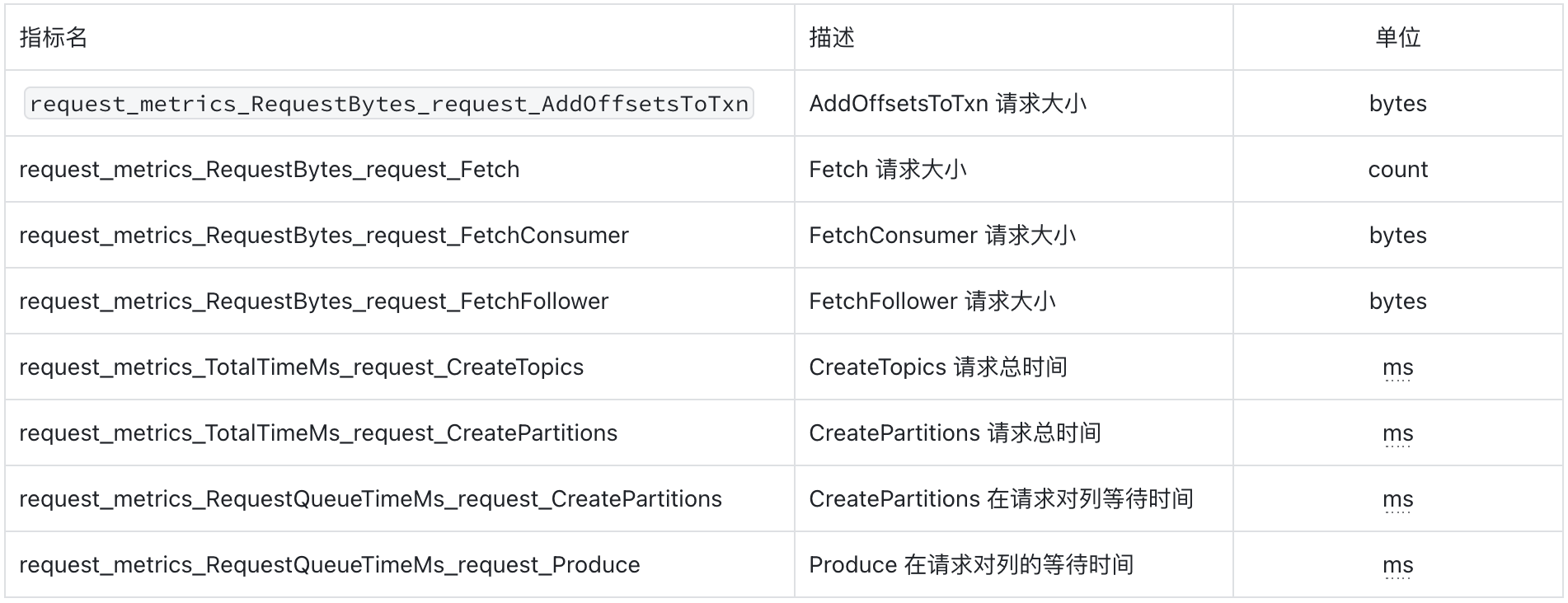

kafka_network 指标集

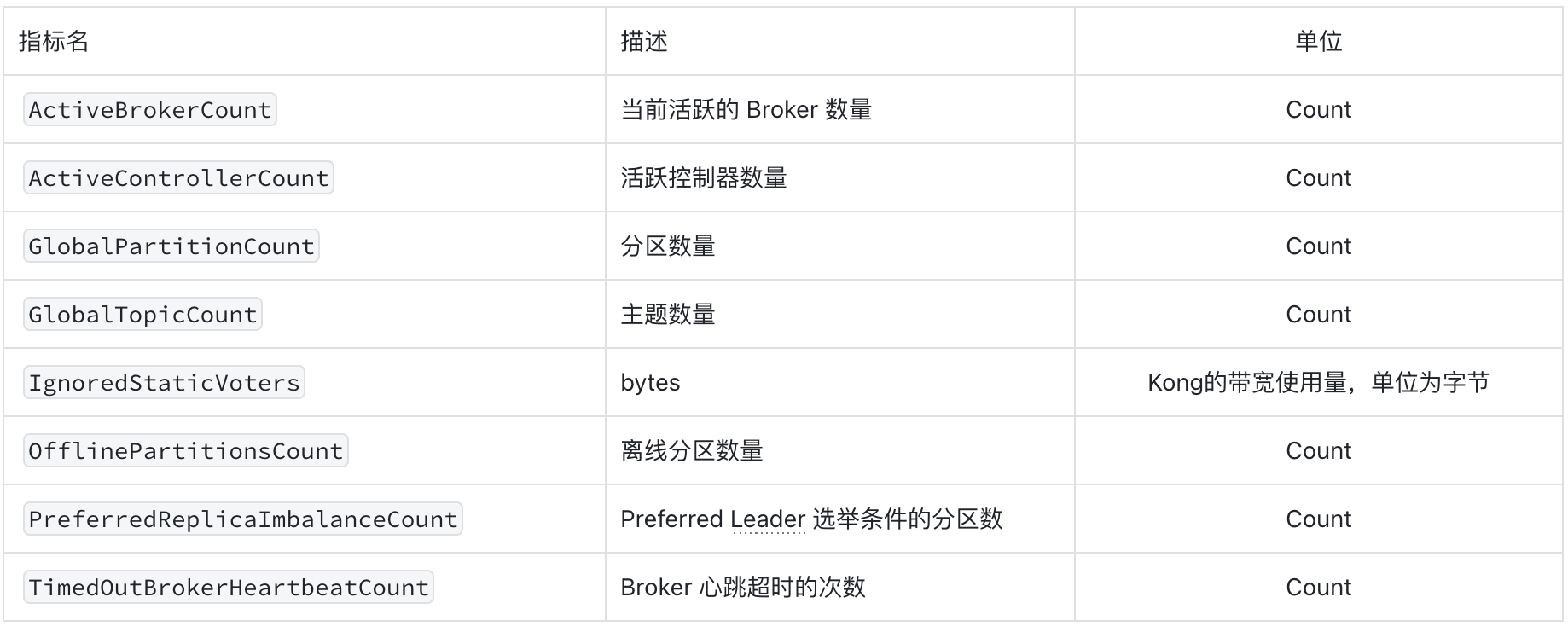

kafka_controller 指标集

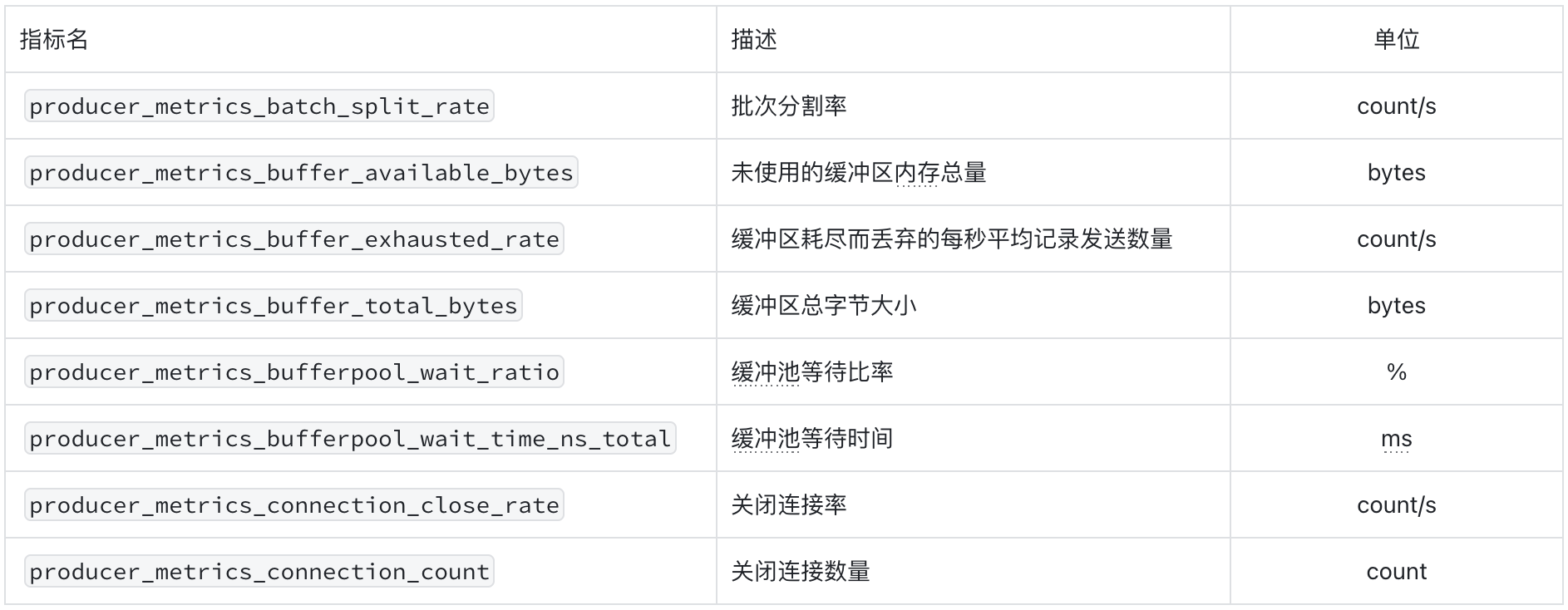

kafka_producer 指标集

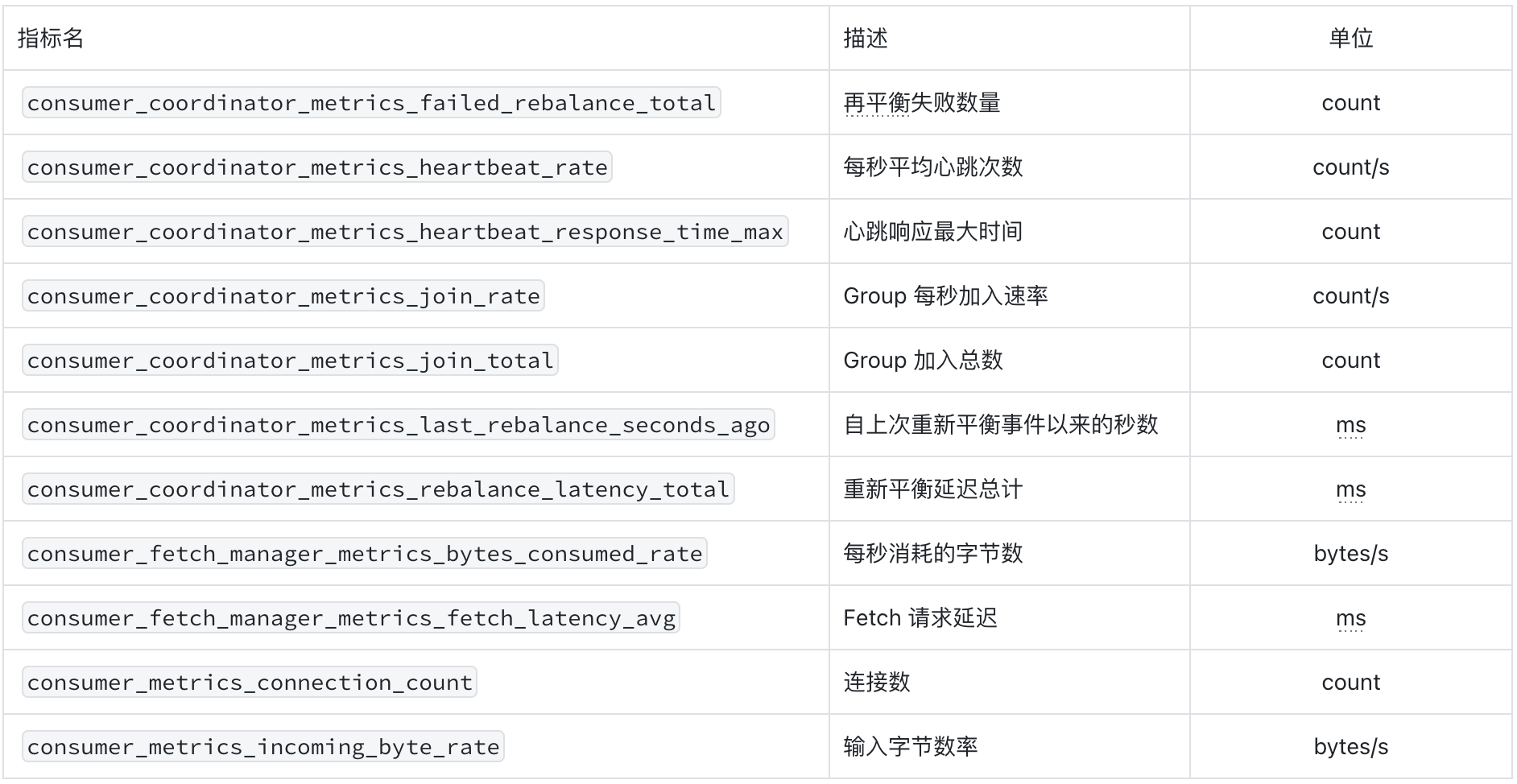

kafka_consumer 指标集

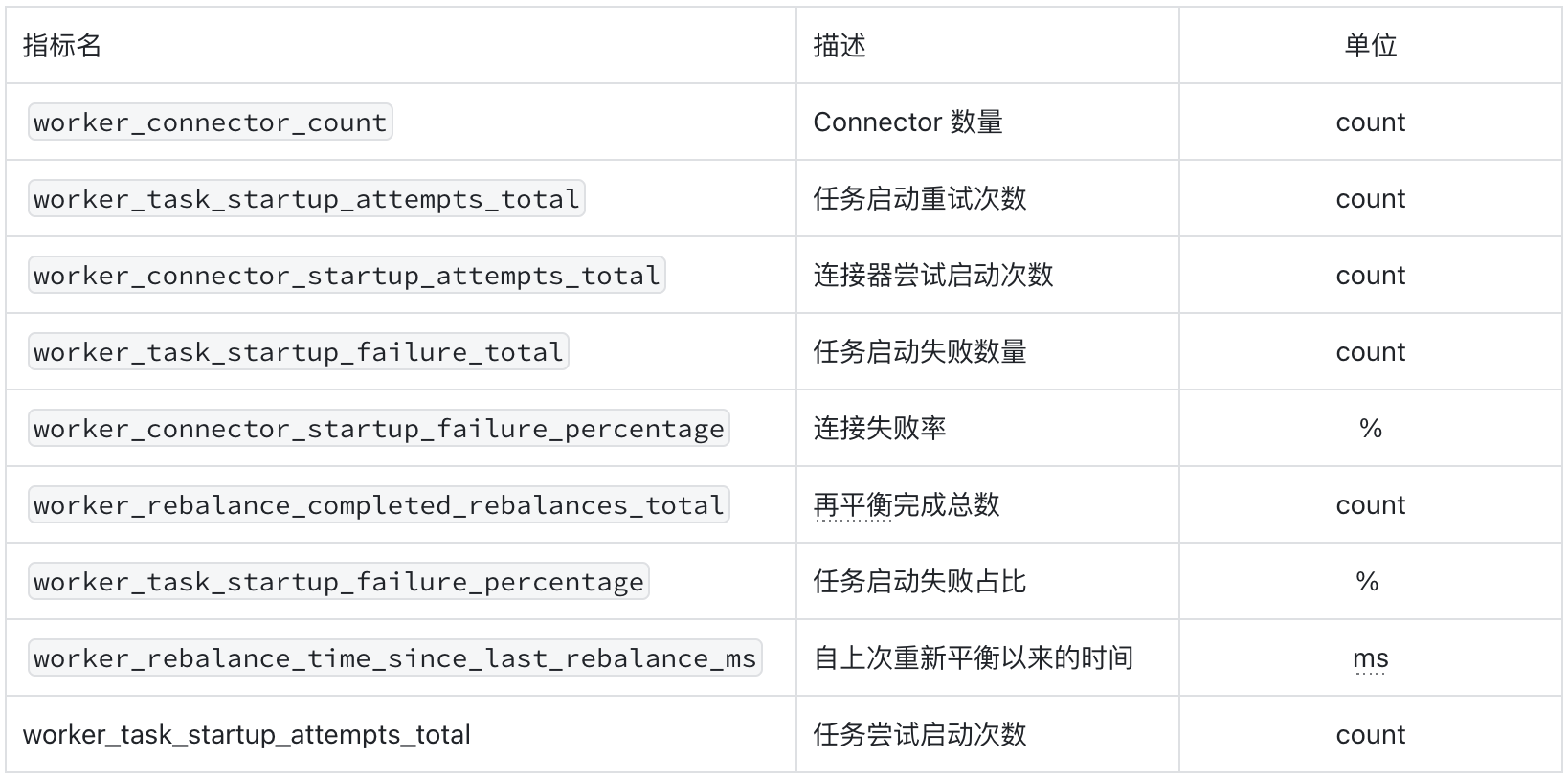

kafka_connect 指标集

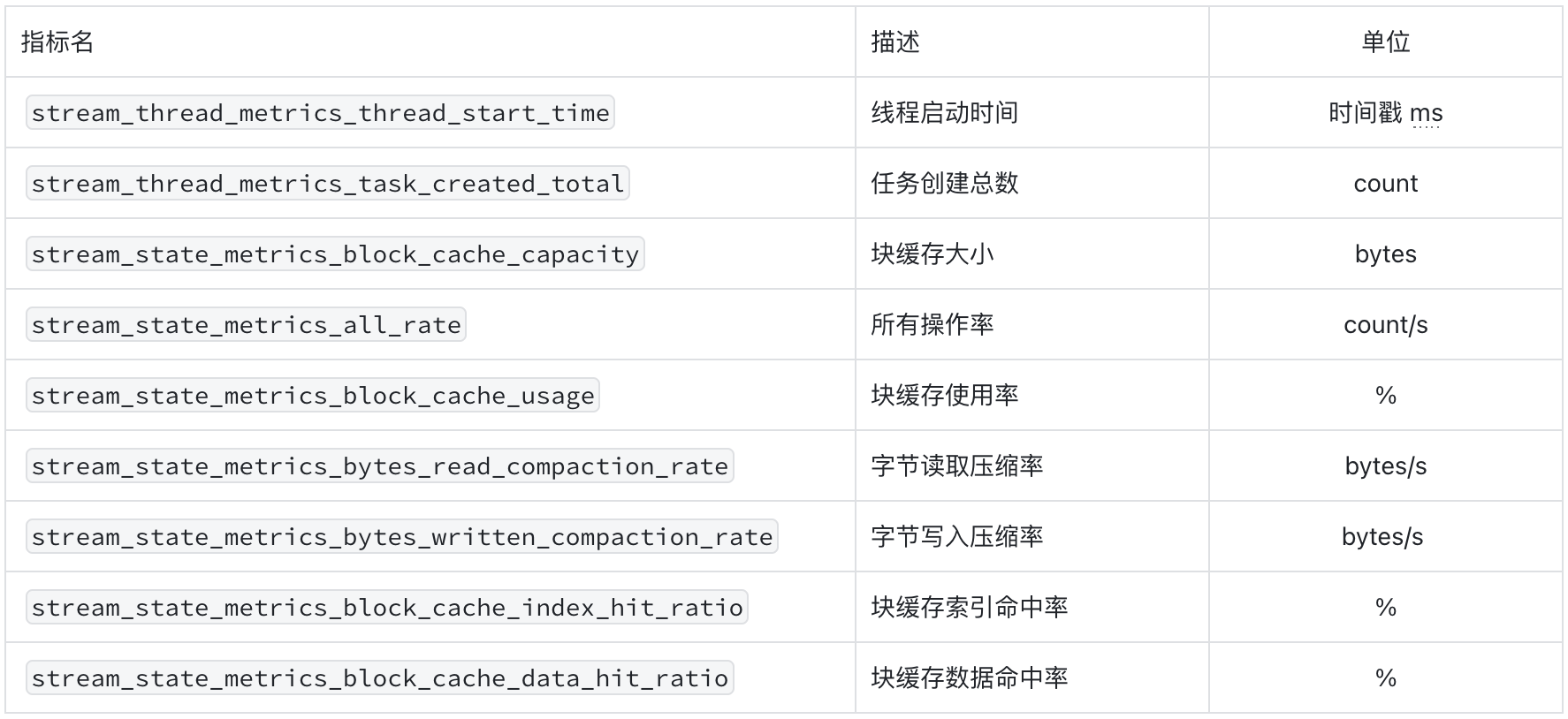

kafka_stream 指标集

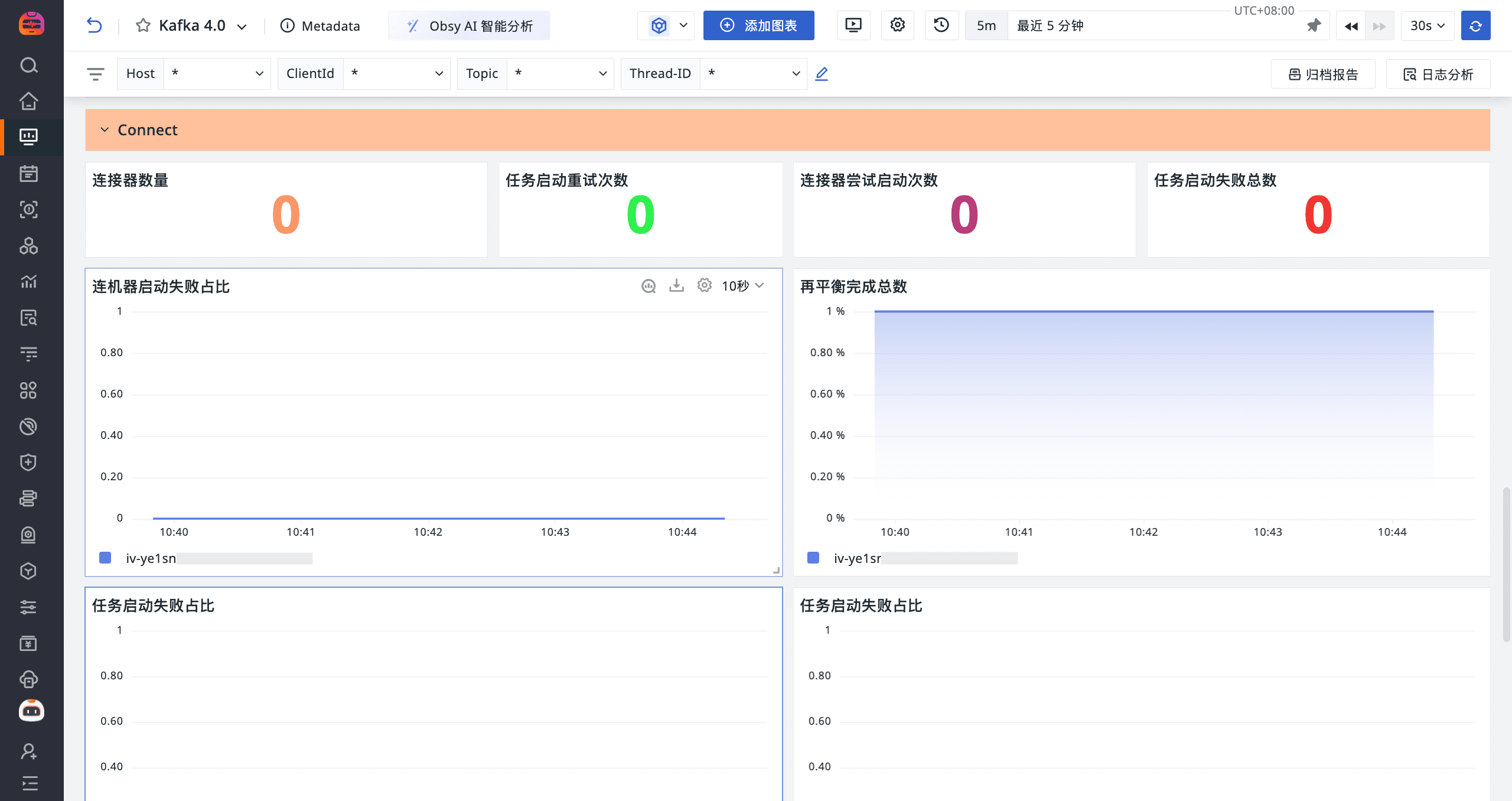

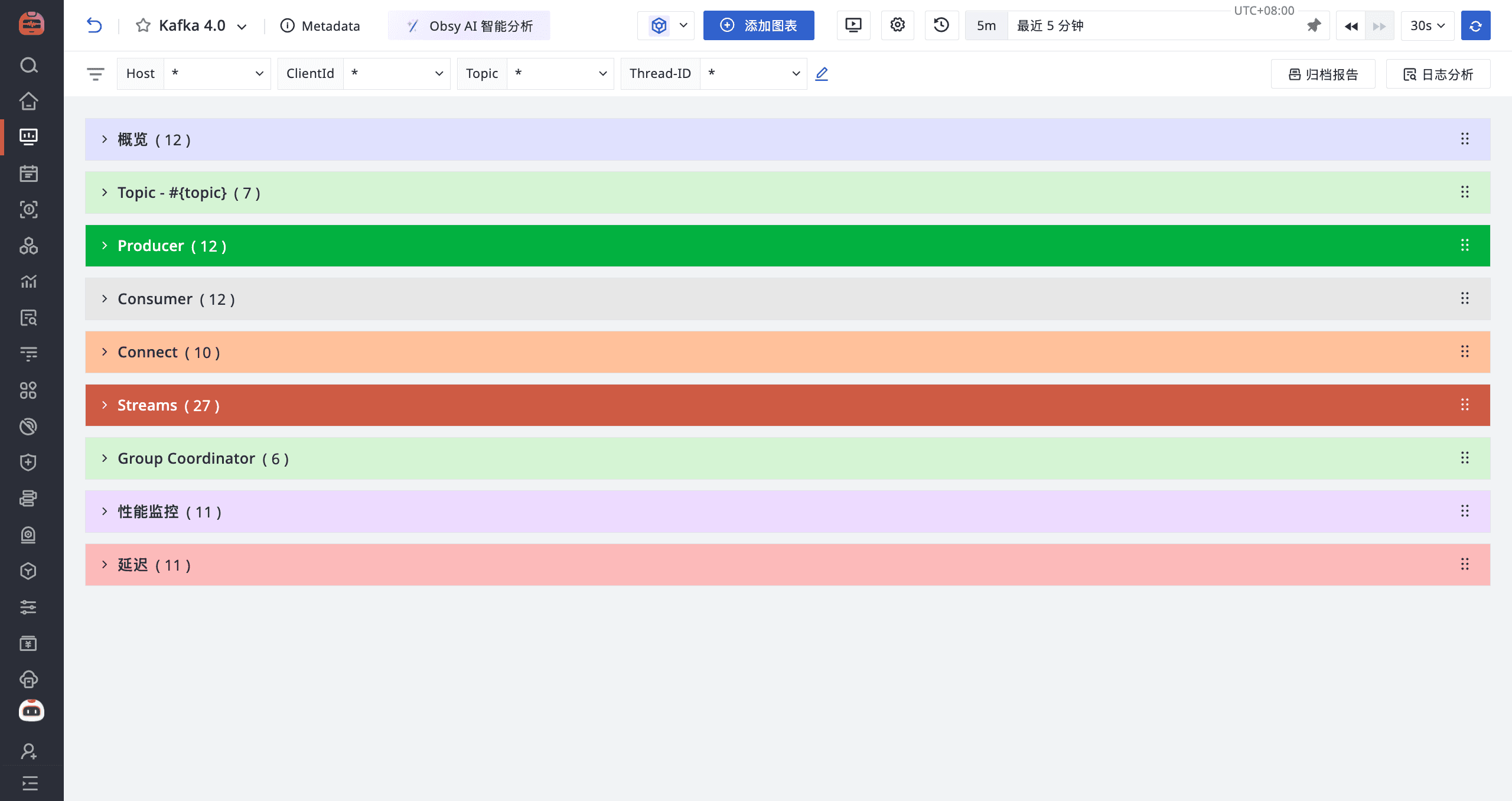

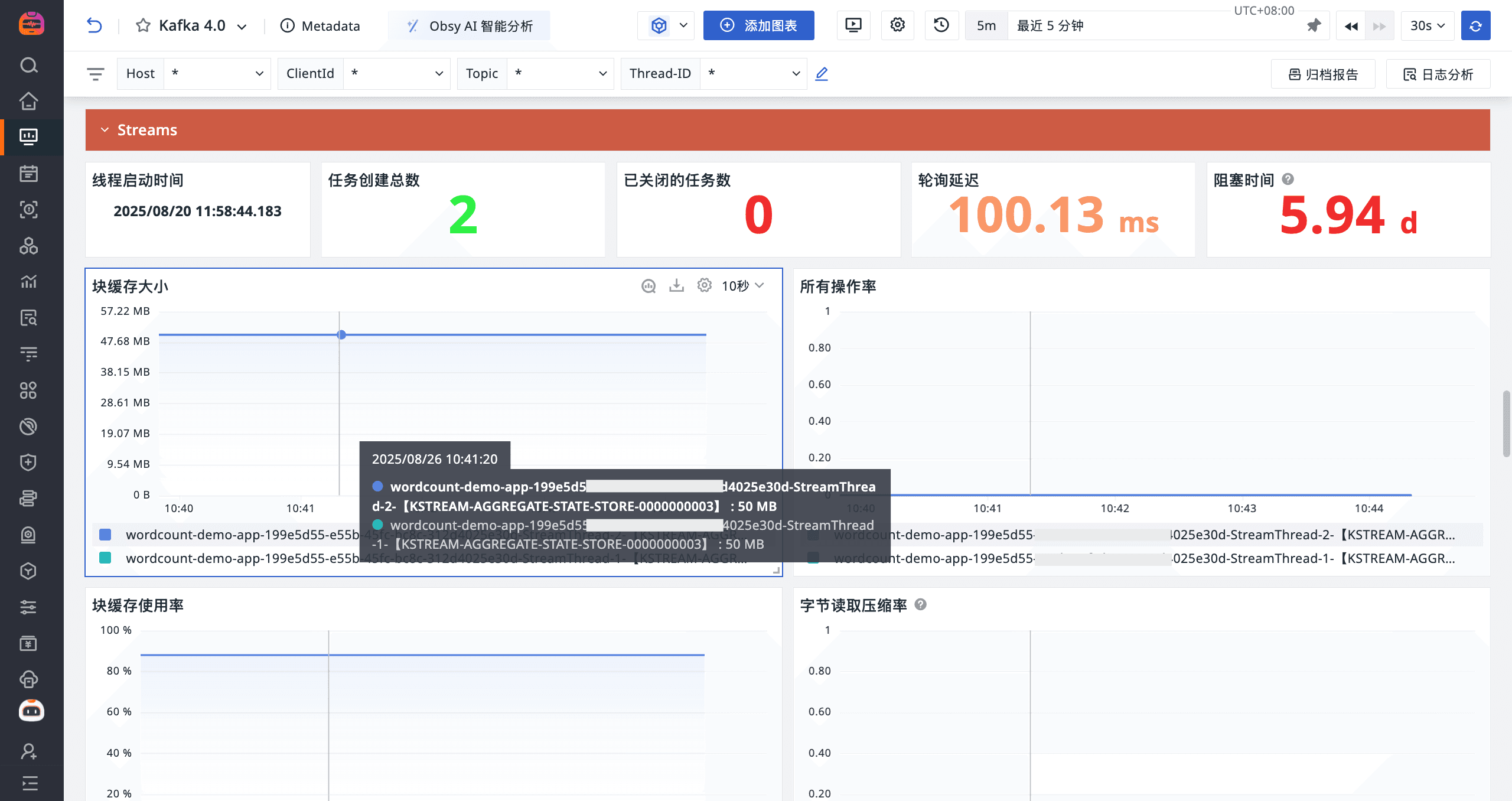

场景视图
登录观测云控制台，点击「场景」 -「新建仪表板」，输入 “Kafka 4”， 选择 “Kafka 4”，点击 “确定” 即可添加视图。
监控器（告警）
登录观测云控制台，点击「监控」 -「新建监控器」，输入 “kafka”， 选择对应的监控器，点击 “确定” 即可添加。

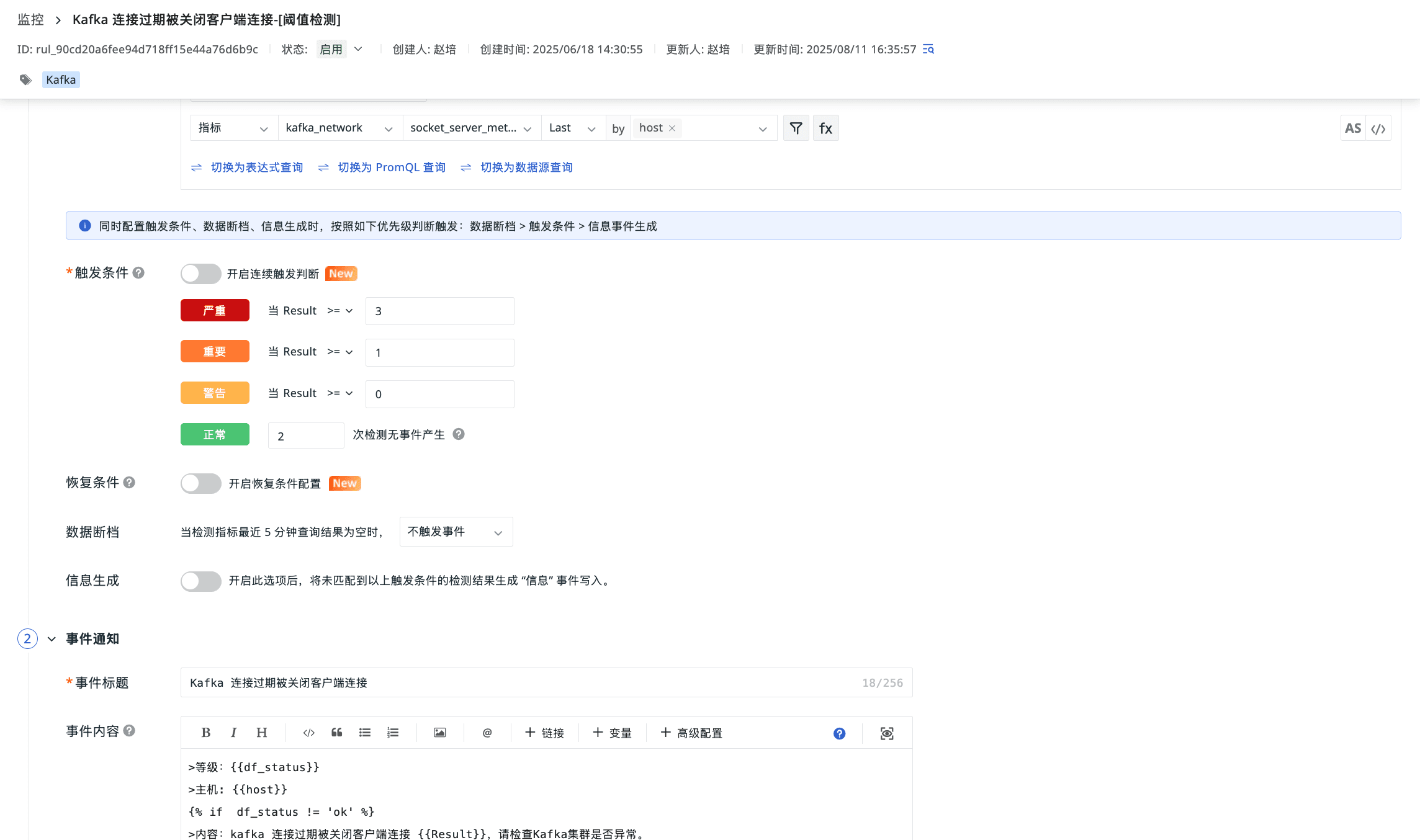

Kafka 连接过期被关闭客户端连接

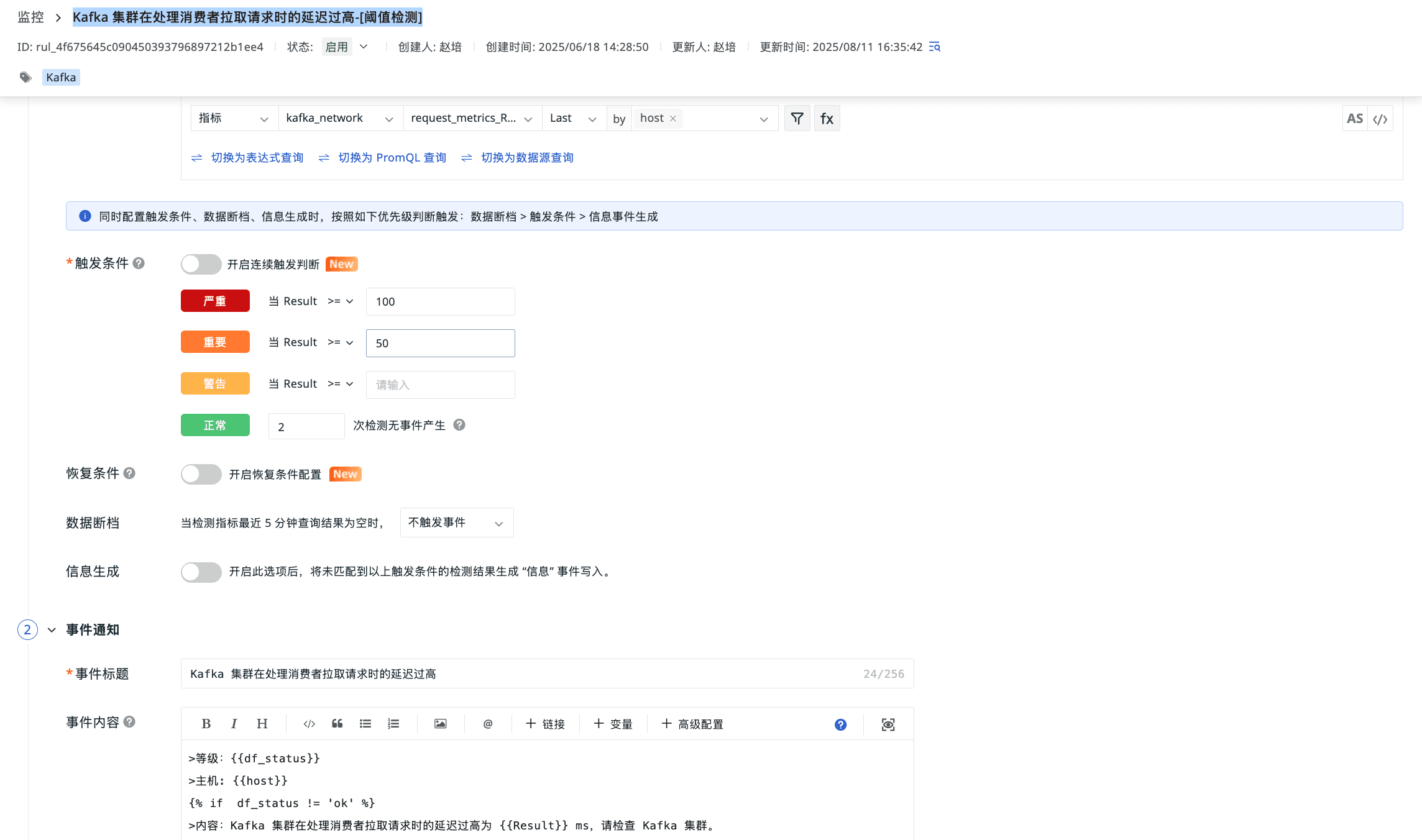

Kafka 集群在处理消费者拉取请求时的延迟过高

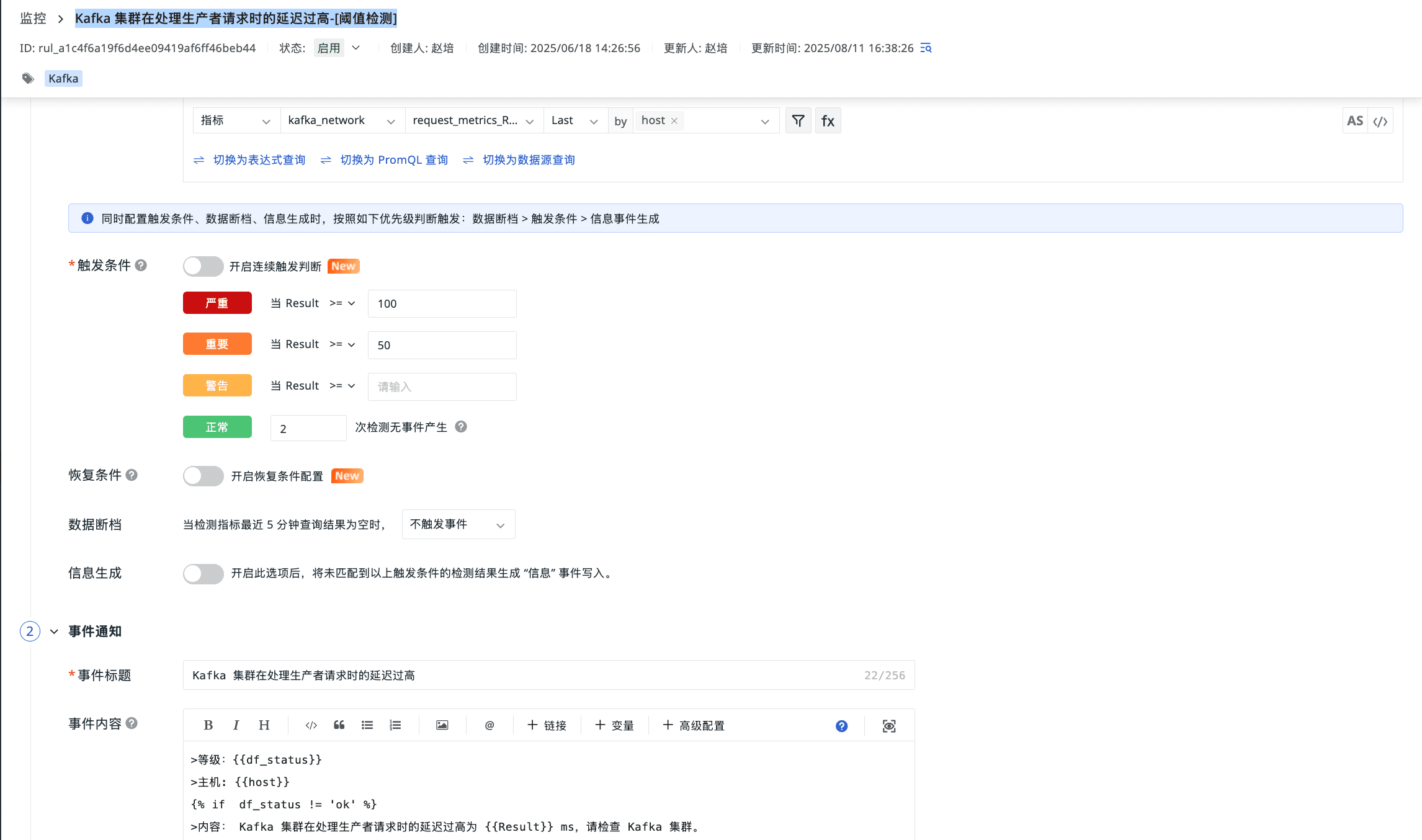

Kafka 集群在处理生产者请求时的延迟过高

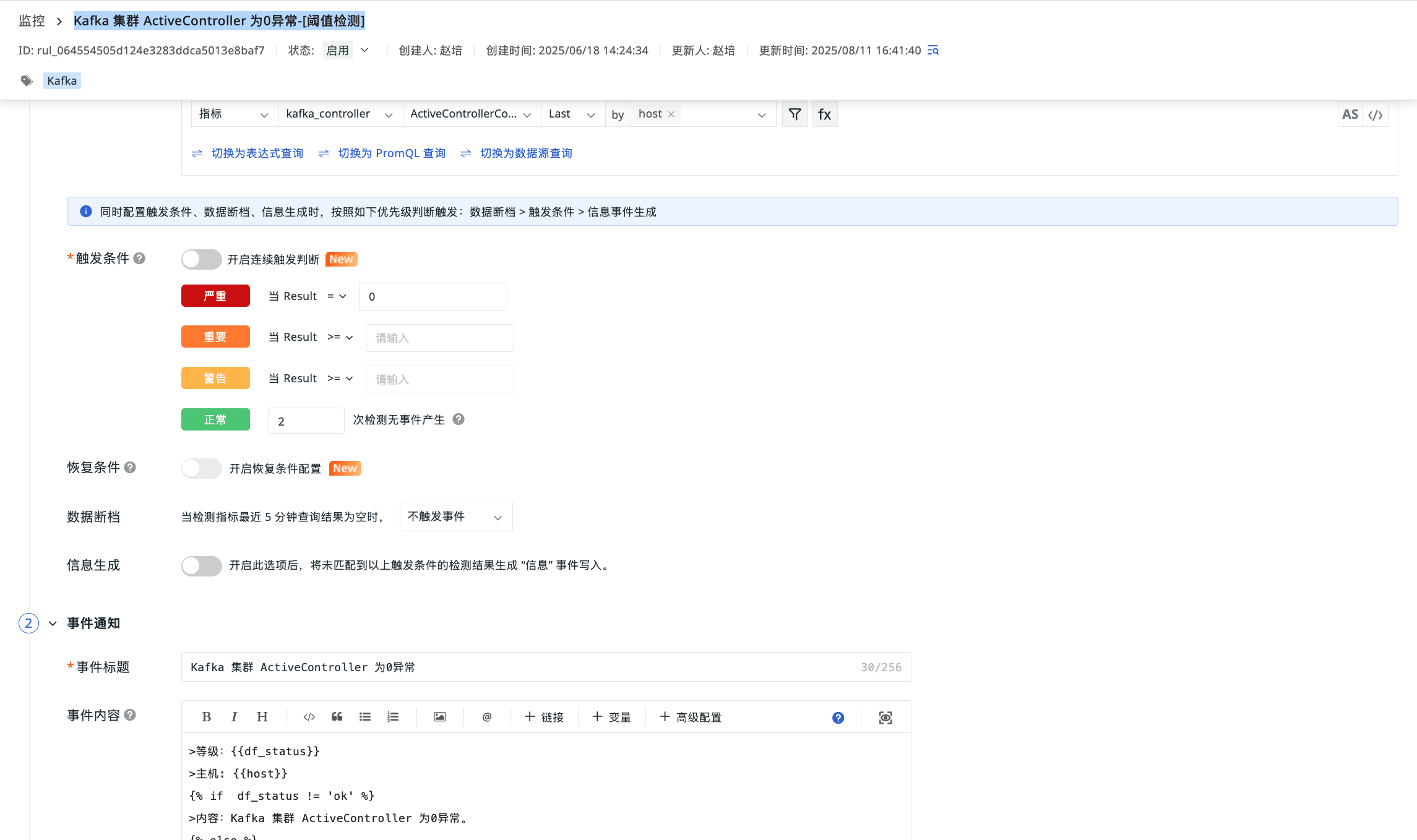

Kafka 集群 ActiveController 为 0 异常

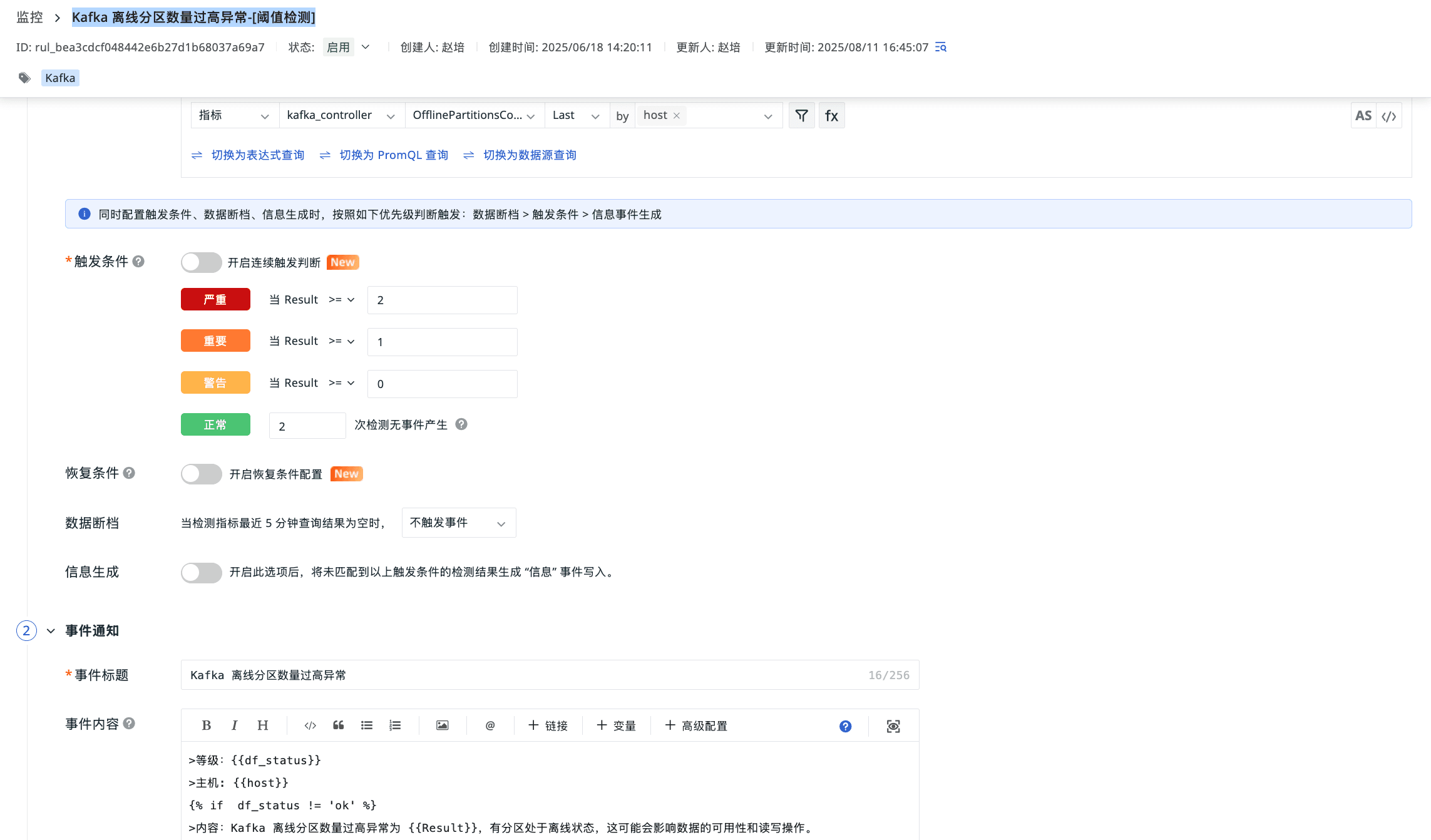

Kafka 离线分区数量过高异常
总结
通过监控 Kafka，我们可以实时掌握消息吞吐、消费者滞后、Broker 健康等关键指标，提前发现副本缺失、网络拥塞或消费延迟，保障系统稳定；也能结合历史基线做容量预测与异常检测，为扩缩容、参数调优提供量化依据，让数据持续高效、可观测、可演进。
