其实原本是打算 OpenTelemetry 对应内容搞好后再做个简单的性能测试，也算表明自己写(抄)代码的能力（不至于用了反射什么的就把 Kestrel 这么好的底子的性能拖垮了）
但是最近看见一篇 go 的文章 报告揭示 OpenTelemetry 对 Go 的性能影响，说 OpenTelemetry 拖慢了 go 30+% 的性能，
虽然个人还是保守持怀疑态度，但万一本人代码写得臭，到时候找不到地方怪怎么办
所以先留份简单的性能测试记录，后面搞好 OpenTelemetry 再做个比较
基准项目
一切从简，就选大家都熟悉的初始 demo 项目做基准好了
[ApiController][Route("[controller]")]public class WeatherForecastController : ControllerBase{ private static readonly string[] Summaries = new[] { "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching" };
private readonly ILogger<WeatherForecastController> _logger;
public WeatherForecastController(ILogger<WeatherForecastController> logger) { _logger = logger; }
[HttpGet(Name = "GetWeatherForecast")] public IEnumerable<WeatherForecast> Get() { this.Response.Headers["x-p"] = this.Request.Protocol; return Enumerable.Range(1, 5).Select(index => new WeatherForecast { Date = DateOnly.FromDateTime(DateTime.Now.AddDays(index)), TemperatureC = Random.Shared.Next(-20, 55), Summary = Summaries[Random.Shared.Next(Summaries.Length)] }) .ToArray(); }}
复制代码
代理配置
启动最简单的代理配置（主要想看看最理想情况下的结果）
{ "Logging": { "LogLevel": { "Default": "Warning" } }, "ServerOptions": { "AddServerHeader": false }, "ReverseProxy": { "ConnectionTimeout": "00:00:01.000", "Listen": { "https": { "Protocols": [ "Http1", "Http2", "Http3" ], "Address": [ "127.0.0.1:5001" ], "UseSni": true, "SniId": "test" }, "http": { "Protocols": [ "Http1" ], "Address": [ "127.0.0.1:5000" ] }, "tcptest": { "Protocols": [ "Tcp" ], "Address": [ "127.0.0.1:5002" ], "RouteId": "tcpTest" } }, "Sni": { "test": { "Host": [ "*" ], "CheckCertificateRevocation": false, "Certificate": { "PEM": "-----BEGIN CERTIFICATE-----xxxxx\n-----END CERTIFICATE-----", "PEMKey": "-----BEGIN ENCRYPTED PRIVATE KEY-----\nxxxx\n-----END ENCRYPTED PRIVATE KEY-----", "Password": "testPassword" } } }, "Routes": { "HTTPTEST": { "Match": { "Hosts": [ "*" ], "Paths": [ "*" ] }, "ClusterId": "apidemo", "Timeout": "00:10:11" }, "tcpTest": { "ClusterId": "apidemo", "Timeout": "00:10:11" } }, "Clusters": { "apidemo": { "HttpClientConfig": { "DangerousAcceptAnyServerCertificate": true }, "LoadBalancingPolicy": "RoundRobin", "Destinations": [ { "Address": "https://127.0.0.1:4001" } ] } } }}
复制代码
vkproxy -c D:\code\github\VKProxy\samples\CoreDemo\test.json
复制代码
测试工具
这里会在本人电脑内测试理想情况，主要没有精力去搭建真实网络环境测试（贫穷的眼泪），哈哈
个人电脑情况：Windows 11 (10.0.26100.4351)Intel Core i7-10700 CPU 2.90GHz, 1 CPU, 16 logical and 8 physical cores32G MemoryINTEL SSDPEKNW512GB
以前用过 ali 这个 go 写的测试工具，因为它会实时在命令行终端绘制性能测试图，在简单测试使用很方便，但可惜断更了，并且有个大 bug 没有修复：绘制的性能测试图错位了，非常影响观看，非常惋惜呀
所以这里找了个同样 go 写的工具 vegeta 主要看重它有命令可以生成图， 但可惜好像不支持 http3
测试命令
// 性能测试.\vegeta.exe attack -insecure -rate=10000/s -duration=60s -format=http -targets=test -output=results -http2
// 汇总报告.\vegeta.exe report .\results
// 绘图.\vegeta.exe plot .\results > plot.html
复制代码
测试结果
基准 HTTP2 -> WeatherForecast api
.\vegeta.exe attack -insecure -rate=10000/s -duration=60s -format=http -targets=base -output=baseresults -http2 // base content:// GET https://127.0.0.1:4001/WeatherForecast
复制代码

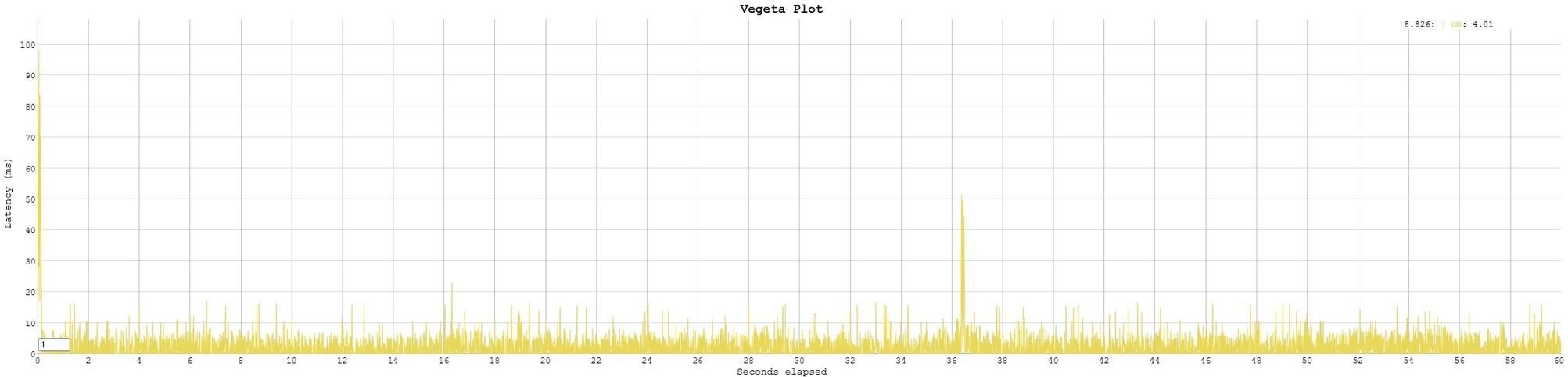

汇总
Requests [total, rate, throughput] 599930, 9998.35, 9998.35Duration [total, attack, wait] 1m0s, 1m0s, 0sLatencies [min, mean, 50, 90, 95, 99, max] 0s, 676.024µs, 0s, 2.56ms, 3.705ms, 5.367ms, 26.437msBytes In [total, mean] 232052167, 386.80Bytes Out [total, mean] 0, 0.00Success [ratio] 100.00%Status Codes [code:count] 200:599930Error Set:
复制代码
HTTP2 -> VKProxy(https) -> HTTP2 -> WeatherForecast api
.\vegeta.exe attack -insecure -rate=10000/s -duration=60s -format=http -targets=http2proxy -output=http2proxyresults -http2 // http2proxy content:// GET https://127.0.0.1:5001/WeatherForecast
复制代码

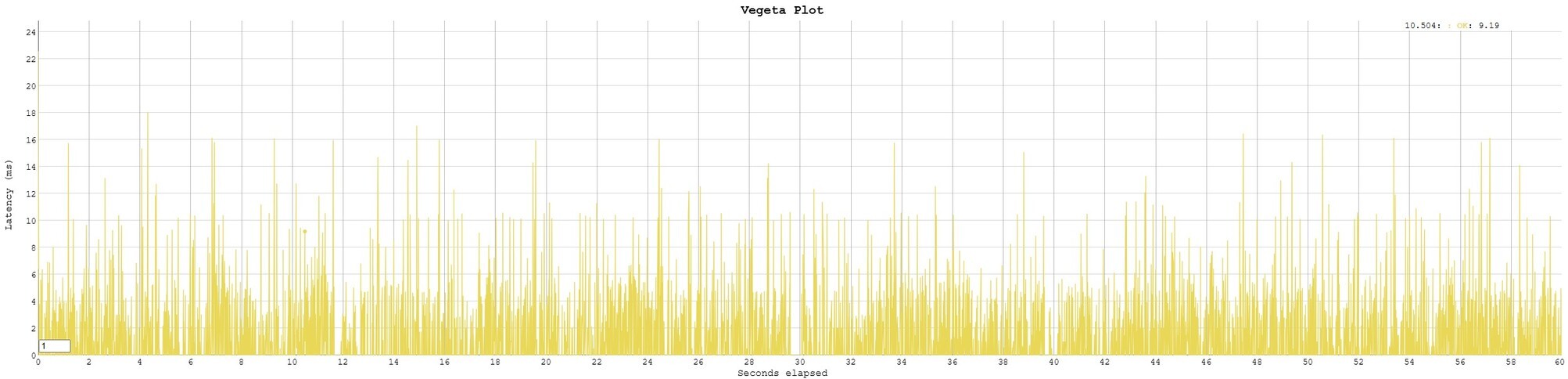

汇总
Requests [total, rate, throughput] 599980, 9999.85, 9999.85Duration [total, attack, wait] 59.999s, 59.999s, 0sLatencies [min, mean, 50, 90, 95, 99, max] 0s, 2.199ms, 1.845ms, 5.162ms, 6.359ms, 9.217ms, 108.78msBytes In [total, mean] 232078680, 386.81Bytes Out [total, mean] 0, 0.00Success [ratio] 100.00%Status Codes [code:count] 200:599980Error Set:
复制代码
HTTP2 -> VKProxy(tcp) -> scoket -> WeatherForecast api
.\vegeta.exe attack -insecure -rate=10000/s -duration=60s -format=http -targets=tcpproxy -output=tcpproxyresults -http2 // tcpproxy content:// GET https://127.0.0.1:5002/WeatherForecast
复制代码

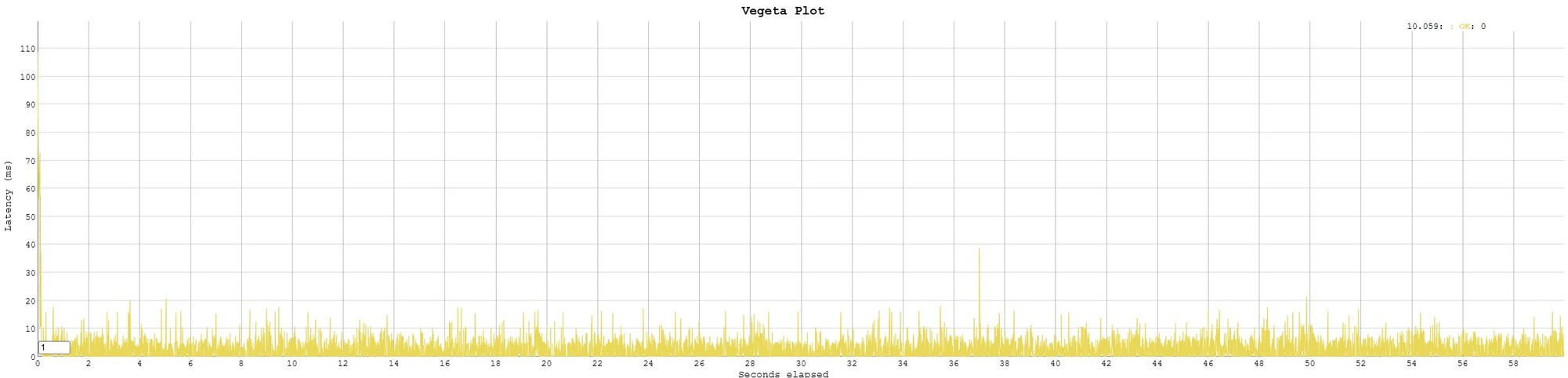

汇总
Requests [total, rate, throughput] 599976, 9998.48, 9998.48Duration [total, attack, wait] 1m0s, 1m0s, 0sLatencies [min, mean, 50, 90, 95, 99, max] 0s, 1.809ms, 1.004ms, 4.736ms, 5.744ms, 8.995ms, 98.922msBytes In [total, mean] 232069758, 386.80Bytes Out [total, mean] 0, 0.00Success [ratio] 100.00%Status Codes [code:count] 200:599976Error Set:
复制代码
结果大致就是这样了，看起来个人写的代码也不至于太臭，至少理想情况下没有拖慢多少，
客官，你们怎么看？
VKProxy 是使用 c#开发的基于 Kestrel 实现 L4/L7 的代理（感兴趣的同学烦请点个github小赞赞呢）
