日常使用 NAS 过程中,偶尔会出现家里断电或者断网的情况,NAS 自带网络断开的通知功能,但需要是恢复网络链接后才会通知,而此时都恢复了,再通知也就没那么重要,还有断电情况下也是需要回家才能知道,断电保护可以使用 UPS,当停电后 UPS 通过 usb 数据线会给 NAS 发送通知,NAS 收到通知后在设定时间内关机并发送 ups 进入电池供电模式的通知,但这个方式需要购买 ups 设备,成本在 300 元左右。

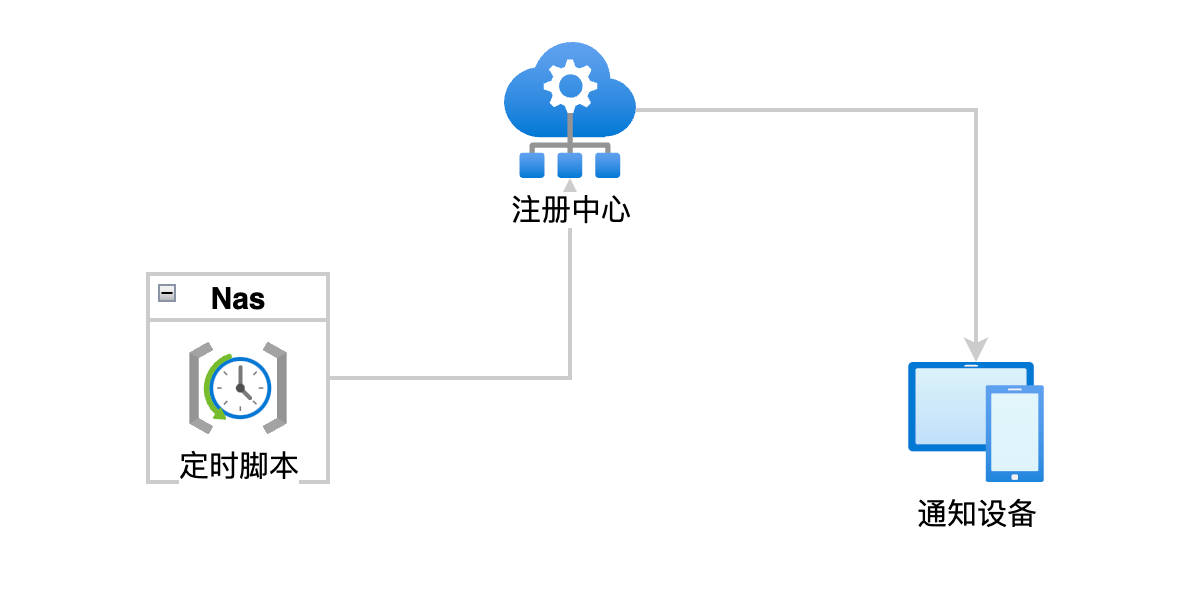

注册中心原理

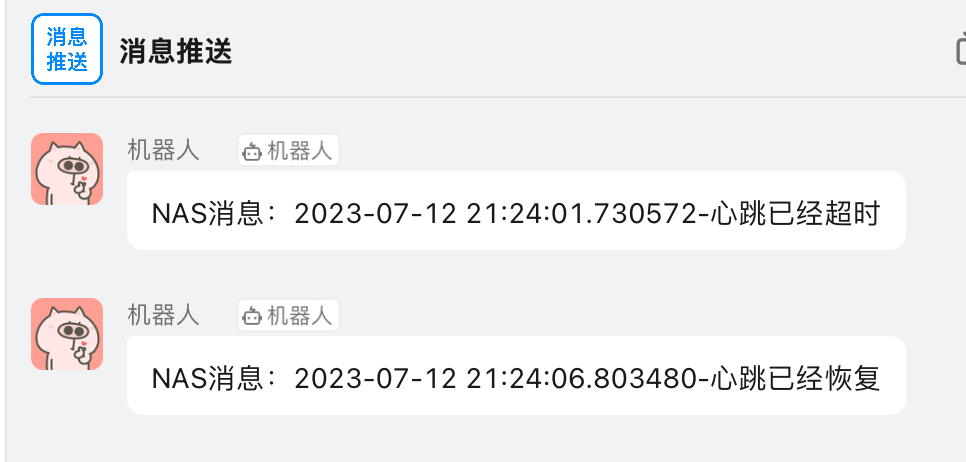

联想到注册中心等其他集群模式下的心跳连接,心跳超时则进行剔除的方式,自己便用 python 写了一个简单的 web 服务当作注册中心,再写一个定时任务每隔 5 秒扫描一遍最近注册时间数据,对比下来如果超时 60 秒以上,则认为 NAS 已经失去链接,立刻发送邮件/钉钉通知,当 NAS 重新上线连接后,定时任务扫描到注册信息会再发送已经连接的通知信息。
NAS 端原理

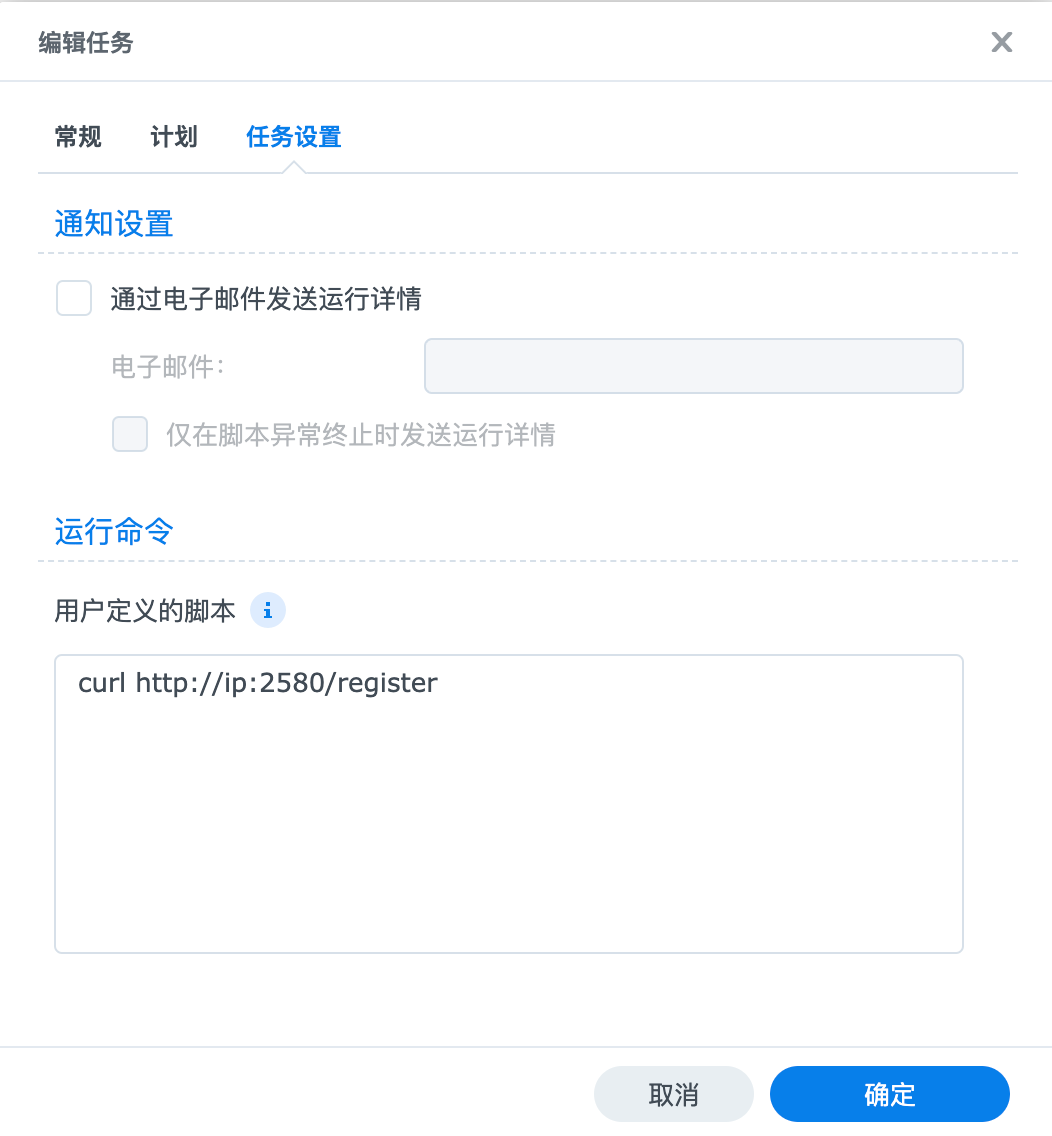

上文已经通过 python 提供了一个 web 服务,此时只需要在 NAS 端任务计划中创建一个每分钟的定时任务即可,定时请求心跳接口,服务端记录请求时间。
或者在 docker 里启动一个定时任务,crontab 命令
service cron start
*/1 * * * * curl http://ip:2580/register
服务端代码
启动 python 的命令,需要在后台运行
ps -ef|grep python
nohup python3 nas_health.py &
nohup python3 nas_register.py &
复制代码
nas_register-类似于注册中心的概念,提供一个 get 接口供 NAS 访问
# -*- encoding: utf-8 -*-
import os
import datetime
import tornado.web
class MainHandler(tornado.web.RequestHandler):
def get(self):
"""get请求"""
now = datetime.datetime.now()
out = open("nas_datetime-" + str(now.year) + '-' + str(now.month) + '-' + str(now.day), 'a')
out.write(str(now) + '\n')
out.close()
self.write("")
application = tornado.web.Application([(r"/register", MainHandler)],
static_path=os.path.join(os.path.dirname(__file__), "static"), )
# 读取文件中的数据
def read_txt_file(file_name):
newFile = open(file_name)
data = newFile.read()
newFile.close()
return data
if __name__ == "__main__":
application.listen(2580)
tornado.ioloop.IOLoop.instance().start()
复制代码
nas_health-定时扫描日志文件,对比注册时间
# -*- encoding: utf-8 -*-
import datetime
import time
import smtplib
from email.mime.text import MIMEText
from email.header import Header
# 读取文件中的数据
def read_txt_file(file_name):
newFile = open(file_name)
data = newFile.read()
if data == '':
return ''
now = ''
for line in data.split('\n'):
if line == '':
break
now = line
newFile.close()
return now
def loop_monitor():
email_state = True
while True:
try:
file_now = datetime.datetime.now()
now_str = read_txt_file(
"nas_datetime-" + str(file_now.year) + '-' + str(file_now.month) + '-' + str(file_now.day))
if now_str == '':
continue
now = datetime.datetime.strptime(str(now_str), "%Y-%m-%d %H:%M:%S.%f")
now2 = datetime.datetime.now()
print((now2 - now).seconds)
if (now2 - now).seconds >= 60 and email_state:
email("心跳已经超时", "xxx@xxx.com")
email_state = False
if (now2 - now).seconds < 60 and email_state == False:
email_state = True
email("心跳已经恢复", "xxx@xxx.com")
except Exception as e:
print("时间错误", e)
time.sleep(5) # 暂停5秒
def email(text, toemail):
sender = "xxx@xxx.com" # 发送方的邮箱
password = "xxxx." # 邮箱的授权码
receiver = toemail # 接收方的邮箱
data_time = time.strftime("%Y-%m-%d %H:%M:%S")
subject = data_time + "Nas服务器心跳报警" # title邮件标题
words = text # text邮件内容
msg = MIMEText(words, 'plain', 'utf-8') # 中文需参数‘utf-8',单字节字符不需要
msg['Subject'] = Header(subject, 'utf-8') # 邮件标题
msg['from'] = sender # 发信人地址
msg['to'] = receiver # 收信人地址
smtp = smtplib.SMTP_SSL("smtp.exmail.qq.com", 465)
smtp.connect('smtp.exmail.qq.com')
smtp.login(sender, password)
smtp.sendmail(sender, receiver, msg.as_string())
smtp.quit()
if __name__ == "__main__":
loop_monitor()
复制代码
