ShardingSphere 联邦查询 GROUPING 聚合结果问题分析
作者：端小强
- 2025-11-08 江苏
本文字数：27213 字
阅读完需：约 89 分钟
本文首发于个人博客 ShardingSphere 联邦查询 GROUPING 聚合结果问题分析，转载请注明原始链接。
问题背景

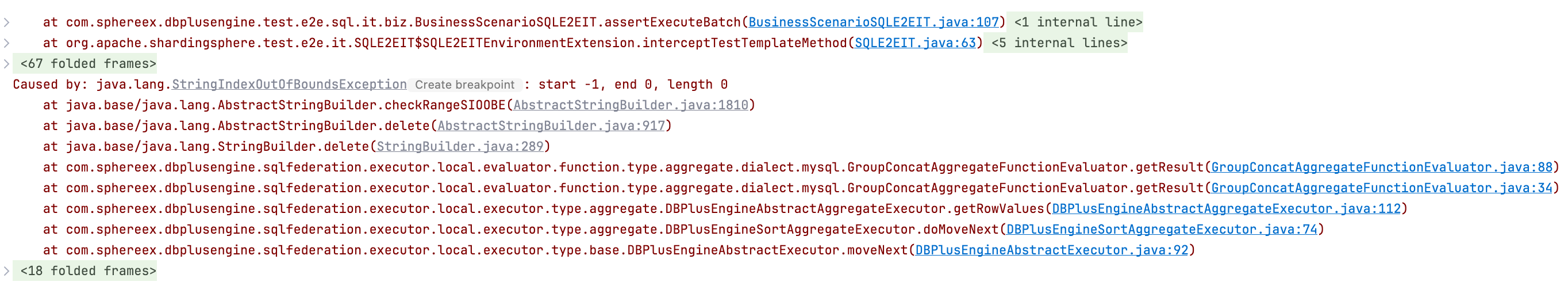

上周笔者所在公司客户反馈，使用商业版联邦查询进行复杂 SQL 聚合分析时，出现了 StringIndexOutOfBoundsException 异常。根据客户反馈的异常信息，起初笔者觉得这只是一个简单的下标越界问题，于是快速通过 E2E 测试程序复现问题（如下图所示），并对下标越界的代码进行了增强。
但是问题似乎没有这么简单，修改后 E2E 测试仍然没有通过，根据断言结果来看，查询结果同样不符合预期，为了彻底搞清楚这个问题，笔者在周末进行了一番探索研究，最终解决了这个问题。调查问题过程中，笔者对 GROUPING 函数的语义有了更深的理解，为了方便自己以及其他有需要的同学参考学习，本文将对问题调查过程进行记录总结，如有介绍不详细或者错误之处，还恳请大家留言指导。
问题分析
由于原始 SQL 非常复杂，为了方便问题描述，我们使用一个精简版的 SQL 来进行分析。首先，我们搭建一个 Proxy 集群，并参考商业文档开启联邦查询功能，然后在 Proxy 上配置分片规则，按照 data_batch_id 字段对 test_analysis_result 表进行哈希取模分片。
rules:- !SINGLEyamyam tables: - "*.*"- !SHARDING tables: test_analysis_result: actualDataNodes: ds_${0..9}.test_analysis_result databaseStrategy: standard: shardingColumn: data_batch_id shardingAlgorithmName: data_batch_inline defaultTableStrategy: none:
shardingAlgorithms: data_batch_inline: type: INLINE props: algorithm-expression: ds_${Math.abs(data_batch_id.hashCode() % 10)}
复制代码
再通过 Proxy 执行如下的建表语句，创建 test_analysis_result 测试表：
CREATE TABLE `test_analysis_result` ( `creator_account` varchar(200) DEFAULT NULL, `is_deleted` varchar(1) DEFAULT NULL, `last_modified_time` datetime DEFAULT NULL, `data_batch_id` date DEFAULT NULL, `modifier_account` varchar(200) DEFAULT NULL, `analysis_id` varchar(200) NOT NULL, `analysis_description` varchar(1000) DEFAULT NULL, `last_modifier_id` bigint DEFAULT NULL, `creator_id` bigint DEFAULT NULL, `create_time` datetime DEFAULT NULL, `data_version` int DEFAULT '0', `test_identifier` varchar(200) NOT NULL, `test_number` varchar(40) NOT NULL, `plan_entity_code` varchar(40) NOT NULL, `plan_entity_name_cn` varchar(100) DEFAULT NULL, `plan_entity_name_en` varchar(100) DEFAULT NULL, `material_code` varchar(40) NOT NULL, `test_create_date` date NOT NULL, `analysis_version` int NOT NULL, `calculation_complete_date` date DEFAULT NULL, `calculation_method` varchar(10) DEFAULT NULL, `warranty_type` varchar(10) DEFAULT NULL, `standard_type` varchar(10) DEFAULT NULL, `product_line_code` varchar(50) DEFAULT NULL, `product_line_name_cn` varchar(1000) DEFAULT NULL, `product_line_name_en` varchar(1000) DEFAULT NULL, `product_series_code` varchar(30) DEFAULT NULL, `product_series_name_cn` varchar(512) DEFAULT NULL, `product_series_name_en` varchar(512) DEFAULT NULL, `marketing_name` text, `material_category_code` varchar(100) DEFAULT NULL, `price_rmb` decimal(18, 2) DEFAULT NULL, `price_usd` decimal(18, 2) DEFAULT NULL, `material_desc_cn` text, `material_desc_en` text, `market_launch_date` date DEFAULT NULL, `total` bigint DEFAULT NULL, `lifecycle_consumed_total` bigint DEFAULT NULL, `actual_consumption_qty` bigint DEFAULT NULL, `forecast_total_consumption` bigint DEFAULT NULL, `current_and_transit_inventory` bigint DEFAULT NULL, `forecast_future` bigint DEFAULT NULL, `distribution_center_stock` bigint DEFAULT NULL, `distribution_center_transit` bigint DEFAULT NULL, `service_center_stock` bigint DEFAULT NULL, `service_center_transit` bigint DEFAULT NULL, `return_good_stock` bigint DEFAULT NULL, `period_1` varchar(20) DEFAULT NULL, `period_2` varchar(20) DEFAULT NULL, `period_3` varchar(20) DEFAULT NULL, `period_4` varchar(20) DEFAULT NULL, `period_5` varchar(20) DEFAULT NULL, `value_1` varchar(20) DEFAULT NULL, `value_2` varchar(20) DEFAULT NULL, `value_3` varchar(20) DEFAULT NULL, `value_4` varchar(20) DEFAULT NULL, `value_5` varchar(20) DEFAULT NULL, `analysis_start_period` varchar(20) DEFAULT NULL, `analysis_end_period` varchar(20) DEFAULT NULL, `integration_task_no` varchar(120) DEFAULT NULL, `source_plan_entity_code` varchar(40) DEFAULT NULL, `test_completion_date` varchar(20) DEFAULT NULL, `source_test_number` varchar(40) DEFAULT NULL, `monitoring_month` date DEFAULT NULL, `analysis_task_type` varchar(1) DEFAULT NULL, `return_good_transit` bigint DEFAULT NULL, `summary_entity_stock` bigint DEFAULT NULL, `product_status` varchar(64) DEFAULT NULL, `peak_consumption_flag` varchar(1) DEFAULT NULL, `actual_consumption_current` bigint DEFAULT NULL, `actual_consumption_previous` bigint DEFAULT NULL, `total_actual_consumption` bigint DEFAULT NULL, `historical_test_consumption` bigint DEFAULT NULL, `regional_forecast` bigint DEFAULT NULL, `current_region_application` bigint DEFAULT NULL, `current_region_consumption` bigint DEFAULT NULL, `future_test_consumption` bigint DEFAULT NULL, `adjusted_regional` bigint DEFAULT NULL, `regional_adjustment_reason` varchar(240) DEFAULT NULL, `product_adjustment_reason` varchar(240) DEFAULT NULL, `regional_risk_assessment_reason` varchar(240) DEFAULT NULL, `product_risk_assessment_reason` varchar(240) DEFAULT NULL, `business_decision` varchar(240) DEFAULT NULL, `product_line_remaining_application` bigint DEFAULT NULL, `product_line_remaining_consumption` bigint DEFAULT NULL, `overall_adjusted` bigint DEFAULT NULL, `inventory_risk_quantity` bigint DEFAULT NULL, `monthly_consumption_risk_reason` varchar(240) DEFAULT NULL, `total_consumption_deviation_risk_reason` varchar(240) DEFAULT NULL, `new_forecast_consumption_risk_reason` varchar(240) DEFAULT NULL, `test_investment_ratio` decimal(10, 2) DEFAULT NULL, `test_peak_period` int DEFAULT NULL, `actual_peak_period` int DEFAULT NULL, `peak_period_deviation` int DEFAULT NULL, `peak_period_activation_rate` decimal(18, 4) DEFAULT NULL, `memory_spec` varchar(100) DEFAULT NULL, `material_type` varchar(100) DEFAULT NULL, `actual_vs_forecast_comparison` decimal(18, 2) DEFAULT NULL, `forecast_comparison_ratio` decimal(18, 2) DEFAULT NULL, `adjusted_model_future_consumption` bigint DEFAULT NULL, `adopted_model_future_consumption` bigint DEFAULT NULL, `color_en` varchar(120) DEFAULT NULL, `color_cn` varchar(120) DEFAULT NULL, PRIMARY KEY (`analysis_id`) ) ENGINE = InnoDB;
复制代码
为了复现问题，我们再为这张表 Mock 10 条数据：
INSERT INTO `test_analysis_result` VALUES ('user001', 'N', '2023-05-15 10:30:00', '2023-05-15', 'user001' , 'ID000001', 'Initial record', 1001, 1001, '2023-05-15 10:00:00' , 1, 'LTB001', 'LTB-2023-001', 'CN1', '中国区' , 'China Region', 'ITEM001', '2023-01-10', 1, '2023-05-10' , 'MODEL1', 'ACTIVE', '3', 'SPDT001', '产品系列1' , 'Product Series 1', 'PS001', '产品系列1', 'Product Series 1', 'Marketing Name 1' , 'MAT001', 1000.00, 150.00, '产品描述中文1', 'Product Description 1' , '2023-03-01', 24, 12, 500, 1000 , 200, 300, 100, 50, 150 , 30, 70, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '100', '150', '200' , '180', '160', '2023-05', '2023-10', 'API001' , 'CN1', '2023-05-20', 'LTB-2023-001', '2023-05-01', '1' , 40, 250, 'New', 'Y', 120 , 150, 270, 400, 600, 200 , 180, 800, 650, 'Regional adjustment reason 1', 'Product adjustment reason 1' , 'Regional risk reason 1', 'Product risk reason 1', 'TRADE1', 300, 280 , 700, 50, 'Monthly risk reason 1', 'Total deviation reason 1', 'New predict reason 1' , 0.75, 18, 16, 2, 88.8889 , '16GB', 'Aluminum', 95.00, 105.00, 750 , 800, 'Black', '黑色'), ('user002', 'N', '2023-05-16 11:30:00', '2023-05-15', 'user002' , 'ID000002', 'Second record', 1002, 1002, '2023-05-16 11:00:00' , 1, 'LTB001', 'LTB-2023-001', 'Overseas_Regional_Summary', '海外区域汇总' , 'Overseas Regional Summary', 'ITEM001', '2023-01-10', 1, '2023-05-10' , 'MODEL1', 'ACTIVE', '3', 'SPDT001', '产品系列1' , 'Product Series 1', 'PS001', '产品系列1', 'Product Series 1', 'Marketing Name 1' , 'MAT001', 1000.00, 150.00, '产品描述中文1', 'Product Description 1' , '2023-03-01', 24, 12, 500, 1000 , 200, 300, 100, 50, 150 , 30, 70, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '100', '150', '200' , '180', '160', '2023-05', '2023-10', 'API001' , 'CN1', '2023-05-20', 'LTB-2023-001', '2023-05-01', '1' , 40, 250, 'New', 'Y', 120 , 150, 270, 400, 600, 200 , 180, 800, 650, 'Regional adjustment reason 1', 'Product adjustment reason 1' , 'Regional risk reason 1', 'Product risk reason 1', 'TRADE1', 300, 280 , 700, 50, 'Monthly risk reason 1', 'Total deviation reason 1', 'New predict reason 1' , 0.75, 18, 16, 2, 88.8889 , '16GB', 'Aluminum', 95.00, 105.00, 750 , 800, 'Black', '黑色'), ('user003', 'N', '2023-05-17 12:30:00', '2023-05-15', 'user003' , 'ID000003', 'Third record', 1003, 1003, '2023-05-17 12:00:00' , 1, 'LTB001', 'LTB-2023-001', 'Global_Summary', '全球汇总' , 'Global Summary', 'ITEM001', '2023-01-10', 1, '2023-05-10' , 'MODEL1', 'ACTIVE', '3', 'SPDT001', '产品系列1' , 'Product Series 1', 'PS001', '产品系列1', 'Product Series 1', 'Marketing Name 1' , 'MAT001', 1000.00, 150.00, '产品描述中文1', 'Product Description 1' , '2023-03-01', 24, 12, 500, 1000 , 200, 300, 100, 50, 150 , 30, 70, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '100', '150', '200' , '180', '160', '2023-05', '2023-10', 'API001' , 'CN1', '2023-05-20', 'LTB-2023-001', '2023-05-01', '1' , 40, 250, 'New', 'Y', 120 , 150, 270, 400, 600, 200 , 180, 800, 650, 'Regional adjustment reason 1', 'Product adjustment reason 1' , 'Regional risk reason 1', 'Product risk reason 1', 'TRADE1', 300, 280 , 700, 50, 'Monthly risk reason 1', 'Total deviation reason 1', 'New predict reason 1' , 0.75, 18, 16, 2, 88.8889 , '16GB', 'Aluminum', 95.00, 105.00, 750 , 800, 'Black', '黑色'), ('user004', 'N', '2023-05-18 13:30:00', '2023-05-15', 'user004' , 'ID000004', 'Fourth record', 1004, 1004, '2023-05-18 13:00:00' , 1, 'LTB001', 'LTB-2023-001', 'CN1', '中国区' , 'China Region', 'ITEM002', '2023-01-15', 1, '2023-05-12' , 'MODEL2', 'ACTIVE', '3', 'SPDT002', '产品系列2' , 'Product Series 2', 'PS002', '产品系列2', 'Product Series 2', 'Marketing Name 2' , 'MAT002', 1200.00, 180.00, '产品描述中文2', 'Product Description 2' , '2023-03-15', 36, 18, 600, 1200 , 250, 350, 120, 60, 180 , 40, 90, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '120', '160', '210' , '190', '170', '2023-05', '2023-10', 'API002' , 'CN1', '2023-05-22', 'LTB-2023-001', '2023-05-01', '1' , 50, 300, 'Mature', 'Y', 140 , 170, 310, 500, 700, 250 , 220, 900, 750, 'Regional adjustment reason 2', 'Product adjustment reason 2' , 'Regional risk reason 2', 'Product risk reason 2', 'TRADE2', 350, 320 , 800, 60, 'Monthly risk reason 2', 'Total deviation reason 2', 'New predict reason 2' , 0.80, 20, 18, 2, 90.0000 , '32GB', 'Plastic', 98.00, 108.00, 850 , 900, 'Silver', '银色'), ('user005', 'N', '2023-05-19 14:30:00', '2023-05-15', 'user005' , 'ID000005', 'Fifth record', 1005, 1005, '2023-05-19 14:00:00' , 1, 'LTB001', 'LTB-2023-001', 'Overseas_Regional_Summary', '海外区域汇总' , 'Overseas Regional Summary', 'ITEM002', '2023-01-15', 1, '2023-05-12' , 'MODEL2', 'ACTIVE', '3', 'SPDT002', '产品系列2' , 'Product Series 2', 'PS002', '产品系列2', 'Product Series 2', 'Marketing Name 2' , 'MAT002', 1200.00, 180.00, '产品描述中文2', 'Product Description 2' , '2023-03-15', 36, 18, 600, 1200 , 250, 350, 120, 60, 180 , 40, 90, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '120', '160', '210' , '190', '170', '2023-05', '2023-10', 'API002' , 'CN1', '2023-05-22', 'LTB-2023-001', '2023-05-01', '1' , 50, 300, 'Mature', 'Y', 140 , 170, 310, 500, 700, 250 , 220, 900, 750, 'Regional adjustment reason 2', 'Product adjustment reason 2' , 'Regional risk reason 2', 'Product risk reason 2', 'TRADE2', 350, 320 , 800, 60, 'Monthly risk reason 2', 'Total deviation reason 2', 'New predict reason 2' , 0.80, 20, 18, 2, 90.0000 , '32GB', 'Plastic', 98.00, 108.00, 850 , 900, 'Silver', '银色'), ('user006', 'N', '2023-05-20 15:30:00', '2023-05-15', 'user006' , 'ID000006', 'Sixth record', 1006, 1006, '2023-05-20 15:00:00' , 1, 'LTB001', 'LTB-2023-001', 'Global_Summary', '全球汇总' , 'Global Summary', 'ITEM002', '2023-01-15', 1, '2023-05-12' , 'MODEL2', 'ACTIVE', '3', 'SPDT002', '产品系列2' , 'Product Series 2', 'PS002', '产品系列2', 'Product Series 2', 'Marketing Name 2' , 'MAT002', 1200.00, 180.00, '产品描述中文2', 'Product Description 2' , '2023-03-15', 36, 18, 600, 1200 , 250, 350, 120, 60, 180 , 40, 90, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '120', '160', '210' , '190', '170', '2023-05', '2023-10', 'API002' , 'CN1', '2023-05-22', 'LTB-2023-001', '2023-05-01', '1' , 50, 300, 'Mature', 'Y', 140 , 170, 310, 500, 700, 250 , 220, 900, 750, 'Regional adjustment reason 2', 'Product adjustment reason 2' , 'Regional risk reason 2', 'Product risk reason 2', 'TRADE2', 350, 320 , 800, 60, 'Monthly risk reason 2', 'Total deviation reason 2', 'New predict reason 2' , 0.80, 20, 18, 2, 90.0000 , '32GB', 'Plastic', 98.00, 108.00, 850 , 900, 'Silver', '银色'), ('user007', 'N', '2023-05-21 16:30:00', '2023-05-15', 'user007' , 'ID000007', 'Seventh record', 1007, 1007, '2023-05-21 16:00:00' , 1, 'LTB002', 'LTB-2023-002', 'CN1', '中国区' , 'China Region', 'ITEM003', '2023-01-20', 1, '2023-05-14' , 'MODEL3', 'ACTIVE', '3', 'SPDT003', '产品系列3' , 'Product Series 3', 'PS003', '产品系列3', 'Product Series 3', 'Marketing Name 3' , 'MAT003', 1500.00, 220.00, '产品描述中文3', 'Product Description 3' , '2023-04-01', 24, 12, 700, 1400 , 300, 400, 150, 70, 200 , 50, 100, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '140', '180', '230' , '210', '190', '2023-05', '2023-10', 'API003' , 'CN1', '2023-05-24', 'LTB-2023-002', '2023-05-01', '1' , 60, 350, 'EOL', 'N', 160 , 190, 350, 600, 800, 300 , 260, 1000, 850, 'Regional adjustment reason 3', 'Product adjustment reason 3' , 'Regional risk reason 3', 'Product risk reason 3', 'TRADE3', 400, 360 , 900, 70, 'Monthly risk reason 3', 'Total deviation reason 3', 'New predict reason 3' , 0.85, 22, 20, 2, 90.9091 , '64GB', 'Glass', 102.00, 112.00, 950 , 1000, 'Gold', '金色'), ('user008', 'N', '2023-05-22 17:30:00', '2023-05-15', 'user008' , 'ID000008', 'Eighth record', 1008, 1008, '2023-05-22 17:00:00' , 1, 'LTB002', 'LTB-2023-002', 'Overseas_Regional_Summary', '海外区域汇总' , 'Overseas Regional Summary', 'ITEM003', '2023-01-20', 1, '2023-05-14' , 'MODEL3', 'ACTIVE', '3', 'SPDT003', '产品系列3' , 'Product Series 3', 'PS003', '产品系列3', 'Product Series 3', 'Marketing Name 3' , 'MAT003', 1500.00, 220.00, '产品描述中文3', 'Product Description 3' , '2023-04-01', 24, 12, 700, 1400 , 300, 400, 150, 70, 200 , 50, 100, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '140', '180', '230' , '210', '190', '2023-05', '2023-10', 'API003' , 'CN1', '2023-05-24', 'LTB-2023-002', '2023-05-01', '1' , 60, 350, 'EOL', 'N', 160 , 190, 350, 600, 800, 300 , 260, 1000, 850, 'Regional adjustment reason 3', 'Product adjustment reason 3' , 'Regional risk reason 3', 'Product risk reason 3', 'TRADE3', 400, 360 , 900, 70, 'Monthly risk reason 3', 'Total deviation reason 3', 'New predict reason 3' , 0.85, 22, 20, 2, 90.9091 , '64GB', 'Glass', 102.00, 112.00, 950 , 1000, 'Gold', '金色'), ('user009', 'N', '2023-05-23 18:30:00', '2023-05-15', 'user009' , 'ID000009', 'Ninth record', 1009, 1009, '2023-05-23 18:00:00' , 1, 'LTB002', 'LTB-2023-002', 'Global_Summary', '全球汇总' , 'Global Summary', 'ITEM003', '2023-01-20', 1, '2023-05-14' , 'MODEL3', 'ACTIVE', '3', 'SPDT003', '产品系列3' , 'Product Series 3', 'PS003', '产品系列3', 'Product Series 3', 'Marketing Name 3' , 'MAT003', 1500.00, 220.00, '产品描述中文3', 'Product Description 3' , '2023-04-01', 24, 12, 700, 1400 , 300, 400, 150, 70, 200 , 50, 100, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '140', '180', '230' , '210', '190', '2023-05', '2023-10', 'API003' , 'CN1', '2023-05-24', 'LTB-2023-002', '2023-05-01', '1' , 60, 350, 'EOL', 'N', 160 , 190, 350, 600, 800, 300 , 260, 1000, 850, 'Regional adjustment reason 3', 'Product adjustment reason 3' , 'Regional risk reason 3', 'Product risk reason 3', 'TRADE3', 400, 360 , 900, 70, 'Monthly risk reason 3', 'Total deviation reason 3', 'New predict reason 3' , 0.85, 22, 20, 2, 90.9091 , '64GB', 'Glass', 102.00, 112.00, 950 , 1000, 'Gold', '金色'), ('user010', 'N', '2023-05-24 19:30:00', '2023-05-15', 'user010' , 'ID000010', 'Tenth record', 1010, 1010, '2023-05-24 19:00:00' , 1, 'LTB003', 'LTB-2023-003', 'CN1', '中国区' , 'China Region', 'ITEM004', '2023-02-01', 1, '2023-05-16' , 'MODEL1', 'ACTIVE', '3', 'SPDT004', '产品系列4' , 'Product Series 4', 'PS004', '产品系列4', 'Product Series 4', 'Marketing Name 4' , 'MAT004', 1800.00, 260.00, '产品描述中文4', 'Product Description 4' , '2023-04-15', 36, 18, 800, 1600 , 350, 450, 180, 80, 220 , 60, 120, '2023-06', '2023-07', '2023-08' , '2023-09', '2023-10', '160', '200', '250' , '230', '210', '2023-05', '2023-10', 'API004' , 'CN1', '2023-05-26', 'LTB-2023-003', '2023-05-01', '1' , 70, 400, 'New', 'Y', 180 , 210, 390, 700, 900, 350 , 300, 1100, 950, 'Regional adjustment reason 4', 'Product adjustment reason 4' , 'Regional risk reason 4', 'Product risk reason 4', 'TRADE4', 450, 400 , 1000, 80, 'Monthly risk reason 4', 'Total deviation reason 4', 'New predict reason 4' , 0.90, 24, 22, 2, 91.6667 , '128GB', 'Ceramic', 105.00, 115.00, 1050 , 1100, 'Blue', '蓝色');
复制代码
在 Proxy 上执行完成后，我们同样在 MySQL 上创建相同的单表，并初始化下相同的数据。然后我们在 Proxy 和 MySQL 上执行如下的查询 SQL，对比返回的结果差异。
SELECT plan_entity_code , CONCAT(GROUP_CONCAT(DISTINCT CONCAT(source_plan_entity_code, '#', product_line_code, '#', product_series_code, '#', marketing_name, '#', material_category_code, '#', product_status, '#', adjusted_regional) SEPARATOR ','), MAX(adjusted_regional)) AS regional_adjustment_summaryFROM test_analysis_result aWHERE 1 = 1GROUP BY test_number, plan_entity_code, product_line_code, product_series_code, marketing_name, material_category_code, product_status, calculation_method, warranty_typeORDER BY test_number ASC, CASE plan_entity_code WHEN 'CN1' THEN 1 WHEN 'Overseas_Regional_Summary' THEN 2 WHEN 'Global_Summary' THEN 3END ASC, product_line_code ASC, product_series_code ASC, marketing_name ASC, material_category_code ASC, CASE WHEN product_status IS NULL THEN 0 WHEN product_status = 'New' THEN 1 WHEN product_status = 'Mature' THEN 2 WHEN product_status = 'EOL' THEN 3END ASC;
复制代码

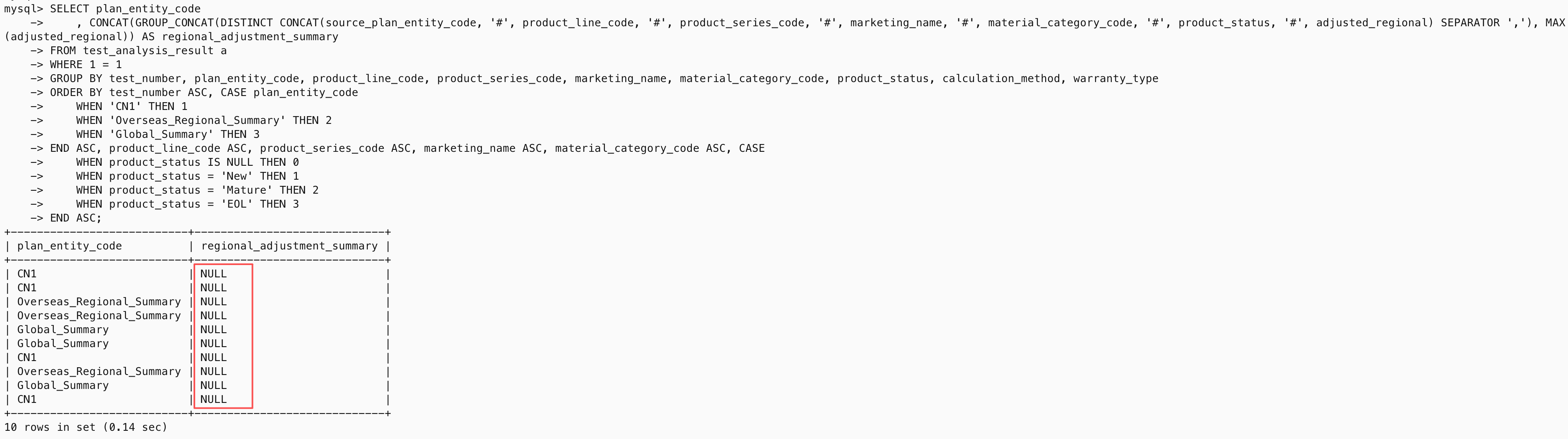

如下是通过 Proxy 执行返回的结果，可以看到第二列 CONCAT 函数拼接返回结果为 NULL，这不符合预期，因为我们 Mock 的数据中，这些列都有值。

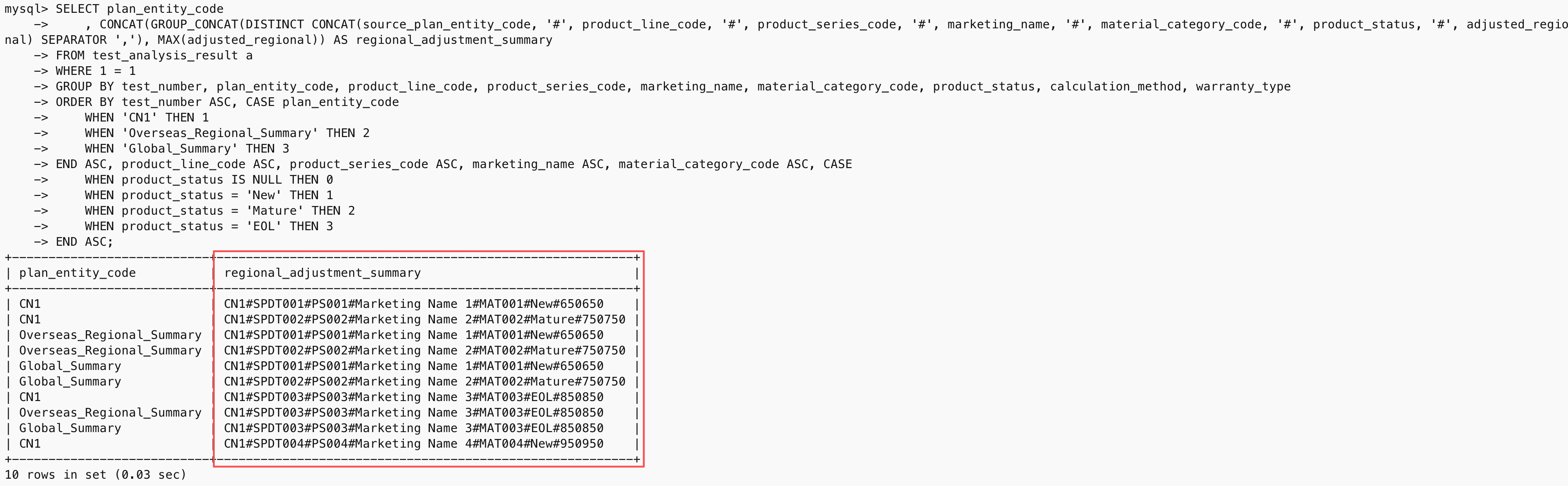

我们再通过 MySQL 执行相同的 SQL 语句，可以看到 CONCAT 函数拼接结果应该是有值的，Proxy 联邦查询的执行逻辑存在 BUG。
确定问题后，我们通过 EXPLAIN 语句来观察下联邦查询的执行计划，可以看到执行计划中包含了 2 次 DBPlusEngineHashAggregate，最底层的 DBPlusEngineHashAggregate 中除了常见的 group 分组条件外，还包含了 groups 和 GROUPING 函数，这块之前联邦查询并未进行兼容实现。
mysql> EXPLAIN SELECT plan_entity_code -> , CONCAT(GROUP_CONCAT(DISTINCT CONCAT(source_plan_entity_code, '#', product_line_code, '#', product_series_code, '#', marketing_name, '#', material_category_code, '#', product_status, '#', adjusted_regional) SEPARATOR ','), MAX(adjusted_regional)) AS regional_adjustment_summary -> FROM test_analysis_result a -> WHERE 1 = 1 -> GROUP BY test_number, plan_entity_code, product_line_code, product_series_code, marketing_name, material_category_code, product_status, calculation_method, warranty_type -> ORDER BY test_number ASC, CASE plan_entity_code -> WHEN 'CN1' THEN 1 -> WHEN 'Overseas_Regional_Summary' THEN 2 -> WHEN 'Global_Summary' THEN 3 -> END ASC, product_line_code ASC, product_series_code ASC, marketing_name ASC, material_category_code ASC, CASE -> WHEN product_status IS NULL THEN 0 -> WHEN product_status = 'New' THEN 1 -> WHEN product_status = 'Mature' THEN 2 -> WHEN product_status = 'EOL' THEN 3 -> END ASC;+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+| PLAN |+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+| DBPlusEngineSort(sort0=[$2], sort1=[$3], sort2=[$4], sort3=[$5], sort4=[$6], sort5=[$7], sort6=[$8], dir0=[ASC], dir1=[ASC], dir2=[ASC], dir3=[ASC], dir4=[ASC], dir5=[ASC], dir6=[ASC]) || DBPlusEngineCalc(expr#0..10=[{inputs}], expr#11=[CAST($t10):VARCHAR CHARACTER SET "UTF-8"], expr#12=[CONCAT($t9, $t11)], expr#13=[_UTF-8'CN1':VARCHAR(40) CHARACTER SET "UTF-8"], expr#14=[=($t1, $t13)], expr#15=[_UTF-8'1':VARCHAR CHARACTER SET "UTF-8"], expr#16=[_UTF-8'Overseas_Regional_Summary':VARCHAR(40) CHARACTER SET "UTF-8"], expr#17=[=($t1, $t16)], expr#18=[_UTF-8'2':VARCHAR CHARACTER SET "UTF-8"], expr#19=[_UTF-8'Global_Summary':VARCHAR(40) CHARACTER SET "UTF-8"], expr#20=[=($t1, $t19)], expr#21=[_UTF-8'3':VARCHAR CHARACTER SET "UTF-8"], expr#22=[_UTF-8'NULL':VARCHAR CHARACTER SET "UTF-8"], expr#23=[CASE($t14, $t15, $t17, $t18, $t20, $t21, $t22)], expr#24=[IS NULL($t6)], expr#25=[_UTF-8'0':VARCHAR CHARACTER SET "UTF-8"], expr#26=[_UTF-8'New':VARCHAR(64) CHARACTER SET "UTF-8"], expr#27=[=($t6, $t26)], expr#28=[_UTF-8'Mature':VARCHAR(64) CHARACTER SET "UTF-8"], expr#29=[=($t6, $t28)], expr#30=[_UTF-8'EOL':VARCHAR(64) CHARACTER SET "UTF-8"], expr#31=[=($t6, $t30)], expr#32=[CASE($t24, $t25, $t27, $t15, $t29, $t18, $t31, $t21, $t22)], plan_entity_code=[$t1], regional_adjustment_summary=[$t12], test_number=[$t0], EXPR$3=[$t23], product_line_code=[$t2], product_series_code=[$t3], marketing_name=[$t4], material_category_code=[$t5], EXPR$8=[$t32]) || DBPlusEngineHashAggregate(group=[{0, 1, 2, 3, 4, 5, 6, 7, 8}], agg#0=[LISTAGG($9) FILTER $11], agg#1=[MIN($10) FILTER $12]) || DBPlusEngineCalc(expr#0..11=[{inputs}], expr#12=[0], expr#13=[=($t11, $t12)], expr#14=[1], expr#15=[=($t11, $t14)], proj#0..10=[{exprs}], $g_0=[$t13], $g_1=[$t15]) || DBPlusEngineHashAggregate(group=[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}], groups=[[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}, {0, 1, 2, 3, 4, 5, 6, 7, 8}]], $f10=[MAX($10)], $g=[GROUPING($0, $1, $2, $3, $4, $5, $6, $7, $8, $9)]) || DBPlusEngineScan(table=[[sphereex_db_tbl_sql_federation_honor, test_analysis_result]], sql=[SELECT `test_number`, `plan_entity_code`, `product_line_code`, `product_series_code`, `marketing_name`, `material_category_code`, `product_status`, `calculation_method`, `warranty_type`, CONCAT(`source_plan_entity_code`, '#', `product_line_code`, '#', `product_series_code`, '#', `marketing_name`, '#', `material_category_code`, '#', `product_status`, '#', CAST(`adjusted_regional` AS CHAR)) AS `$f9`, `adjusted_regional` FROM `sphereex_db_tbl_sql_federation_honor`.`test_analysis_result`]) |+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+6 rows in set (1.60 sec)
复制代码
为了排查具体是哪个运算符执行时数据出错，笔者尝试在执行器 current 方法中打印出数据行。首先观察最底层的 DBPlusEngineHashAggregate 执行结果，可以看到，除了返回分组条件 group=[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9} 对应的值之外，数据行中还额外包含了 2 列，分别对应执行计划中的 $f10=[MAX($10)] 和 $g=[GROUPING($0, $1, $2, $3, $4, $5, $6, $7, $8, $9)]。
DBPlusEngineHashAggregateExecutor: LTB-2023-001, Global_Summary, SPDT002, PS002, Marketing Name 2, MAT002, Mature, MODEL2, ACTIVE, CN1#SPDT002#PS002#Marketing Name 2#MAT002#Mature#750, 750, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-002, CN1, SPDT003, PS003, Marketing Name 3, MAT003, EOL, MODEL3, ACTIVE, CN1#SPDT003#PS003#Marketing Name 3#MAT003#EOL#850, 850, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-001, CN1, SPDT002, PS002, Marketing Name 2, MAT002, Mature, MODEL2, ACTIVE, CN1#SPDT002#PS002#Marketing Name 2#MAT002#Mature#750, 750, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-003, CN1, SPDT004, PS004, Marketing Name 4, MAT004, New, MODEL1, ACTIVE, CN1#SPDT004#PS004#Marketing Name 4#MAT004#New#950, 950, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-002, Global_Summary, SPDT003, PS003, Marketing Name 3, MAT003, EOL, MODEL3, ACTIVE, CN1#SPDT003#PS003#Marketing Name 3#MAT003#EOL#850, 850, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-001, Overseas_Regional_Summary, SPDT002, PS002, Marketing Name 2, MAT002, Mature, MODEL2, ACTIVE, CN1#SPDT002#PS002#Marketing Name 2#MAT002#Mature#750, 750, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-001, Overseas_Regional_Summary, SPDT001, PS001, Marketing Name 1, MAT001, New, MODEL1, ACTIVE, CN1#SPDT001#PS001#Marketing Name 1#MAT001#New#650, 650, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-002, Overseas_Regional_Summary, SPDT003, PS003, Marketing Name 3, MAT003, EOL, MODEL3, ACTIVE, CN1#SPDT003#PS003#Marketing Name 3#MAT003#EOL#850, 850, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-001, Global_Summary, SPDT001, PS001, Marketing Name 1, MAT001, New, MODEL1, ACTIVE, CN1#SPDT001#PS001#Marketing Name 1#MAT001#New#650, 650, 1023DBPlusEngineHashAggregateExecutor: LTB-2023-001, CN1, SPDT001, PS001, Marketing Name 1, MAT001, New, MODEL1, ACTIVE, CN1#SPDT001#PS001#Marketing Name 1#MAT001#New#650, 650, 1023
复制代码
MAX 函数没什么特别，GROUPING 具体是用来做什么的呢？从网上查阅了一些资料，GROUPING 函数是用于在 GROUPING SETS 多维度分组中标识哪些列被聚合（即不在当前分组中），GROUPING 函数返回一个位掩码，其中每位对应了一个分组列，若该列被聚合（即不在当前分组中），则位值为 1，否则为 0。按照 GROUPING 函数的定义，当前分组为 group=[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}]，所有列都在分组中，应当全部为 0，而数据行中返回的则是 1023，显然是 GROUPING 函数的计算逻辑出错了。
问题解决

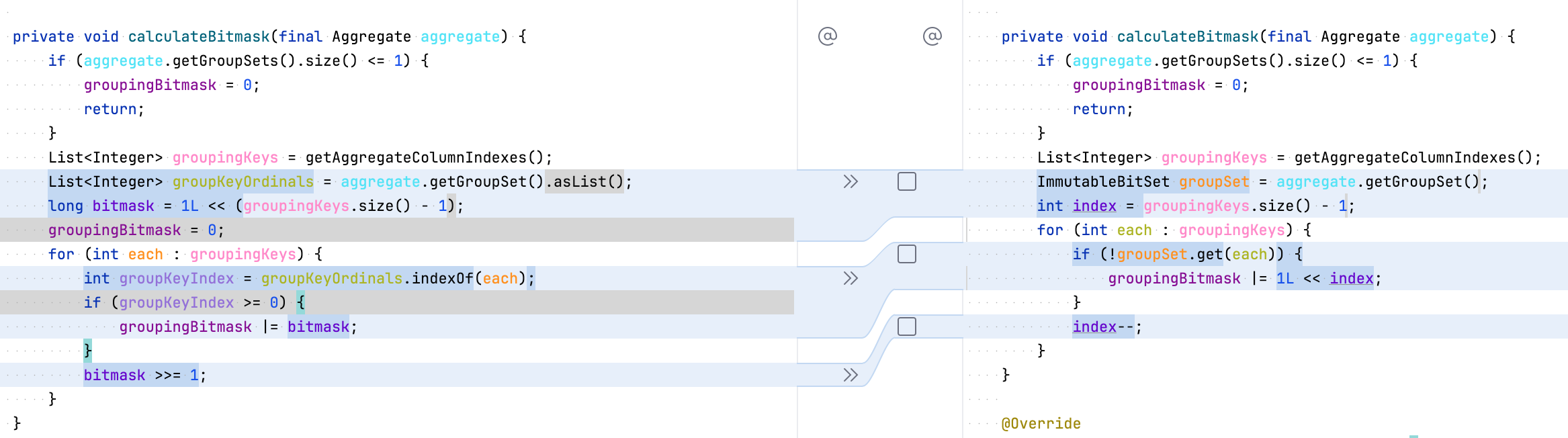

搞清楚问题后，我们尝试修改 GroupingAggregateFunctionEvaluator 计算逻辑，如下图所示，左侧逻辑是之前参考 Calcite 内置的 GroupingImplementor 执行逻辑实现的，该逻辑似乎和 GROUPING 函数的语义相反，如果当前列不被聚合（即在当前分组中），则位值为 1，否则为 0。我们暂且先不深究 Calcite 的实现逻辑，按照 GROUPING 函数语义，笔者对函数逻辑进行了修改，严格按照函数语义实现，只有当该列被聚合（即不在当前分组中），才将当前位赋值为 1。

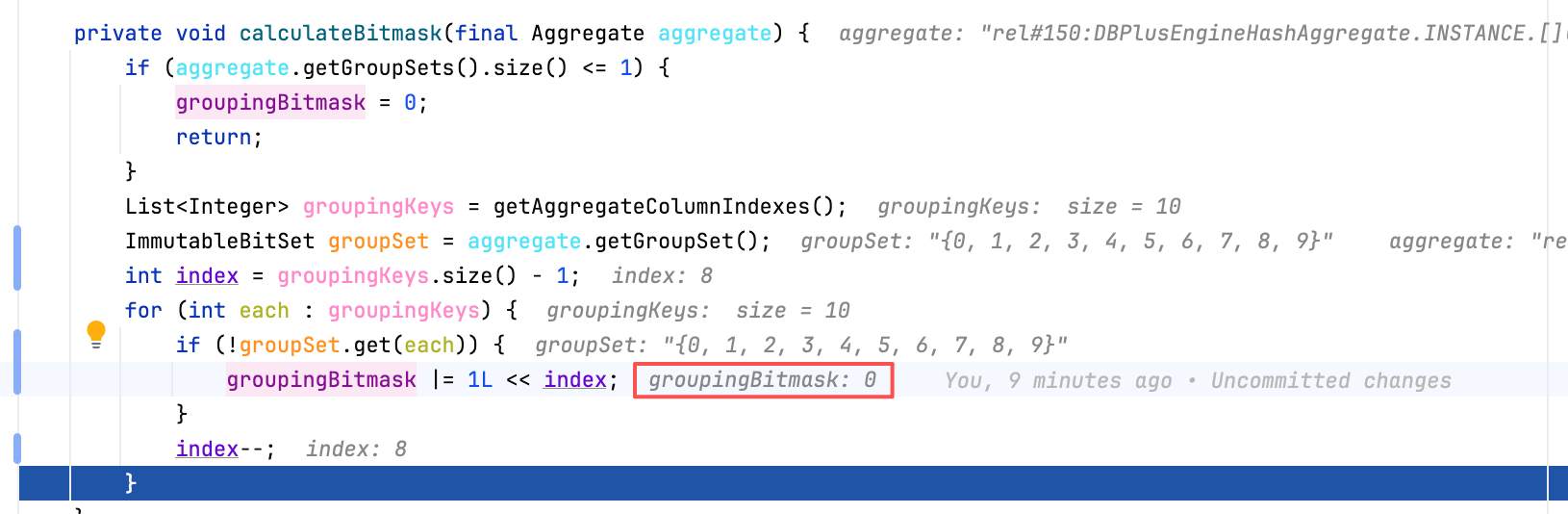

修改完成后，通过 IDEA Debug 观察 GROUPING 函数的计算结果，可以看到这次得到了符合预期的结果 0。

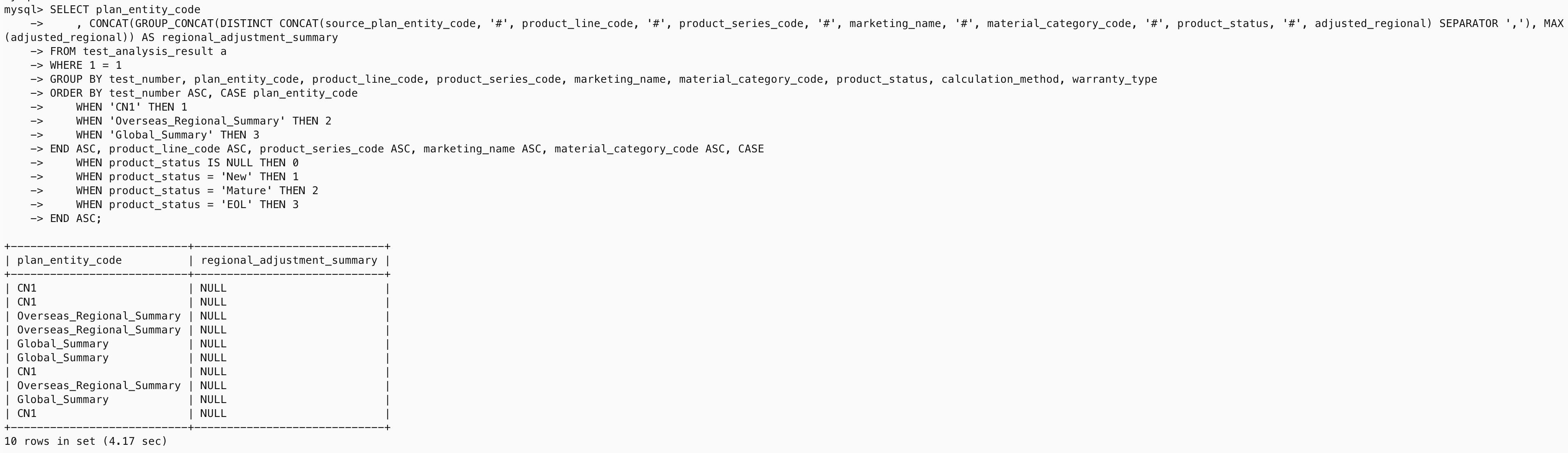

不过意外情况又出现了，修改完 GROUPING 函数逻辑后，SQL 的执行结果仍然不正确。
问题又是出在哪里呢？无奈继续观察前面输出的数据行日志，排查 DBPlusEngineHashAggregate 上层的 DBPlusEngineCalc 执行结果，如下是具体的数据：
DBPlusEngineCalcExecutor: LTB-2023-001, Overseas_Regional_Summary, SPDT001, PS001, Marketing Name 1, MAT001, New, MODEL1, ACTIVE, CN1#SPDT001#PS001#Marketing Name 1#MAT001#New#650, 650, true, falseDBPlusEngineCalcExecutor: LTB-2023-003, CN1, SPDT004, PS004, Marketing Name 4, MAT004, New, MODEL1, ACTIVE, CN1#SPDT004#PS004#Marketing Name 4#MAT004#New#950, 950, true, falseDBPlusEngineCalcExecutor: LTB-2023-002, Overseas_Regional_Summary, SPDT003, PS003, Marketing Name 3, MAT003, EOL, MODEL3, ACTIVE, CN1#SPDT003#PS003#Marketing Name 3#MAT003#EOL#850, 850, true, falseDBPlusEngineCalcExecutor: LTB-2023-001, Global_Summary, SPDT002, PS002, Marketing Name 2, MAT002, Mature, MODEL2, ACTIVE, CN1#SPDT002#PS002#Marketing Name 2#MAT002#Mature#750, 750, true, falseDBPlusEngineCalcExecutor: LTB-2023-001, Global_Summary, SPDT001, PS001, Marketing Name 1, MAT001, New, MODEL1, ACTIVE, CN1#SPDT001#PS001#Marketing Name 1#MAT001#New#650, 650, true, falseDBPlusEngineCalcExecutor: LTB-2023-002, Global_Summary, SPDT003, PS003, Marketing Name 3, MAT003, EOL, MODEL3, ACTIVE, CN1#SPDT003#PS003#Marketing Name 3#MAT003#EOL#850, 850, true, falseDBPlusEngineCalcExecutor: LTB-2023-001, Overseas_Regional_Summary, SPDT002, PS002, Marketing Name 2, MAT002, Mature, MODEL2, ACTIVE, CN1#SPDT002#PS002#Marketing Name 2#MAT002#Mature#750, 750, true, falseDBPlusEngineCalcExecutor: LTB-2023-002, CN1, SPDT003, PS003, Marketing Name 3, MAT003, EOL, MODEL3, ACTIVE, CN1#SPDT003#PS003#Marketing Name 3#MAT003#EOL#850, 850, true, falseDBPlusEngineCalcExecutor: LTB-2023-001, CN1, SPDT001, PS001, Marketing Name 1, MAT001, New, MODEL1, ACTIVE, CN1#SPDT001#PS001#Marketing Name 1#MAT001#New#650, 650, true, falseDBPlusEngineCalcExecutor: LTB-2023-001, CN1, SPDT002, PS002, Marketing Name 2, MAT002, Mature, MODEL2, ACTIVE, CN1#SPDT002#PS002#Marketing Name 2#MAT002#Mature#750, 750, true, false
复制代码

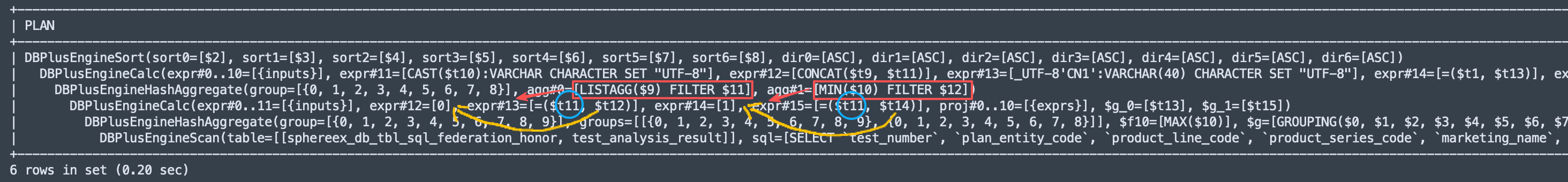

可以看到最后 2 列的值固定为 true 和 false，而这 2 列对应的是执行计划中（如下图）的 expr#13=[=($t11, $t12)]（即：$t11 = 0），以及 expr#15=[=($t11, $t14)]（即：$t11 = 1），由于 DBPlusEngineHashAggregate 返回的结果都是 0，因此这 2 列计算结果为 true 和 false。DBPlusEngineCalc 上层的 DBPlusEngineHashAggregate 会根据这 2 列来过滤数据，由于 MIN($10) FILTER $12 对应的状态都是 false，因此导致 SQL 聚合列为 NULL。
为什么 DBPlusEngineCalc 中的 expr#13=[=($t11, $t12)] 和 expr#15=[=($t11, $t14)] 会引用相同的列 $t11 呢？笔者回想到最开始实现 GROUPING 函数时，参考了 Calcite 内置的 GroupingImplementor，既然已经提供了函数实现，Calcite 大概率是支持 GROUPING 函数的。
为了彻底搞清楚 GROUPING 函数的含义，笔者切换到 ShardingSphere 开源版联邦查询功能进行测试，由于 Calcite 内置的执行器是通过 Linq4j 生成并使用 Janino 编译，如果想要调试这部分逻辑，需要在 JVM 参数中增加如下内容。
-Dorg.codehaus.janino.source_debugging.enable=true-Dorg.codehaus.janino.source_debugging.dir=/Users/duanzhengqiang/softs/calcite/janio
复制代码
首先，我们查看这条 SQL 在开源版联邦查询中的执行计划，除了物理运算符的类型不同外，执行计划整体上都是相同的，执行计划中也包含了 GROUPING 函数，以及多个 groups 分组。
EnumerableSort(sort0=[$2], sort1=[$3], sort2=[$4], sort3=[$5], sort4=[$6], sort5=[$7], sort6=[$8], dir0=[ASC], dir1=[ASC], dir2=[ASC], dir3=[ASC], dir4=[ASC], dir5=[ASC], dir6=[ASC]) EnumerableCalc(expr#0..10=[{inputs}], expr#11=[CAST($t10):VARCHAR CHARACTER SET "UTF-8"], expr#12=[CONCAT($t9, $t11)], expr#13=[CAST($t1):VARCHAR CHARACTER SET "UTF-8"], expr#14=[_UTF-8'CN1':VARCHAR CHARACTER SET "UTF-8"], expr#15=[=($t13, $t14)], expr#16=[_UTF-8'1':VARCHAR CHARACTER SET "UTF-8"], expr#17=[_UTF-8'Overseas_Regional_Summary':VARCHAR CHARACTER SET "UTF-8"], expr#18=[=($t13, $t17)], expr#19=[_UTF-8'2':VARCHAR CHARACTER SET "UTF-8"], expr#20=[_UTF-8'Global_Summary':VARCHAR CHARACTER SET "UTF-8"], expr#21=[=($t13, $t20)], expr#22=[_UTF-8'3':VARCHAR CHARACTER SET "UTF-8"], expr#23=[_UTF-8'NULL':VARCHAR CHARACTER SET "UTF-8"], expr#24=[CASE($t15, $t16, $t18, $t19, $t21, $t22, $t23)], expr#25=[IS NULL($t6)], expr#26=[_UTF-8'0':VARCHAR CHARACTER SET "UTF-8"], expr#27=[CAST($t6):VARCHAR CHARACTER SET "UTF-8"], expr#28=[_UTF-8'New':VARCHAR CHARACTER SET "UTF-8"], expr#29=[=($t27, $t28)], expr#30=[_UTF-8'Mature':VARCHAR CHARACTER SET "UTF-8"], expr#31=[=($t27, $t30)], expr#32=[_UTF-8'EOL':VARCHAR CHARACTER SET "UTF-8"], expr#33=[=($t27, $t32)], expr#34=[CASE($t25, $t26, $t29, $t16, $t31, $t19, $t33, $t22, $t23)], plan_entity_code=[$t1], regional_adjustment_summary=[$t12], test_number=[$t0], EXPR$3=[$t24], product_line_code=[$t2], product_series_code=[$t3], marketing_name=[$t4], material_category_code=[$t5], EXPR$8=[$t34]) EnumerableAggregate(group=[{0, 1, 2, 3, 4, 5, 6, 7, 8}], agg#0=[LISTAGG($9) FILTER $11], agg#1=[MIN($10) FILTER $12]) EnumerableCalc(expr#0..11=[{inputs}], expr#12=[0], expr#13=[=($t11, $t12)], expr#14=[1], expr#15=[=($t11, $t14)], proj#0..10=[{exprs}], $g_0=[$t13], $g_1=[$t15]) EnumerableAggregate(group=[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}], groups=[[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}, {0, 1, 2, 3, 4, 5, 6, 7, 8}]], $f10=[MAX($10)], $g=[GROUPING($0, $1, $2, $3, $4, $5, $6, $7, $8, $9)]) EnumerableScan(table=[[sphereex_db_tbl_sql_federation_honor, test_analysis_result]], sql=[SELECT `test_number`, `plan_entity_code`, `product_line_code`, `product_series_code`, `marketing_name`, `material_category_code`, `product_status`, `calculation_method`, `warranty_type`, CONCAT(`source_plan_entity_code`, '#', `product_line_code`, '#', `product_series_code`, '#', `marketing_name`, '#', `material_category_code`, '#', `product_status`, '#', CAST(`adjusted_regional` AS CHAR)) AS `$f9`, `adjusted_regional` FROM `sphereex_db_tbl_sql_federation_honor`.`test_analysis_result`], dynamicParameters=[null])
复制代码

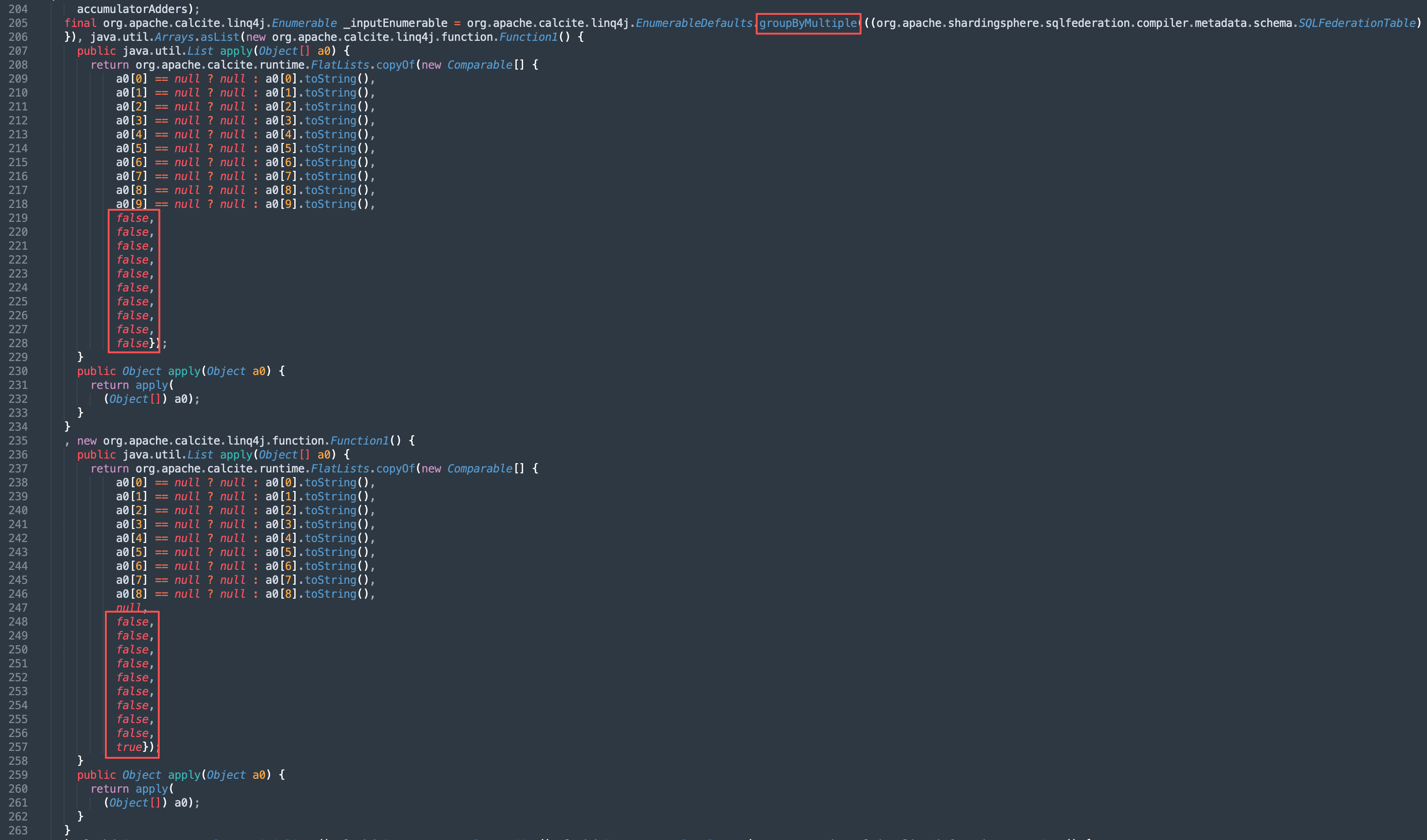

另外，在 Calcite 生成的执行代码中，最底层的 EnumerableAggregate 运算符对应的执行方法是 EnumerableDefaults#groupByMultiple，该方法第一个参数是 enumerable，第二个参数是 keySelectors，生成代码包含了 2 个 keySelector，第一个 keySelector 包含了 0-9 列，第二个 keySelector 包含了 0-8 列，第 9 列为 null。每一个 keySelector 后面还追加了一串 true、false 的状态值，应该是每个 groups 中分组的标记位，表示当前分组中包含哪些聚合列。

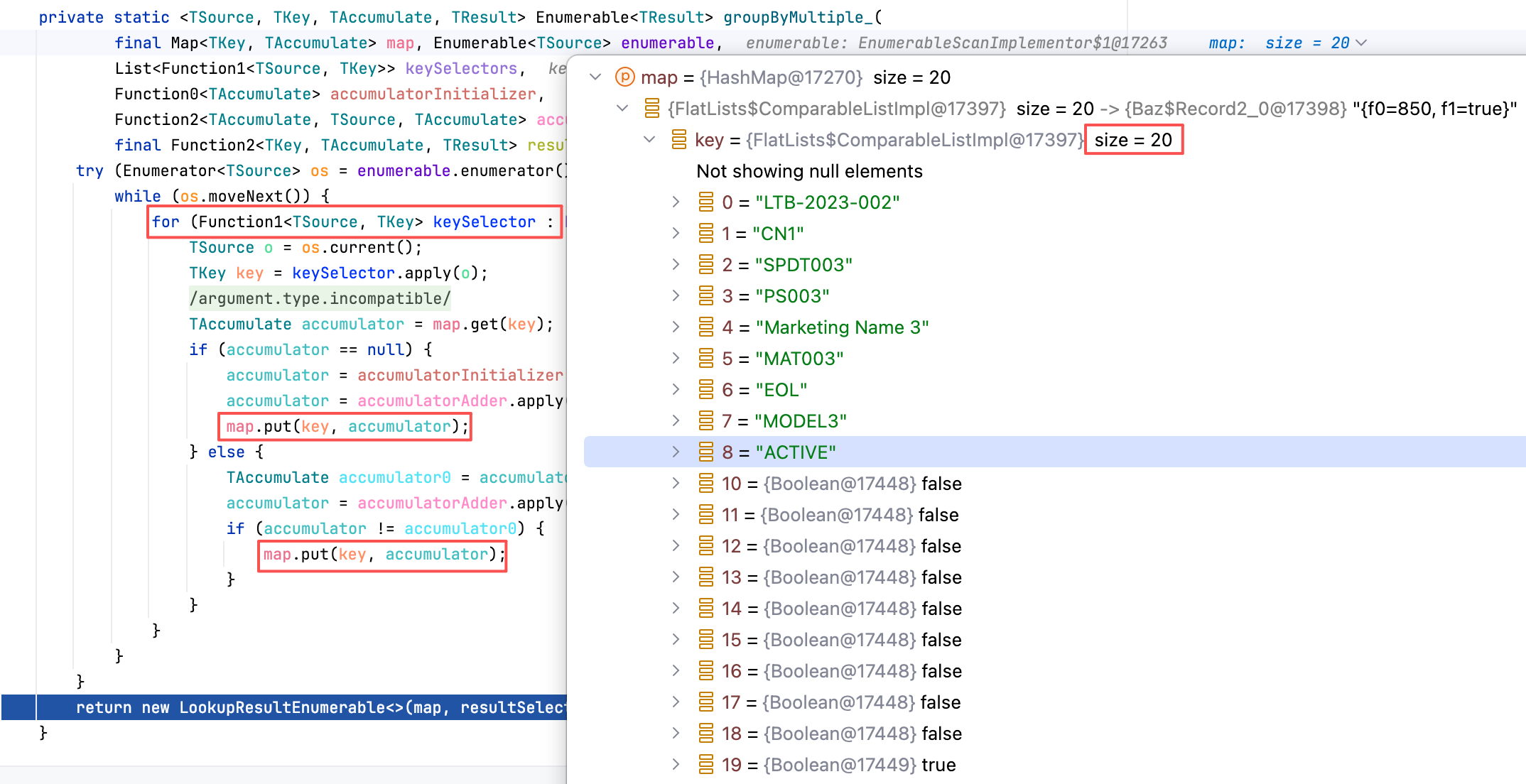

我们断点跟踪 groupByMultiple 方法，可以看到在遍历每行数据时，内部会再遍历 keySelectors，并将计算结果存储到 map 中， 因为我们原始数据共 10 行，经过 2 个 keySelectors 计算后共返回 20 行数据。

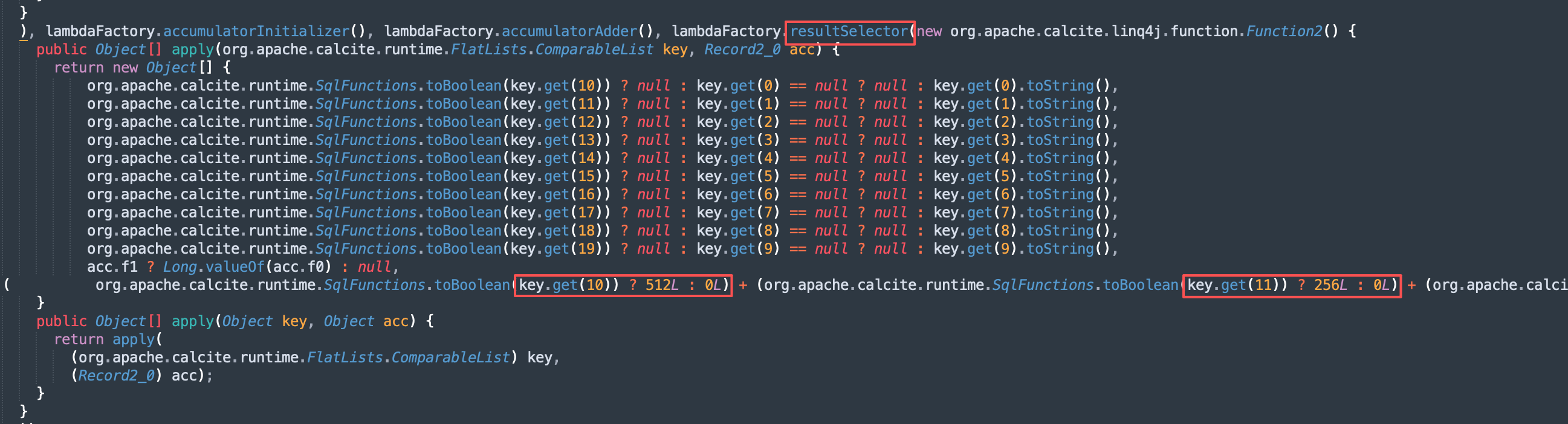

获取到 map 结果集后，Calcite 生成代码会继续调用 resultSelector 方法，最后一行就是在计算 GROUPING 函数结果，它从每行数据的第 10 列获取结果，判断状态是否为 true，为 true 则将当前位设置为 1（第 1 位为 512），依此类推计算下去，求出 GROUPING 函数结果。最终，20 行数据中，有 10 行计算结果为 0，另外 10 行计算结果为 1，再经过上层的 DBPlusEngineHashAggregate 过滤，最终 LISTAGG 和 MIN 都可以正确计算出结果。
到这里，我们终于搞清楚了 Calcite 中 GROUPING 函数的执行逻辑，结合以下的执行计划，GROUPING 函数主要使用在多维度分组中（本案例对应的是 groups=[[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}, {0, 1, 2, 3, 4, 5, 6, 7, 8}]] 中的 2 个维度），在聚合计算遍历每行数据时，会先按照主分组条件进行处理（即：group=[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}]），然后再按照子分组条件 groups 循环，分别生成每个 group 分组对应的数据行。需要注意：如果当前子分组，相对于主分组缺少了部分列，则该数据行对应列需要设置为 null，避免影响结果正确性。生成所有子分组的数据行后，再进行 GROUPING 聚合计算，此时计算 BIT 位时，需要根据子分组 childGroupSet 计算函数结果，不同的子分组会生成不同的 GROUPING 函数值。
+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+| PLAN |+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+| DBPlusEngineSort(sort0=[$2], sort1=[$3], sort2=[$4], sort3=[$5], sort4=[$6], sort5=[$7], sort6=[$8], dir0=[ASC], dir1=[ASC], dir2=[ASC], dir3=[ASC], dir4=[ASC], dir5=[ASC], dir6=[ASC]) || DBPlusEngineCalc(expr#0..10=[{inputs}], expr#11=[CAST($t10):VARCHAR CHARACTER SET "UTF-8"], expr#12=[CONCAT($t9, $t11)], expr#13=[_UTF-8'CN1':VARCHAR(40) CHARACTER SET "UTF-8"], expr#14=[=($t1, $t13)], expr#15=[_UTF-8'1':VARCHAR CHARACTER SET "UTF-8"], expr#16=[_UTF-8'Overseas_Regional_Summary':VARCHAR(40) CHARACTER SET "UTF-8"], expr#17=[=($t1, $t16)], expr#18=[_UTF-8'2':VARCHAR CHARACTER SET "UTF-8"], expr#19=[_UTF-8'Global_Summary':VARCHAR(40) CHARACTER SET "UTF-8"], expr#20=[=($t1, $t19)], expr#21=[_UTF-8'3':VARCHAR CHARACTER SET "UTF-8"], expr#22=[_UTF-8'NULL':VARCHAR CHARACTER SET "UTF-8"], expr#23=[CASE($t14, $t15, $t17, $t18, $t20, $t21, $t22)], expr#24=[IS NULL($t6)], expr#25=[_UTF-8'0':VARCHAR CHARACTER SET "UTF-8"], expr#26=[_UTF-8'New':VARCHAR(64) CHARACTER SET "UTF-8"], expr#27=[=($t6, $t26)], expr#28=[_UTF-8'Mature':VARCHAR(64) CHARACTER SET "UTF-8"], expr#29=[=($t6, $t28)], expr#30=[_UTF-8'EOL':VARCHAR(64) CHARACTER SET "UTF-8"], expr#31=[=($t6, $t30)], expr#32=[CASE($t24, $t25, $t27, $t15, $t29, $t18, $t31, $t21, $t22)], plan_entity_code=[$t1], regional_adjustment_summary=[$t12], test_number=[$t0], EXPR$3=[$t23], product_line_code=[$t2], product_series_code=[$t3], marketing_name=[$t4], material_category_code=[$t5], EXPR$8=[$t32]) || DBPlusEngineHashAggregate(group=[{0, 1, 2, 3, 4, 5, 6, 7, 8}], agg#0=[LISTAGG($9) FILTER $11], agg#1=[MIN($10) FILTER $12]) || DBPlusEngineCalc(expr#0..11=[{inputs}], expr#12=[0], expr#13=[=($t11, $t12)], expr#14=[1], expr#15=[=($t11, $t14)], proj#0..10=[{exprs}], $g_0=[$t13], $g_1=[$t15]) || DBPlusEngineHashAggregate(group=[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}], groups=[[{0, 1, 2, 3, 4, 5, 6, 7, 8, 9}, {0, 1, 2, 3, 4, 5, 6, 7, 8}]], $f10=[MAX($10)], $g=[GROUPING($0, $1, $2, $3, $4, $5, $6, $7, $8, $9)]) || DBPlusEngineScan(table=[[sphereex_db_tbl_sql_federation_honor, test_analysis_result]], sql=[SELECT `test_number`, `plan_entity_code`, `product_line_code`, `product_series_code`, `marketing_name`, `material_category_code`, `product_status`, `calculation_method`, `warranty_type`, CONCAT(`source_plan_entity_code`, '#', `product_line_code`, '#', `product_series_code`, '#', `marketing_name`, '#', `material_category_code`, '#', `product_status`, '#', CAST(`adjusted_regional` AS CHAR)) AS `$f9`, `adjusted_regional` FROM `sphereex_db_tbl_sql_federation_honor`.`test_analysis_result`]) |+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+6 rows in set (1.60 sec)
复制代码

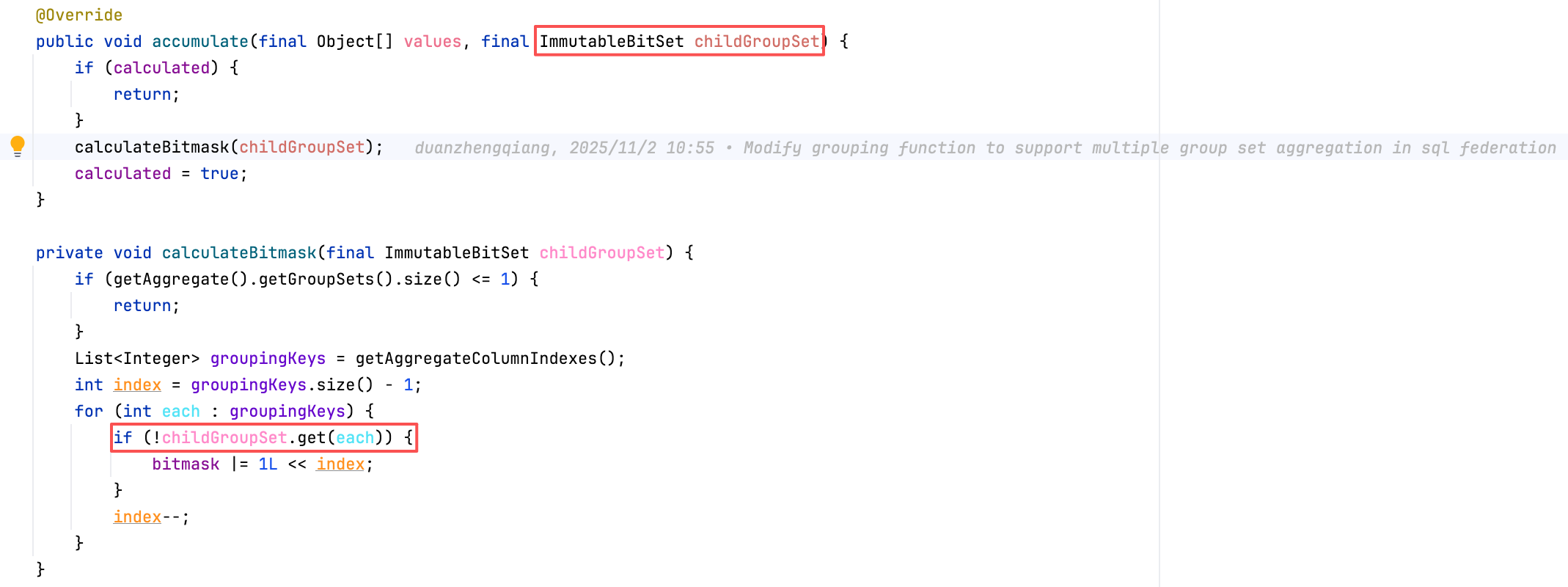

笔者在联邦查询中对 GROUPING 函数的修改，并调整了聚合逻辑，聚合计算时会遍历 groups，为每个分组生成对应的数据行。

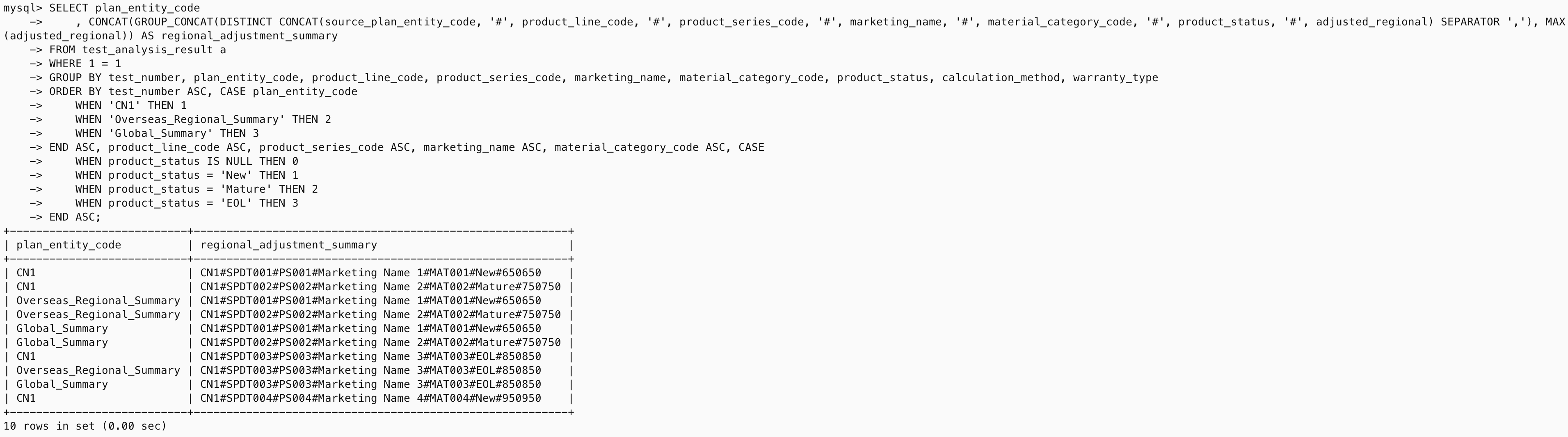

修改完成后，我们再次通过联邦查询执行业务 SQL，可以看到查询结果和 MySQL 返回的结果一致，终于搞定了 GROUPING 函数的适配。
结语
本文结合真实的客户案例，为大家详细介绍了联邦查询中 GROUPING 函数的问题，笔者从问题复现开始，一步步深入探究问题的根本原因，最终通过对 Calcite 生成代码的深入分析，正确理解了 GROUPING 函数的语义和执行逻辑，从而完善了联邦查询功能对 GROUPING 函数的支持。未来，在 GROUPING 函数的基础上，联邦查询引擎还可以进一步支持 GROUP BY WITH ROLLUP 等高级 SQL 用法。
另外，通过这个问题的调查，笔者再次感受到了 SQL 引擎开发的难度，开发者需要对 SQL 执行的每个细节都深入分析，做到刨根问底，一丝不苟，不能留有任何的疑问。除了开发者主观上的重视外，还需要引入更多的测试工具，对 SQL 语义进行持续测试，在 SQL 引擎测试领域，SQLacner 是一个不错的工具，笔者后续将探索使用 SQLacner 测试 ShardingSphere 联邦查询，不断提升联邦查询的 SQL 兼容度。
参考文档
笔者因为工作原因接触到 Calcite，前期学习过程中，深感 Calcite 学习资料之匮乏，因此创建了 Calcite 从入门到精通知识星球，希望能够将学习过程中的资料和经验沉淀下来，为更多想要学习 Calcite 的朋友提供一些帮助。
