Nacos 源码—Nacos 配置中心实现分析（二）
- 2025-05-09 福建
本文字数：21600 字
阅读完需：约 71 分钟
4.客户端如何感知远程配置数据的变更
(1)ConfigService 对象使用介绍
ConfigService 是一个接口，定义了获取配置、发布配置、移除配置等方法。ConfigService 只有一个实现类 NacosConfigService，Nacos 配置中心源码的核心其实就是这个 NacosConfigService 对象。
步骤一：手动创建 ConfigService 对象
首先定义好基本的 Nacos 信息，然后利用 NacosFactory 工厂类来创建 ConfigService 对象。
public class Demo { public static void main(String[] args) throws Exception { //步骤一：配置信息 String serverAddr = "124.223.102.236:8848"; String dataId = "stock-service-test.yaml"; String group = "DEFAULT_GROUP";
Properties properties = new Properties(); properties.put(PropertyKeyConst.SERVER_ADDR, serverAddr);
//步骤一：获取配置中心服务 ConfigService configService = NacosFactory.createConfigService(properties); }}复制代码
步骤二：获取配置、发布配置
创建好 ConfigService 对象后，就可以使用 ConfigService 对象的 getConfig()方法来获取配置信息，还可以使用 ConfigService 对象的 publishConfig()方法来发布配置信息。
如下 Demo 先获取一次配置数据，然后发布新配置，紧接着重新获取数据。发现第二次获取的配置数据已发生变化，从而也说明发布配置成功了。
public class Demo { public static void main(String[] args) throws Exception { //步骤一：配置信息 String serverAddr = "124.223.102.236:8848"; String dataId = "stock-service-test.yaml"; String group = "DEFAULT_GROUP";
Properties properties = new Properties(); properties.put(PropertyKeyConst.SERVER_ADDR, serverAddr);
//步骤一：获取配置中心服务 ConfigService configService = NacosFactory.createConfigService(properties); //步骤二：从配置中心获取配置 String content = configService.getConfig(dataId, group, 5000); System.out.println("发布配置前" + content); //步骤二：发布配置 configService.publishConfig(dataId, group, "userName: userName被修改了", ConfigType.PROPERTIES.getType());
Thread.sleep(300L); //步骤二：从配置中心获取配置 content = configService.getConfig(dataId, group, 5000); System.out.println("发布配置后" + content); }}复制代码
步骤三：添加监听器
可以使用 ConfigService 对象的 addListener()方法来添加监听器。通过 dataId + group 这两个参数，就可以注册一个监听器。当 dataId + group 对应的配置在服务端发生改变时，客户端的监听器就可以马上感知并对配置数据进行刷新。
public class Demo { public static void main(String[] args) throws Exception { //步骤一：配置信息 String serverAddr = "124.223.102.236:8848"; String dataId = "stock-service-test.yaml"; String group = "DEFAULT_GROUP";
Properties properties = new Properties(); properties.put(PropertyKeyConst.SERVER_ADDR, serverAddr);
//步骤一：获取配置中心服务 ConfigService configService = NacosFactory.createConfigService(properties); //步骤二：从配置中心获取配置 String content = configService.getConfig(dataId, group, 5000); System.out.println("发布配置前" + content); //步骤二：发布配置 configService.publishConfig(dataId, group, "userName: userName被修改了", ConfigType.PROPERTIES.getType());
Thread.sleep(300L); //步骤二：从配置中心获取配置 content = configService.getConfig(dataId, group, 5000); System.out.println("发布配置后" + content); //步骤三：注册监听器 configService.addListener(dataId, group, new Listener() { @Override public void receiveConfigInfo(String configInfo) { System.out.println("感知配置变化:" + configInfo); }
@Override public Executor getExecutor() { return null; } });
//阻断进程关闭 Thread.sleep(Integer.MAX_VALUE); }}复制代码
(2)客户端注册监听器的源码
Nacos 客户端是什么时候为 dataId + group 注册监听器的？
在 nacos-config 下的 spring.factories 文件中，有一个自动装配的配置类 NacosConfigAutoConfiguration，在该配置类中定义了一个 NacosContextRefresher 对象，而 NacosContextRefresher 对象会监听 ApplicationReadyEvent 事件。
在 NacosContextRefresher 的 onApplicationEvent()方法中，会执行 registerNacosListenersForApplications()方法，这个方法中会遍历每一个 dataId + group 注册 Nacos 监听器。
对于每一个 dataId + group，则通过调用 registerNacosListener()方法来进行 Nacos 监听器的注册，也就是最终调用 ConfigService 对象的 addListener()方法来注册监听器。
@Configuration(proxyBeanMethods = false)@ConditionalOnProperty(name = "spring.cloud.nacos.config.enabled", matchIfMissing = true)public class NacosConfigAutoConfiguration { ... @Bean public NacosContextRefresher nacosContextRefresher(NacosConfigManager nacosConfigManager, NacosRefreshHistory nacosRefreshHistory) { return new NacosContextRefresher(nacosConfigManager, nacosRefreshHistory); } ...}
public class NacosContextRefresher implements ApplicationListener<ApplicationReadyEvent>, ApplicationContextAware { private final ConfigService configService; ... @Override public void onApplicationEvent(ApplicationReadyEvent event) { //many Spring context if (this.ready.compareAndSet(false, true)) { this.registerNacosListenersForApplications(); } } //register Nacos Listeners. private void registerNacosListenersForApplications() { if (isRefreshEnabled()) { //获取全部的配置 for (NacosPropertySource propertySource : NacosPropertySourceRepository.getAll()) { //判断当前配置是否需要刷新 if (!propertySource.isRefreshable()) { continue; } String dataId = propertySource.getDataId(); //注册监听器 registerNacosListener(propertySource.getGroup(), dataId); } } } private void registerNacosListener(final String groupKey, final String dataKey) { String key = NacosPropertySourceRepository.getMapKey(dataKey, groupKey); Listener listener = listenerMap.computeIfAbsent(key, lst -> new AbstractSharedListener() { @Override public void innerReceive(String dataId, String group, String configInfo) { //监听器的回调方法处理逻辑 refreshCountIncrement(); //记录刷新历史 nacosRefreshHistory.addRefreshRecord(dataId, group, configInfo); //发布RefreshEvent刷新事件 applicationContext.publishEvent(new RefreshEvent(this, null, "Refresh Nacos config")); if (log.isDebugEnabled()) { log.debug(String.format("Refresh Nacos config group=%s,dataId=%s,configInfo=%s", group, dataId, configInfo)); } } }); try { //注册监听器 configService.addListener(dataKey, groupKey, listener); } catch (NacosException e) { log.warn(String.format("register fail for nacos listener ,dataId=[%s],group=[%s]", dataKey, groupKey), e); } } ...}复制代码
(3)回调监听器的方法的源码
给每一个 dataId + group 注册 Nacos 监听器后，当 Nacos 服务端的配置文件发生变更时，就会回调监听器的方法，也就是会触发调用 AbstractSharedListener 的 innerReceive()方法。然后调用 applicationContext.publishEvent()发布 RefreshEvent 刷新事件，而发布的 RefreshEvent 刷新事件会被 RefreshEventListener 类来处理。
RefreshEventListener 类不是 Nacos 中的类了，而是 SpringCloud 的类。它在处理刷新事件时，会销毁被 @RefreshScope 注解修饰的类的 Bean，也就是会调用添加了 @RefreshScope 注解的类的 destroy()方法。把 Bean 实例销毁后，后面需要用到这个 Bean 时才重新进行创建。重新进行创建的时候，就会获取最新的配置文件，从而完成刷新效果。
(4)总结

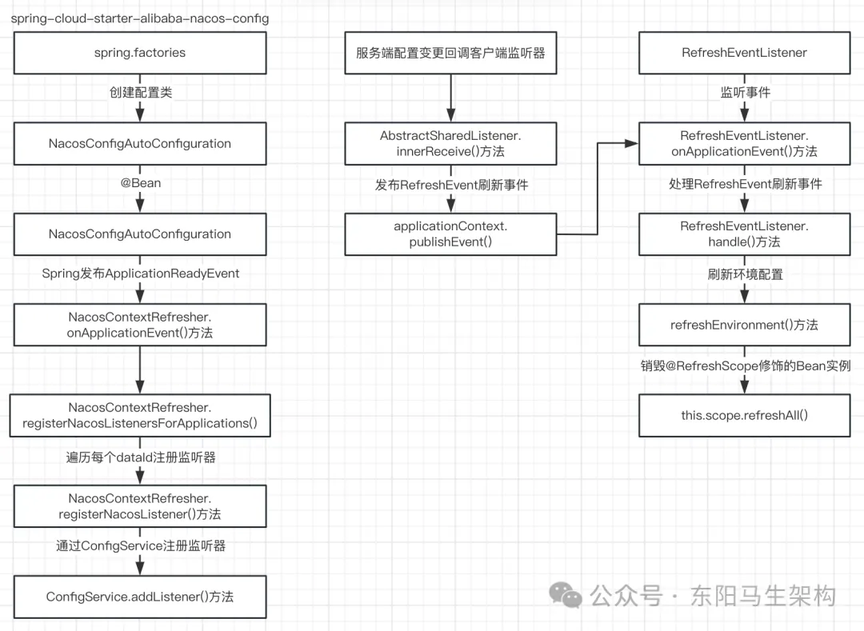

客户端注册 Nacos 监听器，服务端修改配置后，客户端刷新配置的流程：
5.集群架构下节点间如何同步配置数据

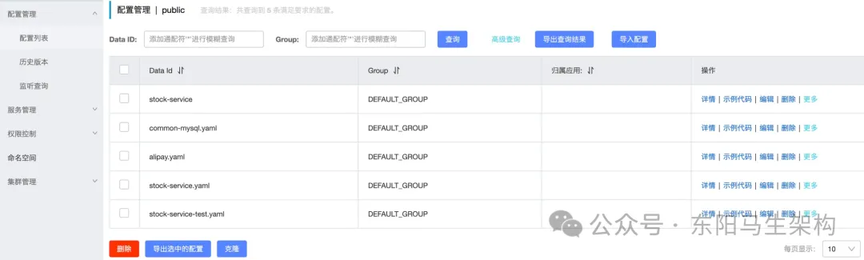

(1)Nacos 控制台的配置管理模块
在这个模块中，可以通过配置列表维护我们的配置文件，可以通过历史版本找到配置的发布记录，并且支持回滚操作。当编辑配置文件时，客户端可以及时感知变化并刷新其配置文件。当服务端通知客户端配置变更时，也会通知集群节点进行数据同步。
当用户在 Nacos 控制台点击确认发布按钮时，Nacos 会大概进行如下处理：
一.修改配置文件数据
二.保存配置发布历史
三.通知并触发客户端监听事件进行配置文件变更
四.通知集群对配置文件进行变更
点击确认发布按钮时，会发起 HTTP 请求，地址为"/nacos/v1/cs/configs"。通过请求地址可知处理入口是 ConfigController 的 publishConfig()方法。
(2)变更配置数据时的源码
ConfigController 的 publishConfig()方法中的两行核心代码是：一.新增或修改配置数据的 PersistService 的 insertOrUpdate()方法，二.发布配置变更事件的 ConfigChangePublisher 的 notifyConfigChange()方法。
一.新增或者修改配置数据
其中 PersistService 有两个实现类：一是 EmbeddedStoragePersistServiceImpl，它是 Nacos 内置的 Derby 数据库。二是 ExternalStoragePersistServiceImpl，它是 Nacos 外置数据库如 MySQL。
在 ExternalStoragePersistServiceImpl 的 insertOrUpdate()方法中，如果执行 ExternalStoragePersistServiceImpl 的 updateConfigInfo()方法，那么会先查询对应的配置，然后更新配置，最后保存配置历史。
@RestController@RequestMapping(Constants.CONFIG_CONTROLLER_PATH)public class ConfigController { private final PersistService persistService; ... @PostMapping @Secured(action = ActionTypes.WRITE, parser = ConfigResourceParser.class) public Boolean publishConfig(HttpServletRequest request, HttpServletResponse response, @RequestParam(value = "dataId") String dataId, @RequestParam(value = "group") String group, @RequestParam(value = "tenant", required = false, defaultValue = StringUtils.EMPTY) String tenant, @RequestParam(value = "content") String content, @RequestParam(value = "tag", required = false) String tag, @RequestParam(value = "appName", required = false) String appName, @RequestParam(value = "src_user", required = false) String srcUser, @RequestParam(value = "config_tags", required = false) String configTags, @RequestParam(value = "desc", required = false) String desc, @RequestParam(value = "use", required = false) String use, @RequestParam(value = "effect", required = false) String effect, @RequestParam(value = "type", required = false) String type, @RequestParam(value = "schema", required = false) String schema) throws NacosException { final String srcIp = RequestUtil.getRemoteIp(request); final String requestIpApp = RequestUtil.getAppName(request); srcUser = RequestUtil.getSrcUserName(request); //check type if (!ConfigType.isValidType(type)) { type = ConfigType.getDefaultType().getType(); } //check tenant ParamUtils.checkTenant(tenant); ParamUtils.checkParam(dataId, group, "datumId", content); ParamUtils.checkParam(tag); Map<String, Object> configAdvanceInfo = new HashMap<String, Object>(10); MapUtils.putIfValNoNull(configAdvanceInfo, "config_tags", configTags); MapUtils.putIfValNoNull(configAdvanceInfo, "desc", desc); MapUtils.putIfValNoNull(configAdvanceInfo, "use", use); MapUtils.putIfValNoNull(configAdvanceInfo, "effect", effect); MapUtils.putIfValNoNull(configAdvanceInfo, "type", type); MapUtils.putIfValNoNull(configAdvanceInfo, "schema", schema); ParamUtils.checkParam(configAdvanceInfo); if (AggrWhitelist.isAggrDataId(dataId)) { LOGGER.warn("[aggr-conflict] {} attemp to publish single data, {}, {}", RequestUtil.getRemoteIp(request), dataId, group); throw new NacosException(NacosException.NO_RIGHT, "dataId:" + dataId + " is aggr"); } final Timestamp time = TimeUtils.getCurrentTime(); String betaIps = request.getHeader("betaIps"); ConfigInfo configInfo = new ConfigInfo(dataId, group, tenant, appName, content); configInfo.setType(type); if (StringUtils.isBlank(betaIps)) { if (StringUtils.isBlank(tag)) { //新增配置或者修改配置 persistService.insertOrUpdate(srcIp, srcUser, configInfo, time, configAdvanceInfo, true); //发布配置改变事件 ConfigChangePublisher.notifyConfigChange(new ConfigDataChangeEvent(false, dataId, group, tenant, time.getTime())); } else { persistService.insertOrUpdateTag(configInfo, tag, srcIp, srcUser, time, true); //发布配置改变事件 ConfigChangePublisher.notifyConfigChange(new ConfigDataChangeEvent(false, dataId, group, tenant, tag, time.getTime())); } } else { //beta publish persistService.insertOrUpdateBeta(configInfo, betaIps, srcIp, srcUser, time, true); //发布配置改变事件 ConfigChangePublisher.notifyConfigChange(new ConfigDataChangeEvent(true, dataId, group, tenant, time.getTime())); } ConfigTraceService.logPersistenceEvent(dataId, group, tenant, requestIpApp, time.getTime(), InetUtils.getSelfIP(), ConfigTraceService.PERSISTENCE_EVENT_PUB, content); return true; } ...}
//External Storage Persist Service.@SuppressWarnings(value = {"PMD.MethodReturnWrapperTypeRule", "checkstyle:linelength"})@Conditional(value = ConditionOnExternalStorage.class)@Componentpublic class ExternalStoragePersistServiceImpl implements PersistService { private DataSourceService dataSourceService; ... @Override public void insertOrUpdate(String srcIp, String srcUser, ConfigInfo configInfo, Timestamp time, Map<String, Object> configAdvanceInfo, boolean notify) { try { addConfigInfo(srcIp, srcUser, configInfo, time, configAdvanceInfo, notify); } catch (DataIntegrityViolationException ive) { // Unique constraint conflict updateConfigInfo(configInfo, srcIp, srcUser, time, configAdvanceInfo, notify); } } @Override public void updateConfigInfo(final ConfigInfo configInfo, final String srcIp, final String srcUser, final Timestamp time, final Map<String, Object> configAdvanceInfo, final boolean notify) { boolean result = tjt.execute(status -> { try { //查询已存在的配置数据 ConfigInfo oldConfigInfo = findConfigInfo(configInfo.getDataId(), configInfo.getGroup(), configInfo.getTenant()); String appNameTmp = oldConfigInfo.getAppName(); if (configInfo.getAppName() == null) { configInfo.setAppName(appNameTmp); } //更新配置数据 updateConfigInfoAtomic(configInfo, srcIp, srcUser, time, configAdvanceInfo); String configTags = configAdvanceInfo == null ? null : (String) configAdvanceInfo.get("config_tags"); if (configTags != null) { // delete all tags and then recreate removeTagByIdAtomic(oldConfigInfo.getId()); addConfigTagsRelation(oldConfigInfo.getId(), configTags, configInfo.getDataId(), configInfo.getGroup(), configInfo.getTenant()); } //保存到发布配置历史表 insertConfigHistoryAtomic(oldConfigInfo.getId(), oldConfigInfo, srcIp, srcUser, time, "U"); } catch (CannotGetJdbcConnectionException e) { LogUtil.FATAL_LOG.error("[db-error] " + e.toString(), e); throw e; } return Boolean.TRUE; }); } @Override public ConfigInfo findConfigInfo(final String dataId, final String group, final String tenant) { final String tenantTmp = StringUtils.isBlank(tenant) ? StringUtils.EMPTY : tenant; try { return this.jt.queryForObject("SELECT ID,data_id,group_id,tenant_id,app_name,content,md5,type FROM config_info WHERE data_id=? AND group_id=? AND tenant_id=?", new Object[] {dataId, group, tenantTmp}, CONFIG_INFO_ROW_MAPPER); } catch (EmptyResultDataAccessException e) { // Indicates that the data does not exist, returns null. return null; } catch (CannotGetJdbcConnectionException e) { LogUtil.FATAL_LOG.error("[db-error] " + e.toString(), e); throw e; } } ...}复制代码
二.发布配置变更事件
执行 ConfigChangePublisher 的 notifyConfigChange()方法发布配置变更事件时，最终会把事件添加到 DefaultPublisher.queue 阻塞队列中，完成事件发布。
NotifyCenter 在其静态方法中，会创建 DefaultPublisher 并进行初始化。在执行 DefaultPublisher 的 init()方法时，就会开启一个异步任务。该异步任务便会不断从阻塞队列 DefaultPublisher.queue 中获取事件，然后调用 DefaultPublisher 的 receiveEvent()方法处理配置变更事件。
在 DefaultPublisher 的 receiveEvent()方法中，会循环遍历事件订阅者。其中就会包括来自客户端，以及来自集群节点的两个订阅者。前者会通知客户端发生了配置变更事件，后者会通知各集群节点发生了配置变更事件。而且进行事件通知时，都会调用 DefaultPublisher 的 notifySubscriber()方法。该方法会异步执行订阅者的监听逻辑，也就是 subscriber.onEvent()方法。
具体的 subscriber 订阅者有：用来通知集群节点进行数据同步的订阅者 AsyncNotifyService，用来通知客户端处理配置文件变更的订阅者 LongPollingService。
事件发布机制的实现简单总结：发布者需要一个 Set 存放注册的订阅者，发布者发布事件时，需要遍历调用订阅者处理事件的方法。
public class ConfigChangePublisher { //Notify ConfigChange. public static void notifyConfigChange(ConfigDataChangeEvent event) { if (PropertyUtil.isEmbeddedStorage() && !EnvUtil.getStandaloneMode()) { return; } NotifyCenter.publishEvent(event); }}
//Unified Event Notify Center.public class NotifyCenter { static { ... try { // Create and init DefaultSharePublisher instance. INSTANCE.sharePublisher = new DefaultSharePublisher(); INSTANCE.sharePublisher.init(SlowEvent.class, shareBufferSize); } catch (Throwable ex) { LOGGER.error("Service class newInstance has error : {}", ex); } ThreadUtils.addShutdownHook(new Runnable() { @Override public void run() { shutdown(); } }); } //注册订阅者 public static <T> void registerSubscriber(final Subscriber consumer) { ... addSubscriber(consumer, subscribeType); } private static void addSubscriber(final Subscriber consumer, Class<? extends Event> subscribeType) { ... EventPublisher publisher = INSTANCE.publisherMap.get(topic); //执行DefaultPublisher.addSubscriber()方法 publisher.addSubscriber(consumer); } ... //Request publisher publish event Publishers load lazily, calling publisher. Start () only when the event is actually published. public static boolean publishEvent(final Event event) { try { return publishEvent(event.getClass(), event); } catch (Throwable ex) { LOGGER.error("There was an exception to the message publishing : {}", ex); return false; } } //Request publisher publish event Publishers load lazily, calling publisher. private static boolean publishEvent(final Class<? extends Event> eventType, final Event event) { if (ClassUtils.isAssignableFrom(SlowEvent.class, eventType)) { return INSTANCE.sharePublisher.publish(event); } final String topic = ClassUtils.getCanonicalName(eventType); EventPublisher publisher = INSTANCE.publisherMap.get(topic); if (publisher != null) { //执行DefaultPublisher.publish()方法 return publisher.publish(event); } LOGGER.warn("There are no [{}] publishers for this event, please register", topic); return false; } ...}
//The default event publisher implementation.public class DefaultPublisher extends Thread implements EventPublisher { protected final ConcurrentHashSet<Subscriber> subscribers = new ConcurrentHashSet<Subscriber>(); private BlockingQueue<Event> queue; ... @Override public void addSubscriber(Subscriber subscriber) { //注册事件订阅者 subscribers.add(subscriber); } @Override public boolean publish(Event event) { checkIsStart(); //将事件添加到阻塞队列，则表示已完成事件发布 boolean success = this.queue.offer(event); if (!success) { LOGGER.warn("Unable to plug in due to interruption, synchronize sending time, event : {}", event); receiveEvent(event); return true; } return true; } @Override public void init(Class<? extends Event> type, int bufferSize) { setDaemon(true); setName("nacos.publisher-" + type.getName()); this.eventType = type; this.queueMaxSize = bufferSize; this.queue = new ArrayBlockingQueue<Event>(bufferSize); start(); } @Override public synchronized void start() { if (!initialized) { //执行线程的run()方法，start just called once super.start(); if (queueMaxSize == -1) { queueMaxSize = ringBufferSize; } initialized = true; } } @Override public void run() { openEventHandler(); } void openEventHandler() { try { //This variable is defined to resolve the problem which message overstock in the queue. int waitTimes = 60; //To ensure that messages are not lost, enable EventHandler when waiting for the first Subscriber to register for (; ;) { if (shutdown || hasSubscriber() || waitTimes <= 0) { break; } ThreadUtils.sleep(1000L); waitTimes--; } for (; ;) { if (shutdown) { break; } final Event event = queue.take(); receiveEvent(event); UPDATER.compareAndSet(this, lastEventSequence, Math.max(lastEventSequence, event.sequence())); } } catch (Throwable ex) { LOGGER.error("Event listener exception : {}", ex); } } //Receive and notifySubscriber to process the event. void receiveEvent(Event event) { final long currentEventSequence = event.sequence(); //循环遍历事件的订阅者 for (Subscriber subscriber : subscribers) { // Whether to ignore expiration events if (subscriber.ignoreExpireEvent() && lastEventSequence > currentEventSequence) { LOGGER.debug("[NotifyCenter] the {} is unacceptable to this subscriber, because had expire", event.getClass()); continue; } //通知事件订阅者 notifySubscriber(subscriber, event); } } @Override public void notifySubscriber(final Subscriber subscriber, final Event event) { LOGGER.debug("[NotifyCenter] the {} will received by {}", event, subscriber); final Runnable job = new Runnable() { @Override public void run() { //异步执行订阅者的监听逻辑 subscriber.onEvent(event); } }; final Executor executor = subscriber.executor(); if (executor != null) { executor.execute(job); } else { try { job.run(); } catch (Throwable e) { LOGGER.error("Event callback exception : {}", e); } } } ...}复制代码
(3)集群节点间的配置数据变更同步
核心处理方法便是 AsyncNotifyService 的 onEvent()方法。该方法首先会获取集群节点列表，然后遍历集群列表构造通知任务 NotifySingleTask，接着把通知任务 NotifySingleTask 添加到队列 queue 当中，最后根据通知任务队列 queue 封装一个异步任务提交到线程池去处理，也就是异步任务 AsyncTask 的 run()方法会处理通知任务 NotifySingleTask。
在异步任务 AsyncTask 的 run()方法中，会一直从 queue 中获取通知任务，以便将配置数据同步到对应的集群节点。具体就是在 while 循环中，首先获得通知任务中对应的集群节点的 IP 地址。然后判断该集群节点的 IP 是否在当前节点的配置中，并且是否是健康状态。如果该集群节点不健康，则放入队列并将队列提交给异步任务来延迟处理。如果该集群节点是健康状态，则通过 HTTP 方式发起配置数据的同步，地址是"/v1/cs/communication/dataChange"。
@Servicepublic class AsyncNotifyService { ... @Autowired public AsyncNotifyService(ServerMemberManager memberManager) { this.memberManager = memberManager; //Register ConfigDataChangeEvent to NotifyCenter. NotifyCenter.registerToPublisher(ConfigDataChangeEvent.class, NotifyCenter.ringBufferSize); //Register A Subscriber to subscribe ConfigDataChangeEvent. NotifyCenter.registerSubscriber(new Subscriber() { @Override public void onEvent(Event event) { //配置中心数据变更，同步其他集群节点数据 if (event instanceof ConfigDataChangeEvent) { ConfigDataChangeEvent evt = (ConfigDataChangeEvent) event; long dumpTs = evt.lastModifiedTs; String dataId = evt.dataId; String group = evt.group; String tenant = evt.tenant; String tag = evt.tag; //获取集群节点列表 Collection<Member> ipList = memberManager.allMembers(); Queue<NotifySingleTask> queue = new LinkedList<NotifySingleTask>(); //遍历集群列表构造通知任务NotifySingleTask去同步数据 for (Member member : ipList) { //把通知任务NotifySingleTask添加到队列queue当中 queue.add(new NotifySingleTask(dataId, group, tenant, tag, dumpTs, member.getAddress(), evt.isBeta)); } //根据通知任务队列Queue<NotifySingleTask>，封装一个异步任务AsyncTask，提交到线程池执行 ConfigExecutor.executeAsyncNotify(new AsyncTask(nacosAsyncRestTemplate, queue)); } } @Override public Class<? extends Event> subscribeType() { return ConfigDataChangeEvent.class; } }); } ... class AsyncTask implements Runnable { private Queue<NotifySingleTask> queue; private NacosAsyncRestTemplate restTemplate; public AsyncTask(NacosAsyncRestTemplate restTemplate, Queue<NotifySingleTask> queue) { this.restTemplate = restTemplate; this.queue = queue; } @Override public void run() { executeAsyncInvoke(); } private void executeAsyncInvoke() { while (!queue.isEmpty()) { //一直从queue队列中获取通知任务，以便将配置数据同步到对应的集群节点 NotifySingleTask task = queue.poll(); //获取通知任务中对应的集群节点的IP地址 String targetIp = task.getTargetIP(); if (memberManager.hasMember(targetIp)) { //start the health check and there are ips that are not monitored, put them directly in the notification queue, otherwise notify //判断该集群节点的ip是否在当前节点的配置中，并且是否是健康状态 boolean unHealthNeedDelay = memberManager.isUnHealth(targetIp); if (unHealthNeedDelay) { //target ip is unhealthy, then put it in the notification list //如果该集群节点不健康，则放入另外一个队列，同样会将队列提交给异步任务，然后延迟处理 ConfigTraceService.logNotifyEvent(task.getDataId(), task.getGroup(), task.getTenant(), null, task.getLastModified(), InetUtils.getSelfIP(), ConfigTraceService.NOTIFY_EVENT_UNHEALTH, 0, task.target); //get delay time and set fail count to the task asyncTaskExecute(task); } else { //如果该集群节点是健康状态，则通过HTTP方式发起配置数据的同步 Header header = Header.newInstance(); header.addParam(NotifyService.NOTIFY_HEADER_LAST_MODIFIED, String.valueOf(task.getLastModified())); header.addParam(NotifyService.NOTIFY_HEADER_OP_HANDLE_IP, InetUtils.getSelfIP()); if (task.isBeta) { header.addParam("isBeta", "true"); } AuthHeaderUtil.addIdentityToHeader(header); //通过HTTP方式发起配置数据的同步，请求的HTTP地址：/v1/cs/communication/dataChange restTemplate.get(task.url, header, Query.EMPTY, String.class, new AsyncNotifyCallBack(task)); } } } } } private void asyncTaskExecute(NotifySingleTask task) { int delay = getDelayTime(task); Queue<NotifySingleTask> queue = new LinkedList<NotifySingleTask>(); queue.add(task); AsyncTask asyncTask = new AsyncTask(nacosAsyncRestTemplate, queue); //提交异步任务给线程池延迟执行 ConfigExecutor.scheduleAsyncNotify(asyncTask, delay, TimeUnit.MILLISECONDS); }}复制代码
当集群节点处理"/v1/cs/communication/dataChange"这个 HTTP 请求时，会调用 CommunicationController 的 notifyConfigInfo()方法，接着调用 DumpService 的 dump()方法将请求包装成 DumpTask 同步数据任务，然后调用 TaskManager 的 addTask()方法将 DumpTask 同步数据任务放入 map。
TaskManager 的父类 NacosDelayTaskExecuteEngine 在初始化时，会开启一个异步任务执行 ProcessRunnable 的 run()方法，也就是会不断从 map 中取出 DumpTask 同步数据任务，然后调用 DumpProcessor 的 process()方法处理具体的配置数据同步逻辑。也就是查询数据库最新的配置，然后持久化配置数据到磁盘上，从而完成集群之间配置数据的同步。
@RestController@RequestMapping(Constants.COMMUNICATION_CONTROLLER_PATH)public class CommunicationController { private final DumpService dumpService; ... @GetMapping("/dataChange") public Boolean notifyConfigInfo(HttpServletRequest request, @RequestParam("dataId") String dataId, @RequestParam("group") String group, @RequestParam(value = "tenant", required = false, defaultValue = StringUtils.EMPTY) String tenant, @RequestParam(value = "tag", required = false) String tag) { dataId = dataId.trim(); group = group.trim(); String lastModified = request.getHeader(NotifyService.NOTIFY_HEADER_LAST_MODIFIED); long lastModifiedTs = StringUtils.isEmpty(lastModified) ? -1 : Long.parseLong(lastModified); String handleIp = request.getHeader(NotifyService.NOTIFY_HEADER_OP_HANDLE_IP); String isBetaStr = request.getHeader("isBeta"); if (StringUtils.isNotBlank(isBetaStr) && trueStr.equals(isBetaStr)) { dumpService.dump(dataId, group, tenant, lastModifiedTs, handleIp, true); } else { dumpService.dump(dataId, group, tenant, tag, lastModifiedTs, handleIp); } return true; } ...}
public abstract class DumpService { private TaskManager dumpTaskMgr; public DumpService(PersistService persistService, ServerMemberManager memberManager) { ... this.processor = new DumpProcessor(this); this.dumpTaskMgr = new TaskManager("com.alibaba.nacos.server.DumpTaskManager"); this.dumpTaskMgr.setDefaultTaskProcessor(processor); ... } ... public void dump(String dataId, String group, String tenant, long lastModified, String handleIp, boolean isBeta) { String groupKey = GroupKey2.getKey(dataId, group, tenant); dumpTaskMgr.addTask(groupKey, new DumpTask(groupKey, lastModified, handleIp, isBeta)); } ...}
public final class TaskManager extends NacosDelayTaskExecuteEngine implements TaskManagerMBean { ... @Override public void addTask(Object key, AbstractDelayTask newTask) { super.addTask(key, newTask); MetricsMonitor.getDumpTaskMonitor().set(tasks.size()); } ...}
public class NacosDelayTaskExecuteEngine extends AbstractNacosTaskExecuteEngine<AbstractDelayTask> { protected final ConcurrentHashMap<Object, AbstractDelayTask> tasks;//任务池 public NacosDelayTaskExecuteEngine(String name, int initCapacity, Logger logger, long processInterval) { super(logger); tasks = new ConcurrentHashMap<Object, AbstractDelayTask>(initCapacity); processingExecutor = ExecutorFactory.newSingleScheduledExecutorService(new NameThreadFactory(name)); //开启延时任务 processingExecutor.scheduleWithFixedDelay(new ProcessRunnable(), processInterval, processInterval, TimeUnit.MILLISECONDS); } ... @Override public void addTask(Object key, AbstractDelayTask newTask) { lock.lock(); try { AbstractDelayTask existTask = tasks.get(key); if (null != existTask) { newTask.merge(existTask); } //最后放入到ConcurrentHashMap中 tasks.put(key, newTask); } finally { lock.unlock(); } } ... private class ProcessRunnable implements Runnable { @Override public void run() { try { processTasks(); } catch (Throwable e) { getEngineLog().error(e.toString(), e); } } } @Override public Collection<Object> getAllTaskKeys() { Collection<Object> keys = new HashSet<Object>(); lock.lock(); try { keys.addAll(tasks.keySet()); } finally { lock.unlock(); } return keys; } protected void processTasks() { //获取tasks中所有的任务，然后进行遍历 Collection<Object> keys = getAllTaskKeys(); for (Object taskKey : keys) { //通过任务key，获取具体的任务，并且从任务池中移除掉 AbstractDelayTask task = removeTask(taskKey); if (null == task) { continue; } //DumpService在初始化时会设置TaskManager的默认processor是DumpProcessor //根据taskKey获取NacosTaskProcessor延迟任务处理器：DumpProcessor NacosTaskProcessor processor = getProcessor(taskKey); if (null == processor) { getEngineLog().error("processor not found for task, so discarded. " + task); continue; } try { //ReAdd task if process failed //调用DumpProcessor.process()方法 if (!processor.process(task)) { //如果失败了，会重试添加task回tasks这个map中 retryFailedTask(taskKey, task); } } catch (Throwable e) { getEngineLog().error("Nacos task execute error : " + e.toString(), e); retryFailedTask(taskKey, task); } } }}复制代码
(4)服务端通知客户端配置数据已变更
服务端通知客户端配置文件变更的方法是 LongPollingService.onEvent()。
由前面客户端如何感知远程配置数据的变更可知，Nacos 客户端启动时：会调用 ConfigService 的 addListener()方法为每个 dataId + group 添加一个监听器。而 NacosConfigService 初始化时会创建 ClientWorker 对象，此时会开启多个长连接任务即执行 LongPollingRunnable 的 run()方法。
执行 LongPollingRunnable 的 run()方法时，会触发执行 ClientWorker 的 checkUpdateDataIds()方法，该方法最后会调用服务端的"/v1/cs/configs/listener"接口，将当前客户端添加到 LongPollingService 的 allSubs 属性中。
这样当以后 dataId + group 的配置发生变更时，服务端会触发执行 LongPollingService 的 onEvent()方法，然后遍历 LongPollingService.allSubs 属性通知客户端配置已变更。
客户端收到变更事件通知后，会将最新的配置刷新到容器中，同时将 @RefreshScope 注解修饰的 Bean 从缓存中删除。这样再次访问这些 Bean，就会重新创建 Bean，从而读取到最新的配置。
public class NacosConfigService implements ConfigService { //long polling. private final ClientWorker worker; ... public NacosConfigService(Properties properties) throws NacosException { ... this.worker = new ClientWorker(this.agent, this.configFilterChainManager, properties); } ...}
//Long polling.public class ClientWorker implements Closeable { public ClientWorker(final HttpAgent agent, final ConfigFilterChainManager configFilterChainManager, final Properties properties) { ... this.executor.scheduleWithFixedDelay(new Runnable() { @Override public void run() { try { checkConfigInfo(); } catch (Throwable e) { LOGGER.error("[" + agent.getName() + "] [sub-check] rotate check error", e); } } }, 1L, 10L, TimeUnit.MILLISECONDS); } //Check config info. public void checkConfigInfo() { //Dispatch taskes. int listenerSize = cacheMap.size(); //Round up the longingTaskCount. int longingTaskCount = (int) Math.ceil(listenerSize / ParamUtil.getPerTaskConfigSize()); if (longingTaskCount > currentLongingTaskCount) { for (int i = (int) currentLongingTaskCount; i < longingTaskCount; i++) { //The task list is no order.So it maybe has issues when changing. //执行长连接任务：LongPollingRunnable.run() executorService.execute(new LongPollingRunnable(i)); } currentLongingTaskCount = longingTaskCount; } } ... class LongPollingRunnable implements Runnable { ... @Override public void run() { ... //check server config List<String> changedGroupKeys = checkUpdateDataIds(cacheDatas, inInitializingCacheList); ... } } //Fetch the dataId list from server. List<String> checkUpdateDataIds(List<CacheData> cacheDatas, List<String> inInitializingCacheList) throws Exception { ... return checkUpdateConfigStr(sb.toString(), isInitializingCacheList); } //Fetch the updated dataId list from server. List<String> checkUpdateConfigStr(String probeUpdateString, boolean isInitializingCacheList) throws Exception { ... try { //In order to prevent the server from handling the delay of the client's long task, increase the client's read timeout to avoid this problem. long readTimeoutMs = timeout + (long) Math.round(timeout >> 1); //发起HTTP请求：/v1/cs/configs/listener，将客户端添加到LongPollingService.allSubs属性中 HttpRestResult<String> result = agent.httpPost(Constants.CONFIG_CONTROLLER_PATH + "/listener", headers, params, agent.getEncode(), readTimeoutMs); ... } catch (Exception e) { ... } return Collections.emptyList(); }}
@RestController@RequestMapping(Constants.CONFIG_CONTROLLER_PATH)public class ConfigController { private final ConfigServletInner inner; ... @PostMapping("/listener") @Secured(action = ActionTypes.READ, parser = ConfigResourceParser.class) public void listener(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { ... //do long-polling inner.doPollingConfig(request, response, clientMd5Map, probeModify.length()); } ...}
@Servicepublic class ConfigServletInner { ... //轮询接口. public String doPollingConfig(HttpServletRequest request, HttpServletResponse response, Map<String, String> clientMd5Map, int probeRequestSize) throws IOException { //Long polling. if (LongPollingService.isSupportLongPolling(request)) { longPollingService.addLongPollingClient(request, response, clientMd5Map, probeRequestSize); return HttpServletResponse.SC_OK + ""; } ... } ...}
@Servicepublic class LongPollingService { //客户端长轮询订阅者 final Queue<ClientLongPolling> allSubs; ... public void addLongPollingClient(HttpServletRequest req, HttpServletResponse rsp, Map<String, String> clientMd5Map, int probeRequestSize) { ... //添加订阅者 ConfigExecutor.executeLongPolling(new ClientLongPolling(asyncContext, clientMd5Map, ip, probeRequestSize, timeout, appName, tag)); } class ClientLongPolling implements Runnable { @Override public void run() { ... allSubs.add(this); } ... } ... public LongPollingService() { allSubs = new ConcurrentLinkedQueue<ClientLongPolling>(); ... NotifyCenter.registerSubscriber(new Subscriber() { @Override public void onEvent(Event event) { if (isFixedPolling()) { // Ignore. } else { if (event instanceof LocalDataChangeEvent) { LocalDataChangeEvent evt = (LocalDataChangeEvent) event; //触发执行DataChangeTask.run()方法 ConfigExecutor.executeLongPolling(new DataChangeTask(evt.groupKey, evt.isBeta, evt.betaIps)); } } } ... }); } class DataChangeTask implements Runnable { @Override public void run() { try { ConfigCacheService.getContentBetaMd5(groupKey); //遍历订阅了配置变更事件的客户端 for (Iterator<ClientLongPolling> iter = allSubs.iterator(); iter.hasNext(); ) { ClientLongPolling clientSub = iter.next(); if (clientSub.clientMd5Map.containsKey(groupKey)) { ... getRetainIps().put(clientSub.ip, System.currentTimeMillis()); iter.remove(); // Delete subscribers' relationships. //发送服务端数据变更的响应给客户端 clientSub.sendResponse(Arrays.asList(groupKey)); } } } catch (Throwable t) { LogUtil.DEFAULT_LOG.error("data change error: {}", ExceptionUtil.getStackTrace(t)); } } } ...}复制代码
(5)总结
一.配置中心数据变更同步集群节点的整体逻辑
当在 Nacos 后台变更配置数据后：首先自身节点会把最新的配置数据更新到数据库中，并且添加变更历史。然后利用事件发布订阅机制来通知订阅者，其中订阅者 AsyncNotifyService 会通过 HTTP 方式来通知其他集群节点。当其他集群节点收到通知后，会重新查询数据库最新的配置数据。然后持久化到磁盘上，因为获取配置数据的接口是直接读磁盘文件的。集群节点的配置数据同步完成后，还要通知客户端配置数据已变更。
二.服务端通知客户端配置数据已变更
在客户端给 dataId + group 添加监听器后，会和服务端建立一个长轮询，所以另外一个订阅者 LongPollingService 会通过长轮询通知客户端。也就是会遍历每一个客户端，通过长轮询向客户端进行响应。最终会调用到客户端监听器的回调方法，从而去刷新客户端的配置 Bean。
