鸿蒙运动开发实战：打造 Keep 式轨迹播放效果

2025-05-28
北京
本文字数：3171 字
阅读完需：约 10 分钟

前言

在运动类应用中，轨迹播放效果是提升用户体验的关键功能之一。它不仅能直观展示用户的运动路线，还能通过动态效果增强运动的趣味性。Keep 作为一款知名的运动健身应用，其轨迹播放效果深受用户喜爱。那么，如何在鸿蒙系统中开发出类似 Keep 的轨迹播放效果呢？本文将通过实际代码案例，深入解析实现这一功能的关键步骤和技术要点。

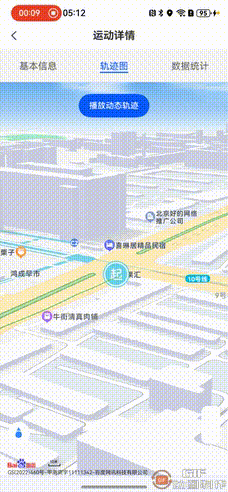

效果：

一、核心功能拆解

要实现类似 Keep 的轨迹播放效果，我们需要完成以下几个核心功能：

• 动态轨迹播放：通过定时器和动画效果，实现轨迹的动态播放，模拟用户运动过程。

• 地图交互：在地图上绘制轨迹，并根据播放进度更新地图中心点和旋转角度。

二、动态轨迹播放

1.播放逻辑

通过定时器和动画效果实现轨迹的动态播放。以下是播放轨迹的核心代码：

private playTrack() {  // 如果已经在播放，则停止  if (this.playTimer) {    this.mapController?.removeOverlay(this.polyline);    clearInterval(this.playTimer);    this.playTimer = undefined;    if (this.animationTimer) {      clearInterval(this.animationTimer);    }    if (this.movingMarker) {      this.mapController?.removeOverlay(this.movingMarker);      this.movingMarker = undefined;    }    this.currentPointIndex = 0;    return;  }
  // 创建动态位置标记  this.movingMarker = new Marker({    position: this.trackPoints[0],    icon: new ImageEntity("rawfile://images/ic_run_detail_start.png"),    isJoinCollision: SysEnum.CollisionBehavior.NOT_COLLIDE,    located: SysEnum.Located.CENTER  });  this.mapController?.addOverlay(this.movingMarker);
  // 开始播放  this.playTimer = setInterval(() => {    this.currentPointIndex++;    if (this.currentPointIndex >= this.trackPoints.length) {      clearInterval(this.playTimer);      this.playTimer = undefined;      this.currentPointIndex = 0;      if (this.movingMarker) {        this.mapController?.removeOverlay(this.movingMarker);        this.movingMarker = undefined;      }      return;    }
    // 更新动态位置标记位置，使用setInterval实现平滑移动    if (this.movingMarker && this.currentPointIndex < this.trackPoints.length - 1) {      const currentPoint = this.trackPoints[this.currentPointIndex];      const nextPoint = this.trackPoints[this.currentPointIndex + 1];      let animationProgress = 0;
      // 清除之前的动画定时器      if (this.animationTimer) {        clearInterval(this.animationTimer);      }
      // 创建新的动画定时器，每10ms更新一次位置      this.animationTimer = setInterval(() => {        animationProgress += 0.1; // 每次增加0.1的进度
        if (animationProgress >= 1) {          clearInterval(this.animationTimer);          this.animationTimer = undefined;          this.movingMarker?.setPosition(new LatLng(nextPoint.lat, nextPoint.lng));        } else {          const interpolatedLat = currentPoint.lat + (nextPoint.lat - currentPoint.lat) * animationProgress;          const interpolatedLng = currentPoint.lng + (nextPoint.lng - currentPoint.lng) * animationProgress;          this.movingMarker?.setPosition(new LatLng(interpolatedLat, interpolatedLng));        }      }, 10); // 每10ms执行一次    }
    // 绘制当前轨迹线段    const currentPoints = this.trackPoints.slice(0, this.currentPointIndex + 1);    const currentColors = PathGradientTool.getPathColors(this.record!.points.slice(0, this.currentPointIndex + 1), 100);
    if (this.polyline) {      this.mapController?.removeOverlay(this.polyline);      this.polyline.remove();      this.polyline.destroy();    }
    this.polyline = new Polyline({      points: currentPoints,      width: 5,      join: SysEnum.LineJoinType.ROUND,      cap: SysEnum.LineCapType.ROUND,      isGradient: true,      colorList: currentColors!    });    this.mapController?.addOverlay(this.polyline);
    // 更新地图中心点和旋转角度    let bearing = 0;    if (this.currentPointIndex < this.trackPoints.length - 1) {      const currentPoint = this.trackPoints[this.currentPointIndex];      const nextPoint = this.trackPoints[this.currentPointIndex + 1];      bearing = Math.atan2(        nextPoint.lat - currentPoint.lat,        nextPoint.lng - currentPoint.lng      ) * 180 / Math.PI;      bearing = (bearing + 360) % 360;      bearing = (360 - bearing + 90) % 360;    }
    this.mapController?.mapStatus.setRotate(bearing).setOverlooking(90).setCenterPoint(new LatLng(this.trackPoints[this.currentPointIndex].lat, this.trackPoints[this.currentPointIndex].lng)).refresh();  }, 100); // 每100ms移动一次}

复制代码

2.动画效果

通过定时器和线性插值实现动态轨迹的平滑移动效果。以下是动画效果的核心代码：

if (this.movingMarker && this.currentPointIndex < this.trackPoints.length - 1) {  const currentPoint = this.trackPoints[this.currentPointIndex];  const nextPoint = this.trackPoints[this.currentPointIndex + 1];  let animationProgress = 0;
  // 清除之前的动画定时器  if (this.animationTimer) {    clearInterval(this.animationTimer);  }
  // 创建新的动画定时器，每10ms更新一次位置  this.animationTimer = setInterval(() => {    animationProgress += 0.1; // 每次增加0.1的进度
    if (animationProgress >= 1) {      clearInterval(this.animationTimer);      this.animationTimer = undefined;      this.movingMarker?.setPosition(new LatLng(nextPoint.lat, nextPoint.lng));    } else {      const interpolatedLat = currentPoint.lat + (nextPoint.lat - currentPoint.lat) * animationProgress;      const interpolatedLng = currentPoint.lng + (nextPoint.lng - currentPoint.lng) * animationProgress;      this.movingMarker?.setPosition(new LatLng(interpolatedLat, interpolatedLng));    }  }, 10); // 每10ms执行一次}

复制代码

三、地图交互

1.地图中心点和旋转角度更新

在播放轨迹的过程中，动态更新地图的中心点和旋转角度，以确保用户始终能看到当前播放的位置。以下是更新地图中心点和旋转角度的代码：

let bearing = 0;if (this.currentPointIndex < this.trackPoints.length - 1) {  const currentPoint = this.trackPoints[this.currentPointIndex];  const nextPoint = this.trackPoints[this.currentPointIndex + 1];  bearing = Math.atan2(    nextPoint.lat - currentPoint.lat,    nextPoint.lng - currentPoint.lng  ) * 180 / Math.PI;  bearing = (bearing + 360) % 360;  bearing = (360 - bearing + 90) % 360;}
this.mapController?.mapStatus.setRotate(bearing).setOverlooking(90).setCenterPoint(new LatLng(this.trackPoints[this.currentPointIndex].lat, this.trackPoints[this.currentPointIndex].lng)).refresh();
