鸿蒙 Next 层叠布局使用 Stack 还是 RelativeContainer?

作者:auhgnixgnahz
  • 2025-06-25
    北京
  • 本文字数:2386 字

    阅读完需:约 8 分钟

层叠布局(Stack 用于在屏幕上预留一块区域来显示组件中的元素,提供元素可以重叠的布局。层叠布局通过 Stack 容器组件实现位置的固定定位与层叠,容器中的子元素依次入栈,后一个子元素覆盖前一个子元素,子元素可以叠加,也可以设置位置。


相对布局(RelativeContainer) 是一种采用相对布局的容器,支持容器内部的子元素设置相对位置关系,适用于处理界面复杂的场景,对多个子元素进行对齐和排列。子元素可以指定兄弟元素或父容器作为锚点,基于锚点进行相对位置布局。


实际使用中,当一个 Stack 中添加多个子组件时,并不能分别设置每个子组件的对齐方式,只能保持一个对齐方式,有一定的局限性。


因此我们可以使用 RelativeContainer,通过设置子组件的对齐方式,不仅可以实现层叠显示,还可以分别设置多个子组件,减少布局组件嵌套,可以有效的提升性能,减少时间开销

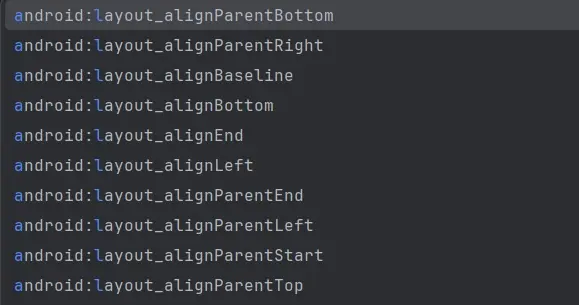

RelativeContainer 的子组件需要设置 alignRules 来设置子组件的相对位置,我对子组件相对父布局的位置做了一个封装,仿照安卓的 RelativeLayout 布局设置,子组件也可以作为锚点进行布局,需要给锚点组件设置唯一 id。

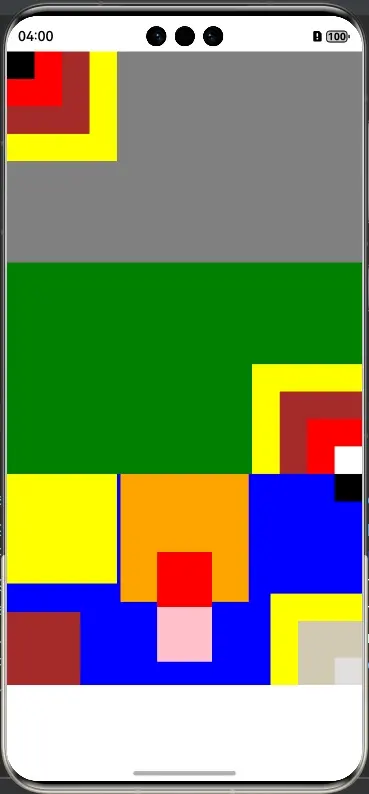

看一下展示效果和源码:


布局代码:
import { AlignRules } from '../utils/AlignRules'
@Entry@ComponentV2struct StackTest{ build() { Column(){ Stack({alignContent:Alignment.TopStart}){ Row(){}.width(120).height(120).backgroundColor(Color.Yellow) Row(){}.width(90).height(90).backgroundColor(Color.Brown) Row(){}.width(60).height(60).backgroundColor(Color.Red) Row(){}.width(30).height(30).backgroundColor(Color.Black) }.width('100%').height('30%').backgroundColor(Color.Gray)
Stack({ alignContent: Alignment.BottomEnd }){ Row(){}.width(120).height(120).backgroundColor(Color.Yellow) Row(){}.width(90).height(90).backgroundColor(Color.Brown) Row(){}.width(60).height(60).backgroundColor(Color.Red) Row(){}.width(30).height(30).backgroundColor(Color.White) }.width('100%').height('30%').backgroundColor(Color.Green)
RelativeContainer() { Row(){}.width(120).height(120).backgroundColor(Color.Yellow) Row(){}.width(140).height(140).backgroundColor(Color.Orange).alignRules(AlignRules.alignParentTopCenter) Row(){}.width(30).height(30).backgroundColor(Color.Black).alignRules(AlignRules.alignParentRightTop) Row(){}.width(60).height(60).backgroundColor(Color.Red).alignRules(AlignRules.centerInParent).id("red") Row(){}.width(80).height(80).backgroundColor(Color.Brown).alignRules(AlignRules.alignParentLeftBottom) Row(){}.width(100).height(100).backgroundColor(Color.Yellow).alignRules(AlignRules.alignParentRightBottom) Row(){}.width(70).height(70).backgroundColor(0xd2cab3).alignRules(AlignRules.alignParentRightBottom) Row(){}.width(30).height(30).backgroundColor('#e1dede').alignRules(AlignRules.alignParentRightBottom) Row(){}.width(60).height(60).backgroundColor(Color.Pink).alignRules(AlignRules.below('red')) }.width('100%').height('30%').backgroundColor(Color.Blue) }
}}
复制代码
AlignRules 封装:

export class AlignRules{
//居中 static centerInParent:AlignRuleOption = { center: { anchor: '__container__', align: VerticalAlign.Center }, middle: { anchor: '__container__', align: HorizontalAlign.Center } }
//顶部居中 static alignParentTopCenter:AlignRuleOption = { top: { anchor: '__container__', align: VerticalAlign.Top }, middle: { anchor: '__container__', align: HorizontalAlign.Center } } //底部居中 static alignParentBottomCenter:AlignRuleOption = { bottom: { anchor: '__container__', align: VerticalAlign.Bottom }, middle: { anchor: '__container__', align: HorizontalAlign.Center } }
//右上 static alignParentRightTop:AlignRuleOption = { top: { anchor: '__container__', align: VerticalAlign.Top }, right: { anchor: '__container__', align: HorizontalAlign.End } } //靠右居中 static alignParentRightCenter:AlignRuleOption = { center: { anchor: '__container__', align: VerticalAlign.Center }, right: { anchor: '__container__', align: HorizontalAlign.End } } //右下 static alignParentRightBottom:AlignRuleOption = { bottom: { anchor: '__container__', align: VerticalAlign.Bottom }, right: { anchor: '__container__', align: HorizontalAlign.End } }
//左上 默认位置 不需要设置
//靠左居中 static alignParentLeftCenter:AlignRuleOption = { center: { anchor: '__container__', align: VerticalAlign.Center }, left: { anchor: '__container__', align: HorizontalAlign.Start } } //左下 static alignParentLeftBottom:AlignRuleOption = { bottom: { anchor: '__container__', align: VerticalAlign.Bottom }, left: { anchor: '__container__', align: HorizontalAlign.Start } }
//在锚点的下方 static below(id:string):AlignRuleOption { return { top:{ anchor: id, align: VerticalAlign.Bottom }, middle: { anchor: id, align: HorizontalAlign.Center } } }}
复制代码
