思科 SRv6 实现 VPN+ 流量工程测试

本文分享自天翼云开发者社区《思科SRv6 实现 VPN+流量工程测试》.作者：y****n

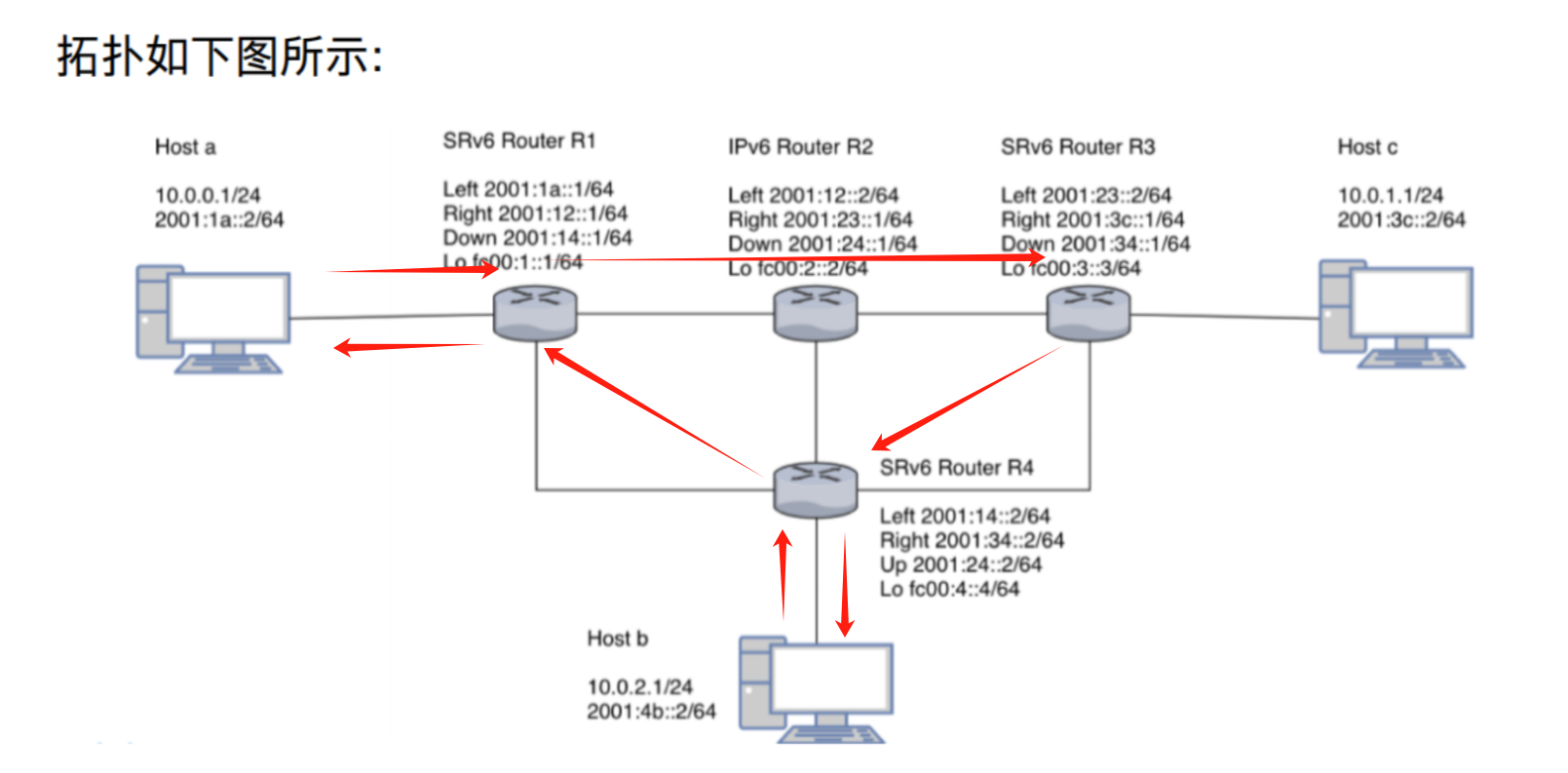

### 创建网络命名空间

ip netns add r1

ip netns add r2

ip netns add r3

ip netns add r4

ip netns add host-a

ip netns add host-b

ip netns add host-c

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv4.ip_forward=1

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv4.conf.all.rp_filter=0

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv6.conf.all.forwarding=1

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv6.conf.all.seg6_enabled=1

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv4.conf.default.rp_filter=0

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv6.conf.default.forwarding=1

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv6.conf.default.seg6_enabled=1

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv4.conf.lo.rp_filter=0

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv6.conf.lo.forwarding=1

ip netns list | awk '{print$1}' | xargs -I {} ip netns exec {} sysctl -w net.ipv6.conf.lo.seg6_enabled=1

### 创建虚拟网卡设备

ip link add dev-a-r1 netns host-a type veth peer name dev-r1-a netns r1

ip link add dev-r1-r2 netns r1 type veth peer name dev-r2-r1 netns r2

ip link add dev-r2-r3 netns r2 type veth peer name dev-r3-r2 netns r3

ip link add dev-r3-c netns r3 type veth peer name dev-c-r3 netns host-c

ip netns exec r1 ip link set dev-r1-a up

ip netns exec host-a ip link set dev-a-r1 up

ip netns exec r1 ip link set dev-r1-r2 up

ip netns exec r2 ip link set dev-r2-r1 up

ip netns exec r2 ip link set dev-r2-r3 up

ip netns exec r3 ip link set dev-r3-r2 up

ip netns exec r3 ip link set dev-r3-c up

ip netns exec host-c ip link set dev-c-r3 up

ip link add dev-r1-r4 netns r1 type veth peer name dev-r4-r1 netns r4

ip link add dev-r2-r4 netns r2 type veth peer name dev-r4-r2 netns r4

ip link add dev-r3-r4 netns r3 type veth peer name dev-r4-r3 netns r4

ip link add dev-r4-b netns r4 type veth peer name dev-b-r4 netns host-b

ip netns exec r1 ip link set dev-r1-r4 up

ip netns exec r4 ip link set dev-r4-r1 up

ip netns exec r2 ip link set dev-r2-r4 up

ip netns exec r4 ip link set dev-r4-r2 up

ip netns exec r3 ip link set dev-r3-r4 up

ip netns exec r4 ip link set dev-r4-r3 up

ip netns exec host-b ip link set dev-b-r4 up

ip netns exec r4 ip link set dev-r4-b up

ip netns exec r1 ip link set lo up

ip netns exec r2 ip link set lo up

ip netns exec r3 ip link set lo up

ip netns exec r4 ip link set lo up

### 配置地址、路由

ip netns exec r1 ip addr add 10.0.0.2/24 dev dev-r1-a

ip netns exec r1 ip addr add 2001:1a::1/64 dev dev-r1-a

ip netns exec r1 ip addr add 2001:12::1/64 dev dev-r1-r2

ip netns exec r1 ip addr add 2001:14::1/64 dev dev-r1-r4

ip netns exec r1 ip addr add fc00:1::1/64 dev lo

ip netns exec r2 ip addr add 2001:12::2/64 dev dev-r2-r1

ip netns exec r2 ip addr add 2001:23::1/64 dev dev-r2-r3

ip netns exec r2 ip addr add 2001:24::1/64 dev dev-r2-r4

ip netns exec r2 ip addr add fc00:2::2/64 dev lo

ip netns exec r3 ip addr add 10.0.1.2/24 dev dev-r3-c

ip netns exec r3 ip addr add 2001:23::2/64 dev dev-r3-r2

ip netns exec r3 ip addr add 2001:3c::1/64 dev dev-r3-c

ip netns exec r3 ip addr add 2001:34::1/64 dev dev-r3-r4

ip netns exec r3 ip addr add fc00:3::3/64 dev lo

ip netns exec r4 ip addr add 10.0.2.2/24 dev dev-r4-b

ip netns exec r4 ip addr add 2001:14::2/64 dev dev-r4-r1

ip netns exec r4 ip addr add 2001:24::2/64 dev dev-r4-r2

ip netns exec r4 ip addr add 2001:34::2/64 dev dev-r4-r3

ip netns exec r4 ip addr add 2001:4b::1/64 dev dev-r4-b

ip netns exec r4 ip addr add fc00:4::4/64 dev lo

ip netns exec host-a ip addr add 2001:1a::2/64 dev dev-a-r1

ip netns exec host-c ip addr add 2001:3c::2/64 dev dev-c-r3

ip netns exec host-b ip addr add 2001:4b::2/64 dev dev-b-r4

ip netns exec host-a ip addr add 10.0.0.1/24 dev dev-a-r1

ip netns exec host-c ip addr add 10.0.1.1/24 dev dev-c-r3

ip netns exec host-b ip addr add 10.0.2.1/24 dev dev-b-r4

ip netns exec host-a ip route add 10.0.1.0/24 via 10.0.0.2

ip netns exec host-a ip route add 10.0.2.0/24 via 10.0.0.2

ip netns exec host-c ip route add 10.0.0.0/24 via 10.0.1.2

ip netns exec host-b ip route add 10.0.0.0/24 via 10.0.2.2

#ip netns exec host-b ip route add 10.0.0.0/24 dev dev-b-r4

ip netns exec r1 ip sr tunsrc set fc00:1::1

ip netns exec r2 ip sr tunsrc set fc00:2::2

ip netns exec r3 ip sr tunsrc set fc00:3::3

ip netns exec r4 ip sr tunsrc set fc00:4::4

ip netns exec r1 ip -6 route add default via 2001:12::2

ip netns exec r2 ip -6 route add fc00:1::/64 via 2001:12::1

ip netns exec r2 ip -6 route add fc00:3::/64 via 2001:23::2

ip netns exec r3 ip -6 route add default via 2001:23::1

ip netns exec r3 ip -6 route add fc00:4::/64 via 2001:34::2

#ip netns exec r3 ip -6 route add fc00:1::bb/128 via 2001:23::1

ip netns exec r4 ip -6 route add default via 2001:4b::2

ip netns exec r4 ip route add default via 10.0.2.1

ip netns exec r4 ip -6 route add fc00:1::bb/128 via 2001:14::1

### 配置 SRv6 指令

ip netns exec r1 ip -6 route add fc00:1::bb/128 encap seg6local action End.DX4 nh4 10.0.0.1 dev dev-r1-a

ip netns exec r1 ip route add 10.0.2.0/24 encap seg6 mode encap segs fc00:3::bb,fc00:4::bb dev dev-r1-r2

ip netns exec r3 ip -6 route add fc00:3::bb/128 encap seg6local action End dev dev-r3-r4

ip netns exec r4 ip -6 route add fc00:4::bb/128 encap seg6local action End.DX4 nh4 10.0.2.1 dev dev-r4-b

ip netns exec r4 ip route add 10.0.0.0/24 encap seg6 mode encap segs fc00:1::bb dev dev-r4-r1

#ip netns exec r1 ip route add 10.0.1.0/24 encap seg6 mode encap segs fc00:3::bb dev dev-r1-a

#ip netns exec r3 ip -6 route add fc00:3::bb/128 encap seg6local action End.DX4 nh4 10.0.1.1 dev dev-r3-c

#ip netns exec r3 ip route add 10.0.0.0/24 encap seg6 mode encap segs fc00:1::bb dev dev-r3-c

### 测试网络连通

ip netns exec host-a ping 10.0.2.1
