搞懂这两个组件,Spring 配置问题少一半!

  • 2025-08-04
    福建
  • 本文字数:8192 字

    阅读完需:约 27 分钟

案例


前置条件:在 resources 目录下有 hello/hello.properties 文件,文件内容如下:

hello=nihao
复制代码


案例一:在 HelloController 类中通过 @PropertySource 注解引用 properties 文件的内容,然后就可以通过 @Value 注解引用这个配置文件中的 hello 这个 key 了。

@PropertySource({"classpath:hello/hello.properties"})@RestControllerpublic class HelloController {      @Value("${hello}")      private String hello;        @GetMapping("/hello")      public String hello() {          return hello;      }  }
复制代码


案例一执行的结果是返回 nihao 这个字符串。


案例二:在 AnotherController 类中通过 @PropertySource 注解引用 properties 文件的内容,在 HelloController 中仍然可以通过 @Value 注解引用这个配置文件中的 hello 这个 key 。

@RestControllerpublic class HelloController {      @Value("${hello}")      private String hello;        @GetMapping("/hello")      public String hello() {          return hello;      }  }
@RestController@PropertySource({"classpath:hello/hello.properties"})public class AnotherController { // 省略代码}
复制代码


案例二返回的结果和案例一一致,这说明了只需要一个 Bean 通过 @PropertySource 注解引用了 properties 配置文件后,其它的 Bean 无需再使用@PropertySource 注解引用即可通过 @Value 注入其中的值。


案例三:

@Getter  @Setter  public class TestBean {     private String attributeA;          private String attributeB;  }
@RestControllerpublic class HelloController { @Value("${hello}") private String hello;
@Autowired private TestBean testBean; @GetMapping("/hello") public String hello() { System.out.println("AttributeA = " + testBean.getAttributeA()); System.out.println("AttributeB = " + testBean.getAttributeB()); return hello; } }
复制代码


<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans"       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"       xmlns:context="http://www.springframework.org/schema/context"       xsi:schemaLocation="http://www.springframework.org/schema/beans                           http://www.springframework.org/schema/beans/spring-beans.xsd                           http://www.springframework.org/schema/context                           http://www.springframework.org/schema/context/spring-context.xsd">
<context:property-placeholder location="classpath:testBean/testBean.properties"/>
<bean id="testBean" class="com.test.TestBean"> <property name="attributeA" value="${valueA}"/> <property name="attributeB" value="${valueB}"/> <!-- 省略其它配置 --> </bean></beans>
复制代码


testBean.properties 配置文件中的值如下:

valueA=testAvalueB=testB
复制代码


案例三执行的结果是 testBean 中的属性被正确替换为了 testBean.properties 配置文件中的值。



案例四:在 hello.properties 文件中增加 attributeA 配置项,其它和案例三保持一致:

valueA=anotherTestA
复制代码

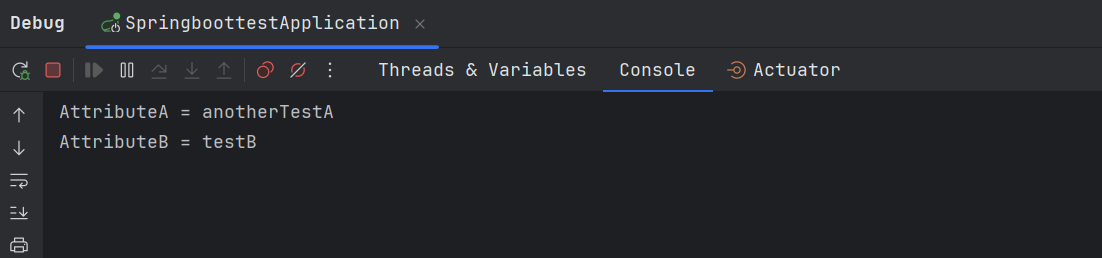

案例四执行的结果是 testBean 中的 attributeA 属性被替换为了 hello.properties 中的值,attributeB 中的属性被替换为了 testBean.properties 中的值。



源码分析

@PropertySource 注解

在 Spring 中提供了 BeanDefinitionRegistryPostProcessor 接口,它提供了一个方法可以注册额外的 Bean 定义。代码如下:

public interface BeanDefinitionRegistryPostProcessor extends BeanFactoryPostProcessor {      void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException;}
复制代码


Spring 中提供了 ConfigurationClassPostProcessor 做为实现类,在它的 postProcessBeanDefinitionRegistry() 通过 ConfigurationClassParser 去将 @Configuration 等注解修饰的类解析成 Bean 定义并注册。

而在 ConfigurationClassParser 中的 doProcessConfigurationClass() 方法会解析所有 @PropertySource 注解的配置信息,然后根据配置的路径加载对应路径下的配置文件,然后注册到 Environment 中。代码如下:

protected final SourceClass doProcessConfigurationClass(	ConfigurationClass configClass, SourceClass sourceClass, 	Predicate<String> filter)	throws IOException {	// Process any @PropertySource annotations	for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(	    sourceClass.getMetadata(), org.springframework.context.annotation.PropertySource.class,	    PropertySources.class, true)) {	    if (this.propertySourceRegistry != null) {	        this.propertySourceRegistry.processPropertySource(propertySource);	    }	    else {	        logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +	                "]. Reason: Environment must implement ConfigurableEnvironment");	    }	}}
复制代码


在 PropertySourceRegistry 的 processPropertySource() 方法中获取到注解配置的文件的位置,然后又委托给了 PropertySourceProcessor 处理。代码如下:

void processPropertySource(AnnotationAttributes propertySource) throws IOException {    String name = propertySource.getString("name");    if (!StringUtils.hasLength(name)) {        name = null;    }    String encoding = propertySource.getString("encoding");    if (!StringUtils.hasLength(encoding)) {        encoding = null;    }    // 获取到注解中配置的配置文件的位置    String[] locations = propertySource.getStringArray("value");    Assert.isTrue(locations.length > 0, "At least one @PropertySource(value) location is required");    boolean ignoreResourceNotFound = propertySource.getBoolean("ignoreResourceNotFound");
Class<? extends PropertySourceFactory> factoryClass = propertySource.getClass("factory"); Class<? extends PropertySourceFactory> factoryClassToUse = (factoryClass != PropertySourceFactory.class ? factoryClass : null); PropertySourceDescriptor descriptor = new PropertySourceDescriptor(Arrays.asList(locations), ignoreResourceNotFound, name, factoryClassToUse, encoding); // this.propertySourceProcessor.processPropertySource(descriptor); this.descriptors.add(descriptor);}
复制代码


在 PropertySourceProcessor 的 processPropertySource() 方法中遍历每个配置文件位置加载配置文件,然后添加到 Environment 的 propertySources 中。代码如下:

public void processPropertySource(PropertySourceDescriptor descriptor) throws IOException {    String name = descriptor.name();    String encoding = descriptor.encoding();    List<String> locations = descriptor.locations();    boolean ignoreResourceNotFound = descriptor.ignoreResourceNotFound();    PropertySourceFactory factory = (descriptor.propertySourceFactory() != null ?            instantiateClass(descriptor.propertySourceFactory()) : defaultPropertySourceFactory);
for (String location : locations) { // 遍历每个配置文件位置加载配置文件 try { String resolvedLocation = this.environment.resolveRequiredPlaceholders(location); for (Resource resource : this.resourcePatternResolver.getResources(resolvedLocation)) { addPropertySource(factory.createPropertySource(name, new EncodedResource(resource, encoding))); } } catch (RuntimeException | IOException ex) { // 省略点 } }}
private void addPropertySource(PropertySource<?> propertySource) { String name = propertySource.getName(); MutablePropertySources propertySources = this.environment.getPropertySources();
if (this.propertySourceNames.contains(name)) { // 省略代码 }
if (this.propertySourceNames.isEmpty()) { propertySources.addLast(propertySource); } else { String lastAdded = this.propertySourceNames.get(this.propertySourceNames.size() - 1); // 添加到 propertySources 中 propertySources.addBefore(lastAdded, propertySource); } this.propertySourceNames.add(name);}
复制代码


在 AbstractApplicationContext 中的 finishBeanFactoryInitialization() 方法中,会先判断是否有注册 EmbeddedValueResolver,如果没有再注册,如果有的话就不注册了,这里和 PropertySourcesPlaceholderConfigurer 联动起来了。代码如下:

protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {    // Register a default embedded value resolver if no BeanFactoryPostProcessor    // (such as a PropertySourcesPlaceholderConfigurer bean) registered any before:    // at this point, primarily for resolution in annotation attribute values.    if (!beanFactory.hasEmbeddedValueResolver()) {        beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));    }        // Instantiate all remaining (non-lazy-init) singletons.    beanFactory.preInstantiateSingletons();}
复制代码


PropertySourcesPlaceholderConfigurer

而 PropertySourcesPlaceholderConfigurer 实现了 BeanFactoryPostProcessor 接口,它的 postProcessBeanFactory() 方法中,首先以 environment 对象构建一个 PropertySource 对象,添加到 propertySources 中;然后根据它自己配置的 location (即前面在 xml 中配置的)构建一个 PropertySource 对象,添加到 propertySources 中,默认添加在尾部,这个对于解释场景四很重要。最后基于 propertySources 构建了一个 ConfigurablePropertyResolver 对象去调用 processProperties() 方法。

public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {    if (this.propertySources == null) {        this.propertySources = new MutablePropertySources();        if (this.environment != null) {            PropertyResolver propertyResolver = this.environment;            // If the ignoreUnresolvablePlaceholders flag is set to true, we have to create a            // local PropertyResolver to enforce that setting, since the Environment is most            // likely not configured with ignoreUnresolvablePlaceholders set to true.            // See https://github.com/spring-projects/spring-framework/issues/27947            if (this.ignoreUnresolvablePlaceholders &&                    (this.environment instanceof ConfigurableEnvironment configurableEnvironment)) {                PropertySourcesPropertyResolver resolver =                        new PropertySourcesPropertyResolver(configurableEnvironment.getPropertySources());                resolver.setIgnoreUnresolvableNestedPlaceholders(true);                propertyResolver = resolver;            }            // 将environment构建为一个PropertySource对象            PropertyResolver propertyResolverToUse = propertyResolver;            this.propertySources.addLast(                new PropertySource<>(ENVIRONMENT_PROPERTIES_PROPERTY_SOURCE_NAME, this.environment) {                    @Override                    @Nullable                    public String getProperty(String key) {                        return propertyResolverToUse.getProperty(key);                    }                }            );        }        try {            PropertySource<?> localPropertySource =                    new PropertiesPropertySource(LOCAL_PROPERTIES_PROPERTY_SOURCE_NAME, mergeProperties());            if (this.localOverride) {                this.propertySources.addFirst(localPropertySource);            }            else { // 默认情况下是将配置加入到最后                this.propertySources.addLast(localPropertySource);            }        }        catch (IOException ex) {            throw new BeanInitializationException("Could not load properties", ex);        }    }
processProperties(beanFactory, createPropertyResolver(this.propertySources)); this.appliedPropertySources = this.propertySources;}
复制代码


在 processProperties() 方法中通过 ConfigurablePropertyResolver 对象又构造了一个 StringValueResolver 对象,然后调用了 doProcessProperties() 方法。代码如下:

protected void processProperties(ConfigurableListableBeanFactory beanFactoryToProcess,    final ConfigurablePropertyResolver propertyResolver) throws BeansException {	propertyResolver.setPlaceholderPrefix(this.placeholderPrefix);	propertyResolver.setPlaceholderSuffix(this.placeholderSuffix);	propertyResolver.setValueSeparator(this.valueSeparator);	propertyResolver.setEscapeCharacter(this.escapeCharacter);
// 构造了一个StringValueResolver对象 StringValueResolver valueResolver = strVal -> { String resolved = (this.ignoreUnresolvablePlaceholders ? propertyResolver.resolvePlaceholders(strVal) : propertyResolver.resolveRequiredPlaceholders(strVal)); if (this.trimValues) { resolved = resolved.trim(); } return (resolved.equals(this.nullValue) ? null : resolved); };
doProcessProperties(beanFactoryToProcess, valueResolver);}
复制代码


在 doProcessProperties() 方法中又通过 StringValueResolver 对象构造了一个 BeanDefinitionVisitor 对象,然后调用它的 visitBeanDefinition() 实现了对 Bean 定义中属性引用的解析。然后调用 BeanFactory 的 addEmbeddedValueResolver() 方法把 StringValueResolver 对象设置给了 BeanFactory这里就和前面的AbstractApplicationContext 中的 finishBeanFactoryInitialization() 方法呼应起来了,这里设置了值,那边就不设置了,这里没有设置,那边就会设置

protected void doProcessProperties(ConfigurableListableBeanFactory beanFactoryToProcess,    StringValueResolver valueResolver) {    // 构造BeanDefinitionVisitor对象    BeanDefinitionVisitor visitor = new BeanDefinitionVisitor(valueResolver);
String[] beanNames = beanFactoryToProcess.getBeanDefinitionNames(); for (String curName : beanNames) { // Check that we're not parsing our own bean definition, // to avoid failing on unresolvable placeholders in properties file locations. if (!(curName.equals(this.beanName) && beanFactoryToProcess.equals(this.beanFactory))) { BeanDefinition bd = beanFactoryToProcess.getBeanDefinition(curName); try { // 对Bean定义中引用的配置进行解析 visitor.visitBeanDefinition(bd); } catch (Exception ex) { throw new BeanDefinitionStoreException(bd.getResourceDescription(), curName, ex.getMessage(), ex); } } }
// Resolve placeholders in alias target names and aliases as well. beanFactoryToProcess.resolveAliases(valueResolver);
// Resolve placeholders in embedded values such as annotation attributes. // 添加到BeanFactory中 beanFactoryToProcess.addEmbeddedValueResolver(valueResolver);}
复制代码


在之前的文章Spring 中 @Value 注解实现原理中介绍了在 DefaultListableBeanFactory 的 resolveEmbeddedValue() 方法中实现了对 @Value 注解的解析,这里实际上就是调用的上面设置的 StringValueResolver 对象的 resolveStringValue() 方法来实现的。

public String resolveEmbeddedValue(@Nullable String value) {    if (value == null) {        return null;    }    String result = value;    for (StringValueResolver resolver : this.embeddedValueResolvers) {        result = resolver.resolveStringValue(result);        if (result == null) {            return null;        }    }    return result;}
复制代码


案例解答


对于案例二: 在解析 Bean 定义的时候会把所有 @PropertySource 注解定义配置文件解析到 Environment 集中保存起来,然后在解析 @Value 注解值的时候统一从这个集中的地方去查找。因此只需要有一个类通过 @PropertySource 注解引用这个配置即可。

对于案例三: 实际上是依赖实现了 BeanFactoryPostProcessor 接口,它的 postProcessBeanFactory() 方法中实现了在 Bean 真正创建之前,对 Bean 定义中引用属性的解析。

对于案例四: 在默认的情况下解析依赖的配置文件是所有 @PropertySource 引用的配置文件加上 PropertySourcesPlaceholderConfigurer 的 location 属性引用的配置文件,且 @PropertySource 引用的配置文件在它的 location 属性引用的配置文件前面,查找的时候是按照顺序查找的。@PropertySource 引用的配置文件中定义了相同的 key,则直接会获取值返回,不会再继续往后查找了,所以就出现了案例四中 hello.properties 配置文件中的相同配置项覆盖了 testBean.properties 配置文件中的配置项。t

同时 Spring 提供了一个配置项 local-override,当设置为 true 时,才会使用testBean.properties 配置覆盖hello.properties 配置。覆盖的原理就是把配置加到最前面。代码如下:

<context:property-placeholder location="classpath:testBean.properties" local-override="true" />
复制代码


try {	PropertySource<?> localPropertySource =			new PropertiesPropertySource(LOCAL_PROPERTIES_PROPERTY_SOURCE_NAME, mergeProperties());	if (this.localOverride) { // 设置为true的时候将配置加入到最前面		this.propertySources.addFirst(localPropertySource);	}	else { // 默认情况下是将配置加入到最后		this.propertySources.addLast(localPropertySource);	}}catch (IOException ex) {	throw new BeanInitializationException("Could not load properties", ex);}
复制代码
