Nacos 源码—Nacos 集群高可用分析（四）

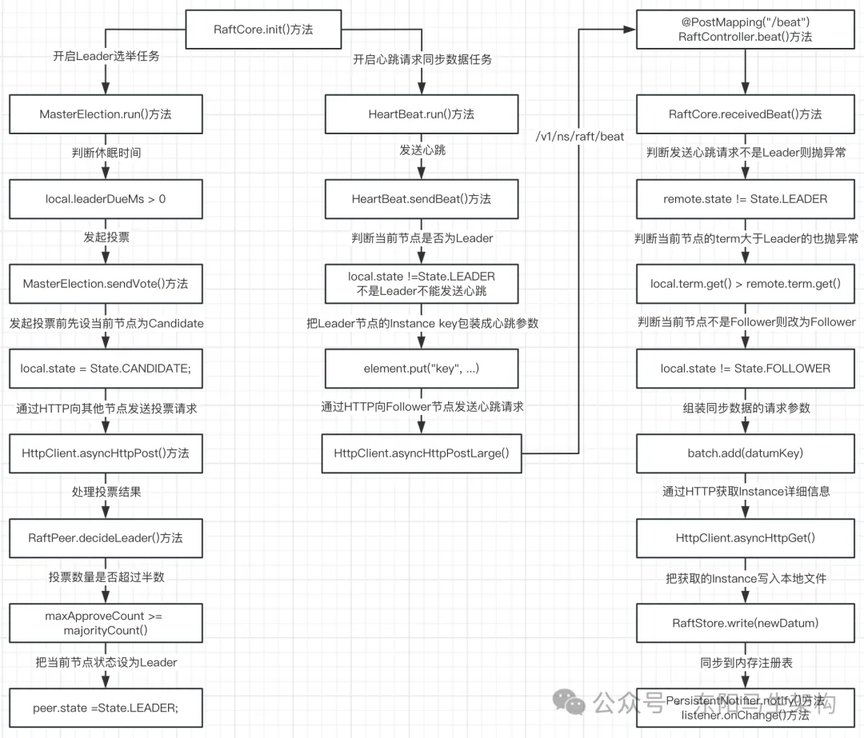

@Deprecated@DependsOn("ProtocolManager")@Componentpublic class RaftCore implements Closeable {    ...    //Init raft core.    @PostConstruct    public void init() throws Exception {        Loggers.RAFT.info("initializing Raft sub-system");        final long start = System.currentTimeMillis();        //从本地文件中加载数据        raftStore.loadDatums(notifier, datums);        setTerm(NumberUtils.toLong(raftStore.loadMeta().getProperty("term"), 0L));        Loggers.RAFT.info("cache loaded, datum count: {}, current term: {}", datums.size(), peers.getTerm());        initialized = true;        Loggers.RAFT.info("finish to load data from disk, cost: {} ms.", (System.currentTimeMillis() - start));
        //开启一个异步任务选举Leader节点        masterTask = GlobalExecutor.registerMasterElection(new MasterElection());        //开启一个异步任务通过心跳同步数据        heartbeatTask = GlobalExecutor.registerHeartbeat(new HeartBeat());        versionJudgement.registerObserver(isAllNewVersion -> {            stopWork = isAllNewVersion;            if (stopWork) {                try {                    shutdown();                    raftListener.removeOldRaftMetadata();                } catch (NacosException e) {                    throw new NacosRuntimeException(NacosException.SERVER_ERROR, e);                }            }        }, 100);
        //给NotifyCenter注册一个监听PersistentNotifier        NotifyCenter.registerSubscriber(notifier);        Loggers.RAFT.info("timer started: leader timeout ms: {}, heart-beat timeout ms: {}", GlobalExecutor.LEADER_TIMEOUT_MS, GlobalExecutor.HEARTBEAT_INTERVAL_MS);    }    ...}
public class GlobalExecutor {    //线程池的线程数是可用线程的一半    private static final ScheduledExecutorService NAMING_TIMER_EXECUTOR =        ExecutorFactory.Managed.newScheduledExecutorService(            ClassUtils.getCanonicalName(NamingApp.class),            Runtime.getRuntime().availableProcessors() * 2,            new NameThreadFactory("com.alibaba.nacos.naming.timer")        );    ...    public static ScheduledFuture registerMasterElection(Runnable runnable) {        //以固定的频率来执行某项任务，它不受任务执行时间的影响，到时间就会执行任务        return NAMING_TIMER_EXECUTOR.scheduleAtFixedRate(runnable, 0, TICK_PERIOD_MS, TimeUnit.MILLISECONDS);    }        public static ScheduledFuture registerHeartbeat(Runnable runnable) {        //以相对固定的频率来执行某项任务，即只有等这一次任务执行完了(不管执行了多长时间)，才能执行下一次任务        return NAMING_TIMER_EXECUTOR.scheduleWithFixedDelay(runnable, 0, TICK_PERIOD_MS, TimeUnit.MILLISECONDS);    }    ...}

@Deprecated@DependsOn("ProtocolManager")@Componentpublic class RaftCore implements Closeable {    private RaftPeerSet peers;    ...        public class MasterElection implements Runnable {        @Override        public void run() {            try {                if (stopWork) {                    return;                }                if (!peers.isReady()) {                    return;                }                //随机休眠                RaftPeer local = peers.local();                local.leaderDueMs -= GlobalExecutor.TICK_PERIOD_MS;                //休眠时间没到就直接返回                if (local.leaderDueMs > 0) {                    return;                }                            //reset timeout                local.resetLeaderDue();                local.resetHeartbeatDue();
                //发起投票                sendVote();            } catch (Exception e) {                Loggers.RAFT.warn("[RAFT] error while master election {}", e);            }        }            private void sendVote() {            RaftPeer local = peers.get(NetUtils.localServer());            Loggers.RAFT.info("leader timeout, start voting,leader: {}, term: {}", JacksonUtils.toJson(getLeader()), local.term);            peers.reset();
            //选举周期+1            local.term.incrementAndGet();            //投票给自己            local.voteFor = local.ip;            //自己成为候选者，设置当前节点状态为Candidate状态            local.state = RaftPeer.State.CANDIDATE;                    Map<String, String> params = new HashMap<>(1);            params.put("vote", JacksonUtils.toJson(local));
            //遍历其他集群节点            for (final String server : peers.allServersWithoutMySelf()) {                final String url = buildUrl(server, API_VOTE);                try {                    //发送HTTP的投票请求                    HttpClient.asyncHttpPost(url, null, params, new Callback<String>() {                        @Override                        public void onReceive(RestResult<String> result) {                            if (!result.ok()) {                                Loggers.RAFT.error("NACOS-RAFT vote failed: {}, url: {}", result.getCode(), url);                                return;                            }                            RaftPeer peer = JacksonUtils.toObj(result.getData(), RaftPeer.class);                            Loggers.RAFT.info("received approve from peer: {}", JacksonUtils.toJson(peer));                            //处理返回的投票结果                            peers.decideLeader(peer);                        }                                                @Override                        public void onError(Throwable throwable) {                            Loggers.RAFT.error("error while sending vote to server: {}", server, throwable);                        }                                                @Override                        public void onCancel() {                                            }                    });                } catch (Exception e) {                    Loggers.RAFT.warn("error while sending vote to server: {}", server);                }            }        }    }    ...}
@Deprecated@Component@DependsOn("ProtocolManager")public class RaftPeerSet extends MemberChangeListener implements Closeable {    private volatile Map<String, RaftPeer> peers = new HashMap<>(8);    ...        //Calculate and decide which peer is leader. If has new peer has more than half vote, change leader to new peer.    public RaftPeer decideLeader(RaftPeer candidate) {        //记录本次投票结果        peers.put(candidate.ip, candidate);            SortedBag ips = new TreeBag();        int maxApproveCount = 0;        String maxApprovePeer = null;               //统计累计票数        for (RaftPeer peer : peers.values()) {            if (StringUtils.isEmpty(peer.voteFor)) {                continue;            }                    ips.add(peer.voteFor);            if (ips.getCount(peer.voteFor) > maxApproveCount) {                maxApproveCount = ips.getCount(peer.voteFor);                maxApprovePeer = peer.voteFor;            }        }               //判断投票数量是否超过半数，如果已超半数则把自己节点的状态改为Leader        if (maxApproveCount >= majorityCount()) {            RaftPeer peer = peers.get(maxApprovePeer);            //设置当前节点的状态为Leader状态            peer.state = RaftPeer.State.LEADER;                    if (!Objects.equals(leader, peer)) {                leader = peer;                ApplicationUtils.publishEvent(new LeaderElectFinishedEvent(this, leader, local()));                Loggers.RAFT.info("{} has become the LEADER", leader.ip);            }        }        return leader;    }    ...}

@Deprecated@DependsOn("ProtocolManager")@Componentpublic class RaftCore implements Closeable {    ...    public class HeartBeat implements Runnable {        @Override        public void run() {            try {                if (stopWork) {                    return;                }                if (!peers.isReady()) {                    return;                }                            RaftPeer local = peers.local();                local.heartbeatDueMs -= GlobalExecutor.TICK_PERIOD_MS;                if (local.heartbeatDueMs > 0) {                    return;                }                local.resetHeartbeatDue();                //发送心跳同步数据                sendBeat();            } catch (Exception e) {                Loggers.RAFT.warn("[RAFT] error while sending beat {}", e);            }        }            private void sendBeat() throws IOException, InterruptedException {            RaftPeer local = peers.local();            //第一部分：判断当前节点是不是Leader，如果不是Leader则不能发送心跳            if (EnvUtil.getStandaloneMode() || local.state != RaftPeer.State.LEADER) {                return;            }            if (Loggers.RAFT.isDebugEnabled()) {                Loggers.RAFT.debug("[RAFT] send beat with {} keys.", datums.size());            }                    local.resetLeaderDue();                    //build data            ObjectNode packet = JacksonUtils.createEmptyJsonNode();            packet.replace("peer", JacksonUtils.transferToJsonNode(local));                    ArrayNode array = JacksonUtils.createEmptyArrayNode();                    if (switchDomain.isSendBeatOnly()) {                Loggers.RAFT.info("[SEND-BEAT-ONLY] {}", switchDomain.isSendBeatOnly());            }                    if (!switchDomain.isSendBeatOnly()) {                //第二部分：组装发送心跳包的参数                //组装数据，只会把datum.key放入进去，并不会把整个Instance信息传输过去                for (Datum datum : datums.values()) {                    ObjectNode element = JacksonUtils.createEmptyJsonNode();                    if (KeyBuilder.matchServiceMetaKey(datum.key)) {                        //只放入key的信息                        element.put("key", KeyBuilder.briefServiceMetaKey(datum.key));                    } else if (KeyBuilder.matchInstanceListKey(datum.key)) {                        element.put("key", KeyBuilder.briefInstanceListkey(datum.key));                    }                    element.put("timestamp", datum.timestamp.get());                    array.add(element);                }            }            packet.replace("datums", array);            //broadcast            Map<String, String> params = new HashMap<String, String>(1);            params.put("beat", JacksonUtils.toJson(packet));                    String content = JacksonUtils.toJson(params);                    ByteArrayOutputStream out = new ByteArrayOutputStream();            GZIPOutputStream gzip = new GZIPOutputStream(out);            gzip.write(content.getBytes(StandardCharsets.UTF_8));            gzip.close();                    byte[] compressedBytes = out.toByteArray();            String compressedContent = new String(compressedBytes, StandardCharsets.UTF_8);                    if (Loggers.RAFT.isDebugEnabled()) {                Loggers.RAFT.debug("raw beat data size: {}, size of compressed data: {}", content.length(), compressedContent.length());            }            //第三部分：向其他Follower节点发送心跳数据，通过HTTP的方式来发起心跳，请求地址为：/v1/ns/raft/beat            //发送心跳 + 同步数据            for (final String server : peers.allServersWithoutMySelf()) {                try {                    final String url = buildUrl(server, API_BEAT);                    if (Loggers.RAFT.isDebugEnabled()) {                        Loggers.RAFT.debug("send beat to server " + server);                    }                    //通过HTTP发送心跳                    HttpClient.asyncHttpPostLarge(url, null, compressedBytes, new Callback<String>() {                        @Override                        public void onReceive(RestResult<String> result) {                            if (!result.ok()) {                                Loggers.RAFT.error("NACOS-RAFT beat failed: {}, peer: {}", result.getCode(), server);                                MetricsMonitor.getLeaderSendBeatFailedException().increment();                                return;                            }                            peers.update(JacksonUtils.toObj(result.getData(), RaftPeer.class));                            if (Loggers.RAFT.isDebugEnabled()) {                                Loggers.RAFT.debug("receive beat response from: {}", url);                            }                        }                                                @Override                        public void onError(Throwable throwable) {                            Loggers.RAFT.error("NACOS-RAFT error while sending heart-beat to peer: {} {}", server, throwable);                            MetricsMonitor.getLeaderSendBeatFailedException().increment();                        }                                                @Override                        public void onCancel() {                                            }                    });                } catch (Exception e) {                    Loggers.RAFT.error("error while sending heart-beat to peer: {} {}", server, e);                    MetricsMonitor.getLeaderSendBeatFailedException().increment();                }            }        }    }    ...}

@Deprecated@RestController@RequestMapping({UtilsAndCommons.NACOS_NAMING_CONTEXT + "/raft", UtilsAndCommons.NACOS_SERVER_CONTEXT + UtilsAndCommons.NACOS_NAMING_CONTEXT + "/raft"})public class RaftController {    private final RaftCore raftCore;    ...        @PostMapping("/beat")    public JsonNode beat(HttpServletRequest request, HttpServletResponse response) throws Exception {        if (versionJudgement.allMemberIsNewVersion()) {            throw new IllegalStateException("old raft protocol already stop");        }        String entity = new String(IoUtils.tryDecompress(request.getInputStream()), StandardCharsets.UTF_8);        String value = URLDecoder.decode(entity, "UTF-8");        value = URLDecoder.decode(value, "UTF-8");        JsonNode json = JacksonUtils.toObj(value);               //处理心跳        RaftPeer peer = raftCore.receivedBeat(JacksonUtils.toObj(json.get("beat").asText()));        return JacksonUtils.transferToJsonNode(peer);    }    ...}
@Deprecated@DependsOn("ProtocolManager")@Componentpublic class RaftCore implements Closeable {    public final PersistentNotifier notifier;    ...        //Received beat from leader. // TODO split method to multiple smaller method.    public RaftPeer receivedBeat(JsonNode beat) throws Exception {        ...        //第一个判断：如果发送心跳不是Leader，则直接抛出异常        if (remote.state != RaftPeer.State.LEADER) {            Loggers.RAFT.info("[RAFT] invalid state from master, state: {}, remote peer: {}", remote.state, JacksonUtils.toJson(remote));            throw new IllegalArgumentException("invalid state from master, state: " + remote.state);        }        //第二个判断：如果本身节点的term还大于Leader的term，也直接抛出异常        if (local.term.get() > remote.term.get()) {            Loggers.RAFT.info("[RAFT] out of date beat, beat-from-term: {}, beat-to-term: {}, remote peer: {}, and leaderDueMs: {}", remote.term.get(), local.term.get(), JacksonUtils.toJson(remote), local.leaderDueMs);            throw new IllegalArgumentException("out of date beat, beat-from-term: " + remote.term.get() + ", beat-to-term: " + local.term.get());        }        //第三个判断：自己的节点状态是不是FOLLOWER，如果不是则需要更改为FOLLOWER        if (local.state != RaftPeer.State.FOLLOWER) {            Loggers.RAFT.info("[RAFT] make remote as leader, remote peer: {}", JacksonUtils.toJson(remote));            //mk follower            local.state = RaftPeer.State.FOLLOWER;            local.voteFor = remote.ip;        }        ...        //遍历Leader传输过来的Instance key，和本地的Instance进行对比        for (Object object : beatDatums) {            ...            try {                if (datums.containsKey(datumKey) && datums.get(datumKey).timestamp.get() >= timestamp && processedCount < beatDatums.size()) {                    continue;                }                if (!(datums.containsKey(datumKey) && datums.get(datumKey).timestamp.get() >= timestamp)) {                    //记录需要同步的datumKey                    batch.add(datumKey);                }                //到达一定数量才进行批量数据同步                if (batch.size() < 50 && processedCount < beatDatums.size()) {                    continue;                }                ...                //使用batch组装参数                String url = buildUrl(remote.ip, API_GET);                Map<String, String> queryParam = new HashMap<>(1);                queryParam.put("keys", URLEncoder.encode(keys, "UTF-8"));                            //发送HTTP请求给Leader，根据keys参数获取Instance详细信息                HttpClient.asyncHttpGet(url, null, queryParam, new Callback<String>() {                    @Override                    public void onReceive(RestResult<String> result) {                        if (!result.ok()) {                            return;                        }                        //序列化result结果                        List<JsonNode> datumList = JacksonUtils.toObj(result.getData(), new TypeReference<List<JsonNode>>() { });                        //遍历Leader返回的Instance详细信息                        for (JsonNode datumJson : datumList) {                            Datum newDatum = null;                            OPERATE_LOCK.lock();                            try {                                ...                                //Raft写本地数据                                raftStore.write(newDatum);                                //同步内存数据                                datums.put(newDatum.key, newDatum);                                //和服务实例注册时的逻辑一样，最终会调用listener.onChange()方法                                notifier.notify(newDatum.key, DataOperation.CHANGE, newDatum.value);                            } catch (Throwable e) {                                Loggers.RAFT.error("[RAFT-BEAT] failed to sync datum from leader, datum: {}", newDatum, e);                            } finally {                                OPERATE_LOCK.unlock();                            }                        }                        ...                        return;                    }                    ...                });                batch.clear();            } catch (Exception e) {                Loggers.RAFT.error("[NACOS-RAFT] failed to handle beat entry, key: {}", datumKey);            }        }        ...    }        ...}
